What's New?
Release 2.9.0
LACP Configuration: Added support for Link Aggregation Control Protocol (LACP) configuration.
Port-Channel as Network ports support: Network ports can now be configured as port-channels for flow processing.
Tunnel Stripping:
ERSPAN tunnel stripping is now supported on NVIDIA SP2 & SP3 platforms.
VXLAN tunnel stripping is now supported across multi-ports and port-channels on NVIDIA SP2 & SP3 platforms.
Receive-Only Support: Implemented receive-only support for EC (#7326, #7726) and Celestica #DS2000 platforms.
VxLAN Encapsulation support on Dell BCM TD3, support up to 50 tunnels for VXLAN encapsulation.
In-band management allows control and data traffic to share the same network interface on a switch
Release 2.8.0
New Platform Integration: Support for Celestica DS2000.
Port Breakout Support: Enables flexible port speed configurations.
GTP Extension Header Support: Enhanced handling of GTP packets with extension headers.
OPBNOS to OPBNOS Image Upgrade: Seamless software upgrades within OPBNOS.
FlowVision Release 4.0: Includes the latest updates, featuring VXLAN tunnel configuration, GTP configuration, VXLAN encapsulation/decapsulation, and several other enhancements to FlowVision for improved network monitoring and performance.
Release 2.7.4
Release 2.7.3
Receive-Only (Rx-Only) support for Edgecore AS7816-64X
Release 2.7.0
New Platform: Dell S5248F-ON & Dell S5232F-ON
Copy command
Release 2.6.0
Unified show running-config
Mellanox SDK Upgrade for Resolving SCTP Traffic Drop Issue
Memory leak fixes for Broadcom Platform
Release 2.5.0
New Platform: EdgeCore AS7816-64X, AS7326-56X and AS7726-32X (Broadcom)
FlowVision Release 2.1
RADIUS Support
FlowVision On-Box support
LAG-Hash algorithm changes for better load-balancing and the ability to change the seed value
Release 2.4.0
Role-Based Access Control(RBAC) for user management
Ingress-Vlan Support support on the Broadcom platform
Added support for SNMPv3
ZTP enhancements
RestAPI Strengthening
TACACS, NTP, Clockzone related issues fixed
Release 2.3.0
New Platform: EdgeCore 7712 (Broadcom)
Front Panel Port mapping to User Interface (CLI)
Ingress VLAN support for BCM Platforms
Transmit-Only (Tx-Only) link support for BCM Platforms
SNMP traps support for Disk Utilization
SNMP Trap control for PSU/FAN
Enhanced Traffic Counters for Port-channel, and Flow
GTP Filtering based on IP version (NVIDIA Only)
CLI Changes and Enhancements:
Ethernet0, Ethernet4..
Ethernet1/1, Ethernet2/1
Interface CLI mapped to Front Panel ports. Example - Interface ethernet Ethernet0 >> Interface ethernet Ethernet1/1
NA
GTP qualifier - Match all inner IP version
New qualifier added to support match all IPv4/IPv6 for inner header. Example - rule 1 permit gtp "match-all-ipv4". rule 2 permit gtp "match-all-ipv6"
show interface counters rate detailed EthernetXXX
show interface counters detailed EthernetX/X
CLI modified to provide more clarity
NA
show interface counters rate
CLI added to show interface counter rate
NA
show port-channel rate <port-channelid>
CLI added to show port-channel rate
NA
show flow counters all rate
CLI added to show traffic rate through a flow
NA
show interface counters discard-details
CLI added to show interface discard counters
NA
{no} ingress-vlan <value>
Ingress-VLAN feature added to Broadcom platforms
NA
{no} transmit-only
Interface transmit-only feature added to Broadcom platforms
NA
{no} snmp-server trap fan-util disable
CLI added to support on/off feature for SNMP trap for FAN
NA
{no} snmp-server trap psu-util disable
CLI added to support on/off feature for SNMP trap for PSU
NA
{no} snmp-server trap disk-util threshold <percentage>
CLI added to support disk related SNMP traps
Release 2.2.0
Note - Features like UDF and Generic header filtering are delivered for NVIDIA Spectrum-2 and Spectrum-3 devices.
Release 2.1.0
Minor Changes in CLI commands as per our unique framework, the OPB-NOS CLI commands are modified. See below the table for keyword changes and commands affected. The CLI command changes do not affect any control or data plane functionality of OPBNOS.
Image upgrade to 2.1.0 from the lower version via OPB-NOS CLI, will have configuration loss related to the “old” keywords. The Suggested recommendation is to upgrade the OPBNOS using ONIE and manually re-configure the device for existing deployments.
attach <ifname>
interface <ifname>
tunnel tun1
attach Ethernet0 >>>> interface Ethernet0
map alias
flow
show map alias >> show flow show map summary >> show flow summary show map counters >> show flow counters map alias <name> >>> flow <name>
hybrid
loopback-mode
hybrid >> loopback-mode no hybrid >> no loopback-mode
port-group
port-channel
show port-group information >> show port-channel information show port-group rate >> show port-channel rate port-group 1 ports <ports> >> port-channel 1 ports <ports>
from
network-ports
from <ports> >> network-ports <ports>
to
tool-ports
to <ports> >> tool-ports <ports>
tunnel alias <tun-id>
tunnel <tunl-id>
tunnel alias >> tunnel
show vxlan tunnel alias >> show vxlan tunnel
sFLOW
sFlow is a multi-vendor, packet sampling technology used to monitor network devices
platforms
NVIDIA SN2010, NVIDIA SN2100,
NVIDIA SN4700
Known Issue:
PBNOS-440
Additional match qualifiers for IPv6 rules
PBNOS-412
All interface status(down/up) should be the same when FEC is set as none
PBNOS-354
Unable to quit CLI from telnet/ssh with exit or quit commands
PBNOS-350
CLI auto-completion not working while configuring flow interfaces
PBNOS-348
CLI: “show platform” LED status has some inconsistencies on the NVIDIA platform driver
Release 2.0.0
1.SNMP multi-server support for traps
2. SNMP authFailure Trap support (generate traps on SNMP community string mis-match)
3. SNMP trap for FAN and PSU status
4. SNMP trap for CPU and memory utilization using mteTriggers
5. Licensing commands
6. Show interface counters rate
7. Show interface breakout
8. Show port-channel rate
9. GTP
10. TimeZone Support
11. VxLAN [Encap/Decap]
Known Issue:
PBNOS-203
Show an error message while creating multiple maps using the same from and To ports in the UI
PBNOS-123
Delete a map through CLI->modifications not reflected in UI
Release 1.3.1
Added support for the below features,
a. Hostname configuration
b. SYSLOG severity
c. LLDP receive/transmit configuration
d. shutdown/no shutdown for the management interface
e. Show platform enhancements for "fan, temperature, psustatus, pcieinfo"
2. IPv6 match all support for flow rules
3. Generate hardware dump for NVIDIA devices
4. REST API support for CPU/Memory utilization and SYSLOG export
5. SNMP trap support for link up/down events and entConfigChange.
6. Enabled Symmetric hashing.
Release 1.2.0

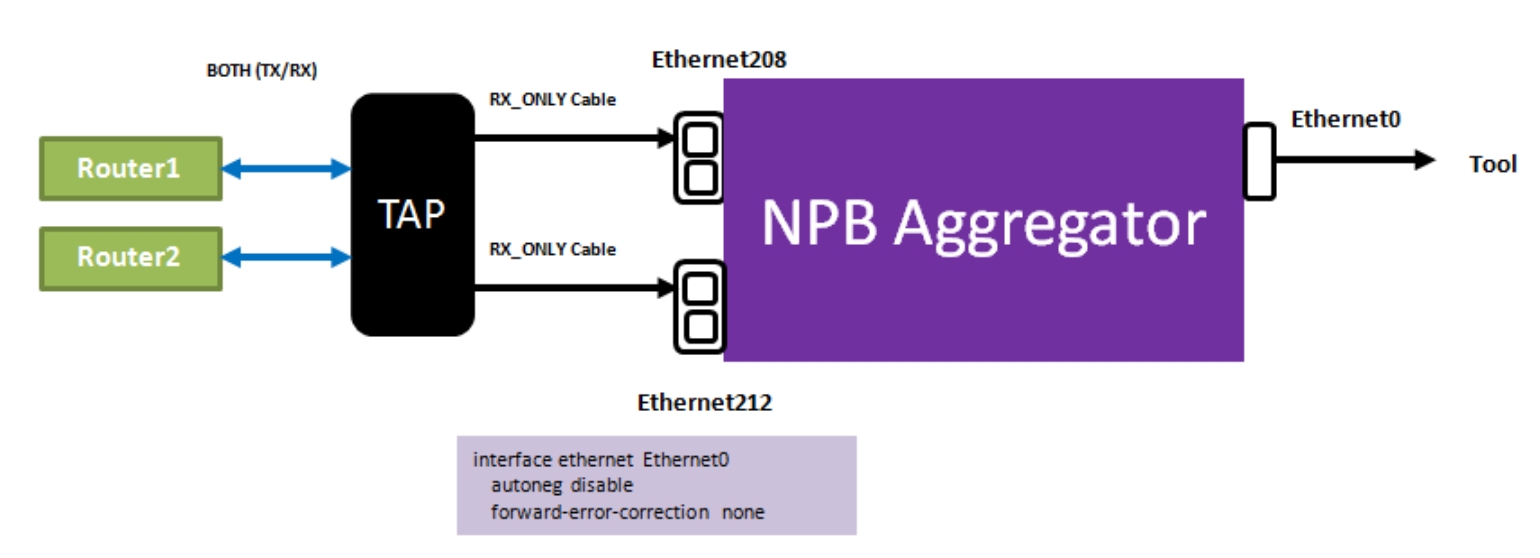

RX only support

Known Issue:
PBNOS-5
IPv6 rules are not working intermittently with the new SDK upgrade
Release 1.0.0
