Configuring Push/Pop VLAN

PreviousConfiguring Flow UDF RulesNextConfiguring Flow Override Action(s)

Was this helpful?

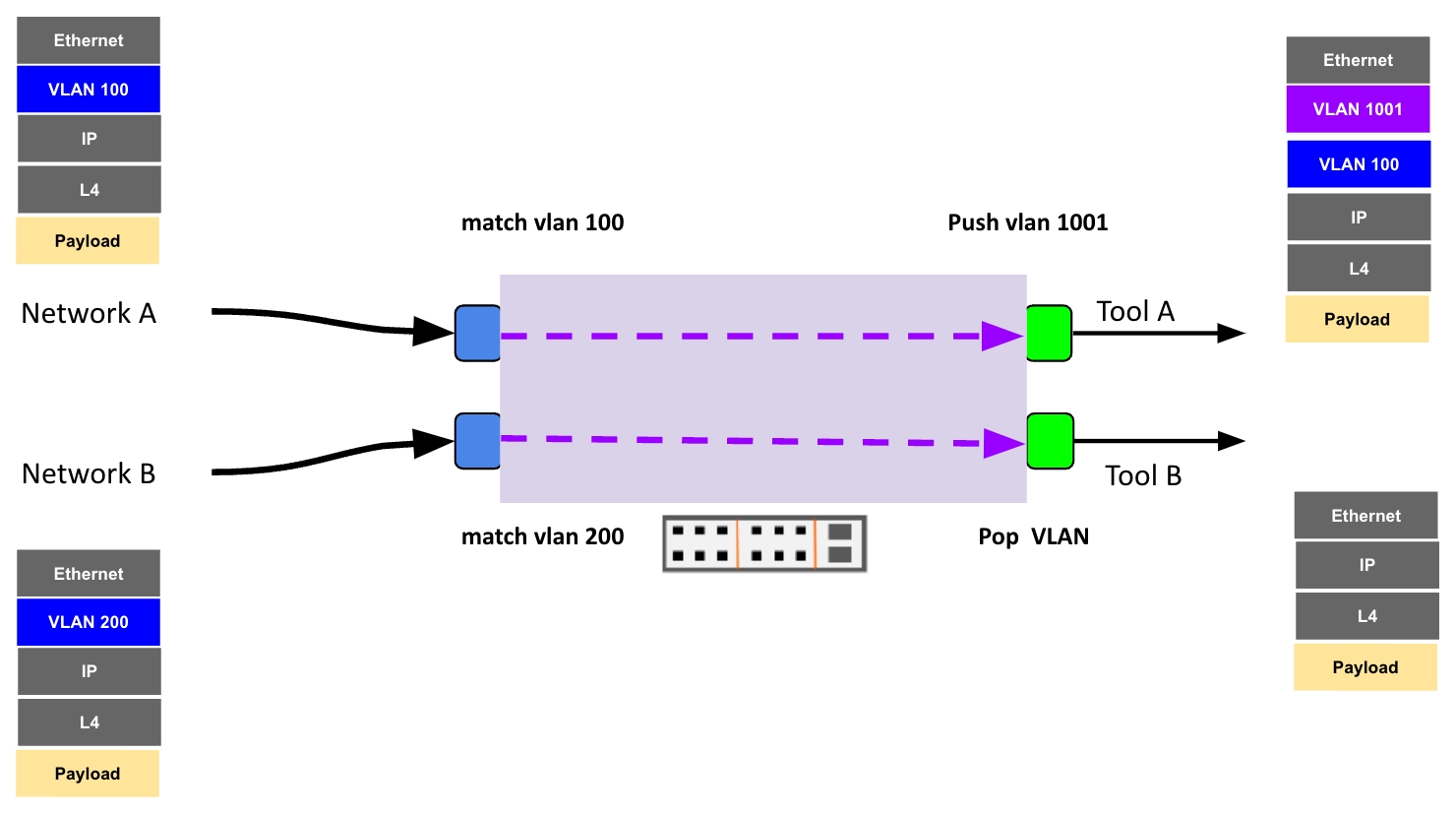

VLAN aware mode provides OPB administrators with the ability to match and modify packets in the flow before forwarding them to the tool port(s).

You can configure the OPBNOS to modify the flow as below:

  • Push VLAN - Push a new VLAN Tag onto the egress traffic.

  • Pop VLAN - Pop(remove) the VLAN Tag from the egress traffic.

This feature is only supported on the NVIDIA platforms

Reference

Command

push-vlan-tag <vid>

Description

push VLAN to traffic matching the rules configured in the map

Parameters

vlanid—within 1 to 4094

Mode

flow

Example

pbnoscli# configure terminal
pbnoscli(config)# flow flow01
pbnoscli(config-flow-flow01)# push-vlan-tag
  <pushvlanid>          Add VLAN tag (1...4094)
pbnoscli(config-flow-flow01)# push-vlan-tag 1002
pbnoscli(config-flow-flow01)#

//to remove push tag
pbnoscli(config-flow-flow01)# no push-vlan-tag
pbnoscli(config-flow-flow01)#

You can verify the configuration by using the command(s) below:

pbnoscli# show flow flow01

===================================
Flow : flow01 (CLI)
===================================
Status       : enable
Network-Port : Ethernet1/1,Ethernet2/1
Tool-Port    : Ethernet8/1
Push vlan     : enable
pbnoscli#
pbnoscli# show running-config
configure terminal
!
interface ethernet Ethernet1/1
forward-error-correction rs
type network
!
interface ethernet Ethernet2/1
forward-error-correction rs
type network
!
interface ethernet Ethernet8/1
forward-error-correction rs
type tool
!
interface mgmt
ip address 10.4.4.53/23 gateway 10.4.4.1
!
flow flow01
network-ports Ethernet1/1,Ethernet2/1
tool-ports Ethernet8/1
push-vlan-tag 1002
!
pbnoscli#

Reference

Command

pop-vlan

Description

pop Vlan Tag from ingress packets received

Parameters

disable/enable

Mode

flow

Example

pbnoscli# configure terminal
pbnoscli(config)# flow flow01
pbnoscli(config-flow-flow01)# pop-vlan
  disable               Disable Vlan stripping
  enable                Enable Vlan stripping
pbnoscli(config-flow-flow01)# pop-vlan enable
pbnoscli(config-flow-flow01)#

//to disable pop-vlan
pbnoscli(config-flow-flow01)# pop-vlan disable
pbnoscli(config-flow-flow01)#

You can verify the configuration by using the command(s) below:

pbnoscli# show flow flow01

===================================
Flow : flow01 (CLI)
===================================
Status       : enable
Network-Port : Ethernet1/1,Ethernet2/1
Tool-Port    : Ethernet8/1
Pop vlan     : enable
pbnoscli#
pbnoscli# show running-config
configure terminal
!
interface ethernet Ethernet1/1
forward-error-correction rs
type network
!
interface ethernet Ethernet2/1
forward-error-correction rs
type network
!
interface ethernet Ethernet8/1
forward-error-correction rs
type tool
!
interface mgmt
ip address 10.4.4.53/23 gateway 10.4.4.1
!
flow flow01
network-ports Ethernet1/1,Ethernet4/1
tool-ports Ethernet8/1
pop-vlan enable
!
pbnoscli#
