Managing Devices

To manage connected nodes from the FlowVision GUI, click System > Devices.

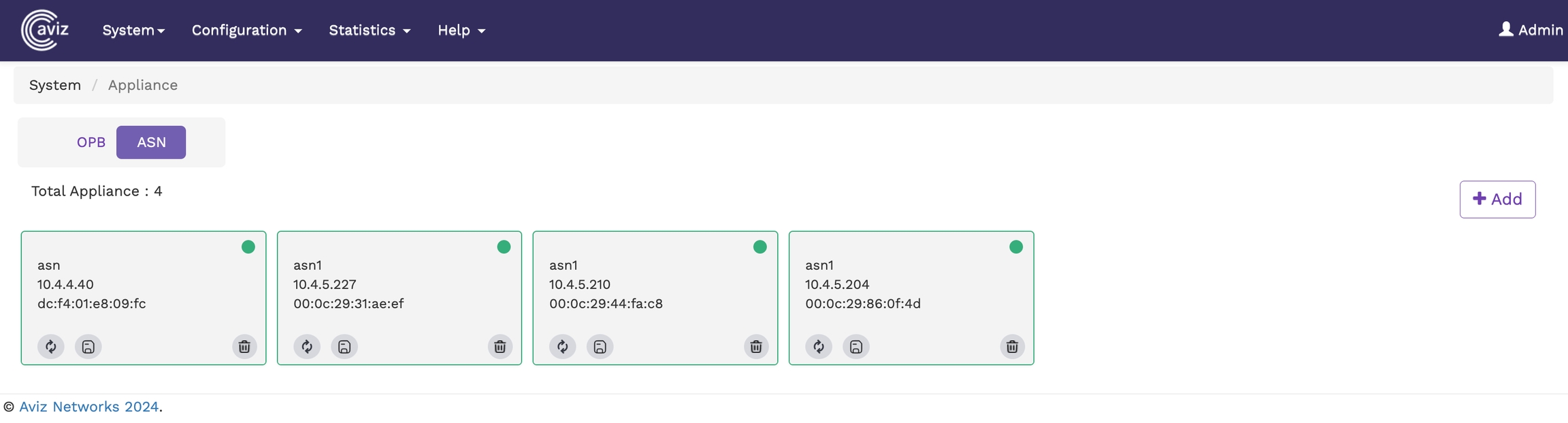

FlowVision Devices

The Devices screen shows all the connected nodes and their connection status. The nodes that are online are shown with a green status and the nodes that are offline are shown in a red status.

You can click the icon to reboot an active ASN appliance, restart the ASN application, or remove the ASN database configuration, as shown below.

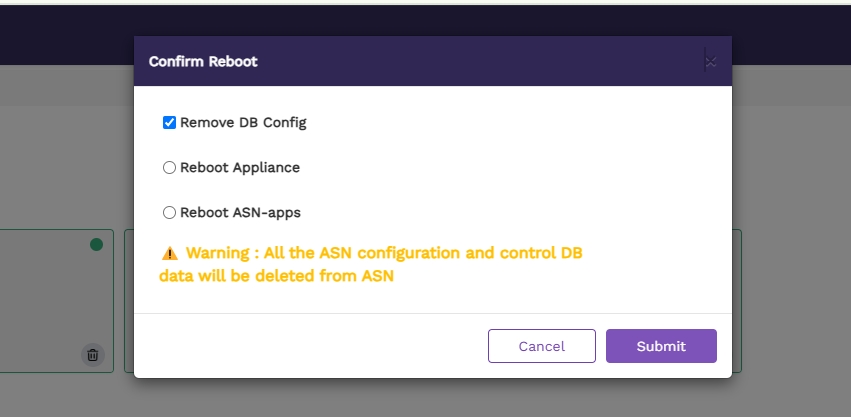

ASN Reboot page

• To delete a device, click the icon.

• ASN configurations are automatically saved to the database at regular intervals; however, you can use the icon to save the configuration explicitly.

The following image shows the Nodes page:

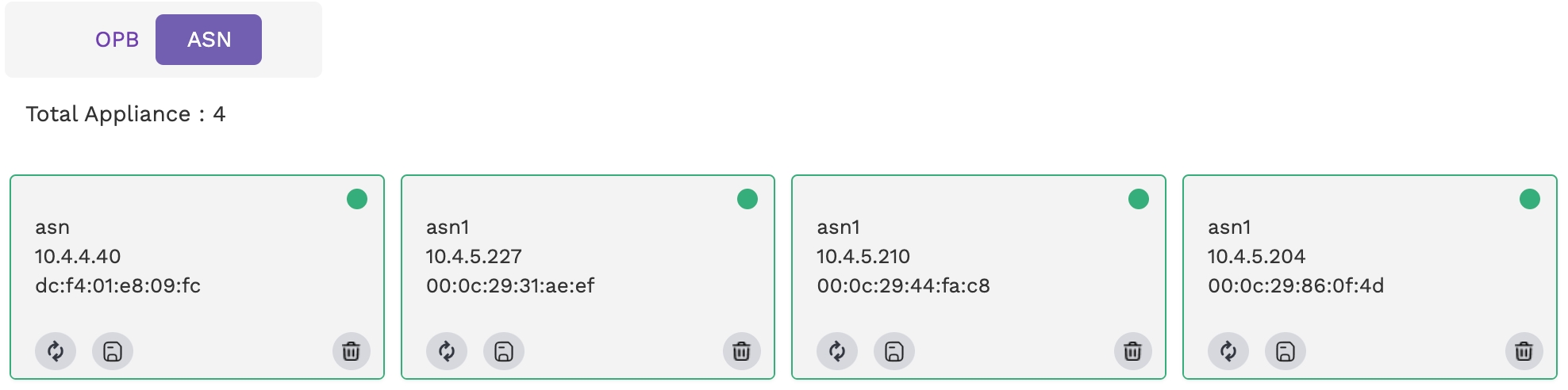

Devices screen showing connected devices

Adding New Devices

To add a new device,

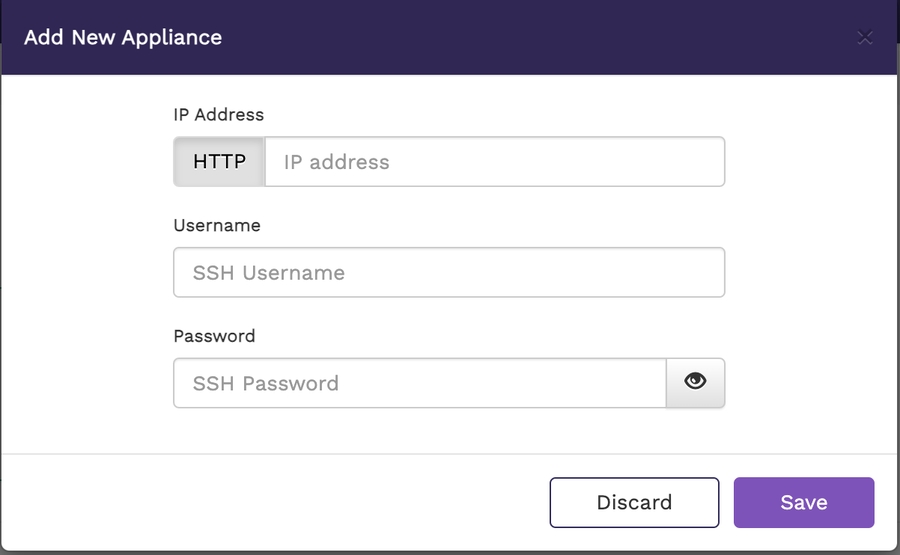

1. Click the icon at the top right corner of the Devices page. The Add New Device window displays.

   • Default Credentials:

     • Username: admin

     • Password: admin

2. Specify the values for IP Address, Username, and Password in their respective fields.

3. Click Save to apply your changes and add the device. Click Discard to discard your changes.
