Accessing System and Device Information

To access the system and device information, click System > General.

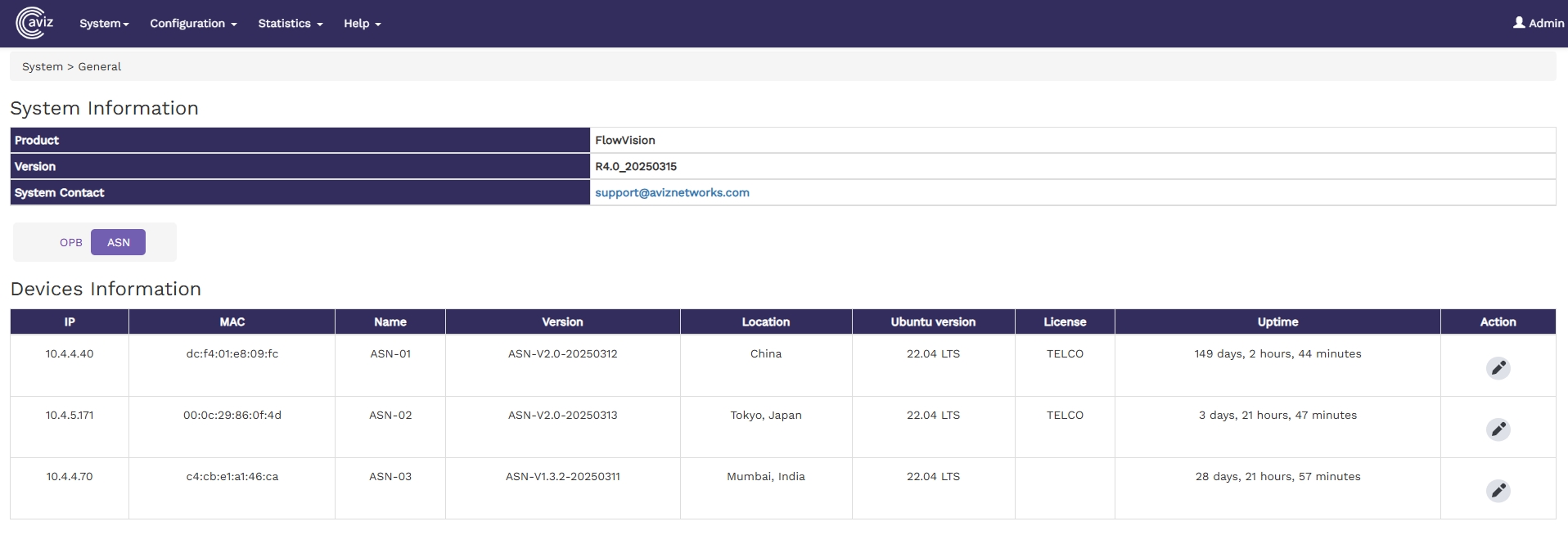

FlowVision Geneal Page

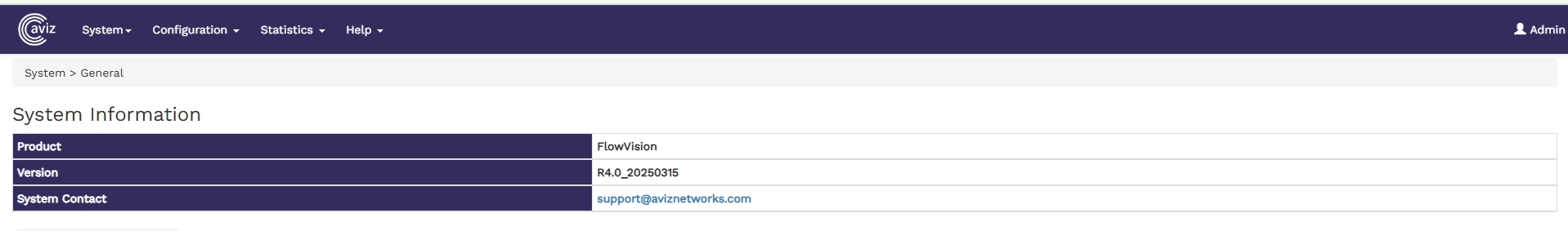

System Information

The system information table shows you the product name, version, and technical support information about the system.

The following image shows you the system information tab:

Table displaying system information

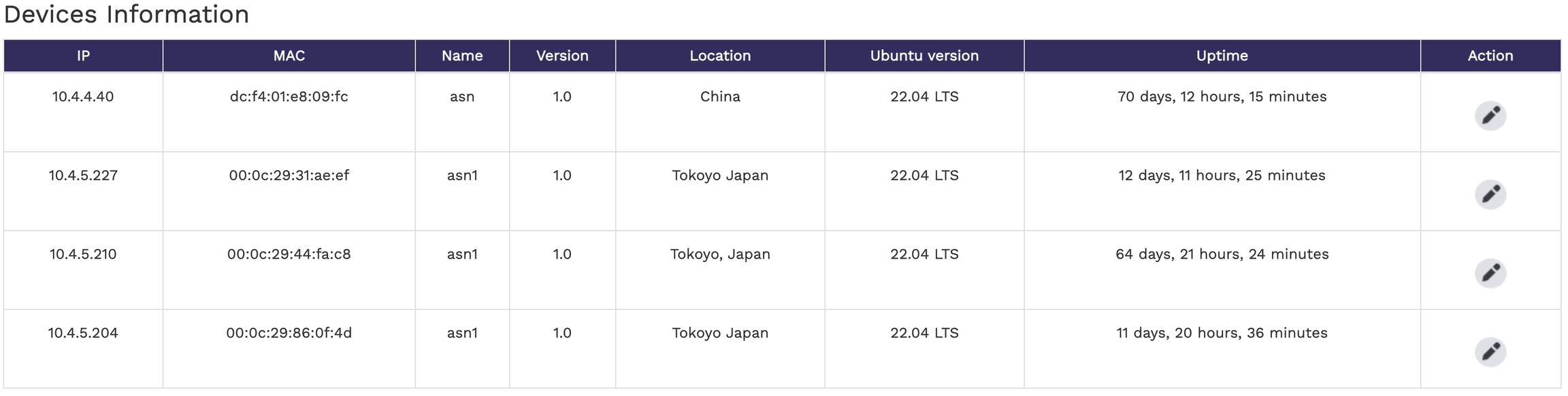

Devices Information

The Devices Information table shows detailed information and properties of each connected ASN node. For each ASN node, the table shows the IP address, the MAC address, the Name of the device, the Version, the location, the Ubuntu version of the service, uptime, and the options to edit them.

Table displaying devices information

Editing Device Properties

You can edit device properties from the Devices Information table:

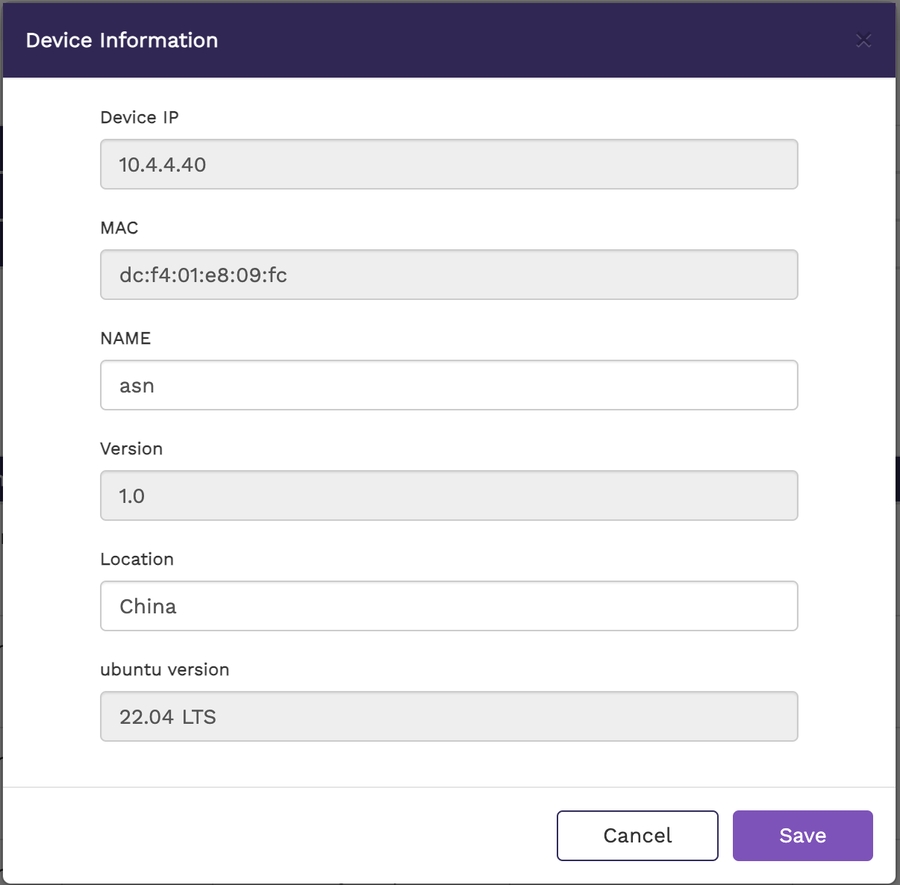

1. Click the Edit button corresponding to the required node on the Devices Information table. The Device Properties window displays.
2. Change the required node property value in the editable fields. Currently, you can edit the Name and Location.

3. Click Save to apply your changes.
