  1. Aviz Service Node Graphical User Interface Guide
  2. Configuration

Configuring Global Parameters

PreviousKafka Export AttributesNextConfiguring Systems Parameters

Last updated 2 months ago

To view and configure ASN global parameters from the FlowVision GUI, navigate to:

Configuration > Global.

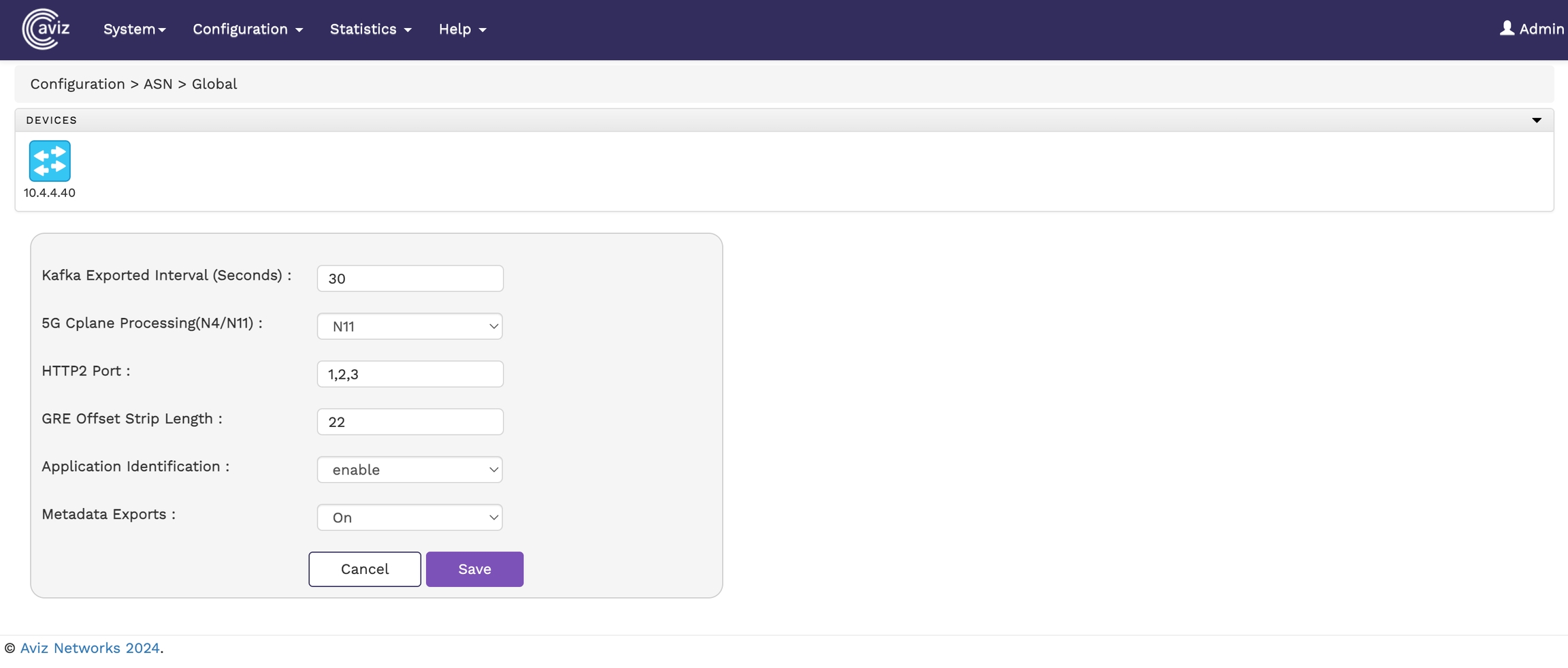

The following image illustrates the ASN Global page:

Configure Global Parameters

Select a Node to configure the below parameters:

  • Kafka Export Interval (seconds): Sets the interval for exporting data to Kafka, configurable between 5 to 300 seconds.

  • 5G Cplane Processing (N4/N11): Choose between N4 or N11 for processing 5G control plane traffic.

  • HTTP2 Port: Define multiple HTTP2 ports, separated by commas (,).

  • GRE Offset Strip Length: Specifies the length of the GRE header to strip from ingress packets.

  • Application Identification: Enable or disable application identification.

  • Metadata Export: Enable or disable data export to Kafka.

Global Config Page
