Configuring Packet Capture

The Packet Capture feature allows users to capture network traffic on selected interfaces for analysis. It provides configurable options to define capture duration, file size limits, & interface.

Accessing Packet Capture

1. Navigate to Configuration > ASN > Packet Capture.

2. Select the device for which you want to capture packets.

3. Configure the capture settings as needed.

Packet Capture Options

• Capture Duration (ms): Specifies the duration in milliseconds for which packet capture will run. The value can range from 1 to 10,000 ms..

• Capture File Size Limit (MB): Defines the maximum file size for the captured packets before it stops capturing. The value can range from 1 to 1,000 MB.

• Capture Interface Config: Allows selecting the interfaces (ports) from which packets will be captured, supporting both received (RX) and transmitted (TX) traffic.

  • RX/TX File Name: Defines the filenames for received (RX) and transmitted (TX) packets.

• Clean Up Old PCAP File: When enabled, previously stored PCAP files will be deleted before capturing new data.

Starting Packet Capture

1. Configure the desired settings.

2. Click the Start Packet Capture button to begin capturing network traffic.

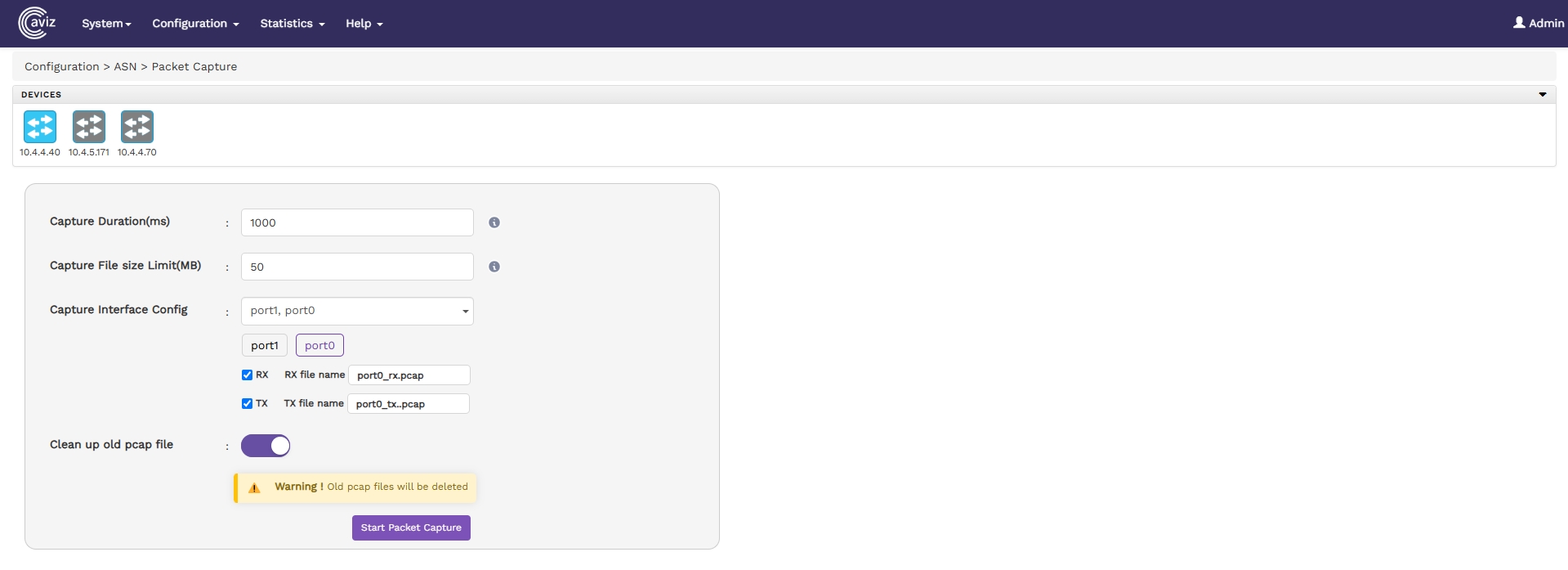

Below image show the Packet Deduplication for Full Packet

Packet Capture

• Packet capture will stop on all configured ports if the cumulative file size or capture duration limit is reached on any port.

• Captured PCAP files are stored in the ASN server at /var/log/ and can be transferred using the Linux SCP command.
