  1. Getting Started
  2. FlowVision Controller Installation

FV VirtualBox Installation

PreviousFV ESXi Host InstallationNextASN Package Installation

Pre-Requisite:

  • A Windows machine/VM with the below minimum requirement:

    • 2 vCores (available for FlowVision VM)

    • 8 GB RAM

    • 40 GB HDD

  • Download Oracle VM virtual box from the below link

  • Install Oracle VM Virtual box

Importing OVA:

  • Import the OVA file in Oracle VM virtual box

  • Click the start button to power-on the virtual machine

  • Log in to the FlowVision VM with default credentials

    • Username: aviz

    • Password: Aviz@123

  • Get the IP address of the VM through ip address show

  • Access the GUI through the above IP using your favourite browser with http port: 8093

    • https://<VM_IP>:8093/

  • Login to the GUI with the default credentials

    • Username: admin

    • Password: admin

Login Screen
Downloads – Oracle VM VirtualBox
VirtualBox Installation Guide

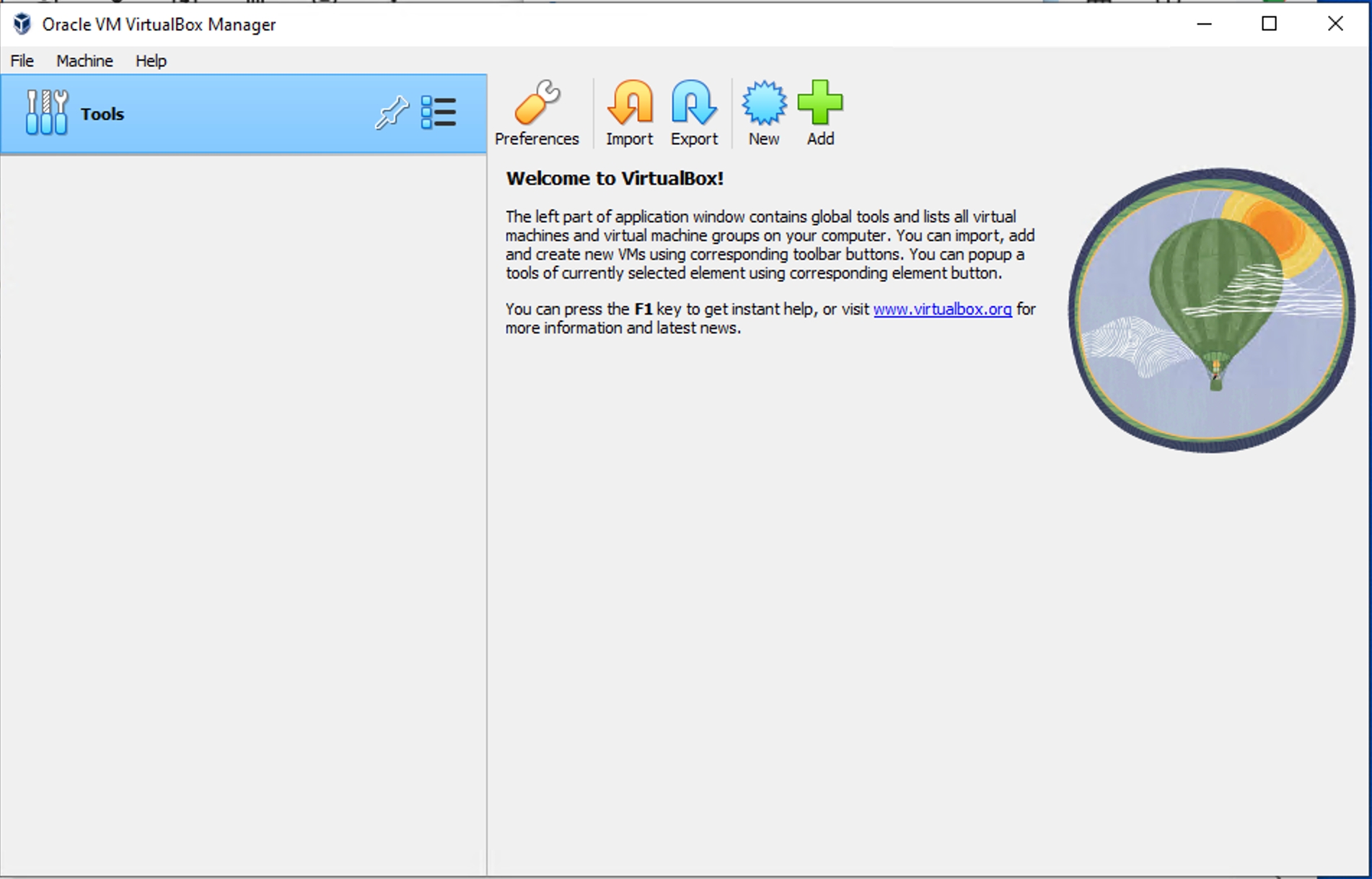

VirtualBox Main Windows for Importing OVA

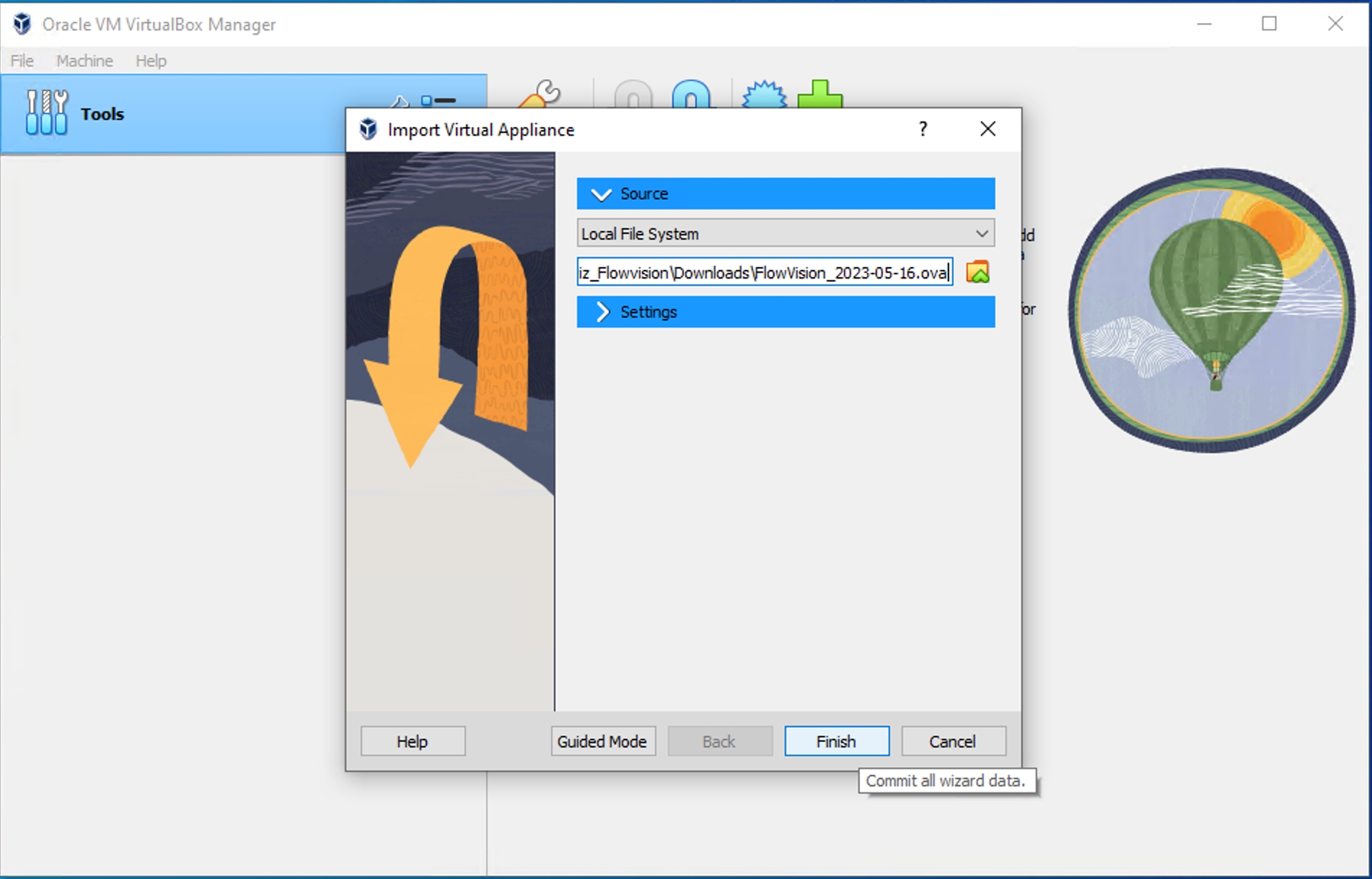

Select the FlowVision OVA

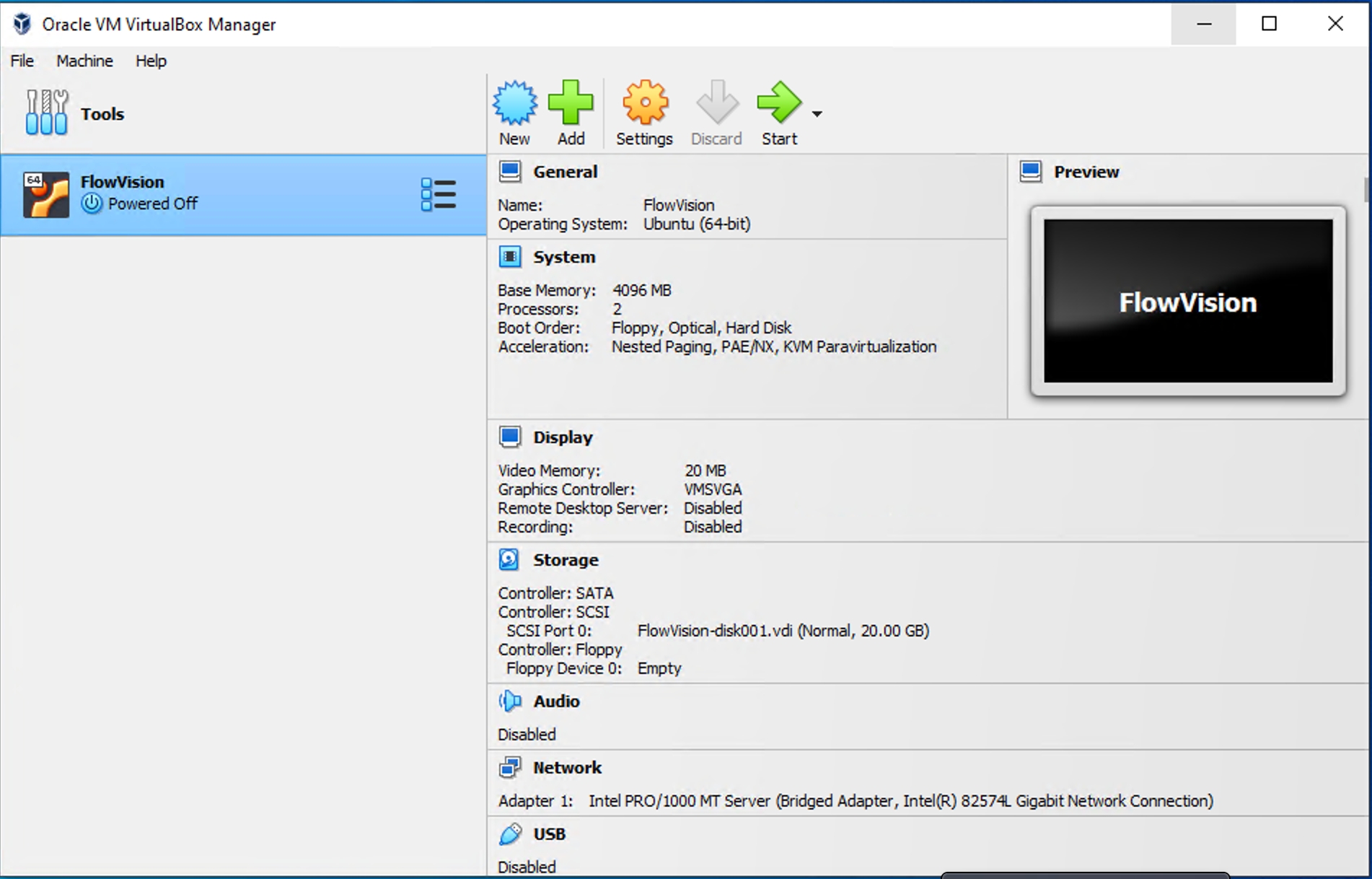

FlowVision VM
Starting the FlowVision VM

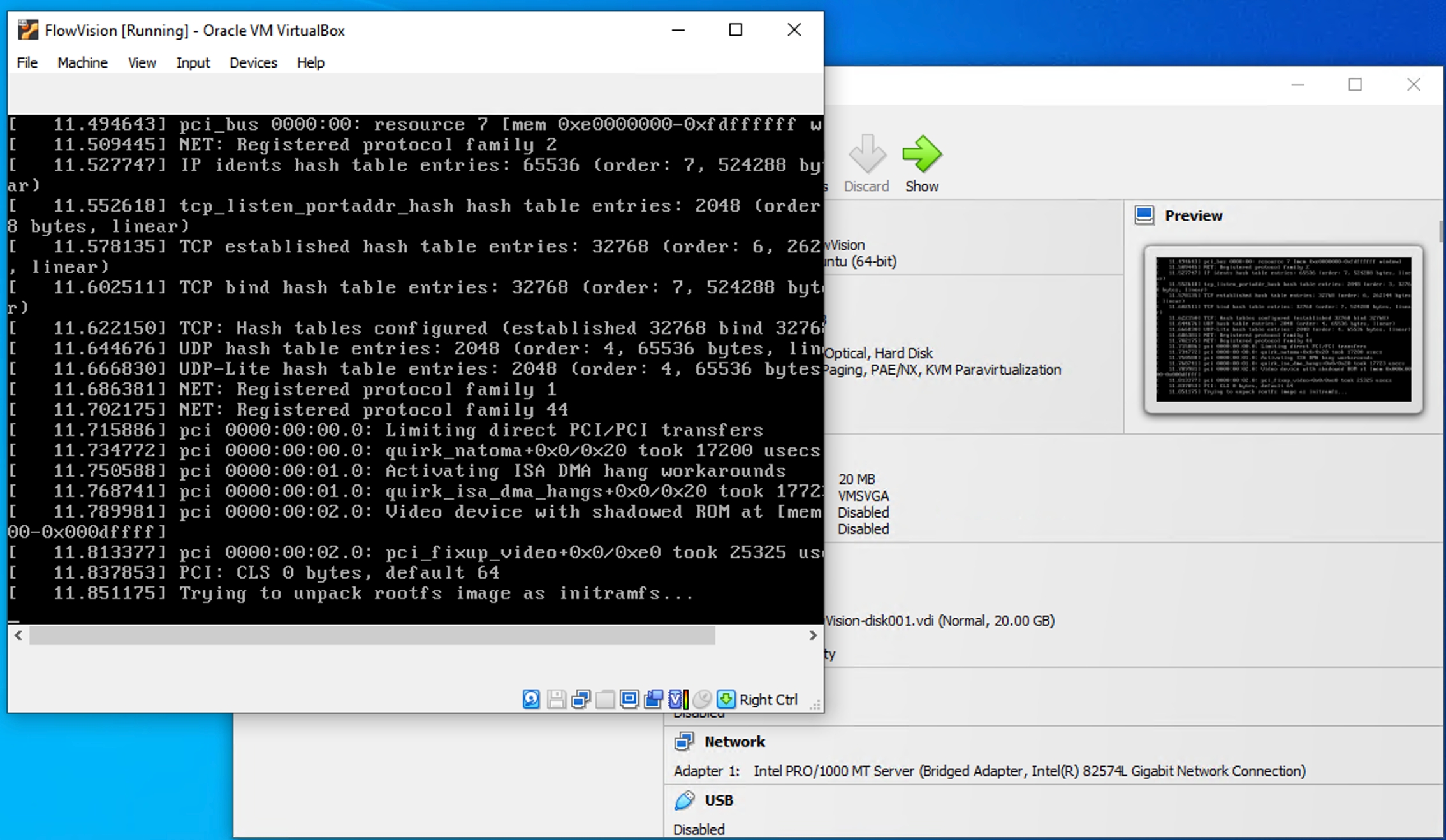

FlowVision boot logs

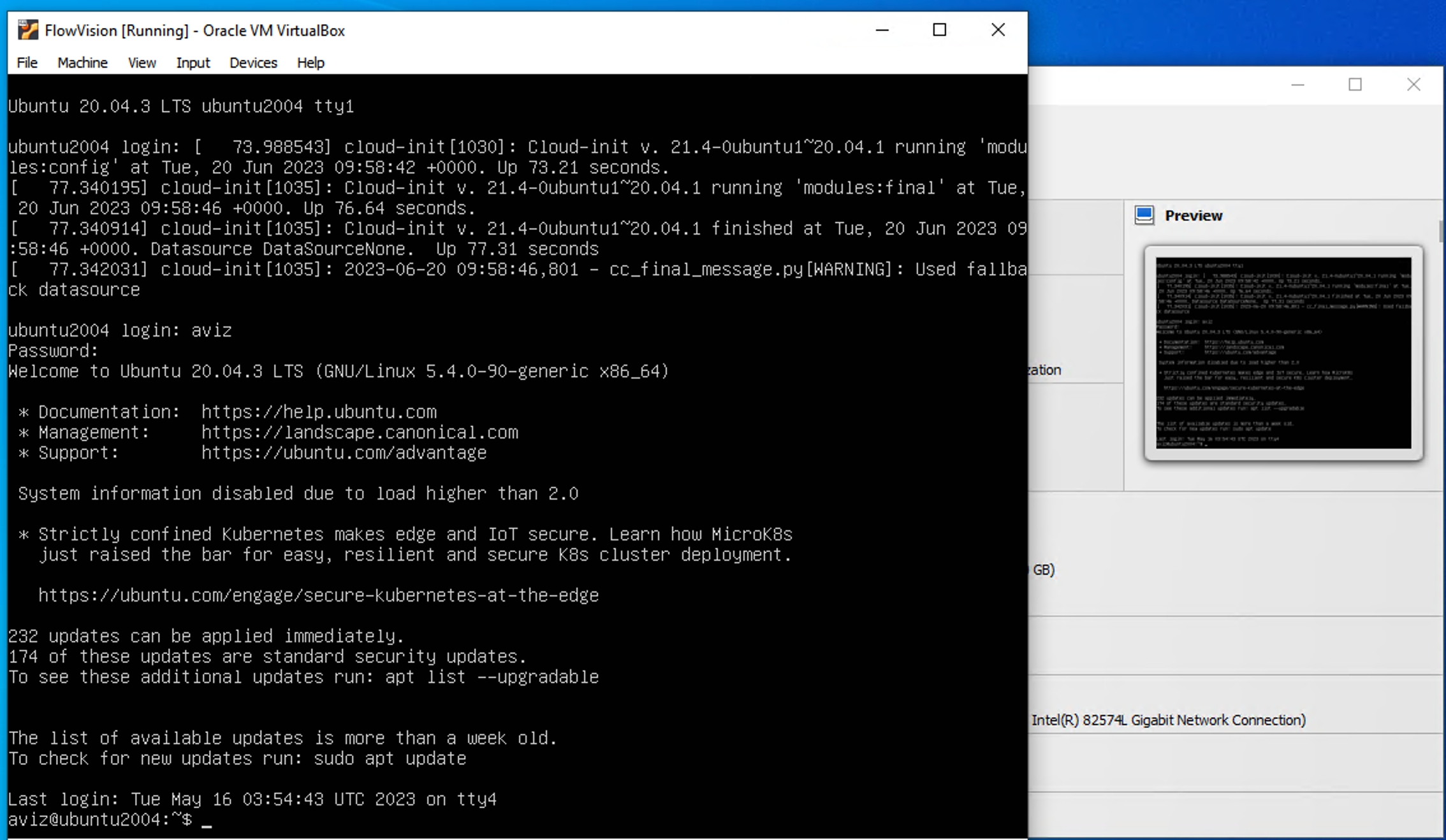

FLowVision CLI

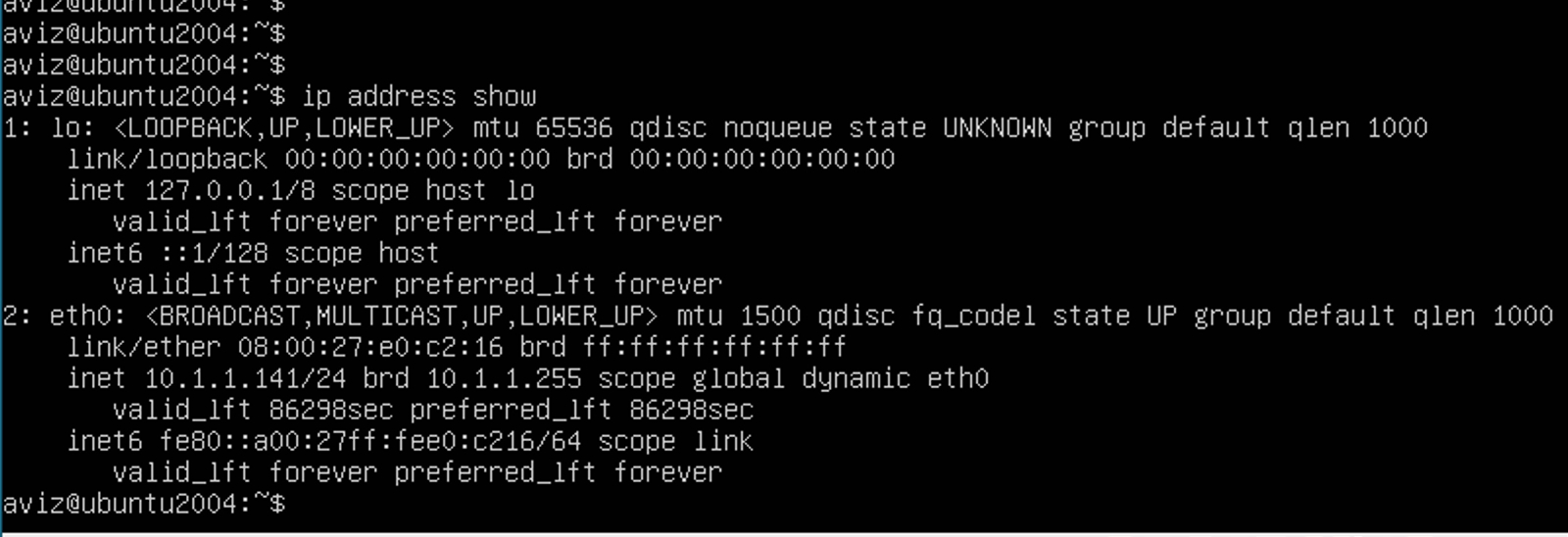

Check IP address

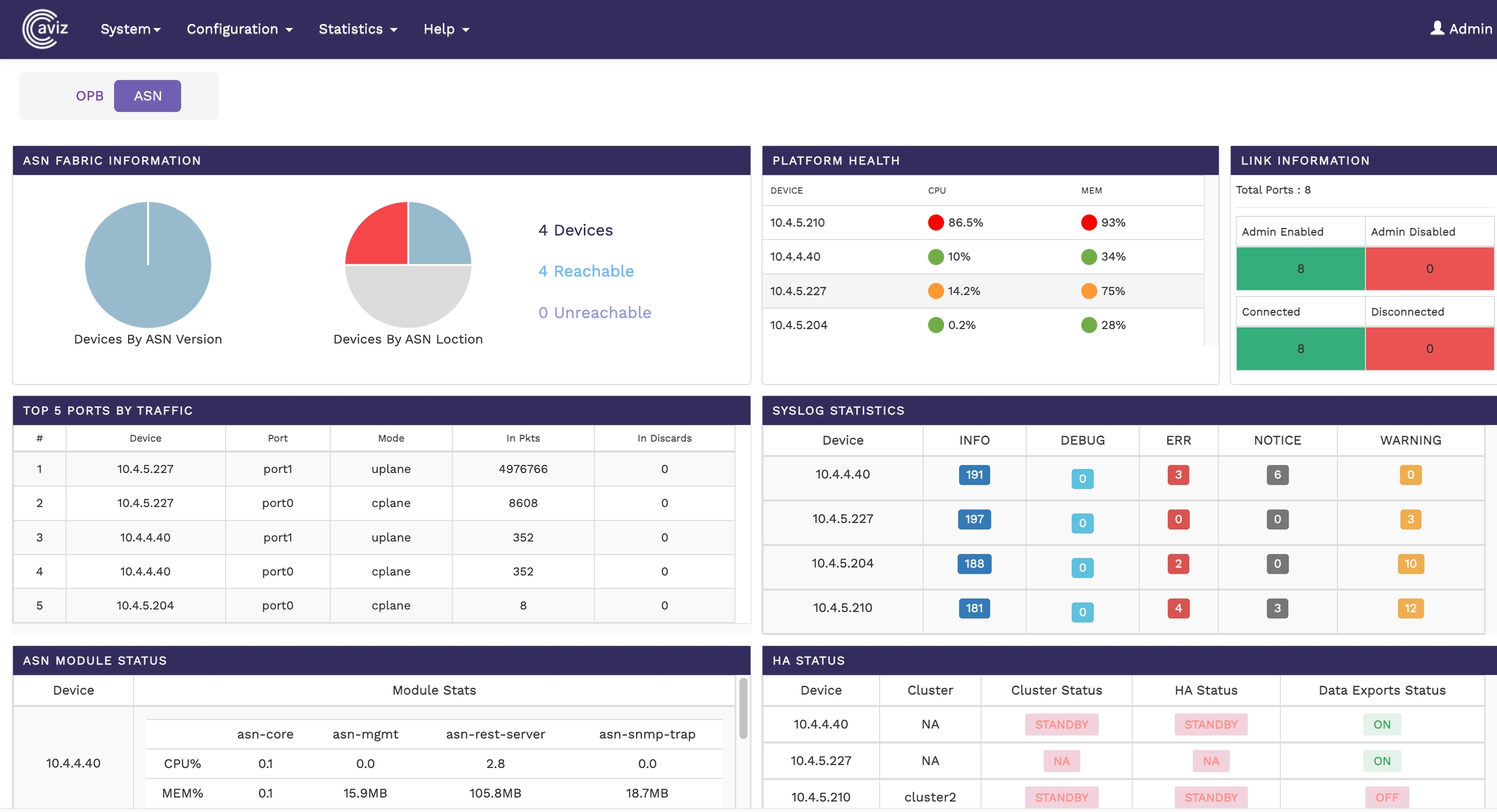

FlowVision ASN-GUI
