Troubleshooting

If the UI is not accessible,

Check the docker status

Check that Arkime and ES docker are running and the status is ‘UP’ if any of the dockers is not visible. Try running the ‘start.sh’ with the correct permissions, if the issue is not resolved try contacting support

aviz@npbsrv01:~/OPB_Arkime/OPB_Analyzer$ sudo docker ps

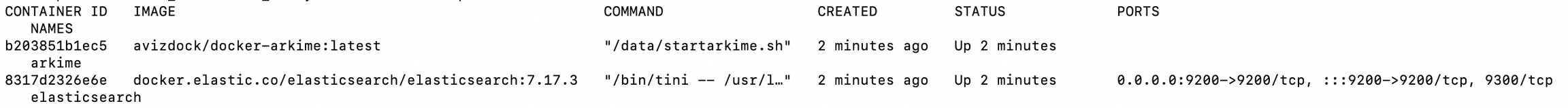

output of 'sudo dokcer ps'

Check that Elasticsearch is running and the status is ‘green’

aviz@npbsrv01:~/OPB_Arkime/OPB_Analyzer$ curl http://localhost:9200/_cat/health
1671295994 16:53:14 es-docker-cluster green 1 1 21 21 0 0 0 0 - 100.0%
aviz@npbsrv01:~/OPB_Arkime/OPB_Analyzer$

Try restarting the dockers

when Arkime is unable to connect correctly with Elasticsearch the Arkime UI may not be reachable

aviz@npbsrv01:~/OPB_Arkime/OPB_Analyzer$ sudo docker restart arkime
aviz@npbsrv01:~/OPB_Arkime/OPB_Analyzer$ sudo docker restart elasticsearch

Check that UI is reachable by visiting http://arkime-hostname:8005 from your browser

If ES keeps restarting after a system reboot

sysctl -w vm.max_map_count=262144

Add the vm.max_map_count setting to a sysctl configuration file to make the change persistent across reboots:

1. Open the sysctl configuration file /etc/sysctl.conf using a text editor with root privileges: bash

sudo nano /etc/sysctl.conf

1. Add the following line to the end of the file:

vm.max_map_count=262144

Save and close the file

1. To apply the changes, either reboot your system or run the following command to reload the sysctl settings:

sudo sysctl -p

Changing ES port

If port 9002 is used by another service running on the server, it can be changed in the ‘start.sh’ script before execution

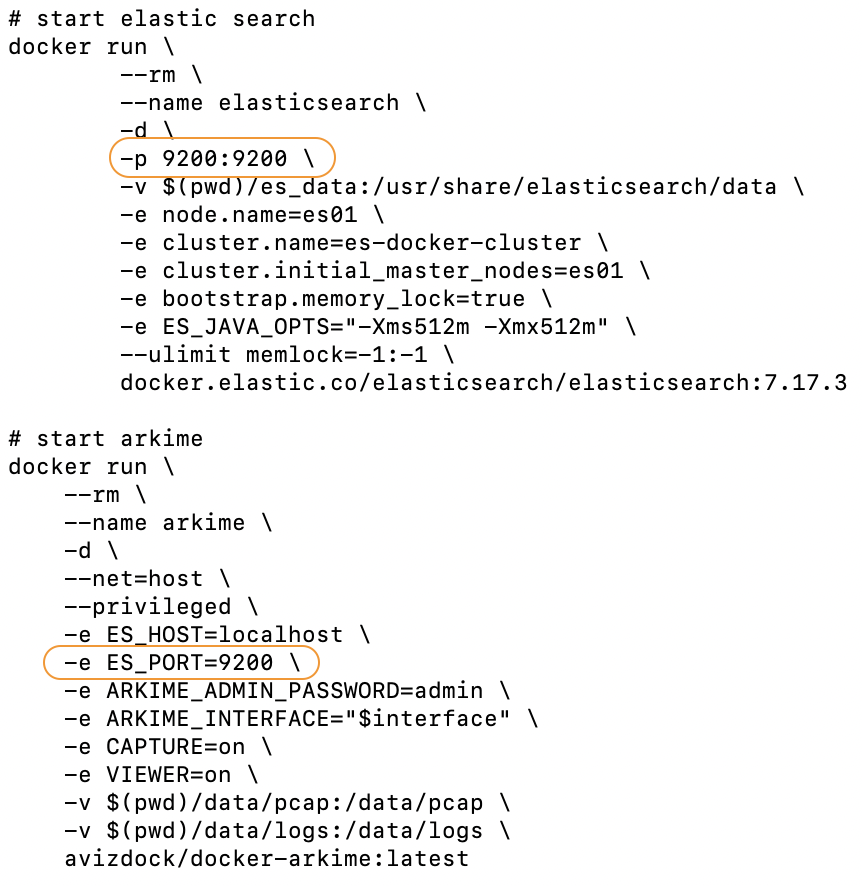

Changing ES ports

Port format: “Global port:Local port”

Using your favourite text editor, change the ‘Global ports’ to any available and accessible port, also update the same port in the ‘ES_PORT’ attribute.

Changing Arkime Password

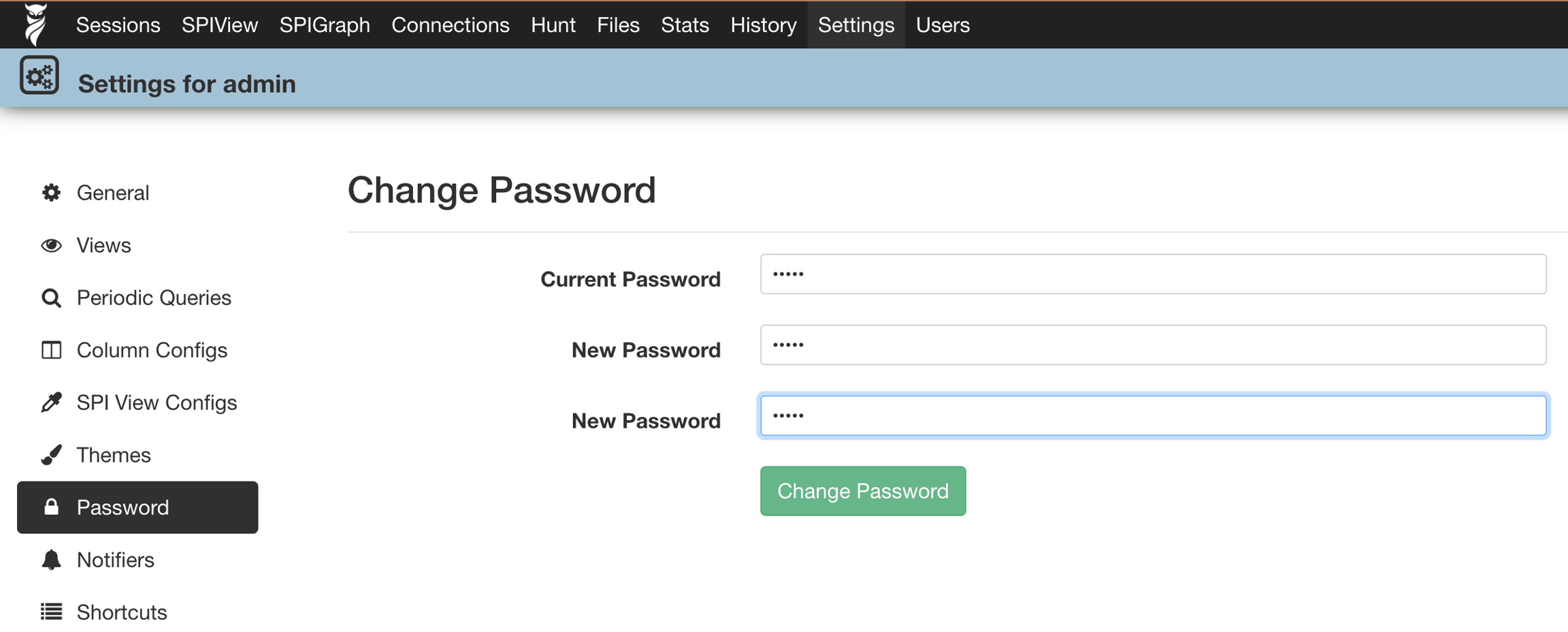

Log in to the Web GUI and navigate to User> admin_user ⚙️>Password, enter ‘admin’ as the current password and set a new password for the admin user.

Changing password of Arkime GUI

Changing Kibana Port

If port 5601 is used by another service running on the server, it can be changed in the ‘start.sh’ script before execution

also if the ES port was changed, the same can be edited here with the ES node IP.

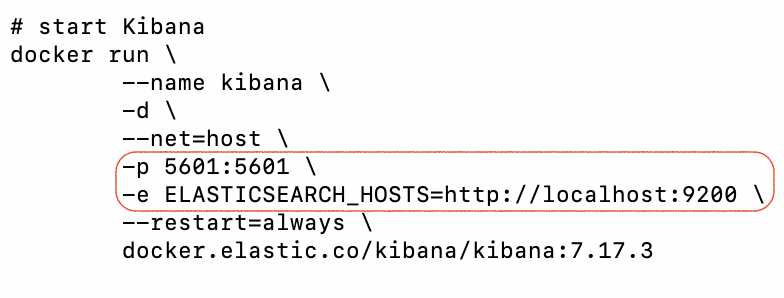

Kibana Port

Stopping Arkime & EC

Execute the ‘stop.sh’ script to stop & delete Arkime and EC docker containers, the script will not delete the data & es_data folder and the stored PCAPs.

aviz@npbsrv01:~/OPB_Arkime/OPB_Analyzer$ sudo ./stop.sh
[sudo] password for aviz:
arkime
elasticsearch
aviz@npbsrv01:~/OPB_Arkime/OPB_Analyzer$

Stopping Kibana

Execute the ‘stop.sh’ script to stop & delete Kibana docker containers

aviz@npbsrv01:~/OPB_Arkime/OPB_Kibana$ sudo ./stop.sh
[sudo] password for aviz:
Stopping Kibana...
kibana
kibana
aviz@npbsrv01:~/OPB_Arkime/OPB_Kibana$
