  1. Test Cases
  2. Scalability

Layer 3

Description
Test Case ID
PD

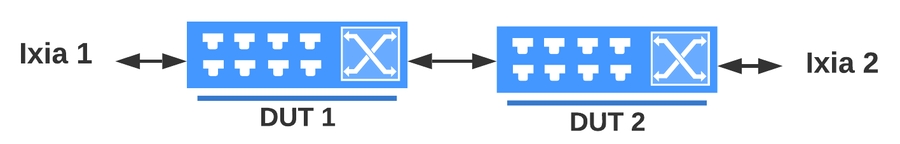

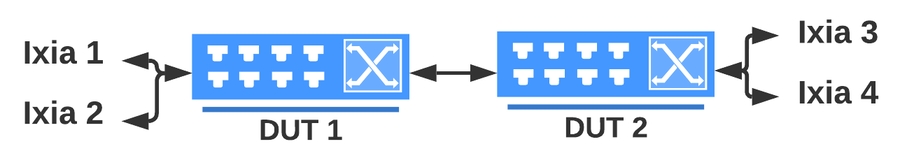

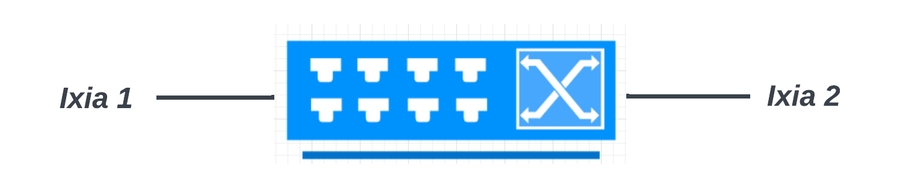

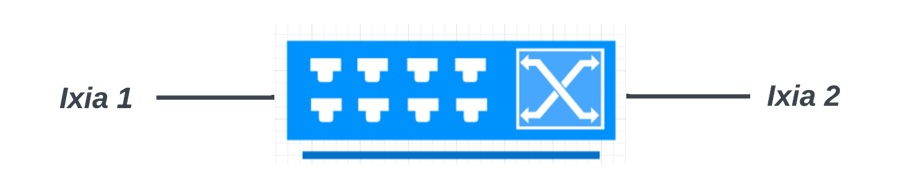

Topology

Scale up to 128 ACL for matching source IP/port and destination IP/port

test_v4_acl_scale_128

Yes

Scale up to 256 ACL for matching source IP/port and destination IP/port

test_v4_acl_scale_256

Yes

Scale up to 512 ACL for matching source IP/port and destination IP/port

test_v4_acl_scale_512

Yes

Scale up to max supported ACL for matching source IP/port and destination IP/port

test_v4_acl_scale_max_supported

Yes

Scale up to 128 ACL for denying source IPv6/port and destination IPv6/port

test_qual_v6_acl_scale_128

Yes

Scale up to 256 ACL for denying source IPv6/port and destination IPv6/port

test_qual_v6_acl_scale_256

Yes

Scale up to 512 ACL for denying source IPv6/port and destination IPv6/port

test_qual_v6_acl_scale_512

Yes

Scale up to max supported ACL for denying source IPv6/port and destination IPv6/port

test_qual_v6_acl_scale_max_supported

Yes

Verify IPv4 L3 Host Routes Scale for 2K

test_v4_host_routes_scale_2k

Yes

Verify IPv4 L3 Host Routes Scale for 4K

test_v4_host_routes_scale_4k

Yes

Verify IPv4 L3 Host Routes Scale for max

test_v4_host_routes_scale_max_supported

Yes

Verify IPv6 L3 Host Routes Scale for 2K

test_v6_host_routes_scale_2k

Yes

IPv6 host routes scale to 2K routes (iBGP)

test_v6_host_routes_scale_ibgp_2k

Yes

Verify IPv6 L3 Host Routes Scale for 4k

test_v6_host_routes_scale_4k

Yes

IPv6 host routes scale to 4K routes (iBGP)

test_v6_host_routes_scale_ibgp_4k

Yes

Verify IPv6 L3 Host Routes Scale for MAX support

test_v6_host_routes_scale_max_supported

Yes

IPv6 host routes scale to 32K routes (iBGP)

test_v6_host_routes_scale_ibgp_32k

Yes

IPv6 host routes scale to 32K routes

test_v6_host_routes_scale_32k

Yes

Verify IPv4 L3 prefix Routes scale for 2k

test_v4_prefix_routes_scale_2k

Yes

Verify IPv4 L3 prefix Routes scale for 4k

test_v4_prefix_routes_scale_4k

Yes

Verify IPv4 L3 prefix Routes scale for MAX SUPPORT

test_v4_prefix_routes_scale_max_supported

Yes

Verify IPv6 L3 prefix routes scale

test_qual_scale_005

Yes

Verify IPv4 Nexthops scale up to 512

test_v4_nexthops_scale_512

Yes

Verify IPv4 Nexthops scale up to 1024

test_v4_nexthops_scale_1024

Yes

Verify IPv4 Nexthops scale max supported

test_v4_nexthops_scale_max_supported

Yes

Verify IPv6 Nexthops scale

test_qual_scale_007

Yes

Scalability to 16 ECMP paths and 32K routes

test_16ecmp_32k_routes

Yes

Scalability to 32 ECMP paths and 64K routes

test_32ecmp_64k_routes

Yes

Scalability to 64 ECMP paths and 128K routes

test_64ecmp_128k_routes

Yes

Scalability to "number of leaf1 ports" ECMP paths and 1K routes per path

test_ecmp_scale_routes

Yes

BGP dual stack scale for 4K prefix routes

test_bgp_dual_stack_scale_4k

Yes

BGP dual stack scale for 16K prefix routes

test_bgp_dual_stack_scale_16k

Yes

BGP dual stack scale for 32K prefix routes

test_bgp_dual_stack_scale_32k

Yes

BGP dual stack scale for 64K prefix routes

test_bgp_dual_stack_scale_64k

Yes

BGP dual stack scale for 128K prefix routes

test_bgp_dual_stack_scale_128k

Yes

BGP dual stack scale with 32K host routes with traffic

test_bgp_host_route_dual_stack_32k

Yes

BGP dual stack scale with 32K LPM routes with traffic

test_bgp_lpm_route_dual_stack_scale_32k

Yes

BGP dual stack scale for 32K prefix routes (with 16 bit subnet mask for IPv4 and 64bit subnet mask for IPv6 routes) with traffic

test_bgp_route_dual_stack_32k

Yes

BGP graceful restart with dual stack scale to 32K prefix routes

test_bgp_graceful_restart_preserve_fw_state_32k

Yes

BGP graceful restart with dual stack scale to 32K prefix routes and docker restart

test_bgp_graceful_docker_restart_32k

Yes

Enable/disable BGP graceful restart with dual stack scale to 32K prefix routes

test_bgp_graceful_feature_disable_enable_32k

Yes

BGP graceful restart with dual stack scale to 32K prefix routes and kill bgp process

test_bgp_kill_process_in_graceful_restart_32k

Yes

BGP dual stack scale with 64K host routes with traffic

test_bgp_host_route_dual_stack_64k

Yes

BGP dual stack scale with 128K host routes with traffic

test_bgp_host_route_dual_stack_128k

Yes

BGP dual stack scale with 64K LPM routes with traffic

test_bgp_lpm_route_dual_stack_scale_64k

Yes

BGP dual stack scale with 128K LPM routes with traffic

test_bgp_lpm_route_dual_stack_scale_128k

Yes

BGP graceful restart with dual stack scale to 64K prefix routes

test_bgp_graceful_restart_preserve_fw_state_64k

Yes

BGP graceful restart with dual stack scale to 128K prefix routes

test_bgp_graceful_restart_preserve_fw_state_128k

Yes

BGP graceful restart with dual stack scale to 64K prefix routes and docker restart

test_bgp_graceful_docker_restart_64k

Yes

BGP graceful restart with dual stack scale to 128K prefix routes and docker restart

test_bgp_graceful_docker_restart_128k

Yes

BGP graceful restart with dual stack scale to 64K prefix routes and kill bgp process

test_bgp_kill_process_in_graceful_restart_64k

Yes

BGP graceful restart with dual stack scale to 128K prefix routes and kill bgp process

test_bgp_kill_process_in_graceful_restart_128k

Yes

Scalability to 4K IPv6 prefix routes with traffic.

test_ipv6_l3_prefix_routes_scale_4k

Yes

Scalability to 64K IPv6 prefix routes with traffic

test_ipv6_l3_prefix_routes_scale_64k

Yes

Scalability to 128K IPv6 prefix routes with traffic

test_ipv6_l3_prefix_routes_scale_128k

Yes

128 IPv4 ACL rules (matching source IP/port and destination IP/port)

test_ingress_v4_acl_scale_128

yes

256 IPv4 ACL rules (matching source IP/port and destination IP/port)

test_ingress_v4_acl_scale_256

yes

512 IPv4 ACL rules (matching source IP/port and destination IP/port)

test_ingress_v4_acl_scale_512

yes

(MAX_V4_ACL) IPv4 ACL rules (matching source IP/port and destination IP/port)

test_ingress_v4_acl_scale_max_supported

yes

Scaling BGP dynamic host routes with traffic.

test_bgp_dynamic_route_scale

No

BGP withdraw prefixes(5 times) with dual stack scale 160k(IPv4+IPv6) prefix routes.

test_bgp_dual_stack_scale_intf_flap_160k

yes

BGP session down and docker restart with dual stack scale to 160k(IPv4+IP6) prefix routes

test_bgp_dual_stack_scale_clear_bgp_160k

yes

BGP withdraw prefixes(5 times) with dual stack scale 160k(IPv4+IPv6) prefix routes.

test_bgp_dual_stack_convergence_withdrawal_160k

yes

Default Route with BGP Advertised Routes

test_bgp_default_route

No

Maximum max-MED Value on Startup

test_bgp_convergence_with_max_med_001

No

Stress device CPU and memory with 16K (IPv4 + IPv6) prefix routes

test_bgp_dual_stack_stress_16k

Yes

Stress device CPU and memory with 32K (IPv4 + IPv6) prefix routes

test_bgp_dual_stack_stress_32k

Yes

Stress device CPU and memory with 64K (IPv4 + IPv6) prefix routes

test_bgp_dual_stack_stress_64k

Yes

Stress device CPU and memory with 128K (IPv4 + IPv6) prefix routes

test_bgp_dual_stack_stress_128k

Yes

Stress device CPU and memory with 32K (IPv4 + IPv6) host routes

test_bgp_host_route_dual_stack_stress_32k

Yes

Stress device CPU and memory with 64K (IPv4 + IPv6) host routes

test_bgp_host_route_dual_stack_stress_64k

Yes

Stress device CPU and memory with 128K (IPv4 + IPv6) host routes

test_bgp_host_route_dual_stack_stress_128k

Yes

Stress device CPU and memory with 32K (IPv4 + IPv6) LPM routes

test_bgp_lpm_route_dual_stack_stress_32k

Yes

Stress device CPU and memory with 64K (IPv4 + IPv6) LPM routes

test_bgp_lpm_route_dual_stack_stress_64k

Yes

Stress device CPU and memory with 128K (IPv4 + IPv6) LPM routes

test_bgp_lpm_route_dual_stack_stress_128k

Yes

Scalability to 2 ECMP paths and 4K (IPv4 + IPv6) routes

test_dualstack_2_ecmp_4k_routes

Yes

Scalability to 4 ECMP paths and 8K (IPv4 + IPv6) routes

test_dualstack_4_ecmp_8k_routes

Yes

Scalability to 8 ECMP paths and 16K (IPv4 + IPv6) routes

test_dualstack_8_ecmp_16k_routes

Yes

Scalability to 16 ECMP paths and 32K (IPv4 + IPv6) routes

test_dualstack_16_ecmp_32k_routes

Yes

Scalability to 32 ECMP paths and 64K (IPv4 + IPv6) routes

test_dualstack_32_ecmp_64k_routes

Yes

Scalability to 62 ECMP paths and 124K (IPv4 + IPv6) routes

test_dualstack_62_ecmp_124k_routes

Yes

Scalability to 64 ECMP paths and 128K (IPv4 + IPv6) routes

test_dualstack_64_ecmp_128k_routes

Yes

Shut/no shut interface between devices with 8 ECMP and 16K (IPv4 + IPv6) routes

test_dualstack_ecmp_routes_dut_int_flap

Yes

Clear BGP sessions with 8 ECMP and 16K (IPv4 + IPv6) routes

test_dualstack_ecmp_routes_clear_bgp

Yes

Shut/no shut interface host side interface with 8 ECMP and 16K (IPv4 + IPv6) routes

test_dualstack_ecmp_routes_host_int_flap

Yes

Advertise IPv4 and IPv6 routes over IPv4 neighbors

test_dualstack_ipv4_neighbors

Yes

Scalability to 8 ECMP paths and 16K iBGP (IPv4 + IPv6) routes

test_dualstack_ecmp_ibgp

Yes

Scalability up to 8 ECMP paths and 16K (IPv4 + IPv6) routes with support for warm reboot

test_ecmp_dualstack_warm_reboot

Yes

PD(Platform dependent) means that FTAS is designed to work with specific hardware and software configurations and may not be compatible with other platforms.
