U-Plane

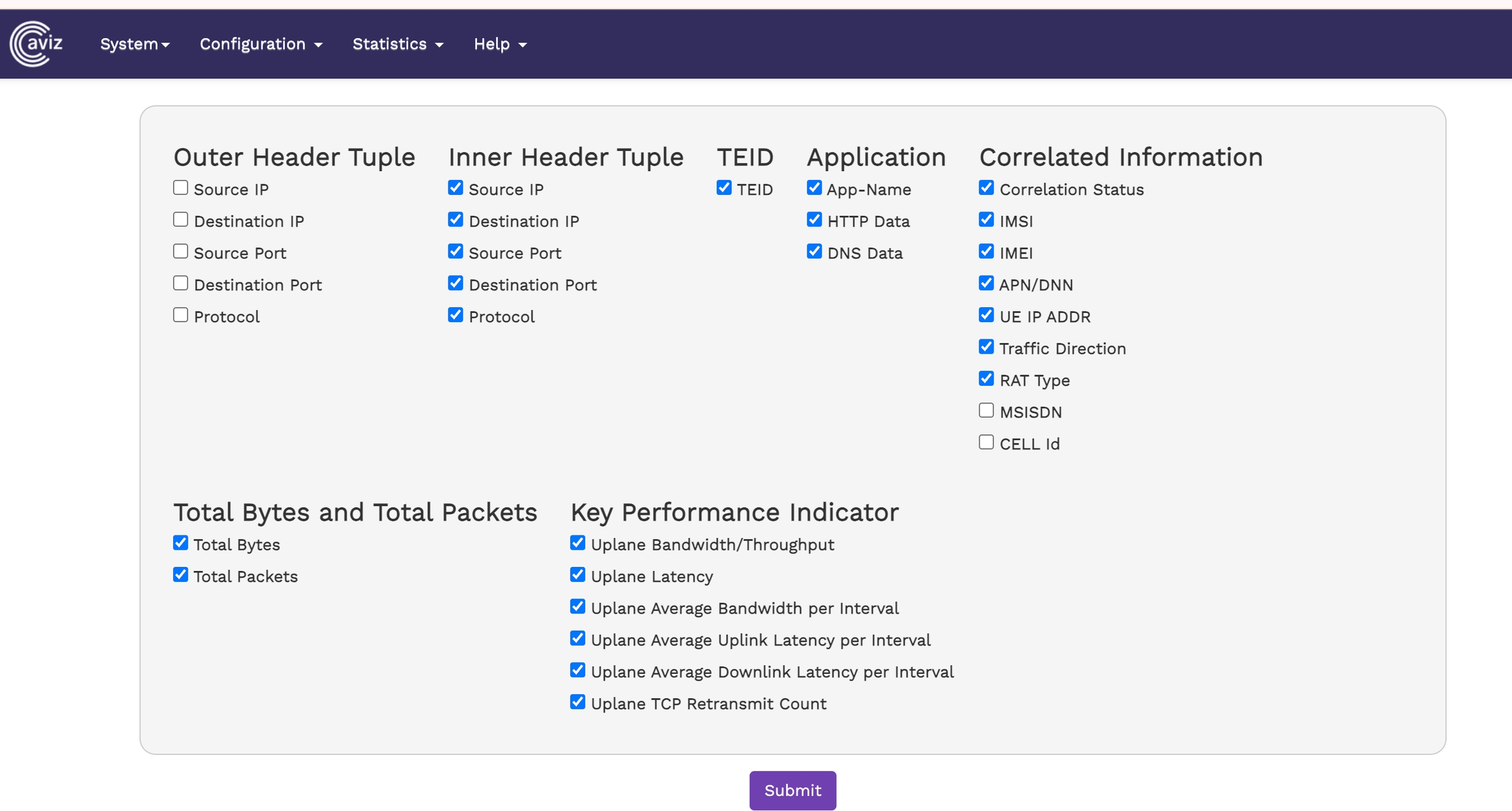

Enable/Disable below Metadata extraction on the Service Node:
Outer Header Tuple
Source IP: IP address of the sender in the outer header.
Destination IP: IP address of the recipient in the outer header.
Source Port: Port number used by the sender in the outer header.
Destination Port: Port number used by the recipient in the outer header.
Protocol: Protocol used for communication in the outer header.
Inner Header Tuple
Source IP: IP address of the sender in the inner header.
Destination IP: IP address of the recipient in the inner header.
Source Port: Port number used by the sender in the inner header.
Destination Port: Port number used by the recipient in the inner header.
Protocol: Protocol used for communication in the inner header.
TEID
TEID: Tunnel Endpoint Identifier for the inner header.
Application
App-Name: Name of the application associated with the traffic.
HTTP Data: Data transmitted over the HTTP protocol.
DNS Data: Data transmitted over the DNS protocol.
Correlated Information
Correlation Status: Status indicating whether the information is correlated.
IMSI: International Mobile Subscriber Identity.
IMEI: International Mobile Equipment Identity.
APN/DNN: Access Point Name/Data Network Name.
UE IP ADDR: IP address assigned to the User Equipment.
Traffic Direction: Direction of traffic flow.
RAT Type: Type of Radio Access Technology used.
MSISDN: Phone number
NCELL_ID: If data is from 5GSA, it shall indicate cell ID. Otherwise, it shall be null
ECGI_ECGI : If data is from 5GNSA, it shall indicate cell ID. Otherwise, it shall be null
Total Bytes and Total Packets
Total Bytes: Total number of bytes transmitted.
Total Packets: Total number of packets transmitted.
Key Performance Indicator
Uplane Bandwidth/Throughput: Bandwidth or throughput in the user plane.
Uplane Latency: Latency in the user plane.
