5G-NSA

Configurable Metadata Extraction in ASN

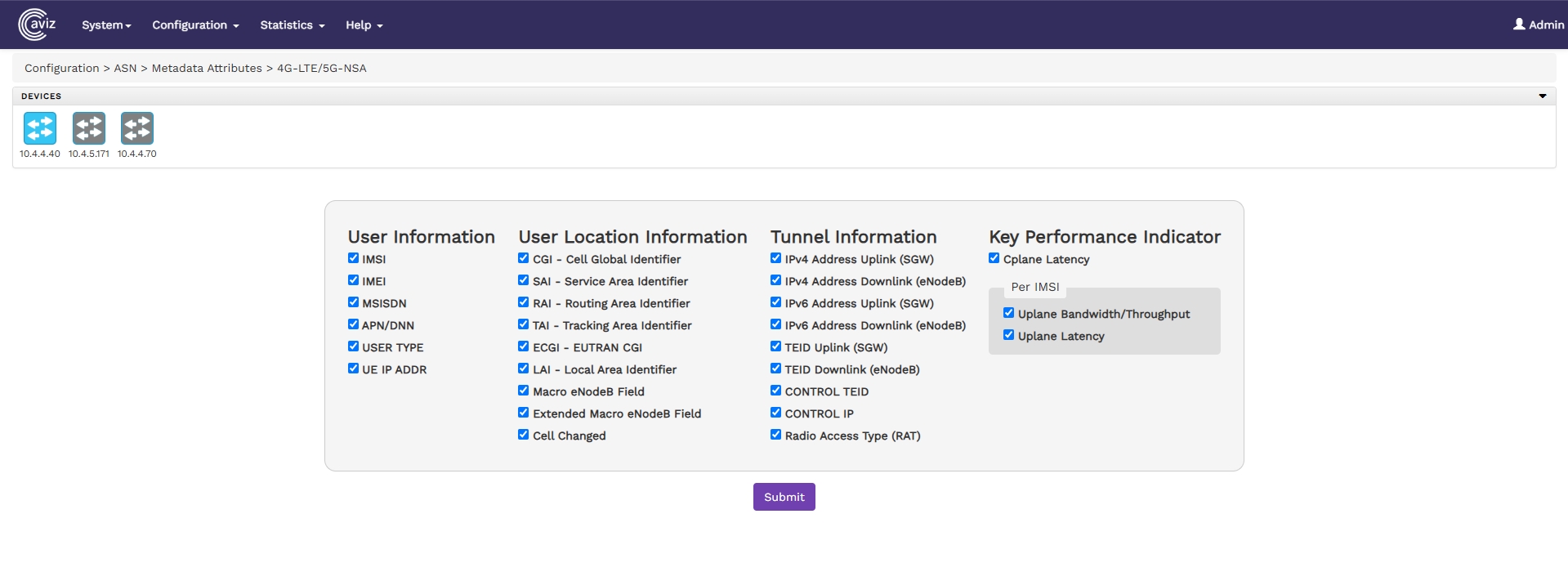

From this page, you can enable or disable the following metadata extraction options on the Aviz Service Node (ASN) for 5G-NSA:

User Information

1. IMSI (International Mobile Subscriber Identity): A unique identifier for a mobile subscriber.

2. IMEI (International Mobile Equipment Identity): A unique identifier for a mobile device.

3. MSISDN (Mobile Station International Subscriber Directory Number): The phone number associated with the subscriber.

4. APN/DNN (Access Point Name / Data Network Name): Defines the network path for data connections.

5. USER TYPE: Classification of the user, typically indicating subscriber type or service level.

6. UE IP ADDR(User Equipment IP Address):The IP address assigned to the user's device.

User Location Information

1. CGI (Cell Global Identifier): A unique identifier for a cell in a mobile network.

2. SAI (Service Area Identifier): Identifies the service area within a network.

3. RAI (Routing Area Identifier): Specifies the routing area within a mobile network.

4. TAI (Tracking Area Identifier): Identifies the tracking area in LTE networks.

5. ECGI (EUTRAN CGI): A unique identifier for cells in LTE networks.

6. LAI (Local Area Identifier): Identifies the local area within a GSM network.

7. Macro eNodeB Field: Information related to the macro eNodeB, a type of base station in LTE networks.

8. Extended Macro eNodeB Field: Additional information for extended macro eNodeB configurations.

9. Cell Changed: Indicates whether the user's device has changed cells within the network.

Tunnel Information

1. IPv4 Address Uplink (SGW): The IPv4 address for the uplink from the Serving Gateway (SGW).

2. IPv4 Address Downlink (eNodeB): The IPv4 address for the downlink to the eNodeB (Evolved Node B).

3. IPv6 Address Uplink (SGW): The IPv6 address for the uplink from the Serving Gateway (SGW).

4. IPv6 Address Downlink (eNodeB): The IPv6 address for the downlink to the eNodeB (Evolved Node B).

5. TEID Uplink (SGW): The Tunnel Endpoint Identifier for the uplink from the Serving Gateway (SGW).

6. TEID Downlink (eNodeB): The Tunnel Endpoint Identifier for the downlink to the eNodeB (Evolved Node B).

7. CONTROL TEID: The Tunnel Endpoint Identifier used for control plane signaling.

8. CONTROL IP: The IP address used for control plane signaling.

9. Radio Access Type (RAT): The type of radio access technology being used (e.g., LTE, 5G).

Key Performance Indicator(KPIs)

1. Cplane Latency: The latency in the control plane, measuring the delay in signaling and control messages.

2. Per IMSI Metrics:

   • Uplane Bandwidth/Throughput: The bandwidth or throughput in the user plane, specific to each IMSI .

   • Uplane Latency: The latency in the user plane, measuring the delay in data transmission for each IMSI.
