5G-SA

Configurable Metadata Extraction in ASN

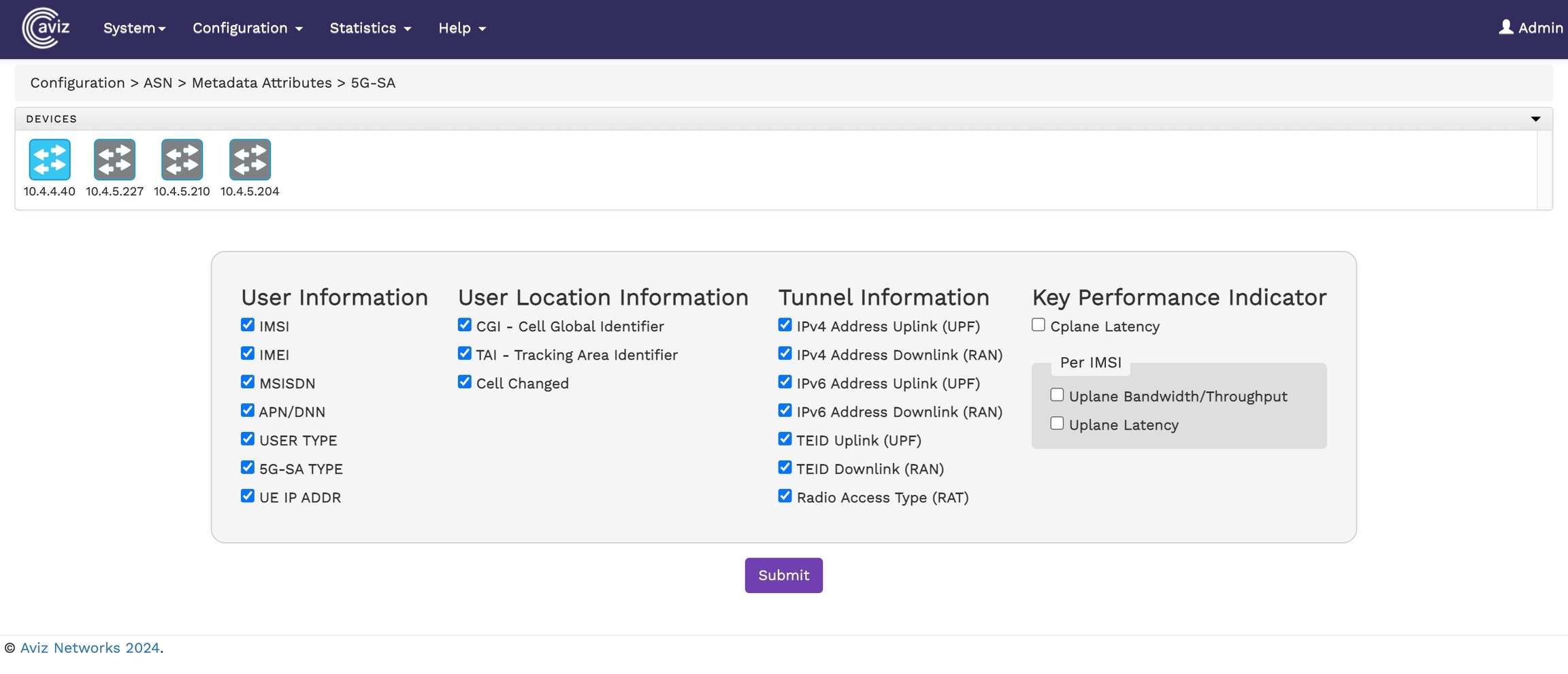

From this page, you can enable or disable the following metadata extraction options on the Aviz Service Node (ASN) for 5G-SA:

User Information

1. IMSI (International Mobile Subscriber Identity): A unique identifier for a mobile subscriber.

2. IMEI (International Mobile Equipment Identity): A unique identifier for a mobile device.

3. MSISDN (Mobile Station International Subscriber Directory Number): The phone number associated with the subscriber.

4. APN/DNN (Access Point Name / Data Network Name): Defines the network path for data connections.

5. USER TYPE: Classification of the user, typically indicating subscriber type or service level.

6. 5G-SA TYPE: Type of 5G network architecture, such as standalone (SA) or non-standalone (NSA).

7. UE IP ADDR(User Equipment IP Address):The IP address assigned to the user's device.

User Location Information

1. CGI (Cell Global Identifier): Unique identifier for a cell in a mobile network.

2. TAI (Tracking Area Identifier): Identifier for tracking areas in a 5G network.

3. Cell Changed: Indicates whether the user's device has changed cells within the network.

Tunnel Information

1. IPV4 Address Uplink (UPF): IPv4 address for the uplink from the User Plane Function (UPF).

2. IPv4 Address Downlink (RAN): IPv4 address for the downlink to the Radio Access Network (RAN).

3. IPv6 Address Uplink (UPF): IPv6 address for the uplink from the User Plane Function (UPF).

4. IPv6 Address Downlink (RAN): IPv6 address for the downlink to the Radio Access Network (RAN).

5. TEID Uplink (UPF): Tunnel Endpoint Identifier for the uplink from the User Plane Function (UPF).

6. TEID Downlink (RAN): Tunnel Endpoint Identifier for the downlink to the Radio Access Network (RAN).

7. RAT (Radio Access Type): The type of radio access technology used, such as 5G NR.

Key Performance Indicator(KPIs)

1. Cplane Latency: The latency in the control plane, measuring the delay in signaling and control messages.

2. Per IMSI Metrics:

   • Uplane Bandwidth/Throughput: Bandwidth or throughput in the user plane for each IMSI.

   • Uplane Latency: Latency in the user plane, measuring data transmission delay for each IMSI.
