Deploy the VM

Users can install the ONES Application with the complete package(Ubuntu) in KVM Hypervisor Server & in VMWARE or ESXI server,

• QCOW2 Package format: user can import in KVM Hypervisor

• OVA/OVF Package format: user can import in VMware or in ESXI Server

QCOW Integration

Download Qcow2 Package

• Work with Aviz Sales/Support contact to create an account on Aviz Networks Support Portal

• Login to https://support.aviznetworks.com with your account credentials

• Click on the Downloads section, under ONES, click to download ONES Release 1.2.1

• Copy ONES Release 1.2.1 package (qcow2) to KVM Hypervisor Server

Create the VM using GUI App virt-manager

If your host server has Ubuntu Desktop and virt-manager installed you can use it to deploy the VM. Make sure you can start the Virtual Machine Manager and that it connects successfully to the local hypervisor.

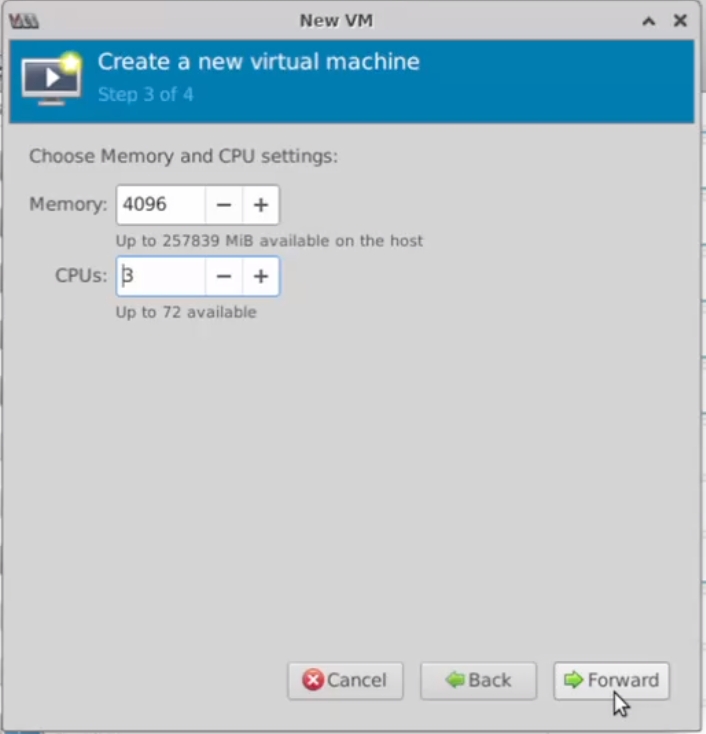

Creating a VM with virt-manager is very straightforward, Use the following steps to deploy the ONES-Application

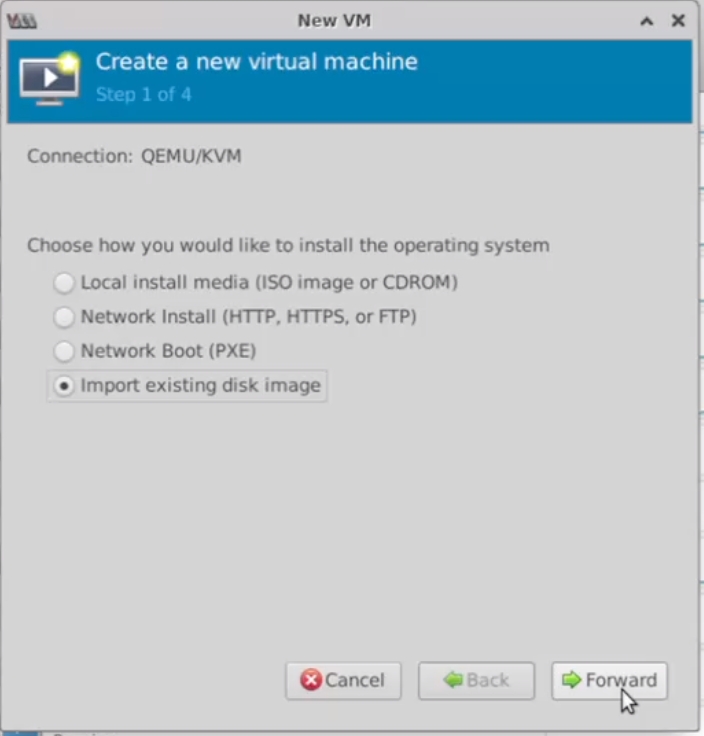

• File -> New Virtual Machine -> Import existing disk image -> Forward

Now the ONES Application is ready to use

Console Access using RDP

Console Access using SSH to Server

sudo virsh list
Id   Name               State
----------------------------------
 1   ONES_GA1.2.1         running

sudo virsh console ONES_GA1.2.1
Connected to domain ONES_GA1.2.1
Escape character is ^]

Credentials to access ONES QCOW2 VM

Username: ONES
Password: Admin@123

OVA Integration

Download OVA Package

• Work with Aviz Sales/Support contact to create an account on Aviz Networks Support Portal

• Login to https://support.aviznetworks.com with your account credentials

• Click on the Downloads section, under ONES, click to download ONES Release 1.2.1

• Copy ONES Release 1.2.1 package (OVA/OVF) to VMware or ESXI Server

Credentials to access ONES OVA VM

Username: ones
Password: Admin@123
