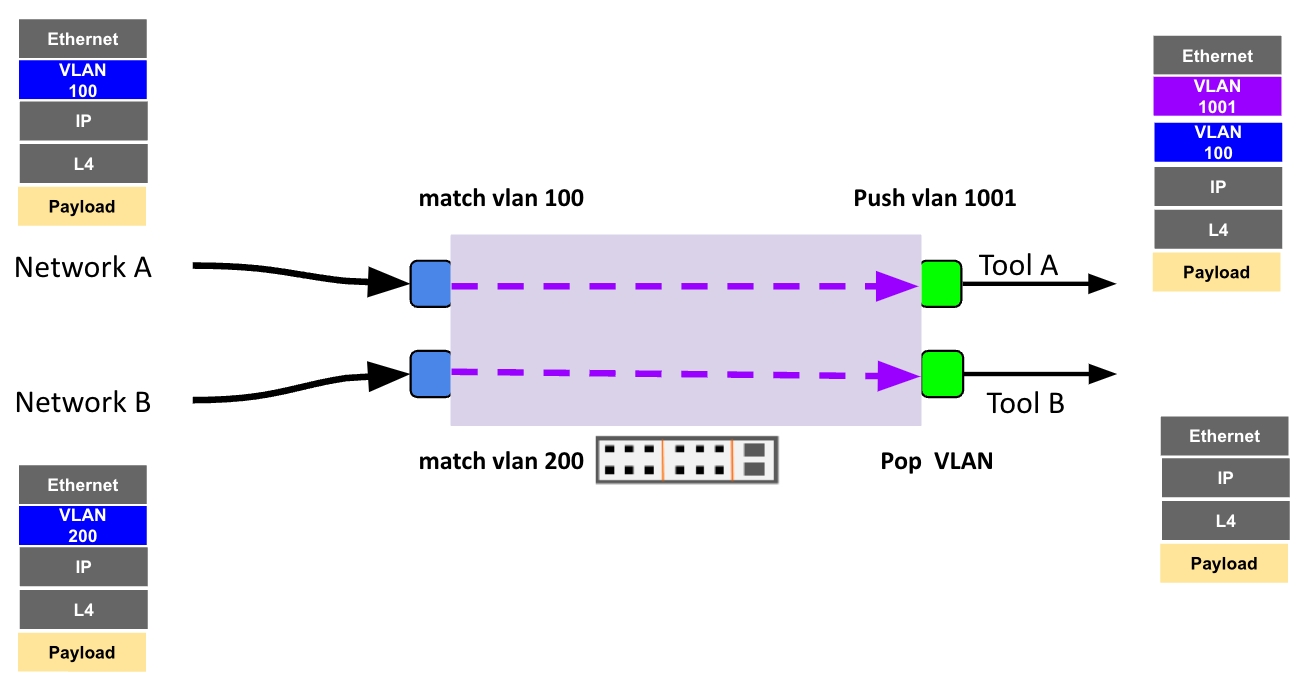

# VLAN Mode/Tag Actions VLAN-aware mode provides APB administrators with the ability to match traffic based on the VLAN tag and redirect it to the tool port(s). Push VLAN - Traffic replication to tool ports based on VLAN match and push new VLAN Tag Pop VLAN - Traffic replication to tool ports based on VLAN match and pop VLAN Tag on egress traffic The following image shows a visual representation of the VLAN Aware Mode and the VLAN Tag Actions:

VLAN modes and Actions

### Configuration: **Push VLAN:** 1. *Configure Network/Tool port(s)* ``` //Tool ports configure terminal interface ethernet Ethernet16/1 forward-error-correction rs type tool end ``` ``` //Network ports configure terminal interface ethernet Ethernet12/1 forward-error-correction rs type network end ``` 2\. Configure VLAN aware-mode ``` configure terminal interface ethernet Ethernet12/1 type network mode vlan-aware end ``` ``` configure terminal interface ethernet Ethernet16/1 egress-tagging enable type tool end ``` 3\. Configure flow with Push VLAN ``` flow flow1 network-ports Ethernet12/1 tool-ports Ethernet16/1 push-vlan-tag 300 rule 1 permit match-all counters enable end ``` 4\. Verify ``` // verify interface pbnoscli# show interface npb Ethernet12/1 =================================== Interface : Ethernet12/1 =================================== Type : network Mode : vlan-aware Ingress-vlan : 14 Egress-tagging : disable pbnoscli# show interface npb Ethernet16/1 =================================== Interface : Ethernet16/1 =================================== Mode : vlan-aware Ingress-vlan : 18 Egress-tagging : enable pbnoscli# ``` ``` // verify flow pbnoscli# show flow all =================================== Flow : flow1 (CLI) =================================== Status : enable Network-Port : Ethernet12/1 Tool-Port : Ethernet16/1 Push vlan : 300 Rule : 1 ++++++++++++++++++++++++++++++++++ Action : permit Counters : enable Match-all : ipv4 pbnoscli# ``` #### Pop VLAN: 1. *Configure Network/Tool port(s)* ``` //Tool ports configure terminal interface ethernet Ethernet16/1 forward-error-correction rs type tool end ``` ``` //Network ports configure terminal interface ethernet Ethernet12/1 forward-error-correction rs type network end ``` 2\. Configure VLAN aware-mode ``` configure terminal interface ethernet Ethernet12/1 type network mode vlan-aware end ``` ``` configure terminal interface ethernet Ethernet16/1 type tool end ``` 3\. Configure flow with Pop VLAN ``` flow flow1 network-ports Ethernet12/1 tool-ports Ethernet16/1 pop-vlan enable rule 1 permit match-all counters enable end ``` 4\. Verify ``` // verify interface pbnoscli# show interface npb Ethernet12/1 =================================== Interface : Ethernet12/1 =================================== Type : network Mode : vlan-aware Ingress-vlan : 14 Egress-tagging : disable pbnoscli# show interface npb Ethernet16/1 =================================== Interface : Ethernet16/1 =================================== Mode : vlan-aware Ingress-vlan : 18 Egress-tagging : disable pbnoscli# ``` ``` // verify flow pbnoscli# show flow all =================================== Flow : flow1 (CLI) =================================== Status : enable Network-Port : Ethernet12/1 Tool-Port : Ethernet16/1 Pop vlan : enable Rule : 1 ++++++++++++++++++++++++++++++++++ Action : permit Counters : enable Match-all : ipv4 pbnoscli# ```
