# Enabling FlowVision On-box Support

To manage and configure the OPB switch using a graphical user interface (GUI), enable FlowVision support on the device.

{% hint style="warning" %}
FlowVision utilizes TCP port 443 for its Web-GUI.
{% endhint %}

1. Configure Management IP on the OPB Switch

```
//Configure Mgmt IP

pbnoscli# configure terminal
pbnoscli(config)# interface mgmt
pbnoscli(config-if)# ip address 10.4.4.51/23 gateway 10.4.4.1
pbnoscli(config-if)# end
pbnoscli#
```

```bash
//Verify Management IP

pbnoscli# show ip management
eth0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500
        inet 10.4.4.51  netmask 255.255.254.0  broadcast 10.4.5.255
        inet6 fe80::63f:72ff:fec4:1a68  prefixlen 64  scopeid 0x20<link>
        ether 04:3f:72:c4:1a:68  txqueuelen 1000  (Ethernet)
        RX packets 1095  bytes 98068 (95.7 KiB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 785  bytes 542645 (529.9 KiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0
        device memory 0xf8100000-f81fffff
pbnoscli#
```

2. Enable FlowVision Ob-Box Support

```coffeescript
//Enable FlowVision On-Box Support

pbnoscli# configure terminal
pbnoscli(config)# flowvision
  enable                enable/disable the flowvision tool
pbnoscli(config)# flowvision enable
pbnoscli(config)# end
pbnoscli#
```

3. Verify the reachability of the OPB switch from the management system

```coffeescript
// Check Ping for reachability

aviz@npbsrv01:~$ ping 10.4.4.51
PING 10.4.4.51 (10.4.4.51) 56(84) bytes of data.
64 bytes from 10.4.4.51: icmp_seq=1 ttl=64 time=0.614 ms
64 bytes from 10.4.4.51: icmp_seq=2 ttl=64 time=0.317 ms
64 bytes from 10.4.4.51: icmp_seq=3 ttl=64 time=0.268 ms
^C
--- 10.4.4.51 ping statistics ---
3 packets transmitted, 3 received, 0% packet loss, time 2039ms
rtt min/avg/max/mdev = 0.268/0.399/0.614/0.152 ms

// Try Telnet to check the status of Port:443

aviz@npbsrv01:~$
aviz@npbsrv01:~$ telnet 10.4.4.51 443
Trying 10.4.4.51...
Connected to 10.4.4.51.
Escape character is '^]'.

```

4. Access the Web-GUI from your favourite browser <mark style="color:blue;">https\://\<MGMT-IP>/</mark>

   User: <mark style="color:blue;">admin</mark>

   Password: <mark style="color:blue;">admin</mark>

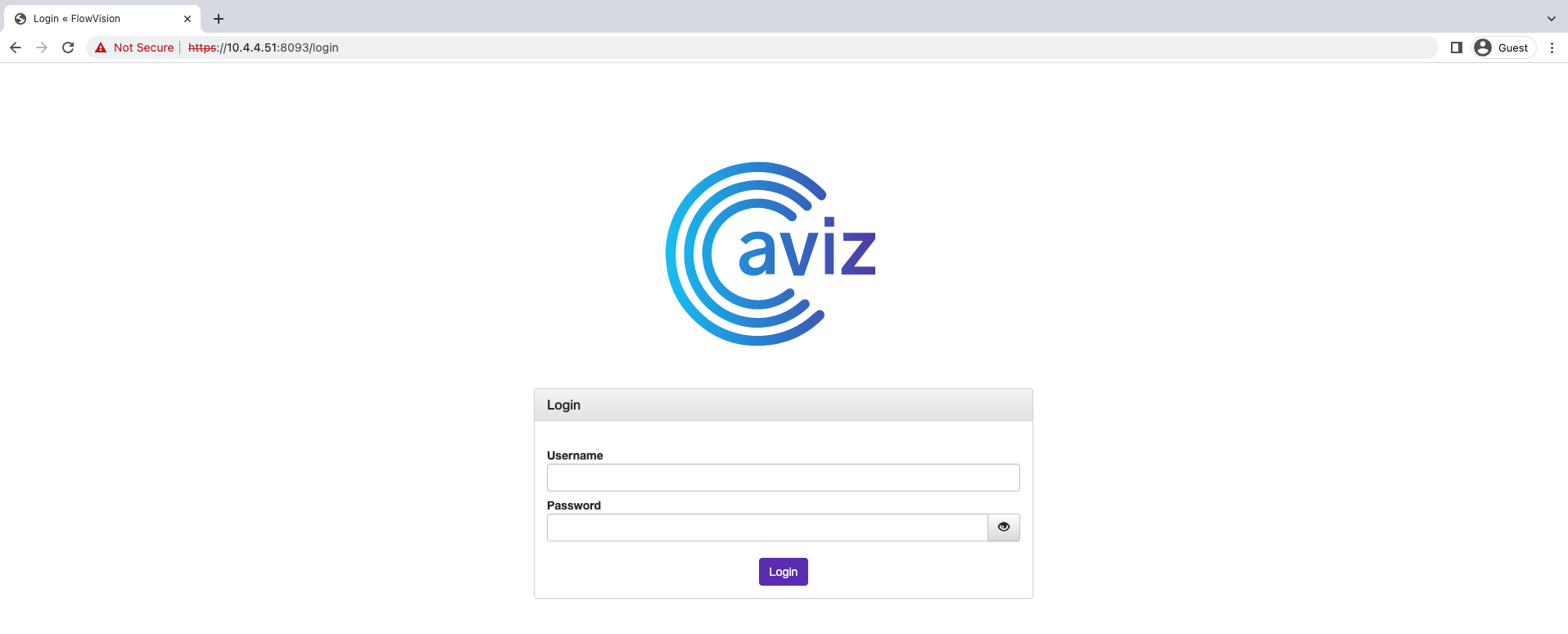

<figure><img src="https://content.gitbook.com/content/Hpuc10f3Q8ZFyNkuxW3U/blobs/zwpabt0nx5yddWj2TrZ9/Screenshot%202023-07-17%20at%201.08.02%20PM.png" alt=""><figcaption><p>FlowVision GUI</p></figcaption></figure>

```
pbnoscli# show running-config
configure terminal
interface mgmt
ip address 10.4.4.51/23 gateway 10.4.4.1
!
flowvision enable
!
pbnoscli#
```
