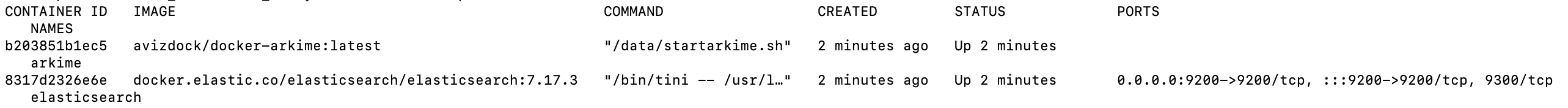

# Troubleshooting ## If the UI is not accessible, #### Check the docker status Check that Arkime and ES docker are running and the status is ‘UP’ if any of the dockers is not visible. Try running the ‘start.sh’ with the correct permissions, if the issue is not resolved try [contacting support](https://support.aviznetworks.com/hc/en-us) ```bash aviz@npbsrv01:~/OPB_Arkime/OPB_Analyzer$ sudo docker ps ```

#### Check that Elasticsearch is running and the status is ‘green’ ```bash aviz@npbsrv01:~/OPB_Arkime/OPB_Analyzer$ curl http://localhost:9200/_cat/health 1671295994 16:53:14 es-docker-cluster green 1 1 21 21 0 0 0 0 - 100.0% aviz@npbsrv01:~/OPB_Arkime/OPB_Analyzer$ ``` #### Try restarting the dockers when Arkime is unable to connect correctly with Elasticsearch the Arkime UI may not be reachable ```bash aviz@npbsrv01:~/OPB_Arkime/OPB_Analyzer$ sudo docker restart arkime aviz@npbsrv01:~/OPB_Arkime/OPB_Analyzer$ sudo docker restart elasticsearch ``` Check that UI is reachable by visiting from your browser #### If ES keeps restarting after a system reboot ```bash sysctl -w vm.max_map_count=262144 ``` Add the vm.max\_map\_count setting to a sysctl configuration file to make the change persistent across reboots: 1. Open the sysctl configuration file /etc/sysctl.conf using a text editor with root privileges:\ bash ```bash sudo nano /etc/sysctl.conf ``` 2. Add the following line to the end of the file: ```bash vm.max_map_count=262144 ``` Save and close the file 3. To apply the changes, either reboot your system or run the following command to reload the sysctl settings: ```bash sudo sysctl -p ``` ## Changing ES port If port 9002 is used by another service running on the server, it can be changed in the ‘start.sh’ script before execution

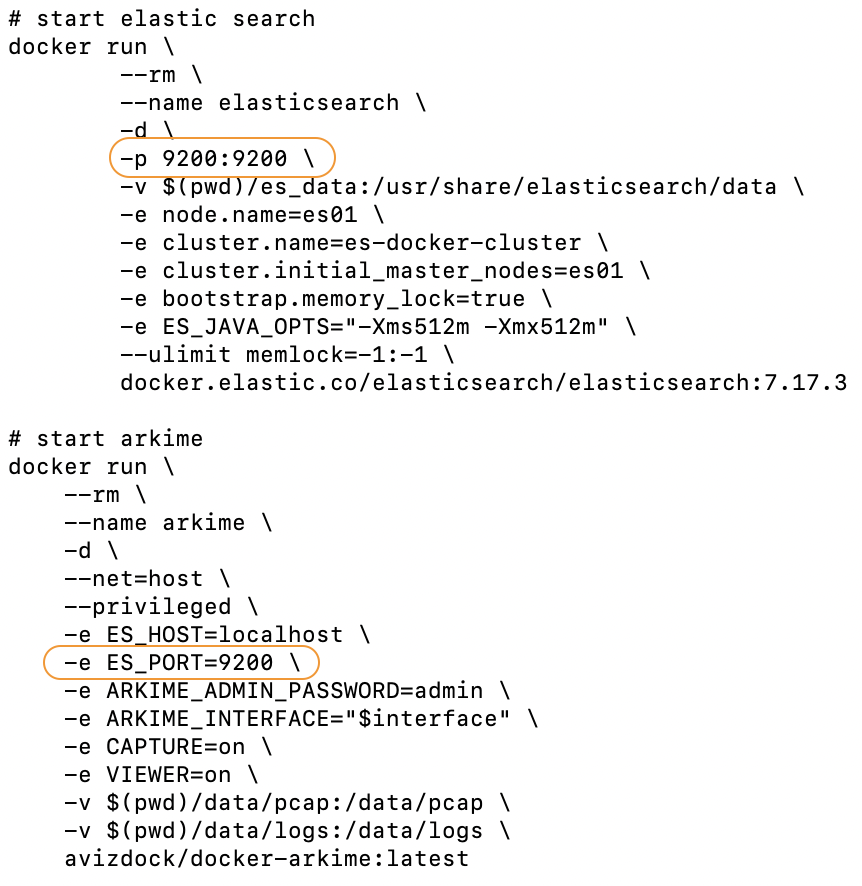

**Port format:** *“Global port:Local port”* Using your favourite text editor, change the ‘Global ports’ to any available and accessible port, also update the same port in the ‘ES\_PORT’ attribute. ## ## Changing Arkime Password Log in to the Web GUI and navigate to User> admin\_user ⚙️>Password, enter ‘admin’ as the current password and set a new password for the admin user.

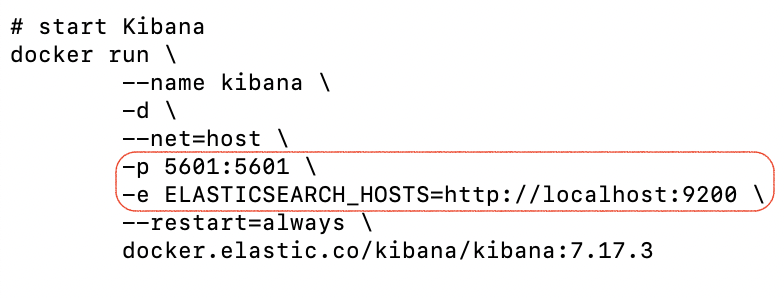

## Changing Kibana Port If port 5601 is used by another service running on the server, it can be changed in the ‘start.sh’ script before execution also if the ES port was changed, the same can be edited here with the ES node IP.

## Stopping Arkime & EC Execute the ‘stop.sh’ script to stop & delete Arkime and EC docker containers, the script will not delete the data & es\_data folder and the stored PCAPs. ```bash aviz@npbsrv01:~/OPB_Arkime/OPB_Analyzer$ sudo ./stop.sh [sudo] password for aviz: arkime elasticsearch aviz@npbsrv01:~/OPB_Arkime/OPB_Analyzer$ ``` ## Stopping Kibana Execute the ‘stop.sh’ script to stop & delete Kibana docker containers ```bash aviz@npbsrv01:~/OPB_Arkime/OPB_Kibana$ sudo ./stop.sh [sudo] password for aviz: Stopping Kibana... kibana kibana aviz@npbsrv01:~/OPB_Arkime/OPB_Kibana$ ``` #### External Links * OPBNOS download link - * OPBNOS configuration guide - * Arkime installation script - * Aviz support portal - * Arkime official website -
