To access the ONES application, use Server IP/FQDN with HTTPS
https://<host-ip/FQDN>
Use default credentials to login, refer Installing ONES Application page for default credentials
Open Networking Enterprise Suite (ONES) is a Network Orchestration, Visibility, and Assurance solution for multi-vendor and multi-NOS operated Network Infrastructure. ONES provides a one-stop solution from delivering deep visibility into your datacenter networks to extending 24x7 support functions for SONiC. It also hosts a powerful analytics engine that assists users to identify network issues and troubleshoot their networks, in case of common network anomalies and disruptions.
ONES uses Auto-discovery for SONiC devices and a YAML or CSV-based template for adding non-SONiC devices during the onboarding process and continuously collects streaming telemetry data from them to provide insights on;
Data Center Inventory
Network State
Platform and System Health
Control and Data Plane resource Utilisation
ONES monitors various control and data plane metrics to provide these insights.
ONESv2.0 application has the capability to trigger notifications via Slack app notifications when certain user-defined threshold values are breached.
In data centre operations, a rule engine with alerts for various metrics is essential for proactive monitoring and management of critical components and services. Rule Engine pushes the configured rule notification in case any device breaches the threshold value configured under the rule to SLACK Channel & Zendesk Support page.
Let's see the different types of rule engine alerts for specific metrics in a data centre environment
CPU and Memory Utilisation
Fan and PSU LED status
Traffic Bandwidth
ASIC Routes
Rule Engine Alerts
List rule-wise alerts (with Last seen, First Seen)
Option to filter Device level, Interface level alerts
Option to delete or Archive Alerts
Zendesk Ticket ID amped to the alert and URL link to the relevant time series graph
ONES orchestration provide network admins to automate the fabric configuration using configuration templates for provisioning physical interfaces, layer 3 configuration for building IP-CLOS fabric using
BGP as a routing protocol including BGP-unnumbered
Symmetric/Asymmetric IRB
BGP Peering with PO
L2/L3 MC-LAG
ONES orchestration not only configures the fabric but also make sure the Fabric is operational by doing verifying the configuration at every stage.
ONES provides north bound API access for configurations originating from external orchestration tools.
Traffic Utilisation
Software Compliance
Health Services
Traffic Errors and Discard Counters
EVPN MultiHoming
Layer2 Leaf-Spine (L2/L3 Mode)
Leaf only Deployment
BGP Peering over MC-LAG PeerLink
BGP Peering using separate Link between MC-LAG Peers
SFLOW
DHCP Relay
SAG / SVI
NTP, SNMP, SYSLOG
Incremental Config update for L2VNI/L3VNI
Enhanced backup and restore options via UI
Enhanced API support - configuration replace
In data center operations, a rule engine with alerts for various metrics is essential for proactive monitoring and management of critical components and services. Let's discuss the need for rule engine alerts for specific metrics in a data centre environment
CPU and Memory Utilisation
Fan and PSU LED status
Traffic Bandwidth
ASIC Routes
Health Services
Traffic Errors and Discard Counters
Rule engine alerts ensure efficient resource utilization, timely troubleshooting, early detection of potential issues, and overall operational stability within the data centre environment.
ONES-App is capable of triggering breached threshold values to
Slack Channel
Zendesk Support ticket
Device Level
Interface Level
Orchestration refers to tasks or actions required to achieve a set of objectives for your Network Infrastructure operations
A centralized application like ONES translates these objectives into a network configuration template, applies and monitors to validate the operational efficiency and functionality
Automated tasks are performed on your Network Fabric in a purposeful order and each step is verified for success before moving to the next
ONES Orchestration function, referred to as Fabric Manager (FM), lets you compose, deploy, and validate network configurations across any SONiC, be it a Community version or a Vendor distro.
As part of the initial release, ONES Orchestration supports to
Create and configure CLOS topology for ToR, Leaf, Spine, and Super-Spine layers
Apply and validate configurations pre- and post-deployment
Compare running configs against applied configs at any point
Upgrade devices with a single click via ZTP or custom NOS images
ONES Orchestration use cases are configured using a set of pre-defined YAML-based templates on ONES Web User Interface
Once the user installs Orchestrator Agent (Fabric Manager Agent) on the device, it enables FMCLI
FMCLI provides a user interface to configure all the open standard protocols and is user-friendly
To use FMCLI, the user can run fmcli command on the device to enter in the configuration mode and can configure the protocols or any other required feature
Example of BGP config using fmcli
ONES Function
Device/Switch Count
Telemetry for Visibility
1024
Orchestration
1024
Device
Fan LED Status
String (RED or GREEN)
RED
RED/GREEN
Device
PSU Status
String (LED RED or Status=not OK)
RED or NOT OK
Device
CPU Core Temperature
Celscius (30)
AVG/MIN/MAX
Device
PSU Temperature
Celscius (30)
AVG/MIN/MAX
Device
FAN Speed
Percentage (70%)
AVG/MIN/MAX
0/100
Device
ASIC IPv4 Routes Utilization
Percentage (70%)
AVG/MIN/MAX
0/100
Device
ASIC IPv6 Routes Utilization
Percentage (80%)
AVG/MIN/MAX
0/100
Device
BGP Nbrs Operationally Down
Percentage (20%)
AVG/MIN/MAX
0/100
Device
FRR Container CPU Utilization
Percentage (20%)
AVG/MIN/MAX
0/100
Device
Syncd Container CPU Utilization
Percentage (20%)
AVG/MIN/MAX
0/100
Interface
TX Utilization
Percentage (80%)
AVG/MIN/MAX
0/100
Interface
RX Utilization
Percentage (80%)
AVG/MIN/MAX
0/100
Interface
In Errors
Count (100)
AVG/MIN/MAX
User defined
Interface
Out Errors
Count (50)
AVG/MIN/MAX
User defined
Interface
In Discards
Count (100)
AVG/MIN/MAX
User defined
Interface
Out Discards
Count (50)
AVG/MIN/MAX
User defined
Interface
Tranx TX Power
dBm
AVG/MIN/MAX
User defined
Interface
Tranx Rx Power
dBm
AVG/MIN/MAX
User defined
Interface
Tranx Temperature
Celscius (40)
AVG/MIN/MAX
User defined
Interface
Tranx Voltage
Volts (40)
AVG/MIN/MAX
User defined
Hierarchy
Metrics
Unit
Measure
Value
Device
CPU Utilization
Percentage (70%)
AVG/MIN/MAX
0/100
Device
Memory Utilization
Percentage (50%)
AVG/MIN/MAX
0/100
Restore & Backup configuration feature
Yaml-based config for VXLAN, MCLAG, BGP IP CLOS & EVPN(L2VPN), EVPN Multihoming, L3 EVPN Symmetric IRB, L3EVPN symmetric IRB with MCLAG.
Automate Configuration of interfaces, layer 3 interfaces, BGP-unnumbered and Common Services like NTP, SNMP, SYSLOG etc.
Interface Management
VLAN's
Spanning Tree Protocol
VXLAN
L2 Forwarding Database
LLDP
LACP
DHCP Relay
IP Management
ARP
PING
Traceroute
Routing
BGP*
NTP
SYSLOG
Platform Details
SFLOW
NAT
Forward Error Correction
BFD
SNMP
VRF
AAA & TACACS
Drop Counters
ERSPAN
IP Based ACL
Prefix-list
EVPN Multihoming
Route-map
ONES Telemetry Collector(s) and Analytics bring truly unparalleled visibility across all your switches running SONiC (both community and vendor distros), regardless of the underlying ASIC. ONES front end (UI), will enable network admins to;
Manage inventory of your network devices running SONiC on Broadcom, Cisco, Marvell, and Nvidia ASICs
View the topology of the entire fabric across multiple hardware platforms, and network operating systems
Monitor traffic, system health, bandwidth utilization, & more
This page shows Underlay, Overlay, RoCE telemetry view & other Advance Filtering view
The same Topology page allows a user to connect to the device SSH and Console
Enhanced Traffic Page shares the PFC enabled Interfaces
Protocol page shows new metrics of VXLAN, LACP details and MCLAG information
Track Switch CPU/memory consumption, bandwidth, link failures, traffic errors, and more in real-time
Proactively identify and resolve issues that may lead to network downtime
Instantly connect to individual devices for maintenance and troubleshooting
Syslog extraction for device, Console access, Add/Remove Non-SONiC devices via YAML or CSV, export or download inventory
Firmware information is added in Device details section
ONES-T (Default License mode)
Telemetry Visibility (Monitor, inventory, analytics)
Add/remove Non-SONiC devices via YAML or CSV
Support (Aviz Zendesk)- Ability to open a ticket with inventory dump
Please refer to the link https://support.aviznetworks.com/hc/en-us/articles/10268234313997-ONES-Image-Download for downloading latest version of ONES Application
NOTE: You are required to sign-up on https://support.aviznetworks.com/hc/en-us for getting access to the download page.
Network Assurance helps the NetOps team validate policy and security compliance checks before making a change in network configuration, an intelligent set of proactive and predictive techniques that validate the Network for readiness without error, conflicts, and disruptions
Aviz Support team is located across four timezones offering 24x7 SONiC and related product support for multi-vendor switches and ASICs. Using our support portal, we offer you to
Collaborate with our SONiC experts to expedite your evaluations
Speed up your SONiC troubleshooting SLAs to as low as 15 minutes regardless of the underlying Switch/ASIC platform
Minimize operational delays by centralizing issues across multiple platforms
Users can reach out to customer support on
Supports Options are available:
Integrated Chat
Submit a Ticket
Send an email to support@aviznetworks.com
Refer to the "" section of this document for more details
To connect with customer support users can choose the support option available on ONES-UI
admin@fmcli:~$ fmcli
fmcli# configure terminal
fmcli(config)# router bgp 1001
fmcli(config-router)# neighbor 10.10.10.1 remote-as 100
...
...Work with Aviz Sales/Support contact to create an account on Aviz Networks Support Portal
Login to https://support.aviznetworks.com with your account credentials
Click on the Downloads section, under ONES, click to download ONES Release 2.0
File to install on Ubuntu
ONES 2.0 Installation package
File to install on VMware, ESXI, vSphere, and vCenter setup
ONES 2.0 OVA
File to install on Hypervisor, KVM, LibVirt Manager
ONES 2.0 QCOW2
Copy ONES Release 2.0 package (tar.gz) to ONES Application machine
Follow the next page to execute a successful installation
Syslog access, Console/SSH access for device
ONES-NetOps / ONES-ALL
ONES-T
Orchestration
Rule Engine and integrations with Zendesk and Slack for alerts
Network SLA (API based support)
ZTP/Custom Image upgrade, backup/restore and reboot of the device
ONES is a support application for SONiC stack. It is designed for customer's engineering team such as SRE’s, HW and SW engineering teams for their daily network diagnosis and troubleshooting needs. In addition to that ONES exposes the API to integrate with external tools or customer homegrown applications.
ONES application provides HTTPs over standard port 443 supporting both self-signed and CA signed certificates.
HTTPS Support CA Signed
HTTPS Self Signed
ONES utilizes gRPC infrastructure to communicate with switch agents. TLS (Transport Layer Security) is the primary security protocol used by gRPC to secure communication between the client and the server. TLS provides authentication, confidentiality, and integrity of data. Authentication is achieved using digital certificates, which verify the identity of the client and the server.
With an added extra layer of security, ONESv2.0 support Certificate based communication between switches and ONES Controller, and all the metrics will be streamed using the certificate-based encryption
New Topology Page that shows more information
Console Access to Device on Topology Page
VXLAN Monitoring
MCLAG Monitoring
LACP Monitoring
RoCE traffic visibility
BGP Peering over Port channels
L3 MC-LAG
Layer2 Leaf-Spine (L2/L3 Mode)
Leaf only Deployment
Push Notification if any threshold value exceed
Slack Channel
Zendesk Ticket
Alerts
Agent streaming stopped containers with Memory and CPU utilisation as Zero
Rule engine alert time is in GMT and need in IST
Overlay Topology Enhancement with MCLAG deployment
ONES provides the following subscriptions to manage and monitor the devices.
BGP Peering over MC-LAG PeerLink
BGP Peering using separate Link between MC-LAG Peers
Incremental Config update for L2VNI/L2VNI
EVPN Multihoming Enhancement
Backup & Restore Device Configs Enhancement
Fabric Manager API + SDK to Support Day2 Operations Enhancement
Provision to setup device
Entry level rules
512
Support up to 512 devices
1024
Support up to 1024 devices
Free(30 Days Trial)
Support up to 8 devices
32
Support up to 32 devices
64
Support up to 64 devices
128
Support up to 128 devices
256
Support up to 256 devices
Role Based Access
ONES provide RBAC support for creating dedicated user accounts. it has a superadmin account which can manage these user accounts for control and permissions
Secure Access to Application
ONES Application provides HTTPS over standard port 443 supporting both self-signed and CA-signed certificates
Secure Access to switches
Auto-discovery communication between Agent and collector using a secure channel(SSL/TLS) with certificates (self-signed and CA-signed certificates
API Access
ONES Application provides HTTPS over standard port 443 supporting both self-signed and CA-signed certificates, the API is available via time-bound authentication tokens.
netq config add agent gnmi-enable true
netq config add agent opta-enable false
netq config add agent gnmi-port 9339
netq config restart agent
netq config status agent
netq config add agent gnmi-port 50052
netq config restart agent
netq config status agent
cumulus@cumulus:mgmt:~$ cat /etc/netq/netq.yml
netq-agent:
is-gnmi-enabled: true
is-opta-enabled: false
netq-gnmi:
gnmi_port: 9339NOS
ASIC
Switches
Community SONiC
Cumulus & Arista platforms are considered by ONES as Agent-less and supports metrics available using NVUE and eOS APIs
SONiC-based switches require ONES Agents (Agent-based) to be installed on the switch being monitored, as a pre-requisite for ONES Telemetry and orchestrator-based functions to work.
ONES Telemetry Agent
ONES Orchestrator Agent
Proprietary NOS like Arista EOS, Cumulus, and Cisco NX-OS does not require an ONES Agent and instead leverage the (Agent-less) feature. OpenConfig extends APIs that provide Network Telemetry information about the resources being monitored via (gRPC Network Management Interface) protocol to the ONES Application
ONES does not support Orchestrator-based functions on Proprietary NOS (non-SONiC).
SSH access
SONiC versions beyond 202012 or 202111 are supported
Only x86 intel-based architectures are supported
ONES requires user to install the below agents on SONiC NOS to allow Network Orchestration and Visibility
ONES Orchestrator Agent for Network Orchestration
ONES Telemetry Agent for Telemetry Data Streaming (Network Visibility)
NOTE: for non-SONiC switches,
OpenConfig feature on its NOS needs to be enabled for Network Visibility (Telemetry Data Streaming)
Network Orchestration is not supported
SONiC NOS Upgrade could be done either via
ONES UI (Inventory-->Devices)
Instead of using FM - Orchestrator Agent
ONES Agent configuration file allows user to add new collector(controller) after the agent installation if required
If a customer desires to receive the same agent telemetry on a different ONES collector, there's no need to reinstall the agent on the device. Instead, the user can effortlessly add the new collector's IP to the device's agent.conf file after installing ONES on the other server. This action will automatically register and initiate streaming to the new ONES application
SSH to the device first
Navigate to /etc/sonic/
Edit agent.conf file and add collector ip
Restart ONES-Agent Docker
After restarting Docker, it will automatically register with the new ONES-Application
/host folder.After a successful upgrade, Orchestrator Agent restores these files
Traditional means (ZTP, sonic-installer CLI)
The user needs to reinstall ONES Agents again
NVIDIA, Broadcom
SN2010, SN4700, SN 2700, SN2100, SN3700, DellEMC-S5212f-P-25G
SONiC Distros
Broadcom
EC9716, EC4630, EC7326, RA-B6510-48V8C(Ragile Networks), CELESTICA-BELGITE
Cumulus*
NVIDIA
SN2010, SN4700, SN 2700, SN2100, SN3700
Arista*
Broadcom
DCS-7010T-48
sudo ln -s /etc/nginx/sites-{available,enabled}/nvue.conf
sudo sed -i 's/listen localhost:8765 ssl;/listen \[::\]:8765 ipv6only=off ssl;/g' /etc/nginx/sites-available/nvue.conf
sudo systemctl restart nginxadmin@Spine-2:~$ cd /etc/sonic/
admin@Spine-2:/etc/sonic$admin@Spine-2:/etc/sonic$ docker restart ones-agentArista-DCS-7010T(config)#management api gnmi
Arista-DCS-7010T(config-mgmt-api-gnmi)#transport grpc default
Arista-DCS-7010T(config-gnmi-transport-default)#port 50052
Arista-DCS-7010T(config-gnmi-transport-default)#provider eos-native
Arista-DCS-7010T(config-mgmt-api-gnmi)#end
Arista-DCS-7010T#show management api gnmi
Octa: enabled
Transport: GRPC
Enabled: yes
Server: running on port 50052, in default VRF
SSL profile: SELFSIGNED
QoS DSCP: none
Authorization required: no
Accounting requests: no
Certificate username authentication: no
Notification timestamp: last change time
Listen addresses: ::
Transport: default
Enabled: yes
Server: running on port 6030, in default VRF
SSL profile: none
QoS DSCP: none
Authorization required: no
Accounting requests: no
Certificate username authentication: no
Notification timestamp: last change time
Listen addresses: ::
admin@Spine-2:/etc/sonic$ sudo vi agent.conf
# Configuration file for agent gnmi
# Any edits require restart of the agent
# Mode - can be Tls/NoTls
mode = NoTls
#restrict_collector_ip = Yes/No
#Setting this to yes means that only the IP address mentioned under collectorip
#will be allowed to connect to the agent. No sets off this behavior
restrict_collector_ip = No
#layer of the switch Eg - Superspine/ Leaf/ Spine/ ToR
layer = Spine
#region of the switch Eg - Denver
region = Sj
#ip of the switch Eg - 10.4.4.33
agentip = 10.20.2.12
#ip of the collector Eg - 10.1.1.10
collectorip = 10.20.0.16,10.20.0.14
#azid of the switch Eg - 1
azid = 1
#brickid of the switch Eg - 1
brickid = 1
#rackid of the switch Eg - 1bash$ ssh username@myswitch
Password: <passw0rd>
myswitch> enable
myswitch# configure terminal
myswitch(config)# management api http-commands
myswitch(config-mgmt-api-http-cmds)# no shutdown
myswitch(config-mgmt-api-http-cmds)# show management api http-commands
Enabled: Yes
HTTPS server: running, set to use port 443
HTTP server: shutdown, set to use port 80
Local HTTP server: shutdown, no authentication, set to use port 8080
Unix Socket server: shutdown, no authentication
VRFs: defaultInstalling ONES Agents on SONiC Switches for Orchestrator and Telemetry
Enabling OpenConfig on non-SONiC Switches for Telemetry
The installer allows a default capability for managing 8 devices without a license. Beyond this, the following license key is required for proceeding with the Installation;
ONES Application License (As per device count)
Telemetry Visibility (Monitor, inventory, analytics)
Add/remove Non-SONiC devices via YAML or CSV
Support (Zendesk)- Ability to open a ticket with inventory dump
Syslog access, Console/SSH access for device
To obtain a license, contact support@aviznetworks.com providing the below details;
License Duration - In Years (1-5)
Devices Count - 8, 32, 64, 128, 256, 512 or 1024
ONES installation ID
Email ID: (For Account creation)
In the current release, ONES can support managing up to 1024 devices. For ONES Application Installation, the system hardware requirements vary based on the number of devices to manage;
8/16/32/64
x86/x64 based,
4-core CPU
16GB
160GB/320GB/640GB/1.2 TB
128
INTEL(E5-1607 v2)/AMD,
4 cores
32GB
3 TB or more
256
Ubuntu 18.0 or later
docker, docker-compose
python3, python3-pip
paramiko
scp
Ubuntu Server
Installer file (Version 18 or higher)
lsb_release -a
Update to latest packages
sudo apt-get update
NA​
Install Docker
sudo apt-get install docker.io
​docker ps​
ONES Web GUI
443
Switch Access over SSH
22
ONES Monitoring
50052
gNMI Gateway (Telemetry)
9339
ONES Telemetry Database
5432
SSH is enabled
Network Reachability from ONES Application
OpenConfig feature is enabled (for non-SONiC Switches)
Google Chrome version 107 or later
Mozilla Firefox version 106 or later
Extract the contents of the downloaded ONES Installer tar.gz file
root@ones-application:~$ tar -xvzf ONES-2.0.tar.gz
Go to ONES-2.0 folder on the server machine
root@ones-aplication:~$ cd ONES-2.0
Run ones-installer.sh to Install the ONES application function
root@ones-application:~/ONES-2.0$ ./ones-installer.sh
While upgrading there is no dependency of prevision version files, Once the upgrade process is completed, user manually have to delete the previous version files/Packages from the device, Script do not touch old version files
By default, the installer has a license for 8 devices upto 30days
ONESv2.0 support SSL certificate integration
User can choose YES if the User wants to integrate their own SSL certificate
Note* Replace the Private key & certificate path to correct location
Choose No, if the user wants to use a self-signed certificate that is integrated into ONES package
3. The installation allows a user to enable DB backup
Users can choose the local or remote location to backup the database
By default, the application creates a database backup every 86400 seconds(1 day), but the user can modify it as per the requirement
Local and Remote Backup
By-default application creates 1 backup for local and for remote,
It has a range of 1 to 3 and once it will add one more it will remove the first copy of the database,
User can modify the number of backup files at the time of installation
By-default ONES create ./backup directory to maintain local database
ONESv2.0 support certificate-based authentication between ONES App and devices for GNMI and Auto-discovery
For agent auto-discovery agent will act as a client and the collector as a server. For normal gnmi communication, the agent will act as a server and the collector as a client. Need certificates based on this.
The user needs to provide the certificate path and replace the key name with the path of the certificate to be used here
ONES Application support IP-based Access & FQDN Access
IP based
FQDN based
Installation begins
Access ONES Application Web GUI from a supported browser using https://<host-ip/FQDN>
For Trail, user can choose Start A Trial (valid for 30days)
For Activation, user can choose Activate License if the user has an activation key of any subscription
Use Default credentials as below;
Username: superadmin
Password : Admin@123
Update/Change your password on the first login
After Resetting the password use new credentials to login
You will see the default Monitor Page with a Topology view
Share ONES installation ID to the AVIZ support team
As per PO, the AVIZ team will share the Activation key
Paste the activation key and Activate
ONESv2.0 Agent support auto-discovery feature
ONESv2.0 Agent support to send telemetry on multiple controllers (Max 2)
Restrict IP feature can be enabled/disabled
Using this feature agent will discover the ONES Controller and will update the entry on ONES App with all the feature metrics
Need to add a few inputs while installing agent
Controller IP //To restrict the telemetry streaming
Device Credentials
Layer
On the Application machine, go to ONES-2.0/ones_t_agent folder
root@ones-application:~$ cd /ONES-2.0/ones_t_agent
Enter device details (Management IP, Username and Password ) in device_info.csv
root@ones-application/ONES-2.0/ones_t_agent:~$ vi device_info.csv
Save the File
Executing the installation script can be used for installing a telemetry agent on one or more devices in the data centre.
root@ones-application/ONES-2.0/ones_t_agent:~$ ./ones_agent_parallel_installer.sh
Users can use ONES-Agent as an integrated service in SONiC OS or can use it as an independent third-party container.
Scripts asks to put the Controller IP to use auto-discovery feature
User can choose the restriction to send telemetry to collector IP only
It's important to restrict collector IP as NO in case the running network has NAT translation from private to public IP for ONES server access from the device.
The user needs to make sure, The devices have a unique name, otherwise, there will issue while plotting the full topology view(Topology Page).
The user needs to make sure, The devices have a unique name, otherwise, there will issue while plotting the full topology view(Topology Page).
Agent-based devices auto-discover the ONES-App and get registered automatically on the ONES Inventory page
To Onboard the Agent-Less devices user needs to add them manually
Installing Open Networking Enterprise Suite (ONES)
..................................................
ONES is getting installed for the first time, choose appropriate options when prompted...
....................
Installing prerequisites for ONES application
....................
....................
....................
....................
Installing ONES application...
Do you want to install domain SSL certificate(if not, installation will proceed with a self signed certificate)? [y/n]: y
Enter the path to the private key file: ./certs/server.pem
Enter the path to the certificate file: ./certs/server.crt.pemEnter the ONES App URL: https://192.168.1.1Local backup:
Do you want to enable DB backups? [y/n]y
Where do you want to store the backups? [local/remote]: local #local keyword trigger local database on server
Enter the backup directory: ./backups #Enter the server directory in which user wants to take backup
Enter the number of backups (between 1 and 3) to retain (Older backups will be deleted): 1 #Enter the number of backup user wants to create
Enter the backup interval in seconds (3600 seconds or higher): 86400 #Enter the value in seconds to take a backup Remote backup:
Do you want to enable DB backup feature? [y/n]: y
Where do you want to store the backups? [local/remote]: remote #remote keyword trigger remote database on server
Please make sure the remote server is reachable via SSH
Enter the remote machine IP: 10.0.0.1
Enter the remote machine username: admin
Enter the remote machine password:
Enter the backup directory: ~/backups #Enter the remote server directory in which user wants to take backup
Backup is being done in 10.0.0.1 at ~/backups
Enter the number of backups (between 1 and 100) to retain (Older backups will be deleted): 5 #Enter the number of backup user wants to create
Enter the backup interval in seconds (3600 seconds or higher): 86400 #Enter the value in seconds to take a backup No:
Do you want to enable certificate based authentication between ONES controller and devices? [y/n]: nYes:
Do you want to enable certificate based authentication between ONES controller and devices? [y/n]: y
Enter the path to the ca-cert.pem file: ca-cert.pem
Enter the path to the server-cert.pem file: server-cert.pem
Enter the path to the server-key.pem file: server-key.pem
Enter the path to the client-cert.pem file: client-cert.pem
Enter the path to the client-key.pem file: client-key.pem
Proceeding with certificates for Agent Auto Registration
Enter the path to the ca-cert-reg.pem file: ca-cert-reg.pem
Enter the path to the server-cert.pem file: server-cert.pem
Enter the path to the server-key.pem file: server-key.pem
Enter the path to the client-cert.pem file: client-cert.pem
Enter the path to the client-key.pem file: client-key.pem
Installing Open Networking Enterprise Suite (ONES)
..................................................
ONES is getting installed for the first time, choose appropriate options when prompted...
....................
Installing prerequisites for ONES application
....................
....................
....................
....................
Installing ONES application...
Do you want to install domain SSL certificate(if not, installation will proceed with a self signed certificate)? [y/n]: n
Using self signed certificates...
Do you want to enable DB backup feature? [y/n] : y
Where do you want to store the backups? [local/remote]: local
Enter the backup directory: ./backups
Enter the number of backups(between 1 and 3) to retain (Older backups will be deleted) : 1
Enter the backup interval in seconds(3600 seconds or higher) : 86400
Do you want to enable certificate based authentication between ONES controller and devices? [y/n]: n
Enter the ONES App URL: https://192.168.1.1
Setting up the environment and loading essential dockers...
d07119f7c800: Loading layer [==================================================>] 53.62MB/53.62MB
366319f9a81c: Loading layer [==================================================>] 2.56kB/2.56kB
0f6276391b12: Loading layer [==================================================>] 86.32MB/86.32MB
5f70bf18a086: Loading layer [==================================================>] 1.024kB/1.024kB..
...
...
...
Name Command State Ports
--------------------------------------------------------------------------------------------------------------------
api-server "java -jar /app/apis…" api-server running 0.0.0.0:8080->8080/tcp, :::8080->8080/tcp
broker "/etc/confluent/dock…" broker running 0.0.0.0:9092->9092/tcp, :::9092->9092/tcp, 0.0.0.0:9101->9101/tcp, :::9101->9101/tcp, 0.0.0.0:29092->29092/tcp, :::29092->29092/tcp
docker "python3 app.py" docker running
kafka-connect "/etc/confluent/dock…" kafka-connect running (healthy) 0.0.0.0:8083->8083/tcp, :::8083->8083/tcp, 9092/tcp
ksqldb-server "/usr/bin/docker/run" ksqldb-server running 0.0.0.0:8088->8088/tcp, :::8088->8088/tcp
ones-collector "java -jar /app/coll…" collector running 8093/tcp, 0.0.0.0:50053->50053/tcp, :::50053->50053/tcp
ones-collector-db "/docker-entrypoint.…" collector-db running 8008/tcp, 0.0.0.0:5432->5432/tcp, :::5432->5432/tcp, 8081/tcp
ones-fm "/bin/sh -c '{ gunic…" fm running 0.0.0.0:8787->8080/tcp, :::8787->8080/tcp
ones-fm-db "docker-entrypoint.s…" fm-db running 0.0.0.0:2345->5432/tcp, :::2345->5432/tcp
ones-gateway "./gnmi-gateway -Tar…" gateway running 0.0.0.0:9339->9339/tcp, :::9339->9339/tcp
ones-pty-server "docker-entrypoint.s…" pty-server running 0.0.0.0:8885->8885/tcp, :::8885->8885/tcp
ones-rule-service "java -jar /app/rule…" rule-service running 8080/tcp
ones-rule-service-db "docker-entrypoint.s…" rule-service-db running 5432/tcp
ones-ui "docker-entrypoint.s…" ui running 0.0.0.0:443->443/tcp, :::443->443/tcp, 3002/tcp
schema-registry "/etc/confluent/dock…" schema-registry running 0.0.0.0:8081->8081/tcp, :::8081->8081/tcp
stream-processor "java -jar /app/stre…" stream-processor running 8080/tcp
zookeeper "/etc/confluent/dock…" zookeeper running 2888/tcp, 0.0.0.0:2181->2181/tcp, :::2181->2181/tcp, 3888/tcp
Finishing up ONES Installation...
...................................................................................
Installed ONES application successfully
Open the ONES application at https://<host-ip>Deep Telemetry for ASIC and Switch Hardware
Device Inventory details on
Network Operating System (NOS)
Firmware versions - ONIE, BIOS, and CPLD
Hardware SKU, Model, ASIC, and Serial Number
Platform Components – Fan, PSU, Sensors
Link/Interface Health – Speed, Connectivity, Transceivers/Cables
Inventory Operations
Adding/Removing devices using YAML or CSV file
Agent Status Monitoring
Device Monitoring
Device Up/Down State based on Agent and Agent-less
Region and Zone Mapping
Device Roles – Access, Leaf-Spine, Super-Spine
Network Compliance with version checks on
Telemetry Agent
Orchestrator Agent
ONIE, NOS, and Linux Distros versions
Resource Trends
CPU and Memory Utilization
PSU and Fan Readings

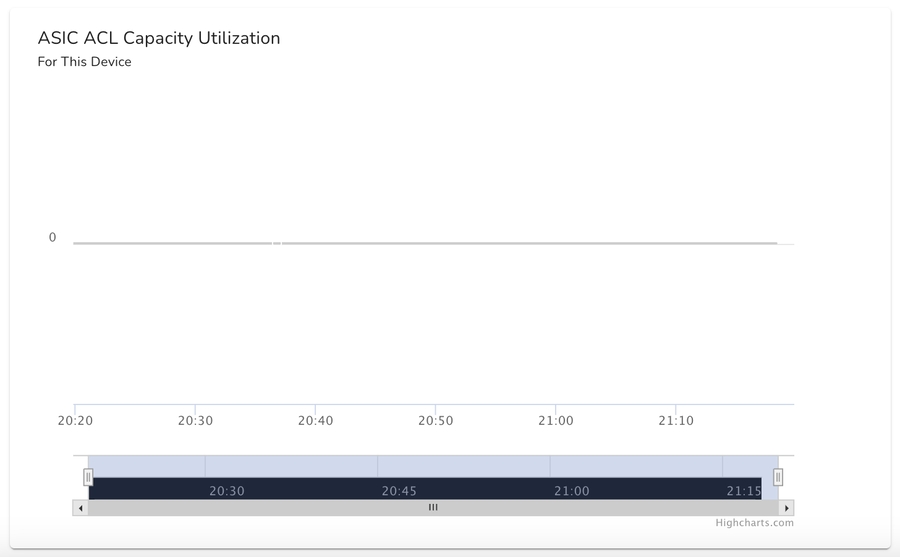

ASIC Capacity for Routes and ACLs

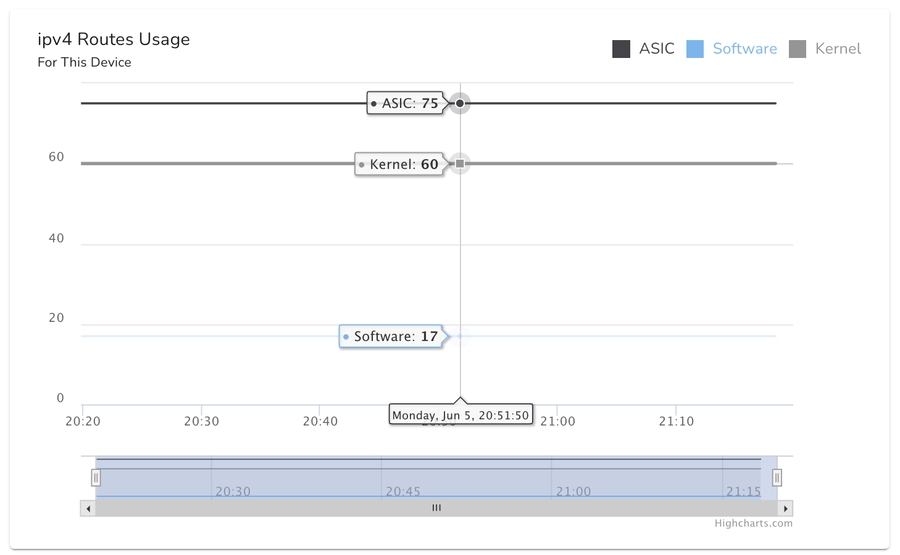

Software and Kernel Route capacity
Packet Counters – IN/OUT, Errors/Discards
Topology View
Device Connectivity view across Roles and Location
Link/Connectivity Status
Device or Component failure count
Routing Protocol
BGP Neighbors
Advertised and Received Prefixes
Local AS Number
VXLAN
MGLAG
LACP
RoCE
Orchestrator Use Cases
YAML-based Configuration push
Image Management via ZTP
BGP Numbered(IPv4 & IPv6) and Unnumbered Configuration
BGP Peering with Port-Channel
NTP, SNMP, SFLOW, and SYSLOG Configuration
VXLAN
Symmetric/Asymmetric IRB
L2/L3 MC-LAG
EVPN MultiHoming
Layer2 Leaf-Spine (L2/L3 Mode)
Leaf only Deployment
BGP Peering over MC-LAG PeerLink
BGP Peering using separate Link between MC-LAG Peers
DHCP Relay
SAG / SVI
Licensing
Application License
Telemetry Agent License
Orchestrator Agent License
User Management
Add/Edit/Delete User
Role Management
API Access for configurations originating from External Orchestration Tools
Rule Engine
Slack Channel for push notification
Zendesk ticket generation
Rules status
ONES allows users to leverage pre-defined templates, and customize them for Ports, IPv4/IPv6 Routes, BGP-Unnumbered, and Switch Services (NTP, SNMP, SYSLOG, ZTP, etc.) functions
x86/x64 based
8-core CPU
64GB
6 TB or more
512
INTEL(E5-1607 v2)/AMD,
16 cores or higher
64GB
12 TB or more
1024
INTEL(E5-1607 v2)/AMD,
32 cores or higher
128GB
20 TB or more
Install Docker-compose
sudo apt-get install docker-compose
docker-compose version​
Install Python3
sudo apt-get install python3
python3 –-version
Install Python3-pip
sudo apt-get install python3-pip
pip3 –-version
Install Paramiko
sudo apt-get install python3-paramiko
​pip show paramiko
Install SCP-Client
sudo pip3 install scp
pip show scp
ONES Orchestrator
8787
ONES Orchestrator Database
2345
pty-server
8885
API-Server
8080
stream-processer
8093
ksqldb-server
8088
kafka-connect
8083
schema-registry
8081
broker
29092, 9101, 9092
Zookeeper
2181
ONES Collector
50053
ONES Application can be integrated in the network as a Virtual Machine(VM) Package
QCOW2 Package: Qcow2 can be imported any KVM Hypervisor based application
OVA/OVF Package: OVA can import in
VMware workstation/Fusion
ESXI Server
Virtual-Box
QCOW2 & OVA, both packages are supported for an upgrade to latest version
Enter device details (Management IP, Username, Password ) in device_info.csv
root@ones-application/ONES-2.0/ones_fm_agent:~$ vi device_info.csv
Save the file
Execute the installation script
root@ones-application/ONES-2.0/ones_fm_agent:~$ ./deploy_fmcli.sh 'install'
root@ones-application/ONES-2.0/ones_fm_agent:~$ ./deploy_fmcli.sh 'installresetconfig'
root@ones-application/ONES-2.0/ones_fm_agent:~$ ./deploy_fmcli.sh 'upgrade'
Verify the Installation success by running the fmcli command on individual devices
root@Switch:~$ sudo fmcli
ip,user,passwd
10.4.4.61,admin,YourPaSsWoRd
10.4.4.62,admin,YourPaSsWoRd
...
...
...root@ones-application/ONES-2.0/ones_fm_agent:~$ ./deploy_fmcli.sh 'install'
Installer will proceed with FMCLI-install ...
2fa37f2ee66e: Loading layer [==================================================>] 121.3MB/121.3MB
5cc3a4df1251: Loading layer [==================================================>] 49.6MB/49.6MB
2ef3351afa6d: Loading layer [==================================================>] 181.5MB/181.5MB
0c2d6fc19d6a: Loading layer [==================================================>] 596.9MB/596.9MB
d3de4ba9f72c: Loading layer [==================================================>] 19.25MB/19.25MB
6546924ee8e7: Loading layer [==================================================>] 41.04MB/41.04MB
16227882e38c: Loading layer [==================================================>] 5.12kB/5.12kB
29d8b0c23f30: Loading layer [==================================================>] 10.5MB/10.5MB
0eb731fd9ff0: Loading layer [==================================================>] 69.94MB/69.94MB
015b774a058f: Loading layer [==================================================>] 2.56kB/2.56kB
35743f2c1258: Loading layer [==================================================>] 37.47MB/37.47MB
e02e88375b40: Loading layer [==================================================>] 4.428MB/4.428MB
Loaded image: avizdock/agent_installer:latest
Docker image 'avizdock/agent_installer:latest' is loaded.
4c7a6666fea40554651f85c6b6857a79a99433872ba168c8865fbcf3246f0adc
Docker container 'agent_installer' is running.
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
4c7a6666fea4 avizdock/agent_installer:latest "python3" 4 seconds ago Up Less than a second agent_installer
Server IP: 172.17.0.2
fm_port: None
[{'ip': '10.20.7.12', 'passwd': 'YourPaSsWoRd', 'user': 'admin', 'server_ip': '172.17.0.2', 'fm_port': None}]
Operation = install
##### params = {'ip': '10.20.7.12', 'passwd': 'YourPaSsWoRd', 'user': 'admin', 'server_ip': '172.17.0.2', 'fm_port': None} #####
###############Connecting to switch###############
...
#################### Installing FMCLI on the device 10.20.7.12 ######################
####### Debug LOGS on the device 10.20.7.12 #######
...
FM-Agent installed successfully on the device 10.20.7.12........root@ones-application/ONES2.0/ones_fm_agent# ./deploy_fmcli.sh 'installresetconfig'
Installer will proceed with FMCLI-installresetconfig ...
2fa37f2ee66e: Loading layer [==================================================>] 121.3MB/121.3MB
5cc3a4df1251: Loading layer [==================================================>] 49.6MB/49.6MB
2ef3351afa6d: Loading layer [==================================================>] 181.5MB/181.5MB
0c2d6fc19d6a: Loading layer [==================================================>] 596.9MB/596.9MB
d3de4ba9f72c: Loading layer [==================================================>] 19.25MB/19.25MB
6546924ee8e7: Loading layer [==================================================>] 41.04MB/41.04MB
16227882e38c: Loading layer [==================================================>] 5.12kB/5.12kB
29d8b0c23f30: Loading layer [==================================================>] 10.5MB/10.5MB
0eb731fd9ff0: Loading layer [==================================================>] 69.94MB/69.94MB
015b774a058f: Loading layer [==================================================>] 2.56kB/2.56kB
35743f2c1258: Loading layer [==================================================>] 37.47MB/37.47MB
e02e88375b40: Loading layer [==================================================>] 4.428MB/4.428MB
Loaded image: avizdock/agent_installer:latest
Docker image 'avizdock/agent_installer:latest' is loaded.
86086002858bad33fa21019f48eb58c7e37d9104d5b161ad7706d61c0bfa89f2
Docker container 'agent_installer' is running.
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
86086002858b avizdock/agent_installer:latest "python3" 3 seconds ago Up Less than a second agent_installer
ones-fm container is not running
Server IP: 172.17.0.2
fm_port: None
[{'ip': '10.20.7.12', 'passwd': 'YourPaSsWoRd', 'user': 'admin', 'server_ip': '172.17.0.2', 'fm_port': None}]
Operation = installresetconfig
##### params = {'ip': '10.20.7.12', 'passwd': 'YourPaSsWoRd', 'user': 'admin', 'server_ip': '172.17.0.2', 'fm_port': None} #####
###############Connecting to switch###############
<paramiko.client.SSHClient object at 0x7feb0b5b0310>
Connection to switch 10.20.7.12 successfull.....................
/home/ones_fm_agent
Creating work directory on the device 10.20.7.12........
Work Directory ones-fm_1702897991_0583997 created successfully on the device 10.20.7.12 .............
Copying FMCLI_Installer.py to directory ones-fm_1702897991_0583997 on the device 10.20.7.12 .............
Copying FMCLI_Installer.py to directory ones-fm_1702897991_0583997 successful on the device 10.20.7.12 .............
Copying fmcli-app.tgz to directory ones-fm_1702897991_0583997 on the device 10.20.7.12 .............
Copying fmcli-app.tgz to directory ones-fm_1702897991_0583997 successful on the device 10.20.7.12 .............
#################### Installing FMCLI on the device 10.20.7.12 ######################
####### Debug LOGS on the device 10.20.7.12 #######
...
...
...
FM-Agent installed successfully on the device 10.20.7.12........
####### Deleting ones-fm_1702897991_0583997 dir on the device 10.20.7.12 #######
##### params = {'ip': '10.20.7.12', 'passwd': 'YourPaSsWoRd', 'user': 'admin', 'server_ip': '172.17.0.2', 'fm_port': None} #####
###############Connecting to switch - 10.20.7.12 ###############
<paramiko.client.SSHClient object at 0x7feb0b5b0640>
Connection to switch 10.20.7.12 successfull.....................
/home/ones_fm_agent
Creating work directory on the device 10.20.7.12........
Work Directory ones-fm_1702898114_0637665 created successfully on the device 10.20.7.12 .............
Copying config-reset.py to directory ones-fm_1702898114_0637665 on the device 10.20.7.12 .............
Copying config-reset.py to directory ones-fm_1702898114_0637665 successful on the device 10.20.7.12 .............
#################### Cleaning config on the device 10.20.7.12 ######################
...
...
...
OCI runtime exec failed: exec failed: unable to start container process: exec: "/usr/lib/frr/frr-reload.py": stat /usr/lib/frr/frr-reload.py: no such file or directory: unknown
Running command: /usr/local/bin/sonic-cfggen -d --print-data > /etc/sonic/config_db.json
###################################
###################################
###### Config Reset Successful !!! #######
root@ones-application/ONES-2.0/ones_fm_agent:~$ ./deploy_fmcli.sh 'upgrade'
Installer will proceed with FMCLI-upgrade ...
2fa37f2ee66e: Loading layer [==================================================>] 121.3MB/121.3MB
5cc3a4df1251: Loading layer [==================================================>] 49.6MB/49.6MB
2ef3351afa6d: Loading layer [==================================================>] 181.5MB/181.5MB
0c2d6fc19d6a: Loading layer [==================================================>] 596.9MB/596.9MB
d3de4ba9f72c: Loading layer [==================================================>] 19.25MB/19.25MB
6546924ee8e7: Loading layer [==================================================>] 41.04MB/41.04MB
16227882e38c: Loading layer [==================================================>] 5.12kB/5.12kB
29d8b0c23f30: Loading layer [==================================================>] 10.5MB/10.5MB
0eb731fd9ff0: Loading layer [==================================================>] 69.94MB/69.94MB
015b774a058f: Loading layer [==================================================>] 2.56kB/2.56kB
35743f2c1258: Loading layer [==================================================>] 37.47MB/37.47MB
e02e88375b40: Loading layer [==================================================>] 4.428MB/4.428MB
Loaded image: avizdock/agent_installer:latest
Docker image 'avizdock/agent_installer:latest' is loaded.
73bf7f665d0df3633a83b58fae02e987cad8f1246ec6119aa58088e00c1e44a6
Docker container 'agent_installer' is running.
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
73bf7f665d0d avizdock/agent_installer:latest "python3" 3 seconds ago Up Less than a second agent_installer
ones-fm container is not running
Server IP: 172.17.0.2
fm_port: None
[{'ip': '10.20.7.12', 'passwd': 'YourPaSsWoRd', 'user': 'admin', 'server_ip': '172.17.0.2', 'fm_port': None}]
Operation = upgrade
##### params = {'ip': '10.20.7.12', 'passwd': 'YourPaSsWoRd', 'user': 'admin', 'server_ip': '172.17.0.2', 'fm_port': None} #####
###############Connecting to switch###############
...
...
...
#################### Upgrading FMCLI on the device 10.20.7.12 ######################
####### Debug LOGS on the device 10.20.7.12 #######
fmcli-app/
fmcli-app/fmcli
fmcli-app/fmclimain.service
fmcli-app/fmcli.cli
...
...
...
Created symlink /etc/systemd/system/multi-user.target.wants/fmclimain.service → /etc/systemd/system/fmclimain.service.
/tmp/fmcliStartup.init
FM-Agent Upgraded successfully on the device 10.20.7.12........root@Switch:~$ sudo fmcli
fmcli# Region
azid
brickid
rackid
Work with Aviz Sales/Support contact to create an account on Aviz Networks Support Portal
Login to https://support.aviznetworks.com with your account credentials
Click on the Downloads section, under ONES, click to download ONES Release 2.0
Copy ONES Release 2.0 package (qcow2) to KVM Hypervisor Server
If your host server has Ubuntu Desktop and virt-manager installed you can use it to deploy the VM. Make sure you can start the Virtual Machine Manager and that it connects successfully to the local hypervisor.
Creating a VM with virt-manager is very straightforward, Use the following steps to deploy the ONES-Application
File -> New Virtual Machine -> Import existing disk image -> Forward
Now the ONES Application is ready to use
Create an XML configuration file from the following template using vi
Create a Linux bridge configuration file (bridged-network.xml) for libvirt from the following template
Define the Linux bridge for the VM
Start the VM
If you see a permission error run the virsh command with sudo may fix the issue
Check the VM status
Navigate to Inventory
This page gives the control to onboard the devices with two options
Add Devices using the YAML Editor
Upload the CSV file containing the device list
The movement user chooses CSV upload, then the YAML Editor will be disabled
Click on Add Devices
Upload Device Inventory using YAML Editor
Navigate to Inventory >> Devices >> Add Devices >> Use YAML
Use the below format to add devices to the application
Make sure to use the correct indentation for the YAML files
Click Save & Apply
ONES Application is now ready to manage the added devices
Click on Add Devices
Upload Device Inventory using CSV File
Navigate to Inventory >> Devices >> Add Devices >> Use CSV
Use the below format to add devices to the application
Select CVS file to Upload >> <Choose CSV file containing devices entry>
Upload & Add
Click on the Downloads section, under ONES, and click to download ONES Release 2.0
ONES-2.0.0 OVA support below Versions of VMware Family
Login to ESXI >> Create / Register VM
Choose Deploy a virtual machine from an OVF or OVA file >> NEXT
Give it a Valid Name >> Click to select Files or drag/drop (upload from the download folder)
Choose the downloaded OVA package >> NEXT
Choose preferred storage to run ONES-2.0.0 VM >> NEXT
Choose a Network Adapter to provide DHCP IP to ONES App (Management interface/Eth0) >> NEXT
Verify all the inputs >> FINISH
ONES is Ready to use >> Power On the ONES VM
Once logging into the server CLI using below credentials, please continue with the next steps that is Ones Agent Installation
Navigate to Configurations >> Configure Devices
Allows you to configure new devices
Supports valid YAML files
You can download the sample YAML file, edit it, and upload it again with the desired configuration
NOTE: Follow the to know more about configuration
BGP Peering over Port channels
L3 MC-LAG
Layer2 Leaf-Spine (L2/L3 Mode)
Leaf only Deployment
NOTE: For more details on New Features follow the .
The monitor widget in ONES:
Shows the complete topology view of the fabric
The Topology view can be categorised by:
Region
Platform
ASICs
Statuses
This page shows all the links and information connected to each other
Using a right click on device it allow a user to go to specific feature details
Traffic, Health, Capacity, Protocols
Allow a user to connect device via SSH, Console Access
Can get SYSLOGS
Traffic View
input/output packets in million per sec
Errors and Discard packets per interface
And more related metrics
Health of the devices
CPU & Memory Utilization
CPU & PSU Temperature
PSU Voltage & Fan Speed
Capacity of the devices
IPv6 & IPv6 Routes
ASIC/Software/Kernel
ASIC ACL capacity
Links Page
All the connected devices
Transceivers info
Protocols status
BGP status
VXLAN
MCLAG
Navigate to Monitor >> Topology
This shows the complete Topology view, how the devices are connected
Topology can be filtered by Underlay/Overlay/RoCE
We can put the filters to check the customized view of the Topology
Count of devices
Using this widget we can check the input and output errors across all the devices
This widget also shows the input and output packet per device
Navigate to Monitor >> Traffic
This page shows the information:
Device Name & IP
Roles & Region
Device details
When we click on any particular interface it gives the timescale of the inputs and output packets with Errors and Discards & all metrics in detail
This page shows the traffic drop rate per interface based and will be very useful while doing any troubleshooting for a traffic drop
Using these details a user can check more details inside to fix the issue of dropping/discarding packets
This page shows the latest utilization of all the devices
CPU & Memory utilization
Temperature & Voltage of PSU
fan speed in % & RPM
Navigate to Monitor >> Health
Health Status is reported for the following components
Roles
SKU/ASIC
Ports/Max Speed
CPU Utilization (%)
We can check the health of the device as per some customization
We can filter the devices by:
Roles
Region
We can choose a role using the available Role-based option
4 Roles available
Super Spine
Spine
This Platform Widget also gives the option to check the extended capability view of the device
Apart from this monitoring view, we can also verify/check extended feature sets like:
PSU Current (A)
When we choose a specific device we get an output like this
Here we get the complete status of CPU usage with a time range A complete status What was the usage from starting to end
To check a specific time detail we can hover the cursor to any level
Now here we get the status of Memory Usage of selected device
To check a specific time detail with memory utilization, we can hover the cursor to any level
This template shows the status of CPU temperature in degree celsius
Here we get the status of all the CPU and Core running on the device
The best widget here for Services
We can also check the total number of count of services running on the platform
This graph shows the red colour bar, red colour show at what time one of the services went down
This widget shows us the CPU consumption percentage level of all services / per service.
Here we can see we have the option to check the consumption view of CPU
To check a specific time detail we can hover the cursor on any level
This widget shows us the Memory consumption percentage level of all services / per service.
Here we can also check the consumption view of only Memory.
To check a specific time detail we can hover the cursor on any level
This page shows the view of Capacity and a few more details related to devices
This widget Shows
Roles/Region per device
SKU and ASIC details per device
ASIC ACL Capacity utilization
This Capacity Widget give us the control to get the output per Role and Region basis also
Let's choose Leaf Role to get the customized view
In the same way, we can customize the view by Region & SKUs
This widget gives us the capability to check the extended view of the Routes & ACL usage with a range of time
Click on any of the devices to get the extended view
This page gives a view to the user for all the possible connected links between devices with a few more capabilities
Navigate to Monitor >> Links
This page helps a user to get the best view of the number of connections between devices with speed and other manufacturer details
This page gives the exact view of the interface name, interface speed, transceivers and admin & operator status
This Protocol Page shares the data of BGP neighbours present across managed devices
This shows the status of the neighbour's details, the total number of neighbours, received routes, neighbour RID, BGP AS number & much more​​We have the option here to check the neighbour details and status of Routes​​We can click on neighbours to get more details about all neighbours connected
The user can get per-device status by choosing a particular Device
Click on the device name to get the status
This new page shows the status of BGP neighbours about UP and Down status
On right side it shows the BGP announcements and the local prefixes present in BGP table
User can onboard all the devices on the application and can get a complete view of all the populated tables
Agent-Based devices will automatically added using the auto discovery feature
Agent-Less devices needs to be added using this inventory page
The Inventory tab has the below mentioned features:
Custom OS upgrade:
Login to the Zendesk Support Admin panel & Follow the steps
click >> Apps & Integration
Choose >> Zendesk API
ip,user,passwd,layer,region,azid,brickid,rackid
10.4.4.61,admin,YourPaSsWoRd,Spine,SanJose,1,1,1
10.4.4.62,admin,YourPaSsWoRd,Leaf,SanJose,1,1,1
...
...
...Does the ONES-agent is integrated with SONiC NOS? (yes/no): noEnter the ip address of collectors to auto-discover. Do not enter more than 2. Eg - 10.1.1.10, 10.2.2.5 : 10.4.4.11Do you want to restrict access only to provided collector ip?
Note: Providing Yes will restrict access to agent only with the provided collector IP Address
Enter Yes/No : Yesroot@ones-application/ONES-2.0/ones_t_agent:~$./ones_agent_parallel_installer.sh
Does the ONES-agent is integrated with SONiC NOS? (yes/no): no
Enter the ip address of collectors to auto-discover. Do not enter more than 2. E.g. - 10.1.1.10, 10.2.2.5 : 10.4.4.11
Do you want to restrict access only to provided collector ip?
Note: Providing Yes will restrict access to agent only with the provided collector IP Address
Enter Yes/No : Yes
[{'ip': '10.4.4.61', 'user': 'admin', 'passwd': 'YourPaSsWoRd', 'layer': 'Spine', 'region': 'Sanjose', 'azid': '1', 'brickid': '1', 'rackid': '1', 'installation_instance': 1, 'agentip': '10.4.4.61', 'collectorip': '10.4.4.11', 'restrict_collector_ip': 'Yes'}, {'ip': '10.4.4.62', 'user': 'admin', 'passwd': 'YourPaSsWoRd', 'layer': 'Leaf', 'region': 'Sanjose', 'azid': '1', 'brickid': '1', 'rackid': '1', 'installation_instance': 1, 'agentip': '10.4.4.62', 'collectorip': '10.4.4.11', 'restrict_collector_ip': 'Yes'}]
###############Connecting to switch###############
###############Connecting to switch###############
Connection to switch 10.4.4.61 successful.....................
Looking for previous installation........................
avizdock/ones-agent:devu
Connection to switch 10.4.4.62 successful.....................
Looking for previous installation........................
avizdock/ones-agent:latest
...
...
...
...
ones-agent.service file copied successfully on the device 10.4.4.61........
##################################################################
ones-agent.service file copied successfully on the device 10.4.4.62........
##################################################################
Deployment of ones-agent to switch 10.4.4.61 is successful
Deployment of ones-agent to switch 10.4.4.62 is successful<domain type='kvm' xmlns:qemu='http://libvirt.org/schemas/domain/qemu/1.0'>
<name>ONES_VM01</name>
<memory unit='KiB'>4194304</memory>
<currentMemory unit='KiB'>4194304</currentMemory>
<vcpu placement='static'>4</vcpu>
<resource>
<partition>/machine</partition>
</resource>
<os>
<type arch='x86_64' machine='pc-i440fx-1.5'>hvm</type>
<boot dev='hd'/>
</os>
<features>
<acpi/>
<apic/>
</features>
<clock offset='utc'/>
<on_poweroff>destroy</on_poweroff>
<on_reboot>restart</on_reboot>
<on_crash>restart</on_crash>
<devices>
<emulator>/usr/bin/qemu-system-x86_64</emulator>
<disk type='file' device='disk'>
<driver name='qemu' type='qcow2' cache='writeback'/>
<source file='/home/oper/taas_vm/ones.qcow2' />
<target bus='virtio' dev='vda'/>
</disk>
<serial type='pty'>
<source path='/dev/pts/3'/>
<target port='0'/>
</serial>
<!-- Management interface eth0 -->
<interface type='network'>
<model type='e1000' />
<source network='br0'/>
<address type='pci' domain='0x0000' bus='0x00' slot='0x00' function='0x0'/>
</interface>
<controller type='usb' index='0'/>
<memballoon model='virtio'>
<alias name='balloon0'/>
<address type='pci' domain='0x0000' bus='0x00' slot='0x04' function='0x0'/>
</memballoon>
</devices>
</domain>Line #2 The Name of the VM
Line #3 The amount of System Memory for the VM
Line #4 The amount of System Memory for the VM
Line #5 The number of vCPU Core for the VM
Line #25 The Path to the qcow2 VM image file
Line #35 The name of the Linux bridge on the host machine<network>
<name>br0</name>
<forward mode="bridge" />
<bridge name="br0" />
</network>Line #4 the name of the Linux bridge on the host machine#Execute the below command to attach the VM to the Linux Bridge
sonic@sonic-39:~$ virsh net-define bridged-network.xml
sonic@sonic-39:~$ virsh net-start br0
sonic@sonic-39:~$ virsh net-autostart br0
sonic@sonic-39:~$ virsh net-list
Name State Autostart Persistent
----------------------------------------------------------
br0 active yes yes
sonic@sonic-39:~$ virsh create <VM XML configuration file>
#sonic@sonic-39:~$ virsh create ones.xml
#Domain ONES_VM01 created from ones.xml
#sonic@sonic-39:~$
sonic@sonic-39:~$ virsh list
Id Name State
----------------------------------------------------
8 ONES_VM01 running
sonic@sonic-39:~$ Username: aviz
Password: Aviz@123 inventory:
- ipAddress: "10.4.4.61"
layer: "Spine"
region: "San Jose"
azId: 1
brickId: 1
user: "admin"
password: "YourPaSsWoRd"
- ipAddress: "10.4.4.62"
layer: "Spine"
region: "San Jose"
azId: 1
brickId: 1
user: "admin"
password: "YourPaSsWoRd"
Username: aviz
Password: Aviz@123python3 vm-hdd-expand.pyInstalling Open Networking Enterprise Suite (ONES)
..................................................
ONES is getting installed for the first time, choose appropriate options when prompted...
....................
Installing prerequisites for ONES application
....................
....................
....................
....................
Installing ONES application...
Do you want to install domain SSL certificate(if not, installation will proceed with a self signed certificate)? [y/n]: n
Using self signed certificates...
Enter the ONES App URL: https://ones.aviznetworks.comFollow the Steps to upgrade the ONES to the New Version
VM packages do not support upgrades from one VM to another VM once the VM is deployed in the network, then the ONES tar-ball file can be used to upgrade it.
In data centre operations, a rule engine with alerts for various metrics is essential for proactive monitoring and management of critical components and services. Let's see the different types of rule engine alerts for specific metrics in a data centre environment
CPU and Memory
Fan and Power Supply Unit
Traffic Bandwidth
ASIC Routes
Health Services
Traffic Errors and Discard Counters
Rule Engine pushes the configured rule notification in case any device breaches the threshold value configured under the rule to
Slack channel
Zendesk Support ticket
To use Rule Engine feature User needs to setup first Slack channel integration or Zendesk Support integration
Users can integrate 2 applications to get the push notification of all the rules created under rule section
Slack Channel Integration
Zendesk Support Integration
BGP Peering over MC-LAG PeerLink
BGP Peering using separate links between MC-LAG Peers
Not streaming, Faulty Fans, Faulty PSUs, Links Down
Metrics
Bandwidth RX & TX
Memory, CPU & ASIC Utilization
LACP
All devices onboarded
Not streaming
Faulty Fans & PSUs
Links Down
We can also check Down Links to check the topology those are having links in the shutdown state
When we hover the cursor over any device and use right click we get few more controls
Device details/Ports
Direct Navigation per device
Traffic/Health/Capacity/Protocols
SSH/Console connect
SYSLOG
we can also filter the view by using
Statuses
Not streaming, Faulty Fans, Faulty PSUs, Links Down
Metrics
Bandwidth RX & TX
Memory, CPU & ASIC Utilization
Interface speed and ports
Errors & Utilization of the links
Filter Ribbon can be used to get a customized view
Operator up/down
Admin down
PFC Enable
When we click on any device it gives more information about the interface traffic
Errors per interfaces
Bandwidth Utilisation per interfaces
Memory Utilization (%)
CPU Temperature (℃)
PSU Temperature (℃)
PSU Voltage (V)
Fan Speed (RPM)
Details of the temperature of the CPU across all the devices in degrees celsius
Any device that breaches the configured acceptable or critical value will be shown here
Click on any device to get the view/status of all the components related to that device
Average PSU Temperature (C)
Power Supply Temperature in degrees celsius
Any device that breaches the configured acceptable or critical value will be shown here
Click on any device to get the view/status of all the components related to that device
PSU (Voltage)
Power Supply Voltage readings in volts
Any device that breaches the configured acceptable or critical value will be shown here
Click on any device to get the view/status of all the components related to that device
Average Fan Speed (%)
Fan Speed in % of maximum supported RPM
Any device that breaches the configured acceptable or critical value will be shown here
Click on any device to get the view/status of all the components related to that device
Leaf
ToR
Let’s check it with a Leaf filter
After selecting Leaf input, here is the new view of only devices that belong to the Leaf role
Services Running
Services CPU/Memory Consumption (%)
To view per device status with all possible widgets, click on any of the devices present on the list
API Explorer
7
Device Details
Platform
Number of Ports and Speed
Agent Version
IPv4 Routes (ASIC, Software, Kernel)
IPv6 Routes (ASIC, Software, Kerneel)
Device Manufacturer
Manufactured Date
Date of Manufacturing
Admin and Operator status
Local and Remote status of link
These are the total number of advertised prefixes by the router to other BGP neighbours
This is the Local BGP AS number
Here we have the control to check more details on neighbours
​​
​​
Here is the view of the Route Refresh messages count:
Tx: how many Route-Refresh messages have been transmitted
RX: how many Route-Refresh messages have been received
Here is the view of the Updates Count:
Tx: how many times updates have been transmitted
RX: how many times updates have been received
​
HOST / IP
Device Name
Device IP
Roles/Region
Device Role
Device Region
SKU/ASIC
SKU (Stock Keeping Unit)
ASIC
Port/Max Speed
Total number of ports available
Speed of ports
CPU Utilization (%)
CPU Utilization reported in 4 states
Normal
Acceptable
Critical - Action needed
Not Streaming - Agent is not up
Click on any device to get the view/status of all the components related to that device
Memory Utilization (%)
Memory Utilization reported in 4 states
Normal
Acceptable
Critical - Action needed
Not Streaming - Agent is not up
Click on any device to get the view/status of all the components related to that device
1
Time Frame: Check Utilization Trends based on Time Range The application has the capacity to store up to 2 weeks of data
2
Refresh Component Status
3
Alerts: show all the alerts triggered by rules
4
Raise a Ticket for Technical Support
5
Documentation
Roles/Region per device
SKU and ASIC details per device
ASIC ACL Capacity utilization
IPv4 Routes (ASIC, Software, Kernel)
IPv6 Routes (ASIC, Software, Kernel)
Feature
Use
​​
​
When we move the cursor to metrics this gives the usage view of ipv4:
ASIC
Kernel
Software
​​
​When we move the cursor to metrics this gives the usage view of ipv6:
ASIC
Kernel
Software
​​
​When we move the cursor to metrics this gives the usage view of ACL:
ASIC
Hostname
Hostname of the managed device
Role
Role of the device
Port/Interface
Interface details
Port Speed
Link speed of connected devices
Transceiver
SFP/QSFP Optics statuts
Here we can get:
Device name
Device IP
Here We get the view of:
Roles and Region
this column shares the details of:
SKU
ASIC
This shared the count of total BGP neighbours
This column share the status of
how many BGP neighbours are UP and running
How many BGP neighbours are in Down state
Feature
Feature
​​
​
Here we get the details of connected neighbours
Neighbour Device Name
Neighbour IP
​
Here we get the Neighbour BGP AS number
​​
​​
​
This shares the neighbour status of uptime, from how long the neighbour is connected
​
Here we get the detail of the last neighbour reset timer
​​
​​
​
This share the count of established and dropped connections per neighbour
Average CPU Temperature (C)
6
Manufacturer
This column shares the Total Prefixes Present in BGP
​
Here is the view of the Keep Alive timer:
Tx: how many keepalives have been transmitted
RX: how many keepalives have been received
Once user create the rule it will be available in the rule list
Once the device CPU Utilization goes above the threshold value it will start pushing notifications to SLACK & Zendesk Support tickets
OS upgrade via ZTP: Upgrade the device OS via Zero touch provisioning
Reboot devices: Reboot the device from a single click in the UI
Add devices from the dashboard: The User can onboard the non-sonic devices using the YAML file upload or via the in-built editor in the UI
Remove devices from the dashboard: The user can remove the auto-discovered(Agent based) and non-sonic devices
Create an App
Choose From scratch
Provide any App Name and choose the workspace where the user wants to get the push notification & Create App
Choose Incoming Webhook and Activate Incoming Webhooks & Add New Worbhook to workspace
Select the configured Channel & Allow
Copy the newly created webhook link
Open ONES-App and select Integration >> Messaging
Add Channel & Paste the Webhook URL
After saving it will be available to use while creating any rule using Rule Engine feature
Allow a user to create Rules per device
Allow user to include or exclude the devices from the rule
Entity by Property
Allow a user to create Rules by using HwSKU, Role, OS Version across all the managed devices
Rule Name: The user can choose any related name
For: The user can choose 2 options
Metrics: Metrics depend on the above (For: Device/Interface) condition
Measure: Metrics are measured in three diff ways
MIN
AVG
MAX
Period: Measured metrics can be verified with a buffer of a timer
5 min
10 min
15 min
When Measured Value is: This option allows a user to choose what condition has to match when the measured value is
EQ: Equal to
NEQ: Not Equal to
GE: Greater than Equal to
LE: Less than Equal to
GT: Greater than
LT: Less than
Critical Threshold: The user can set a Critical value on which push notification will be triggered
Warning Threshold: The user can set a Warning value on which push notification will be triggered
Notify: The user can choose the integrated SLACK Channel
Create Ticker: Zendesk Users can choose this to raise the Zendesk support ticket
Weekly Digest: Slack Users can choose this for Weekly Digest to SLACK Channel
Do not notify if the same alert trigger in: 30min, 1hour, 2hours, 10hours, 24hours
Stop notifying after: The user can choose a value of occurrence then it will not trigger the same in the next 24 hours
Rule Name: The user can choose any related name
Filter: user can filter the rule for all managed devices by
HWSKU
ROLE
OS Version
For: The user can choose 2 options
Select: this option depends on the Filter category, possible values are
Select HWSKU :
Select ROLE :
Select OS VERSION :
Metrics: Metrics depend on the above (For: Device/Interface) condition
Measure: Metrics are measured in three diff ways
MIN
AVG
MAX
Period: Measured metrics can be verified with a buffer of a timer
5 min
10 min
15 min
When Measured Value is: This option allows a user to choose what condition has to match when the measured value is
EQ: Equal to
NEQ: Not Equal to
GE: Greater than Equal to
LE: Less than Equal to
GT: Greater than
LT: Less than
Critical Threshold: The user can set a Critical value on which push notification will be triggered
Warning Threshold: The user can set a Warning value on which push notification will be triggered
Notify: The user can choose the integrated SLACK Channel
Create Ticker: Zendesk Users can choose this to raise the Zendesk support ticket
Weekly Digest: Slack Users can choose this for Weekly Digest to SLACK Channel
Do not notify if the same alert trigger in: 30min, 1hour, 2hours, 10hours, 24hours
Stop notifying after: The user can choose a value of occurrence then it will not trigger the same in the next 24 hours
Enable Token Access
Give API Token Description (Optional)
Copy the API Token
Save the Settings
Open ONES-App and select Integration >> Ticketing
Add Channel & Paste the required details
After saving it will be available to use while creating any rule using Rule Engine feature
VMware ESXI
ESXi 7.0 U2
ESXi 7.0
ESXi 6.5
VMware Fusion
Fusion 13.x
Fusion 12.2.x
Fusion 12.x
VMware Workstation
Workstation 17.x
Workstation 16.2.x
Workstation 16.x
The dashboard provides the NetOps with an overview of the data centre. It contains the entire hardware inventory of the network and shows the status whether these switches are streaming or not streaming.
After the Installation of ONES Application for the first time, the Dashboard is empty and Devices need to be onboarded for them to reflect
Dashboard will be used to
monitor the status of an agent running on all the devices present
Navigate to Dashboard >> Components
Navigate to Dashboard >> Interfaces
Using this page a user gets the status of
the cables utilized in the network
how many pairs of cable can be used for future topology (helps the admins in capacity planning)
Navigate to Dashboard >> Software
This section explains how users can add/manage/remove the devices using ONES.
Navigate to Inventory >> Devices
Using this tab, user can:
Onboard the non-sonic(Agent-Less) device to the application using Add devices
Syslogs capture
Upgrade the device using Custom Upgrade
The user needs to make sure, The devices have a unique name, otherwise, there will issue while plotting the full topology view(Topology Page).
Agent-based devices auto-discover the ONES-App and get registered automatically on the ONES Inventory page
To Onboard the Agent-Less devices user needs to add them manually
Navigate to Inventory
This page gives the control to onboard the devices with two options
Add Devices using the YAML Editor
Upload the CSV file containing the device list
The movement user chooses CSV upload, then the YAML Editor will be disabled
Click on Add Devices
Upload Device Inventory using YAML Editor
Navigate to Inventory >> Devices >> Add Devices >> Use YAML
Make sure to use the correct indentation for the YAML files
Click Save & Apply
ONES Application is now ready to manage the added devices
Click on Add Devices
Upload Device Inventory using CSV File
Navigate to Inventory >> Devices >> Add Devices >> Use CSV
Select CVS file to Upload >> <Choose CSV file containing devices entry>
Upload & Add
Role / Region: Shows the device roles and regions
SKU / ASIC: Shows the device hardware SKU and ASIC vendor
Port / Max Speed
Shows the number of ports per device and max port speed on the device
PSUs / Fans: Shows the total number of Power supplies and Fans present on a particular device
NOS Image: Shows the details of the network operating system running on the device and when it was last updated
ONIE Version: Shows which ONIE version is running on the device and when the last reboot time of the device
Agent Version / Network OS: Shows the agent version running on the device and the current active OS version on the device
Navigate to Inventory >> Devices >> Remove Devices
Choose the devices to be removed & confirm
once the user clicks on confirm, the Inventory page will remove the device
If the devices are agent-based they will get added again after some time, if the user wants to remove the agent-based devices, then the user need to uninstall the agent from the device
Now the selected devices have been removed from the ONES application
This feature gives the control to upgrade the device to the new version
An HTTP image link is required to use the custom upgrade
Select any of the devices to upgrade to the new version
Click on Custom Upgrade
put the new Image URL and then Submit
It will show the status as In Progress
Using this page a user can directly upgrade the box
Select any of the devices to upgrade via ZTP
Click on Upgrade via ZTP
Click on Yes
Here we will see how we can reboot a device using
We have the option to choose one or multiple devices at a time to reboot
Choose one of the devices that we want to reboot
Click on Reboot
Click on Yes
1. Create a Channel for ONES-App push notification
login to api.slack.com & choose Your apps
Create an App
Choose From scratch
Provide any App Name and choose the workspace where the user wants to get the push notification & Create App
Choose Incoming Webhook and Activate Incoming Webhooks & Add New Worbhook to workspace
Select the configured Channel & Allow
Copy the newly created webhook link
Open ONES-App and select Integration >> Messaging
Add Channel & Paste the Webhook URL
After saving it will be available to use while creating any rule using Rule Engine feature
Using this feature setting we can set the acceptable and critical percentage level for the following device components
This page gives control over the widget refresh timer and user idle state
Users can set the manual timer to refresh all the widgets after a time interval (default is 120sec)
Users can set the timer after how many minutes of idle state the ONES-UI should be logout
30 min
1 hour
30 min
1 hour
Details of Switch Hardware SKU and ASICs
Devices
Status of Switch
Not Streaming: The device is Inactive/Unreachable
Streaming: The device is in a Working state
Non-Licensed: The device is added out of licensed devices
Regions
Status of Regions, their Location and Device Mappings
Switch SKUs
Switch Hardware Vendor, Model Number and SKU
ASICs
ASIC Vendor, Model and Hardware version details
Roles
Device Roles in Customer Environment
Super-Spine
Spine
Leaf
ToR
PSUs
Shows the list of
all faulty Power Supplies across managed switches
LED status of managed switches
Fans
Show the list of
all faulty fans across managed switches
airflow direction of faulty fans for troubleshooting
Transceivers Temperature
Temperature readings and alerts for Optics
Transceivers Voltage
Voltage readings and alerts for Optics
Interfaces
Total number of ports available across devices
Status of Up interfaces across devices
Unused interfaces across the devices
Cabling
Total number of cables used across devices
Cable type used across device
Fiber
Copper
Count of cables required for unused ports
Interface Down
Information on Down Interfaces
Agent Status of a Device for a Down
Interface Historical Flaps starting with 5, 15, 30 minutes and 1 hours interval
Provides two types of Status:
Device Name with interface details
At what time the interface went down
Telemetry Agent version
version across all managed switches
distribution of Agent-based vs Agent-less switches
Device Status (Up/Down) based on Distro
Orchestrator Agent version
version across all managed switches
Agent Health - Up and Down
Network OS
NOS status and version across all managed switches
Distribution based on NOS versions
Device Status (Up/Down) based on NOS versions
Firmware Version
This widget shows the BIOS & ONIE version running on all managed devices
Linux Distro
version across all managed switches
Distribution based on Linux Distros
Devices Status (Up/Down) based on Linux Distro
Reboot individual devices or multiple devices by selecting them in one click
Remove the devices
Complete Inventory can be downloaded in CSV format
Click on the number of ports to get a detailed view of all the ports on a particular device
Agent status / Last contact: Latest status of the Agent and when it was last communicated with that Agent.
Connect: Using this feature we directly get the CLI access of the device
SSH connect
Console connect
Details: This last option we can again use to get the details of the device
CPU Utilization
Memory Utilization
CPU Temperature
Services running on the device
Thresholds we can set for Components
CPU Utilization
Memory Utilization
Fan Speed
PSU Temperature
PSU Voltage
As per requirement, we can set different lower and higher threshold values for each component
User can see the acceptable and critical number of devices in the Monitor Health tab view
Navigate to Monitor >> Platform when any component breaches the higher value
Navigate to Settings >> Thresholds
Change the values as per your requirements
Update it to get these new settings live, after Save Changes, all these metrics will be reflected on devices metric pages under Inventory
Using this tab user can control the timer of all the widgets refresh and idle timers of the application
Navigate to Settings >> Application
Using this page, users can change the refresh interval in seconds for all the widget
In the dropdown menu, available intervals are:
30 Seconds
60 Seconds
90 Seconds
120 Seconds
Users can set the timeout in minutes(2-60) for the ONES-UI
Remove and suspend multiple users at the same time
Password reset of existing users
Only super admin or Enterprise admin can perform these actions
Navigate to Accounts >> Users
Initially, we get one default Admin User Credential
In this view, we get the User status and Role given to it and the Last login time by the user.
On this User tab, we can Add new users and can remove or suspend any existing users
Navigate to Accounts >> Users >> Add
Admin can add
Profile picture
Username
Password
Password should contain:-
Minimum Password Length - 8 characters
Maximum Password Length - 24 characters
Character Support - Alpha Numeric
Special Characters - (# @ $ ! & % only)
Character Rule - At least one Upper Case and one special character
First and Last Name
Role
Enter all the required details
Click Save
"on the first login by the user with given details, ONES application prompt with a screen to rest the password
Now User is ready to login with valid credentials
Navigate to Accounts >> Users >> Edit User >> Reset Password >> Yes
Using Admin credentials you can reset the user password
Click on Reset Password
Submit & Save
After this user can try login with the temporary password, on the first login, ONES application actively asks to change the password
Navigate to Accounts >> Users >> ((Select Users you want to remove)) >> remove >> Yes
We can remove multiple users at a time
After this, the user will be removed from the database and cannot use credentials to login again
Instead of removing any user, we can also suspend the user
Once we suspend a user it will not be removed from the database but it will be in an Inactive state in the database
Later if we need we can restore the user to its active state
Navigate to Accounts >> Users >> ((Select Users you want to suspend)) >> Suspend >> Yes
Choose users & click on Suspend
Navigate to Accounts >> Users >> ((Select Users you want to restore)) >> Restore >> Yes
Navigate to Account >> Roles
By default, the device comes with these 4 Roles
Super Admin
Enterprise Admin
Enterprise Staff
Vendor Staff
As per the new user access requirement, we can assign limited access to user roles
Navigate to Accounts >> Roles
Now let's add few extra permissions
Add/Remove Devices
Configure Devices
Zendesk Support if integrated
Alerts Page always
This Alert Page allow a user to download the report in CSV format with a time range
This section explains how large data centers can be designed seamlessly using ONES.
Most fabric orchestration solutions available today are complex and often difficult to understand. ONES provides simple and effective tools, such as predefined templates (YAML file), to configure data centers at scale. ONES allows a customized way of configuring devices that includes enhancements to the standard configuration.
Speed config for the Host Facing port should be updated before Orchestration if there is any change in the default speed config.
Ex: Interface speed is 25G, but you can use it with 10G Transceiver. In such cases, user needs to update speed.
Save Config:
Copy to File:
Restore Config: //If needed only
You need to provide the following inputs to configure the devices:
This section explains the device configuration procedures, that gets applied seamlessly across the entire fabric
Navigate to Configurations >> Devices
Click on the Configure Devices button in the top right corner. This opens a new screen with a sample device configuration. You can edit the configurations directly in the UI to make the desired changes. You can also download the sample YAML file by clicking on Download YAML button, provided at the bottom of the above screen, make new changes and upload the YAML file using Upload YAML button.
Inventory: Specify how many devices you want to add in any particular role - Super Spine, Spine, Leaf, and ToR.
Connectivity: Specify the parameters required to establish link connectivity such as:
Device switch ID: unique ID for every device, required to correctly render the topology
Switch name: hostname of the device
IP address: management address of the device
Autonomous System Number (ASN)
BGP: Specify if you want to enable regular BGP peering or BGP unnumbered peering.
PhysicalIfCfg: Enable or disable FEC and change the MTU settings on all the links being configured.
ASN: Assign a BGP ASN (Autonomous System Number) from the specified pool. Dynamic assigning ASN will be implemented in ONES release 2.0. For release 1.0, you need to specify the ASN under the device configuration, as shown in the sample YAML file.
IPv4Pool: Assign IP pools to different subnets. ONES automatically divides the subnets according to the number of available links.
ONES application uses IPv4 subnets for:
Interfaces
Loopbacks
Host interfaces
To configure BGP neighborship
IPv6Pool: Assign IPv6 subnet.
ONES application uses:
IPv6 subnet for interfaces
Subnets to configure BGP neighborship
Automatically advertise these subnets in BGP
NTP: Provide the NTP server address, to enable NTP. You can choose your desired timezone.
SYSLOG: Provide the SYSLOG server address, to enable SYSLOG.
SNMP: Provide the SNMP server address, to enable SNMP.
Parameters: Provide user the ability to enable VXLAN and related Parameters.
Navigate to Configurations >> Devices >> Configure Devices
Click on Apply Configs button in the bottom right corner of the above screen, to push the configs across the entire fabric.
ONES provides real-time updates when the devices are being configured and validates the configurations automatically to ensure the network is ready to use.
You will see the below screen, after the configurations are successfully verified:
With Few versions of FRR, when user gives reboot, existing config is erased and default config is pushed to FRR. This will lead to missing the configuration for users. below is the workaround config in this situation
Go inside BGP Container & Open docker_init.sh
Look for "Split" Keyword & Comment out the statemets inside that with if conditions
Add a new line which writes Service integrated in vtysh.conf
Console Logs show the exact configuration loaded on the device and the overview of the config loaded as per YAML & Derived Host IP Range can be viewed from the "Derived_Config:" section
Navigate >> Configurations >> Devices >> Console Logs
Click on Console Log of the device
This section describes the configuration feature of ONES using which you can check the applied and running configurations.
Navigate >> Configurations >> Devices >> Config
Click on Config
Click on Host Logs
This section describes the compare configuration feature of ONES using which you can compare the applied and running configurations.
Navigate >> Configurations >> Devices >> Compare Configs
Compare Config
This page allows the user to compare applied configurations to the running configuration of a selected device.
The user should select only one device from the list and perform 'Compare Config' on this page, it may take several minutes to fetch the running configuration from the device
YAML Editor will appear with two windows comparing applied and running configurations as depicted in the below picture
The difference in configuration is highlighted with colour coding in the respective window of the configuration​​
This Section describe the use of Backup & Restore Configuration across all the managed devices
Navigate >> Configurations >> Devices >> Backup & Restore Configs
Using this feature, a user will be able to take multiple backups and will be able to restore the backup at any time.
Select Backup & Restore Configs
Give a Tag Name to the device & Select the device, the device you want to take a backup config
Submit the task
Once submitted the config will backup with the given name & can be used to restore the config at any time in future
Select Backup & Restore Configs
Select Restore Config
Click on the drop-down button of the device on which the user wants to restore the config
Select the backup a user wants to restore from the Backups Available list
Then Submit the backup & Click on Yes to confirm
Login to the Zendesk Support Admin panel & Follow the steps
click >> Apps & Integration
Choose >> Zendesk API
Enable Token Access
Give API Token Description (Optional)
Copy the API Token
Save the Settings
Open ONES-App and select Integration >> Ticketing
Add Channel & Paste the required details
After saving it will be available to use while creating any rule using Rule Engine feature
inventory:
- ipAddress: "10.4.4.61"
layer: "Spine"
region: "San Jose"
azId: 1
brickId: 1
user: "admin"
password: "YourPaSsWoRd"
- ipAddress: "10.4.4.62"
layer: "Spine"
region: "San Jose"
azId: 1
brickId: 1
user: "admin"
password: "YourPaSsWoRd"
The device should not have any IP, VLAN, Portchannel, BGP, SAG, or MCLAG config on any of the Interfaces to avoid overlapping during the orchestration and run into cleanup issues.
Post that, the user needs to save the config to a file, in case of any orchestration failure, or misconfiguration user can rollback to the saved config.
Africa/Bissau
Africa/Blantyre
Africa/Brazzaville
Africa/Bujumbura
Africa/Cairo
Africa/Casablanca
Africa/Ceuta
Africa/Conakry
Africa/Dakar
Africa/Dar_es_Salaam
Africa/Djibouti
Africa/Douala
Africa/El_Aaiun
Africa/Freetown
Africa/Gaborone
Africa/Harare
Africa/Johannesburg
Africa/Juba
Africa/Kampala
Africa/Khartoum
Africa/Kigali
Africa/Kinshasa
Africa/Lagos
Africa/Libreville
Africa/Lome
Africa/Luanda
Africa/Lubumbashi
Africa/Lusaka
Africa/Malabo
Africa/Maputo
Africa/Maseru
Africa/Mbabane
Africa/Mogadishu
Africa/Monrovia
Africa/Nairobi
Africa/Ndjamena
Africa/Niamey
Africa/Nouakchott
Africa/Ouagadougou
Africa/Porto-Novo
Africa/Sao_Tome
Africa/Timbuktu
Africa/Tripoli
Africa/Tunis
Africa/Windhoek
America/Adak
America/Anchorage
America/Anguilla
America/Antigua
America/Araguaina
America/Argentina/Buenos_Aires
America/Argentina/Catamarca
America/Argentina/ComodRivadavia
America/Argentina/Cordoba
America/Argentina/Jujuy
America/Argentina/La_Rioja
America/Argentina/Mendoza
America/Argentina/Rio_Gallegos
America/Argentina/Salta
America/Argentina/San_Juan
America/Argentina/San_Luis
America/Argentina/Tucuman
America/Argentina/Ushuaia
America/Aruba
America/Asuncion
America/Atikokan
America/Atka
America/Bahia
America/Bahia_Banderas
America/Barbados
America/Belem
America/Belize
America/Blanc-Sablon
America/Boa_Vista
America/Bogota
America/Boise
America/Buenos_Aires
America/Cambridge_Bay
America/Campo_Grande
America/Cancun
America/Caracas
America/Catamarca
America/Cayenne
America/Cayman
America/Chicago
America/Chihuahua
America/Ciudad_Juarez
America/Coral_Harbour
America/Cordoba
America/Costa_Rica
America/Creston
America/Cuiaba
America/Curacao
America/Danmarkshavn
America/Dawson
America/Dawson_Creek
America/Denver
America/Detroit
America/Dominica
America/Edmonton
America/Eirunepe
America/El_Salvador
America/Ensenada
America/Fort_Nelson
America/Fort_Wayne
America/Fortaleza
America/Glace_Bay
America/Godthab
America/Goose_Bay
America/Grand_Turk
America/Grenada
America/Guadeloupe
America/Guatemala
America/Guayaquil
America/Guyana
America/Halifax
America/Havana
America/Hermosillo
America/Indiana/Indianapolis
America/Indiana/Knox
America/Indiana/Marengo
America/Indiana/Petersburg
America/Indiana/Tell_City
America/Indiana/Vevay
America/Indiana/Vincennes
America/Indiana/Winamac
America/Indianapolis
America/Inuvik
America/Iqaluit
America/Jamaica
America/Jujuy
America/Juneau
America/Kentucky/Louisville
America/Kentucky/Monticello
America/Knox_IN
America/Kralendijk
America/La_Paz
America/Lima
America/Los_Angeles
America/Louisville
America/Lower_Princes
America/Maceio
America/Managua
America/Manaus
America/Marigot
America/Martinique
America/Matamoros
America/Mazatlan
America/Mendoza
America/Menominee
America/Merida
America/Metlakatla
America/Mexico_City
America/Miquelon
America/Moncton
America/Monterrey
America/Montevideo
America/Montreal
America/Montserrat
America/Nassau
America/New_York
America/Nipigon
America/Nome
America/Noronha
America/North_Dakota/Beulah
America/North_Dakota/Center
America/North_Dakota/New_Salem
America/Nuuk
America/Ojinaga
America/Panama
America/Pangnirtung
America/Paramaribo
America/Phoenix
America/Port-au-Prince
America/Port_of_Spain
America/Porto_Acre
America/Porto_Velho
America/Puerto_Rico
America/Punta_Arenas
America/Rainy_River
America/Rankin_Inlet
America/Recife
America/Regina
America/Resolute
America/Rio_Branco
America/Rosario
America/Santa_Isabel
America/Santarem
America/Santiago
America/Santo_Domingo
America/Sao_Paulo
America/Scoresbysund
America/Shiprock
America/Sitka
America/St_Barthelemy
America/St_Johns
America/St_Kitts
America/St_Lucia
America/St_Thomas
America/St_Vincent
America/Swift_Current
America/Tegucigalpa
America/Thule
America/Thunder_Bay
America/Tijuana
America/Toronto
America/Tortola
America/Vancouver
America/Virgin
America/Whitehorse
America/Winnipeg
America/Yakutat
America/Yellowknife
Antarctica/Casey
Antarctica/Davis
Antarctica/DumontDUrville
Antarctica/Macquarie
Antarctica/Mawson
Antarctica/McMurdo
Antarctica/Palmer
Antarctica/Rothera
Antarctica/South_Pole
Antarctica/Syowa
Antarctica/Troll
Antarctica/Vostok
Arctic/Longyearbyen
Asia/Aden
Asia/Almaty
Asia/Amman
Asia/Anadyr
Asia/Aqtau
Asia/Aqtobe
Asia/Ashgabat
Asia/Ashkhabad
Asia/Atyrau
Asia/Baghdad
Asia/Bahrain
Asia/Baku
Asia/Bangkok
Asia/Barnaul
Asia/Beirut
Asia/Bishkek
Asia/Brunei
Asia/Calcutta
Asia/Chita
Asia/Choibalsan
Asia/Chongqing
Asia/Chungking
Asia/Colombo
Asia/Dacca
Asia/Damascus
Asia/Dhaka
Asia/Dili
Asia/Dubai
Asia/Dushanbe
Asia/Famagusta
Asia/Gaza
Asia/Harbin
Asia/Hebron
Asia/Ho_Chi_Minh
Asia/Hong_Kong
Asia/Hovd
Asia/Irkutsk
Asia/Istanbul
Asia/Jakarta
Asia/Jayapura
Asia/Jerusalem
Asia/Kabul
Asia/Kamchatka
Asia/Karachi
Asia/Kashgar
Asia/Kathmandu
Asia/Katmandu
Asia/Khandyga
Asia/Kolkata
Asia/Krasnoyarsk
Asia/Kuala_Lumpur
Asia/Kuching
Asia/Kuwait
Asia/Macao
Asia/Macau
Asia/Magadan
Asia/Makassar
Asia/Manila
Asia/Muscat
Asia/Nicosia
Asia/Novokuznetsk
Asia/Novosibirsk
Asia/Omsk
Asia/Oral
Asia/Phnom_Penh
Asia/Pontianak
Asia/Pyongyang
Asia/Qatar
Asia/Qostanay
Asia/Qyzylorda
Asia/Rangoon
Asia/Riyadh
Asia/Saigon
Asia/Sakhalin
Asia/Samarkand
Asia/Seoul
Asia/Shanghai
Asia/Singapore
Asia/Srednekolymsk
Asia/Taipei
Asia/Tashkent
Asia/Tbilisi
Asia/Tehran
Asia/Tel_Aviv
Asia/Thimbu
Asia/Thimphu
Asia/Tokyo
Asia/Tomsk
Asia/Ujung_Pandang
Asia/Ulaanbaatar
Asia/Ulan_Bator
Asia/Urumqi
Asia/Ust-Nera
Asia/Vientiane
Asia/Vladivostok
Asia/Yakutsk
Asia/Yangon
Asia/Yekaterinburg
Asia/Yerevan
Atlantic/Azores
Atlantic/Bermuda
Atlantic/Canary
Atlantic/Cape_Verde
Atlantic/Faeroe
Atlantic/Faroe
Atlantic/Jan_Mayen
Atlantic/Madeira
Atlantic/Reykjavik
Atlantic/South_Georgia
Atlantic/St_Helena
Atlantic/Stanley
Australia/ACT
Australia/Adelaide
Australia/Brisbane
Australia/Broken_Hill
Australia/Canberra
Australia/Currie
Australia/Darwin
Australia/Eucla
Australia/Hobart
Australia/LHI
Australia/Lindeman
Australia/Lord_Howe
Australia/Melbourne
Australia/NSW
Australia/North
Australia/Perth
Australia/Queensland
Australia/South
Australia/Sydney
Australia/Tasmania
Australia/Victoria
Australia/West
Australia/Yancowinna
Brazil/Acre
Brazil/DeNoronha
Brazil/East
Brazil/West
CET
CST6CDT
Canada/Atlantic
Canada/Central
Canada/Eastern
Canada/Mountain
Canada/Newfoundland
Canada/Pacific
Canada/Saskatchewan
Canada/Yukon
Chile/Continental
Chile/EasterIsland
Cuba
EET
EST
EST5EDT
Egypt
Eire
Etc/GMT
Etc/GMT+0
Etc/GMT+1
Etc/GMT+10
Etc/GMT+11
Etc/GMT+12
Etc/GMT+2
Etc/GMT+3
Etc/GMT+4
Etc/GMT+5
Etc/GMT+6
Etc/GMT+7
Etc/GMT+8
Etc/GMT+9
Etc/GMT-0
Etc/GMT-1
Etc/GMT-10
Etc/GMT-11
Etc/GMT-12
Etc/GMT-13
Etc/GMT-14
Etc/GMT-2
Etc/GMT-3
Etc/GMT-4
Etc/GMT-5
Etc/GMT-6
Etc/GMT-7
Etc/GMT-8
Etc/GMT-9
Etc/GMT0
Etc/Greenwich
Etc/UCT
Etc/UTC
Etc/Universal
Etc/Zulu
Europe/Amsterdam
Europe/Andorra
Europe/Astrakhan
Europe/Athens
Europe/Belfast
Europe/Belgrade
Europe/Berlin
Europe/Bratislava
Europe/Brussels
Europe/Bucharest
Europe/Budapest
Europe/Busingen
Europe/Chisinau
Europe/Copenhagen
Europe/Dublin
Europe/Gibraltar
Europe/Guernsey
Europe/Helsinki
Europe/Isle_of_Man
Europe/Istanbul
Europe/Jersey
Europe/Kaliningrad
Europe/Kiev
Europe/Kirov
Europe/Kyiv
Europe/Lisbon
Europe/Ljubljana
Europe/London
Europe/Luxembourg
Europe/Madrid
Europe/Malta
Europe/Mariehamn
Europe/Minsk
Europe/Monaco
Europe/Moscow
Europe/Nicosia
Europe/Oslo
Europe/Paris
Europe/Podgorica
Europe/Prague
Europe/Riga
Europe/Rome
Europe/Samara
Europe/San_Marino
Europe/Sarajevo
Europe/Saratov
Europe/Simferopol
Europe/Skopje
Europe/Sofia
Europe/Stockholm
Europe/Tallinn
Europe/Tirane
Europe/Tiraspol
Europe/Ulyanovsk
Europe/Uzhgorod
Europe/Vaduz
Europe/Vatican
Europe/Vienna
Europe/Vilnius
Europe/Volgograd
Europe/Warsaw
Europe/Zagreb
Europe/Zaporozhye
Europe/Zurich
Factory
GB
GB-Eire
GMT
GMT+0
GMT-0
GMT0
Greenwich
HST
Hongkong
Iceland
Indian/Antananarivo
Indian/Chagos
Indian/Christmas
Indian/Cocos
Indian/Comoro
Indian/Kerguelen
Indian/Mahe
Indian/Maldives
Indian/Mauritius
Indian/Mayotte
Indian/Reunion
Iran
Israel
Jamaica
Japan
Kwajalein
Libya
MET
MST
MST7MDT
Mexico/BajaNorte
Mexico/BajaSur
Mexico/General
NZ
NZ-CHAT
Navajo
PRC
PST8PDT
Pacific/Apia
Pacific/Auckland
Pacific/Bougainville
Pacific/Chatham
Pacific/Chuuk
Pacific/Easter
Pacific/Efate
Pacific/Enderbury
Pacific/Fakaofo
Pacific/Fiji
Pacific/Funafuti
Pacific/Galapagos
Pacific/Gambier
Pacific/Guadalcanal
Pacific/Guam
Pacific/Honolulu
Pacific/Johnston
Pacific/Kanton
Pacific/Kiritimati
Pacific/Kosrae
Pacific/Kwajalein
Pacific/Majuro
Pacific/Marquesas
Pacific/Midway
Pacific/Nauru
Pacific/Niue
Pacific/Norfolk
Pacific/Noumea
Pacific/Pago_Pago
Pacific/Palau
Pacific/Pitcairn
Pacific/Pohnpei
Pacific/Ponape
Pacific/Port_Moresby
Pacific/Rarotonga
Pacific/Saipan
Pacific/Samoa
Pacific/Tahiti
Pacific/Tarawa
Pacific/Tongatapu
Pacific/Truk
Pacific/Wake
Pacific/Wallis
Pacific/Yap
Poland
Portugal
ROC
ROK
Singapore
SystemV/AST4
SystemV/AST4ADT
SystemV/CST6
SystemV/CST6CDT
SystemV/EST5
SystemV/EST5EDT
SystemV/HST10
SystemV/MST7
SystemV/MST7MDT
SystemV/PST8
SystemV/PST8PDT
SystemV/YST9
SystemV/YST9YDT
Turkey
UCT
US/Alaska
US/Aleutian
US/Arizona
US/Central
US/East-Indiana
US/Eastern
US/Hawaii
US/Indiana-Starke
US/Michigan
US/Mountain
US/Pacific
US/Samoa
UTC
Universal
W-SU
WET
Zulu
Africa/Bissau
Africa/Blantyre
Africa/Brazzaville
Africa/Bujumbura
Africa/Cairo
Africa/Casablanca
Africa/Ceuta
Africa/Conakry
Africa/Dakar
Africa/Dar_es_Salaam
Africa/Djibouti
Africa/Douala
Africa/El_Aaiun
Africa/Freetown
Africa/Gaborone
Africa/Harare
Africa/Johannesburg
Africa/Juba
Africa/Kampala
Africa/Khartoum
Africa/Kigali
Africa/Kinshasa
Africa/Lagos
Africa/Libreville
Africa/Lome
Africa/Luanda
Africa/Lubumbashi
Africa/Lusaka
Africa/Malabo
Africa/Maputo
Africa/Maseru
Africa/Mbabane
Africa/Mogadishu
Africa/Monrovia
Africa/Nairobi
Africa/Ndjamena
Africa/Niamey
Africa/Nouakchott
Africa/Ouagadougou
Africa/Porto-Novo
Africa/Sao_Tome
Africa/Timbuktu
Africa/Tripoli
Africa/Tunis
Africa/Windhoek
America/Adak
America/Anchorage
America/Anguilla
America/Antigua
America/Araguaina
America/Argentina/Buenos_Aires
America/Argentina/Catamarca
America/Argentina/ComodRivadavia
America/Argentina/Cordoba
America/Argentina/Jujuy
America/Argentina/La_Rioja
America/Argentina/Mendoza
America/Argentina/Rio_Gallegos
America/Argentina/Salta
America/Argentina/San_Juan
America/Argentina/San_Luis
America/Argentina/Tucuman
America/Argentina/Ushuaia
America/Aruba
America/Asuncion
America/Atikokan
America/Atka
America/Bahia
America/Bahia_Banderas
America/Barbados
America/Belem
America/Belize
America/Blanc-Sablon
America/Boa_Vista
America/Bogota
America/Boise
America/Buenos_Aires
America/Cambridge_Bay
America/Campo_Grande
America/Cancun
America/Caracas
America/Catamarca
America/Cayenne
America/Cayman
America/Chicago
America/Chihuahua
America/Ciudad_Juarez
America/Coral_Harbour
America/Cordoba
America/Costa_Rica
America/Creston
America/Cuiaba
America/Curacao
America/Danmarkshavn
America/Dawson
America/Dawson_Creek
America/Denver
America/Detroit
America/Dominica
America/Edmonton
America/Eirunepe
America/El_Salvador
America/Ensenada
America/Fort_Nelson
America/Fort_Wayne
America/Fortaleza
America/Glace_Bay
America/Godthab
America/Goose_Bay
America/Grand_Turk
America/Grenada
America/Guadeloupe
America/Guatemala
America/Guayaquil
America/Guyana
America/Halifax
America/Havana
America/Hermosillo
America/Indiana/Indianapolis
America/Indiana/Knox
America/Indiana/Marengo
America/Indiana/Petersburg
America/Indiana/Tell_City
America/Indiana/Vevay
America/Indiana/Vincennes
America/Indiana/Winamac
America/Indianapolis
America/Inuvik
America/Iqaluit
America/Jamaica
America/Jujuy
America/Juneau
America/Kentucky/Louisville
America/Kentucky/Monticello
America/Knox_IN
America/Kralendijk
America/La_Paz
America/Lima
America/Los_Angeles
America/Louisville
America/Lower_Princes
America/Maceio
America/Managua
America/Manaus
America/Marigot
America/Martinique
America/Matamoros
America/Mazatlan
America/Mendoza
America/Menominee
America/Merida
America/Metlakatla
America/Mexico_City
America/Miquelon
America/Moncton
America/Monterrey
America/Montevideo
America/Montreal
America/Montserrat
America/Nassau
America/New_York
America/Nipigon
America/Nome
America/Noronha
America/North_Dakota/Beulah
America/North_Dakota/Center
America/North_Dakota/New_Salem
America/Nuuk
America/Ojinaga
America/Panama
America/Pangnirtung
America/Paramaribo
America/Phoenix
America/Port-au-Prince
America/Port_of_Spain
America/Porto_Acre
America/Porto_Velho
America/Puerto_Rico
America/Punta_Arenas
America/Rainy_River
America/Rankin_Inlet
America/Recife
America/Regina
America/Resolute
America/Rio_Branco
America/Rosario
America/Santa_Isabel
America/Santarem
America/Santiago
America/Santo_Domingo
America/Sao_Paulo
America/Scoresbysund
America/Shiprock
America/Sitka
America/St_Barthelemy
America/St_Johns
America/St_Kitts
America/St_Lucia
America/St_Thomas
America/St_Vincent
America/Swift_Current
America/Tegucigalpa
America/Thule
America/Thunder_Bay
America/Tijuana
America/Toronto
America/Tortola
America/Vancouver
America/Virgin
America/Whitehorse
America/Winnipeg
America/Yakutat
America/Yellowknife
Antarctica/Casey
Antarctica/Davis
Antarctica/DumontDUrville
Antarctica/Macquarie
Antarctica/Mawson
Antarctica/McMurdo
Antarctica/Palmer
Antarctica/Rothera
Antarctica/South_Pole
Antarctica/Syowa
Antarctica/Troll
Antarctica/Vostok
Arctic/Longyearbyen
Asia/Aden
Asia/Almaty
Asia/Amman
Asia/Anadyr
Asia/Aqtau
Asia/Aqtobe
Asia/Ashgabat
Asia/Ashkhabad
Asia/Atyrau
Asia/Baghdad
Asia/Bahrain
Asia/Baku
Asia/Bangkok
Asia/Barnaul
Asia/Beirut
Asia/Bishkek
Asia/Brunei
Asia/Calcutta
Asia/Chita
Asia/Choibalsan
Asia/Chongqing
Asia/Chungking
Asia/Colombo
Asia/Dacca
Asia/Damascus
Asia/Dhaka
Asia/Dili
Asia/Dubai
Asia/Dushanbe
Asia/Famagusta
Asia/Gaza
Asia/Harbin
Asia/Hebron
Asia/Ho_Chi_Minh
Asia/Hong_Kong
Asia/Hovd
Asia/Irkutsk
Asia/Istanbul
Asia/Jakarta
Asia/Jayapura
Asia/Jerusalem
Asia/Kabul
Asia/Kamchatka
Asia/Karachi
Asia/Kashgar
Asia/Kathmandu
Asia/Katmandu
Asia/Khandyga
Asia/Kolkata
Asia/Krasnoyarsk
Asia/Kuala_Lumpur
Asia/Kuching
Asia/Kuwait
Asia/Macao
Asia/Macau
Asia/Magadan
Asia/Makassar
Asia/Manila
Asia/Muscat
Asia/Nicosia
Asia/Novokuznetsk
Asia/Novosibirsk
Asia/Omsk
Asia/Oral
Asia/Phnom_Penh
Asia/Pontianak
Asia/Pyongyang
Asia/Qatar
Asia/Qostanay
Asia/Qyzylorda
Asia/Rangoon
Asia/Riyadh
Asia/Saigon
Asia/Sakhalin
Asia/Samarkand
Asia/Seoul
Asia/Shanghai
Asia/Singapore
Asia/Srednekolymsk
Asia/Taipei
Asia/Tashkent
Asia/Tbilisi
Asia/Tehran
Asia/Tel_Aviv
Asia/Thimbu
Asia/Thimphu
Asia/Tokyo
Asia/Tomsk
Asia/Ujung_Pandang
Asia/Ulaanbaatar
Asia/Ulan_Bator
Asia/Urumqi
Asia/Ust-Nera
Asia/Vientiane
Asia/Vladivostok
Asia/Yakutsk
Asia/Yangon
Asia/Yekaterinburg
Asia/Yerevan
Atlantic/Azores
Atlantic/Bermuda
Atlantic/Canary
Atlantic/Cape_Verde
Atlantic/Faeroe
Atlantic/Faroe
Atlantic/Jan_Mayen
Atlantic/Madeira
Atlantic/Reykjavik
Atlantic/South_Georgia
Atlantic/St_Helena
Atlantic/Stanley
Australia/ACT
Australia/Adelaide
Australia/Brisbane
Australia/Broken_Hill
Australia/Canberra
Australia/Currie
Australia/Darwin
Australia/Eucla
Australia/Hobart
Australia/LHI
Australia/Lindeman
Australia/Lord_Howe
Australia/Melbourne
Australia/NSW
Australia/North
Australia/Perth
Australia/Queensland
Australia/South
Australia/Sydney
Australia/Tasmania
Australia/Victoria
Australia/West
Australia/Yancowinna
Brazil/Acre
Brazil/DeNoronha
Brazil/East
Brazil/West
CET
CST6CDT
Canada/Atlantic
Canada/Central
Canada/Eastern
Canada/Mountain
Canada/Newfoundland
Canada/Pacific
Canada/Saskatchewan
Canada/Yukon
Chile/Continental
Chile/EasterIsland
Cuba
EET
EST
EST5EDT
Egypt
Eire
Etc/GMT
Etc/GMT+0
Etc/GMT+1
Etc/GMT+10
Etc/GMT+11
Etc/GMT+12
Etc/GMT+2
Etc/GMT+3
Etc/GMT+4
Etc/GMT+5
Etc/GMT+6
Etc/GMT+7
Etc/GMT+8
Etc/GMT+9
Etc/GMT-0
Etc/GMT-1
Etc/GMT-10
Etc/GMT-11
Etc/GMT-12
Etc/GMT-13
Etc/GMT-14
Etc/GMT-2
Etc/GMT-3
Etc/GMT-4
Etc/GMT-5
Etc/GMT-6
Etc/GMT-7
Etc/GMT-8
Etc/GMT-9
Etc/GMT0
Etc/Greenwich
Etc/UCT
Etc/UTC
Etc/Universal
Etc/Zulu
Europe/Amsterdam
Europe/Andorra
Europe/Astrakhan
Europe/Athens
Europe/Belfast
Europe/Belgrade
Europe/Berlin
Europe/Bratislava
Europe/Brussels
Europe/Bucharest
Europe/Budapest
Europe/Busingen
Europe/Chisinau
Europe/Copenhagen
Europe/Dublin
Europe/Gibraltar
Europe/Guernsey
Europe/Helsinki
Europe/Isle_of_Man
Europe/Istanbul
Europe/Jersey
Europe/Kaliningrad
Europe/Kiev
Europe/Kirov
Europe/Kyiv
Europe/Lisbon
Europe/Ljubljana
Europe/London
Europe/Luxembourg
Europe/Madrid
Europe/Malta
Europe/Mariehamn
Europe/Minsk
Europe/Monaco
Europe/Moscow
Europe/Nicosia
Europe/Oslo
Europe/Paris
Europe/Podgorica
Europe/Prague
Europe/Riga
Europe/Rome
Europe/Samara
Europe/San_Marino
Europe/Sarajevo
Europe/Saratov
Europe/Simferopol
Europe/Skopje
Europe/Sofia
Europe/Stockholm
Europe/Tallinn
Europe/Tirane
Europe/Tiraspol
Europe/Ulyanovsk
Europe/Uzhgorod
Europe/Vaduz
Europe/Vatican
Europe/Vienna
Europe/Vilnius
Europe/Volgograd
Europe/Warsaw
Europe/Zagreb
Europe/Zaporozhye
Europe/Zurich
Factory
GB
GB-Eire
GMT
GMT+0
GMT-0
GMT0
Greenwich
HST
Hongkong
Iceland
Indian/Antananarivo
Indian/Chagos
Indian/Christmas
Indian/Cocos
Indian/Comoro
Indian/Kerguelen
Indian/Mahe
Indian/Maldives
Indian/Mauritius
Indian/Mayotte
Indian/Reunion
Iran
Israel
Jamaica
Japan
Kwajalein
Libya
MET
MST
MST7MDT
Mexico/BajaNorte
Mexico/BajaSur
Mexico/General
NZ
NZ-CHAT
Navajo
PRC
PST8PDT
Pacific/Apia
Pacific/Auckland
Pacific/Bougainville
Pacific/Chatham
Pacific/Chuuk
Pacific/Easter
Pacific/Efate
Pacific/Enderbury
Pacific/Fakaofo
Pacific/Fiji
Pacific/Funafuti
Pacific/Galapagos
Pacific/Gambier
Pacific/Guadalcanal
Pacific/Guam
Pacific/Honolulu
Pacific/Johnston
Pacific/Kanton
Pacific/Kiritimati
Pacific/Kosrae
Pacific/Kwajalein
Pacific/Majuro
Pacific/Marquesas
Pacific/Midway
Pacific/Nauru
Pacific/Niue
Pacific/Norfolk
Pacific/Noumea
Pacific/Pago_Pago
Pacific/Palau
Pacific/Pitcairn
Pacific/Pohnpei
Pacific/Ponape
Pacific/Port_Moresby
Pacific/Rarotonga
Pacific/Saipan
Pacific/Samoa
Pacific/Tahiti
Pacific/Tarawa
Pacific/Tongatapu
Pacific/Truk
Pacific/Wake
Pacific/Wallis
Pacific/Yap
Poland
Portugal
ROC
ROK
Singapore
SystemV/AST4
SystemV/AST4ADT
SystemV/CST6
SystemV/CST6CDT
SystemV/EST5
SystemV/EST5EDT
SystemV/HST10
SystemV/MST7
SystemV/MST7MDT
SystemV/PST8
SystemV/PST8PDT
SystemV/YST9
SystemV/YST9YDT
Turkey
UCT
US/Alaska
US/Aleutian
US/Arizona
US/Central
US/East-Indiana
US/Eastern
US/Hawaii
US/Indiana-Starke
US/Michigan
US/Mountain
US/Pacific
US/Samoa
UTC
Universal
W-SU
WET
Zulu
Africa/Bissau
Africa/Blantyre
Africa/Brazzaville
Africa/Bujumbura
Africa/Cairo
Africa/Casablanca
Africa/Ceuta
Africa/Conakry
Africa/Dakar
Africa/Dar_es_Salaam
Africa/Djibouti
Africa/Douala
Africa/El_Aaiun
Africa/Freetown
Africa/Gaborone
Africa/Harare
Africa/Johannesburg
Africa/Juba
Africa/Kampala
Africa/Khartoum
Africa/Kigali
Africa/Kinshasa
Africa/Lagos
Africa/Libreville
Africa/Lome
Africa/Luanda
Africa/Lubumbashi
Africa/Lusaka
Africa/Malabo
Africa/Maputo
Africa/Maseru
Africa/Mbabane
Africa/Mogadishu
Africa/Monrovia
Africa/Nairobi
Africa/Ndjamena
Africa/Niamey
Africa/Nouakchott
Africa/Ouagadougou
Africa/Porto-Novo
Africa/Sao_Tome
Africa/Timbuktu
Africa/Tripoli
Africa/Tunis
Africa/Windhoek
America/Adak
America/Anchorage
America/Anguilla
America/Antigua
America/Araguaina
America/Argentina/Buenos_Aires
America/Argentina/Catamarca
America/Argentina/ComodRivadavia
America/Argentina/Cordoba
America/Argentina/Jujuy
America/Argentina/La_Rioja
America/Argentina/Mendoza
America/Argentina/Rio_Gallegos
America/Argentina/Salta
America/Argentina/San_Juan
America/Argentina/San_Luis
America/Argentina/Tucuman
America/Argentina/Ushuaia
America/Aruba
America/Asuncion
America/Atikokan
America/Atka
America/Bahia
America/Bahia_Banderas
America/Barbados
America/Belem
America/Belize
America/Blanc-Sablon
America/Boa_Vista
America/Bogota
America/Boise
America/Buenos_Aires
America/Cambridge_Bay
America/Campo_Grande
America/Cancun
America/Caracas
America/Catamarca
America/Cayenne
America/Cayman
America/Chicago
America/Chihuahua
America/Ciudad_Juarez
America/Coral_Harbour
America/Cordoba
America/Costa_Rica
America/Creston
America/Cuiaba
America/Curacao
America/Danmarkshavn
America/Dawson
America/Dawson_Creek
America/Denver
America/Detroit
America/Dominica
America/Edmonton
America/Eirunepe
America/El_Salvador
America/Ensenada
America/Fort_Nelson
America/Fort_Wayne
America/Fortaleza
America/Glace_Bay
America/Godthab
America/Goose_Bay
America/Grand_Turk
America/Grenada
America/Guadeloupe
America/Guatemala
America/Guayaquil
America/Guyana
America/Halifax
America/Havana
America/Hermosillo
America/Indiana/Indianapolis
America/Indiana/Knox
America/Indiana/Marengo
America/Indiana/Petersburg
America/Indiana/Tell_City
America/Indiana/Vevay
America/Indiana/Vincennes
America/Indiana/Winamac
America/Indianapolis
America/Inuvik
America/Iqaluit
America/Jamaica
America/Jujuy
America/Juneau
America/Kentucky/Louisville
America/Kentucky/Monticello
America/Knox_IN
America/Kralendijk
America/La_Paz
America/Lima
America/Los_Angeles
America/Louisville
America/Lower_Princes
America/Maceio
America/Managua
America/Manaus
America/Marigot
America/Martinique
America/Matamoros
America/Mazatlan
America/Mendoza
America/Menominee
America/Merida
America/Metlakatla
America/Mexico_City
America/Miquelon
America/Moncton
America/Monterrey
America/Montevideo
America/Montreal
America/Montserrat
America/Nassau
America/New_York
America/Nipigon
America/Nome
America/Noronha
America/North_Dakota/Beulah
America/North_Dakota/Center
America/North_Dakota/New_Salem
America/Nuuk
America/Ojinaga
America/Panama
America/Pangnirtung
America/Paramaribo
America/Phoenix
America/Port-au-Prince
America/Port_of_Spain
America/Porto_Acre
America/Porto_Velho
America/Puerto_Rico
America/Punta_Arenas
America/Rainy_River
America/Rankin_Inlet
America/Recife
America/Regina
America/Resolute
America/Rio_Branco
America/Rosario
America/Santa_Isabel
America/Santarem
America/Santiago
America/Santo_Domingo
America/Sao_Paulo
America/Scoresbysund
America/Shiprock
America/Sitka
America/St_Barthelemy
America/St_Johns
America/St_Kitts
America/St_Lucia
America/St_Thomas
America/St_Vincent
America/Swift_Current
America/Tegucigalpa
America/Thule
America/Thunder_Bay
America/Tijuana
America/Toronto
America/Tortola
America/Vancouver
America/Virgin
America/Whitehorse
America/Winnipeg
America/Yakutat
America/Yellowknife
Antarctica/Casey
Antarctica/Davis
Antarctica/DumontDUrville
Antarctica/Macquarie
Antarctica/Mawson
Antarctica/McMurdo
Antarctica/Palmer
Antarctica/Rothera
Antarctica/South_Pole
Antarctica/Syowa
Antarctica/Troll
Antarctica/Vostok
Arctic/Longyearbyen
Asia/Aden
Asia/Almaty
Asia/Amman
Asia/Anadyr
Asia/Aqtau
Asia/Aqtobe
Asia/Ashgabat
Asia/Ashkhabad
Asia/Atyrau
Asia/Baghdad
Asia/Bahrain
Asia/Baku
Asia/Bangkok
Asia/Barnaul
Asia/Beirut
Asia/Bishkek
Asia/Brunei
Asia/Calcutta
Asia/Chita
Asia/Choibalsan
Asia/Chongqing
Asia/Chungking
Asia/Colombo
Asia/Dacca
Asia/Damascus
Asia/Dhaka
Asia/Dili
Asia/Dubai
Asia/Dushanbe
Asia/Famagusta
Asia/Gaza
Asia/Harbin
Asia/Hebron
Asia/Ho_Chi_Minh
Asia/Hong_Kong
Asia/Hovd
Asia/Irkutsk
Asia/Istanbul
Asia/Jakarta
Asia/Jayapura
Asia/Jerusalem
Asia/Kabul
Asia/Kamchatka
Asia/Karachi
Asia/Kashgar
Asia/Kathmandu
Asia/Katmandu
Asia/Khandyga
Asia/Kolkata
Asia/Krasnoyarsk
Asia/Kuala_Lumpur
Asia/Kuching
Asia/Kuwait
Asia/Macao
Asia/Macau
Asia/Magadan
Asia/Makassar
Asia/Manila
Asia/Muscat
Asia/Nicosia
Asia/Novokuznetsk
Asia/Novosibirsk
Asia/Omsk
Asia/Oral
Asia/Phnom_Penh
Asia/Pontianak
Asia/Pyongyang
Asia/Qatar
Asia/Qostanay
Asia/Qyzylorda
Asia/Rangoon
Asia/Riyadh
Asia/Saigon
Asia/Sakhalin
Asia/Samarkand
Asia/Seoul
Asia/Shanghai
Asia/Singapore
Asia/Srednekolymsk
Asia/Taipei
Asia/Tashkent
Asia/Tbilisi
Asia/Tehran
Asia/Tel_Aviv
Asia/Thimbu
Asia/Thimphu
Asia/Tokyo
Asia/Tomsk
Asia/Ujung_Pandang
Asia/Ulaanbaatar
Asia/Ulan_Bator
Asia/Urumqi
Asia/Ust-Nera
Asia/Vientiane
Asia/Vladivostok
Asia/Yakutsk
Asia/Yangon
Asia/Yekaterinburg
Asia/Yerevan
Atlantic/Azores
Atlantic/Bermuda
Atlantic/Canary
Atlantic/Cape_Verde
Atlantic/Faeroe
Atlantic/Faroe
Atlantic/Jan_Mayen
Atlantic/Madeira
Atlantic/Reykjavik
Atlantic/South_Georgia
Atlantic/St_Helena
Atlantic/Stanley
Australia/ACT
Australia/Adelaide
Australia/Brisbane
Australia/Broken_Hill
Australia/Canberra
Australia/Currie
Australia/Darwin
Australia/Eucla
Australia/Hobart
Australia/LHI
Australia/Lindeman
Australia/Lord_Howe
Australia/Melbourne
Australia/NSW
Australia/North
Australia/Perth
Australia/Queensland
Australia/South
Australia/Sydney
Australia/Tasmania
Australia/Victoria
Australia/West
Australia/Yancowinna
Brazil/Acre
Brazil/DeNoronha
Brazil/East
Brazil/West
CET
CST6CDT
Canada/Atlantic
Canada/Central
Canada/Eastern
Canada/Mountain
Canada/Newfoundland
Canada/Pacific
Canada/Saskatchewan
Canada/Yukon
Chile/Continental
Chile/EasterIsland
Cuba
EET
EST
EST5EDT
Egypt
Eire
Etc/GMT
Etc/GMT+0
Etc/GMT+1
Etc/GMT+10
Etc/GMT+11
Etc/GMT+12
Etc/GMT+2
Etc/GMT+3
Etc/GMT+4
Etc/GMT+5
Etc/GMT+6
Etc/GMT+7
Etc/GMT+8
Etc/GMT+9
Etc/GMT-0
Etc/GMT-1
Etc/GMT-10
Etc/GMT-11
Etc/GMT-12
Etc/GMT-13
Etc/GMT-14
Etc/GMT-2
Etc/GMT-3
Etc/GMT-4
Etc/GMT-5
Etc/GMT-6
Etc/GMT-7
Etc/GMT-8
Etc/GMT-9
Etc/GMT0
Etc/Greenwich
Etc/UCT
Etc/UTC
Etc/Universal
Etc/Zulu
Europe/Amsterdam
Europe/Andorra
Europe/Astrakhan
Europe/Athens
Europe/Belfast
Europe/Belgrade
Europe/Berlin
Europe/Bratislava
Europe/Brussels
Europe/Bucharest
Europe/Budapest
Europe/Busingen
Europe/Chisinau
Europe/Copenhagen
Europe/Dublin
Europe/Gibraltar
Europe/Guernsey
Europe/Helsinki
Europe/Isle_of_Man
Europe/Istanbul
Europe/Jersey
Europe/Kaliningrad
Europe/Kiev
Europe/Kirov
Europe/Kyiv
Europe/Lisbon
Europe/Ljubljana
Europe/London
Europe/Luxembourg
Europe/Madrid
Europe/Malta
Europe/Mariehamn
Europe/Minsk
Europe/Monaco
Europe/Moscow
Europe/Nicosia
Europe/Oslo
Europe/Paris
Europe/Podgorica
Europe/Prague
Europe/Riga
Europe/Rome
Europe/Samara
Europe/San_Marino
Europe/Sarajevo
Europe/Saratov
Europe/Simferopol
Europe/Skopje
Europe/Sofia
Europe/Stockholm
Europe/Tallinn
Europe/Tirane
Europe/Tiraspol
Europe/Ulyanovsk
Europe/Uzhgorod
Europe/Vaduz
Europe/Vatican
Europe/Vienna
Europe/Vilnius
Europe/Volgograd
Europe/Warsaw
Europe/Zagreb
Europe/Zaporozhye
Europe/Zurich
Factory
GB
GB-Eire
GMT
GMT+0
GMT-0
GMT0
Greenwich
HST
Hongkong
Iceland
Indian/Antananarivo
Indian/Chagos
Indian/Christmas
Indian/Cocos
Indian/Comoro
Indian/Kerguelen
Indian/Mahe
Indian/Maldives
Indian/Mauritius
Indian/Mayotte
Indian/Reunion
Iran
Israel
Jamaica
Japan
Kwajalein
Libya
MET
MST
MST7MDT
Mexico/BajaNorte
Mexico/BajaSur
Mexico/General
NZ
NZ-CHAT
Navajo
PRC
PST8PDT
Pacific/Apia
Pacific/Auckland
Pacific/Bougainville
Pacific/Chatham
Pacific/Chuuk
Pacific/Easter
Pacific/Efate
Pacific/Enderbury
Pacific/Fakaofo
Pacific/Fiji
Pacific/Funafuti
Pacific/Galapagos
Pacific/Gambier
Pacific/Guadalcanal
Pacific/Guam
Pacific/Honolulu
Pacific/Johnston
Pacific/Kanton
Pacific/Kiritimati
Pacific/Kosrae
Pacific/Kwajalein
Pacific/Majuro
Pacific/Marquesas
Pacific/Midway
Pacific/Nauru
Pacific/Niue
Pacific/Norfolk
Pacific/Noumea
Pacific/Pago_Pago
Pacific/Palau
Pacific/Pitcairn
Pacific/Pohnpei
Pacific/Ponape
Pacific/Port_Moresby
Pacific/Rarotonga
Pacific/Saipan
Pacific/Samoa
Pacific/Tahiti
Pacific/Tarawa
Pacific/Tongatapu
Pacific/Truk
Pacific/Wake
Pacific/Wallis
Pacific/Yap
Poland
Portugal
ROC
ROK
Singapore
SystemV/AST4
SystemV/AST4ADT
SystemV/CST6
SystemV/CST6CDT
SystemV/EST5
SystemV/EST5EDT
SystemV/HST10
SystemV/MST7
SystemV/MST7MDT
SystemV/PST8
SystemV/PST8PDT
SystemV/YST9
SystemV/YST9YDT
Turkey
UCT
US/Alaska
US/Aleutian
US/Arizona
US/Central
US/East-Indiana
US/Eastern
US/Hawaii
US/Indiana-Starke
US/Michigan
US/Mountain
US/Pacific
US/Samoa
UTC
Universal
W-SU
WET
Zulu
Devices used
2- Spine Devices
4- Leaf Devices
4- End Host
Devices used
2- Spine Devices
4- Leaf Devices
4- End Host
Inventory:
SSpines: 0
Spines: 2
Leafs: 4
Tors: 0
Connectivity:
SSpine: []
Spine:
- switchId: 1
switchName: "Spine-1"
ipAddress: "100.100.10.11"
ASN: 2001
Credentials:
user: "admin"
password: "admin"
mclag:
Links:
- link: "S1_Ethernet0 | L1_Ethernet48"
staticLink: true
properties:
- link: "S1_Ethernet4 | L2_Ethernet48"
staticLink: true
properties:
- link: "S1_Ethernet8 | L3_Ethernet48"
staticLink: true
properties:
- link: "S1_Ethernet12 | L4_Ethernet48"
staticLink: true
properties:
- switchId: 2
switchName: "Spine-2"
ipAddress: "100.100.10.12"
ASN: 2002
Credentials:
user: "admin"
password: "admin"
mclag:
Links:
- link: "S2_Ethernet0 | L1_Ethernet52"
staticLink: true
properties:
- link: "S2_Ethernet4 | L2_Ethernet52"
staticLink: true
properties:
- link: "S2_Ethernet8 | L3_Ethernet52"
staticLink: true
properties:
- link: "S2_Ethernet12 | L4_Ethernet52"
staticLink: true
properties:
Leaf:
- switchId: 1
switchName: "Leaf-1"
ipAddress: "100.100.10.13"
ASN: 1001
Credentials:
user: "admin"
password: "admin"
mclag:
enabled: true
peer: "L2"
keepalive_vlan: 998
Links:
- link: "L1_Ethernet48 | S1_Ethernet0"
staticLink: true
properties:
- link: "L1_Ethernet52 | S2_Ethernet0"
staticLink: true
properties:
- link: "L1_Ethernet56 | L2_Ethernet56"
staticLink: true
properties:
mode: "MC-LAG"
- link: "L1_Ethernet0 | H1_Ethernet0"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 300
mc_po_group: 300
vrf: "evpn"
- link: "L1_Ethernet4 | H2_Ethernet0"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 301
mc_po_group: 301
vrf: "evpn"
- switchId: 2
switchName: "Leaf-2"
ipAddress: "100.100.10.14"
ASN: 1001
Credentials:
user: "admin"
password: "admin"
mclag:
enabled: true
peer: "L1"
keepalive_vlan: 998
Links:
- link: "L2_Ethernet48 | S1_Ethernet4"
staticLink: true
properties:
- link: "L2_Ethernet52 | S2_Ethernet4"
staticLink: true
properties:
- link: "L2_Ethernet56 | L1_Ethernet56"
staticLink: true
properties:
mode: "MC-LAG"
- link: "L2_Ethernet0 | H1_Ethernet1"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 300
mc_po_group: 300
vrf: "evpn"
- link: "L2_Ethernet4 | H2_Ethernet1"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 301
mc_po_group: 301
vrf: "evpn"
- switchId: 3
switchName: "Leaf-3"
ipAddress: "100.100.10.15"
ASN: 1002
Credentials:
user: "admin"
password: "admin"
mclag:
enabled: true
peer: "L4"
keepalive_vlan: 998
Links:
- link: "L3_Ethernet48 | S1_Ethernet8"
staticLink: true
properties:
- link: "L3_Ethernet52 | S2_Ethernet8"
staticLink: true
properties:
- link: "L3_Ethernet56 | L4_Ethernet56"
staticLink: true
properties:
mode: "MC-LAG"
- link: "L3_Ethernet0 | H3_Ethernet0"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 300
mc_po_group: 300
vrf: "evpn"
- link: "L3_Ethernet4 | H4_Ethernet0"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 301
mc_po_group: 301
vrf: "evpn"
- switchId: 4
switchName: "Leaf-4"
ipAddress: "100.100.10.16"
ASN: 1002
Credentials:
user: "admin"
password: "admin"
mclag:
enabled: true
peer: "L3"
keepalive_vlan: 998
Links:
- link: "L4_Ethernet48 | S1_Ethernet12"
staticLink: true
properties:
- link: "L4_Ethernet52 | S2_Ethernet12"
staticLink: true
properties:
- link: "L4_Ethernet56 | L3_Ethernet56"
staticLink: true
properties:
mode: "MC-LAG"
- link: "L4_Ethernet0 | H3_Ethernet1"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 300
mc_po_group: 300
vrf: "evpn"
- link: "L4_Ethernet4 | H4_Ethernet1"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 301
mc_po_group: 301
vrf: "evpn"
Tor: []
BGP:
BGP_U: true
ND_RA: 30
PhysicalIfCfg:
FEC: "Off"
MTU: 9000
AdminStatus: "Up"
ASN:
SSpine: "10000-20000"
Spine: "21000-50000"
Leaf: "51000-60000"
Tor: "61000-70000"
IPv4Pool:
Loopback: "10.10.200.0/24"
LeafSpine: "40.0.0.0/24"
LeafTor: "39.0.0.0/24"
Host: "49.0.0.0/24"
IPv6Pool:
LeafSpine:
LeafTor:
Host:
NTP:
server: "100.100.10.10"
timezone: "Asia/Kolkata"
SYSLOG:
server: "100.100.10.10"
SNMP:
trapserver: "100.100.10.10"
Parameters:
vlan: "300-310"
vni: "10300-10310"
anycast_gateway: "208.64.160.0/23"
anycast_mac: "00:11:22:33:44:55"
hosts_per_vlan: 10
routing_symmetric: true
irb_vlan: "800-805"
irb_vni: "10800-10805"
sag: true
Inventory:
SSpines: 0
Spines: 2
Leafs: 4
Tors: 0
Connectivity:
SSpine: []
Spine:
- switchId: 1
switchName: "Spine-1"
ipAddress: "100.100.10.11"
ASN: 2001
Credentials:
user: "admin"
password: "admin"
mclag:
Links:
- link: "S1_Ethernet0 | L1_Ethernet48"
staticLink: true
properties:
- link: "S1_Ethernet4 | L2_Ethernet48"
staticLink: true
properties:
- link: "S1_Ethernet8 | L3_Ethernet48"
staticLink: true
properties:
- link: "S1_Ethernet12 | L4_Ethernet48"
staticLink: true
properties:
- switchId: 2
switchName: "Spine-2"
ipAddress: "100.100.10.12"
ASN: 2002
Credentials:
user: "admin"
password: "admin"
mclag:
Links:
- link: "S2_Ethernet0 | L1_Ethernet52"
staticLink: true
properties:
- link: "S2_Ethernet4 | L2_Ethernet52"
staticLink: true
properties:
- link: "S2_Ethernet8 | L3_Ethernet52"
staticLink: true
properties:
- link: "S2_Ethernet12 | L4_Ethernet52"
staticLink: true
properties:
Leaf:
- switchId: 1
switchName: "Leaf-1"
ipAddress: "100.100.10.13"
ASN: 1001
Credentials:
user: "admin"
password: "admin"
mclag:
Links:
- link: "L1_Ethernet48 | S1_Ethernet0"
staticLink: true
properties:
- link: "L1_Ethernet52 | S2_Ethernet0"
staticLink: true
properties:
- link: "L1_Ethernet0 | H1_Ethernet0"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 201
- switchId: 2
switchName: "Leaf-2"
ipAddress: "100.100.10.14"
ASN: 1002
Credentials:
user: "admin"
password: "admin"
mclag:
Links:
- link: "L2_Ethernet48 | S1_Ethernet4"
staticLink: true
properties:
- link: "L2_Ethernet52 | S2_Ethernet4"
staticLink: true
properties:
- link: "L2_Ethernet4 | H2_Ethernet1"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 202
- switchId: 3
switchName: "Leaf-3"
ipAddress: "100.100.10.15"
ASN: 1003
Credentials:
user: "admin"
password: "admin"
mclag:
Links:
- link: "L3_Ethernet48 | S1_Ethernet8"
staticLink: true
properties:
- link: "L3_Ethernet52 | S2_Ethernet8"
staticLink: true
properties:
- link: "L3_Ethernet0 | H3_Ethernet0"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 203
- switchId: 4
switchName: "Leaf-4"
ipAddress: "100.100.10.16"
ASN: 1004
Credentials:
user: "admin"
password: "admin"
mclag:
Links:
- link: "L4_Ethernet48 | S1_Ethernet12"
staticLink: true
properties:
- link: "L4_Ethernet52 | S2_Ethernet12"
staticLink: true
properties:
- link: "L4_Ethernet4 | H4_Ethernet1"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 204
Tor: []
BGP:
BGP_U: false
ND_RA: 30
PhysicalIfCfg:
FEC: "Off"
MTU: 9000
AdminStatus: "Up"
ASN:
SSpine: "10000-20000"
Spine: "21000-50000"
Leaf: "51000-60000"
Tor: "61000-70000"
IPv4Pool:
Loopback: "10.10.10.0/24"
LeafSpine: "40.0.0.0/24"
LeafTor: "39.0.0.0/24"
Host: "49.0.0.0/24"
IPv6Pool:
LeafSpine:
LeafTor:
Host:
NTP:
server: "100.100.10.10"
timezone: "Asia/Kolkata"
SYSLOG:
server: "100.100.10.10"
SNMP:
trapserver: "100.100.10.10"
Parameters:
vlan: "200-205"
vni: "20000-20005"
anycast_gateway: 4000::0/64
anycast_mac: "00:11:22:33:44:55"
hosts_per_vlan: 10
routing_symmetric: false
sag: true
Inventory:
SSpines: 0
Spines: 2
Leafs: 4
Tors: 0
Connectivity:
SSpine: []
Spine:
- switchId: 1
switchName: "Spine-1"
ipAddress: "100.100.10.11"
ASN: 1001
Credentials:
user: "admin"
password: "admin"
mclag:
Links:
- link: "S1_Ethernet0 | L1_Ethernet48"
staticLink: true
properties:
- link: "S1_Ethernet4 | L2_Ethernet48"
staticLink: true
properties:
- link: "S1_Ethernet8 | L3_Ethernet48"
staticLink: true
properties:
- link: "S1_Ethernet12 | L4_Ethernet48"
staticLink: true
properties:
- switchId: 2
switchName: "Spine-2"
ipAddress: "100.100.10.12"
ASN: 1001
Credentials:
user: "admin"
password: "admin"
mclag:
Links:
- link: "S2_Ethernet0 | L1_Ethernet52"
staticLink: true
properties:
- link: "S2_Ethernet4 | L2_Ethernet52"
staticLink: true
properties:
- link: "S2_Ethernet8 | L3_Ethernet52"
staticLink: true
properties:
- link: "S2_Ethernet12 | L4_Ethernet52"
staticLink: true
properties:
Leaf:
- switchId: 1
switchName: "Leaf-1"
ipAddress: "100.100.10.13"
ASN: 1001
Credentials:
user: "admin"
password: "admin"
mclag:
Links:
- link: "L1_Ethernet48 | S1_Ethernet0"
staticLink: true
properties:
- link: "L1_Ethernet52 | S2_Ethernet0"
staticLink: true
properties:
- link: "L1_Ethernet0 | H1_Ethernet0"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 201
- switchId: 2
switchName: "Leaf-2"
ipAddress: "100.100.10.14"
ASN: 1001
Credentials:
user: "admin"
password: "admin"
mclag:
Links:
- link: "L2_Ethernet48 | S1_Ethernet4"
staticLink: true
properties:
- link: "L2_Ethernet52 | S2_Ethernet4"
staticLink: true
properties:
- link: "L2_Ethernet4 | H2_Ethernet1"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 202
- switchId: 3
switchName: "Leaf-3"
ipAddress: "100.100.10.15"
ASN: 1001
Credentials:
user: "admin"
password: "admin"
mclag:
Links:
- link: "L3_Ethernet48 | S1_Ethernet8"
staticLink: true
properties:
- link: "L3_Ethernet52 | S2_Ethernet8"
staticLink: true
properties:
- link: "L3_Ethernet0 | H3_Ethernet0"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 203
- switchId: 4
switchName: "Leaf-4"
ipAddress: "100.100.10.16"
ASN: 1001
Credentials:
user: "admin"
password: "admin"
mclag:
Links:
- link: "L4_Ethernet48 | S1_Ethernet12"
staticLink: true
properties:
- link: "L4_Ethernet52 | S2_Ethernet12"
staticLink: true
properties:
- link: "L4_Ethernet4 | H4_Ethernet1"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 204
Tor: []
BGP:
BGP_U: false
ND_RA: 30
PhysicalIfCfg:
FEC: "Off"
MTU: 9000
AdminStatus: "Up"
ASN:
SSpine: "10000-20000"
Spine: "21000-50000"
Leaf: "51000-60000"
Tor: "61000-70000"
IPv4Pool:
Loopback: "10.10.10.0/24"
LeafSpine: "40.0.0.0/24"
LeafTor: "39.0.0.0/24"
Host: "49.0.0.0/24"
IPv6Pool:
LeafSpine:
LeafTor:
Host:
NTP:
server: "100.100.10.10"
timezone: "Asia/Kolkata"
SYSLOG:
server: "100.100.10.10"
SNMP:
trapserver: "100.100.10.10"
Parameters:
vlan: "200-205"
vni: "20000-20005"
anycast_gateway: "100.10.0.0/23"
anycast_mac: "00:11:22:33:44:55"
hosts_per_vlan: 10
routing_symmetric: false
sag: FalseInventory:
SSpines: 0
Spines: 2
Leafs: 4
Tors: 0
Connectivity:
SSpine: []
Spine:
- switchId: 1
switchName: "Spine-1"
ipAddress: "100.100.10.11"
ASN: 21001
Credentials:
user: "admin"
password: "admin"
mclag:
Links:
- link: "S1_Ethernet0 | L1_Ethernet48"
staticLink: true
properties:
- link: "S1_Ethernet4 | L2_Ethernet48"
staticLink: true
properties:
- link: "S1_Ethernet8 | L3_Ethernet48"
staticLink: true
properties:
- link: "S1_Ethernet12 | L4_Ethernet48"
staticLink: true
properties:
- switchId: 2
switchName: "Spine-2"
ipAddress: "100.100.10.12"
ASN: 21002
Credentials:
user: "admin"
password: "admin"
mclag:
Links:
- link: "S2_Ethernet0 | L1_Ethernet52"
staticLink: true
properties:
- link: "S2_Ethernet4 | L2_Ethernet52"
staticLink: true
properties:
- link: "S2_Ethernet8 | L3_Ethernet52"
staticLink: true
properties:
- link: "S2_Ethernet12 | L4_Ethernet52"
staticLink: true
properties:
Leaf:
- switchId: 1
switchName: "Leaf-1"
ipAddress: "100.100.10.13"
ASN: 31001
Credentials:
user: "admin"
password: "admin"
mclag:
enabled: true
peer: "L2"
keepalive_vlan: 10
Links:
- link: "L1_Ethernet48 | S1_Ethernet0"
staticLink: true
properties:
- link: "L1_Ethernet52 | S2_Ethernet0"
staticLink: true
properties:
- link: "L1_Ethernet56 | L2_Ethernet56"
staticLink: true
properties:
mode: "MC-LAG"
- link: "L1_Ethernet0 | H1_Ethernet0"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 500
mc_po_group: 500
vrf: 1
- link: "L1_Ethernet4 | H2_Ethernet0"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 501
mc_po_group: 501
vrf: 1
- switchId: 2
switchName: "Leaf-2"
ipAddress: "100.100.10.14"
ASN: 31001
Credentials:
user: "admin"
password: "admin"
mclag:
enabled: true
peer: "L1"
keepalive_vlan: 10
Links:
- link: "L2_Ethernet48 | S1_Ethernet4"
staticLink: true
properties:
- link: "L2_Ethernet52 | S2_Ethernet4"
staticLink: true
properties:
- link: "L2_Ethernet56 | L1_Ethernet56"
staticLink: true
properties:
mode: "MC-LAG"
- link: "L2_Ethernet0 | H1_Ethernet1"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 500
mc_po_group: 500
vrf: 1
- link: "L2_Ethernet4 | H2_Ethernet1"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 501
mc_po_group: 501
vrf: 1
- switchId: 3
switchName: "Leaf-3"
ipAddress: "100.100.10.15"
ASN: 31002
Credentials:
user: "admin"
password: "admin"
mclag:
enabled: true
peer: "L4"
keepalive_vlan: 10
Links:
- link: "L3_Ethernet48 | S1_Ethernet8"
staticLink: true
properties:
- link: "L3_Ethernet52 | S2_Ethernet8"
staticLink: true
properties:
- link: "L3_Ethernet56 | L4_Ethernet56"
staticLink: true
properties:
mode: "MC-LAG"
- link: "L3_Ethernet0 | H3_Ethernet0"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 500
mc_po_group: 500
vrf: 1
- link: "L3_Ethernet4 | H4_Ethernet0"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 501
mc_po_group: 501
vrf: 1
- switchId: 4
switchName: "Leaf-4"
ipAddress: "100.100.10.16"
ASN: 31002
Credentials:
user: "admin"
password: "admin"
mclag:
enabled: true
peer: "L3"
keepalive_vlan: 10
Links:
- link: "L4_Ethernet48 | S1_Ethernet12"
staticLink: true
properties:
- link: "L4_Ethernet52 | S2_Ethernet12"
staticLink: true
properties:
- link: "L4_Ethernet56 | L3_Ethernet56"
staticLink: true
properties:
mode: "MC-LAG"
- link: "L4_Ethernet0 | H3_Ethernet1"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 500
mc_po_group: 500
vrf: 1
- link: "L4_Ethernet4 | H4_Ethernet1"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 501
mc_po_group: 501
vrf: 1
Tor: []
BGP:
BGP_U: false
ND_RA: 30
PhysicalIfCfg:
FEC: "Off"
MTU: 9000
AdminStatus: "Up"
ASN:
SSpine: "10000-20000"
Spine: "21000-50000"
Leaf: "51000-60000"
Tor: "61000-70000"
IPv4Pool:
Loopback: "49.10.10.0/24"
LeafSpine: "39.0.0.0/24"
LeafTor: "29.0.0.0/24"
Host: "19.0.0.0/24"
IPv6Pool:
LeafSpine:
LeafTor:
Host:
NTP:
server: "100.100.10.10"
timezone: "Asia/Kolkata"
SYSLOG:
server: "100.100.10.10"
SNMP:
trapserver: "100.100.10.10"
Parameters:
vlan: "500-505"
vni: "50000-50005"
anycast_gateway: "200.10.0.0/23"
anycast_mac: "00:11:22:33:44:55"
hosts_per_vlan: 10
routing_symmetric: true
irb_vlan: "400-405"
irb_vni: "40000-40005"
sag: False
Inventory:
SSpines: 0
Spines: 2
Leafs: 4
Tors: 0
Connectivity:
SSpine: []
Spine:
- switchId: 1
switchName: "Spine-1"
ipAddress: "100.100.10.11"
ASN: 2001
Credentials:
user: "admin"
password: "admin"
mclag:
Links:
- link: "S1_Ethernet0 | L1_Ethernet48"
staticLink: true
properties:
- link: "S1_Ethernet4 | L2_Ethernet48"
staticLink: true
properties:
- link: "S1_Ethernet8 | L3_Ethernet48"
staticLink: true
properties:
- link: "S1_Ethernet12 | L4_Ethernet48"
staticLink: true
properties:
- switchId: 2
switchName: "Spine-2"
ipAddress: "100.100.10.12"
ASN: 2002
Credentials:
user: "admin"
password: "admin"
mclag:
Links:
- link: "S2_Ethernet0 | L1_Ethernet52"
staticLink: true
properties:
- link: "S2_Ethernet4 | L2_Ethernet52"
staticLink: true
properties:
- link: "S2_Ethernet8 | L3_Ethernet52"
staticLink: true
properties:
- link: "S2_Ethernet12 | L4_Ethernet52"
staticLink: true
properties:
Leaf:
- switchId: 1
switchName: "Leaf-1"
ipAddress: "100.100.10.13"
ASN: 1001
Credentials:
user: "admin"
password: "admin"
mclag:
Links:
- link: "L1_Ethernet48 | S1_Ethernet0"
staticLink: true
properties:
- link: "L1_Ethernet52 | S2_Ethernet0"
staticLink: true
properties:
- link: "L1_Ethernet0 | H1_Ethernet0"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 201
- switchId: 2
switchName: "Leaf-2"
ipAddress: "100.100.10.14"
ASN: 1002
Credentials:
user: "admin"
password: "admin"
mclag:
Links:
- link: "L2_Ethernet48 | S1_Ethernet4"
staticLink: true
properties:
- link: "L2_Ethernet52 | S2_Ethernet4"
staticLink: true
properties:
- link: "L2_Ethernet4 | H2_Ethernet1"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 202
- switchId: 3
switchName: "Leaf-3"
ipAddress: "100.100.10.15"
ASN: 1003
Credentials:
user: "admin"
password: "admin"
mclag:
Links:
- link: "L3_Ethernet48 | S1_Ethernet8"
staticLink: true
properties:
- link: "L3_Ethernet52 | S2_Ethernet8"
staticLink: true
properties:
- link: "L3_Ethernet0 | H3_Ethernet0"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 203
- switchId: 4
switchName: "Leaf-4"
ipAddress: "100.100.10.16"
ASN: 1004
Credentials:
user: "admin"
password: "admin"
mclag:
Links:
- link: "L4_Ethernet48 | S1_Ethernet12"
staticLink: true
properties:
- link: "L4_Ethernet52 | S2_Ethernet12"
staticLink: true
properties:
- link: "L4_Ethernet4 | H4_Ethernet1"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 204
Tor: []
BGP:
BGP_U: false
ND_RA: 30
PhysicalIfCfg:
FEC: "Off"
MTU: 9000
AdminStatus: "Up"
ASN:
SSpine: "10000-20000"
Spine: "21000-50000"
Leaf: "51000-60000"
Tor: "61000-70000"
IPv4Pool:
Loopback: "10.10.10.0/24"
LeafSpine:
LeafTor:
Host:
IPv6Pool:
LeafSpine: 2000::0/64
LeafTor: 1000::0/64
Host:
NTP:
server: "100.100.10.10"
timezone: "Asia/Kolkata"
SYSLOG:
server: "100.100.10.10"
SNMP:
trapserver: "100.100.10.10"
Parameters:
vlan: "200-205"
vni: "20000-20005"
anycast_gateway: 3000::0/64
anycast_mac: "00:11:22:33:44:55"
hosts_per_vlan: 10
routing_symmetric: false
sag: false
Update Speed:
Device Credentials: Username & Password.
MCLAG: Multichassis Link Aggregation
Links: links connected with another device
ONES automatically advertises these subnets in BGP
Africa/Bissau
Africa/Blantyre
Africa/Brazzaville
Africa/Bujumbura
Africa/Cairo
Africa/Casablanca
Africa/Ceuta
Africa/Conakry
Africa/Dakar
Africa/Dar_es_Salaam
Africa/Djibouti
Africa/Douala
Africa/El_Aaiun
Africa/Freetown
Africa/Gaborone
Africa/Harare
Africa/Johannesburg
Africa/Juba
Africa/Kampala
Africa/Khartoum
Africa/Kigali
Africa/Kinshasa
Africa/Lagos
Africa/Libreville
Africa/Lome
Africa/Luanda
Africa/Lubumbashi
Africa/Lusaka
Africa/Malabo
Africa/Maputo
Africa/Maseru
Africa/Mbabane
Africa/Mogadishu
Africa/Monrovia
Africa/Nairobi
Africa/Ndjamena
Africa/Niamey
Africa/Nouakchott
Africa/Ouagadougou
Africa/Porto-Novo
Africa/Sao_Tome
Africa/Timbuktu
Africa/Tripoli
Africa/Tunis
Africa/Windhoek
America/Adak
America/Anchorage
America/Anguilla
America/Antigua
America/Araguaina
America/Argentina/Buenos_Aires
America/Argentina/Catamarca
America/Argentina/ComodRivadavia
America/Argentina/Cordoba
America/Argentina/Jujuy
America/Argentina/La_Rioja
America/Argentina/Mendoza
America/Argentina/Rio_Gallegos
America/Argentina/Salta
America/Argentina/San_Juan
America/Argentina/San_Luis
America/Argentina/Tucuman
America/Argentina/Ushuaia
America/Aruba
America/Asuncion
America/Atikokan
America/Atka
America/Bahia
America/Bahia_Banderas
America/Barbados
America/Belem
America/Belize
America/Blanc-Sablon
America/Boa_Vista
America/Bogota
America/Boise
America/Buenos_Aires
America/Cambridge_Bay
America/Campo_Grande
America/Cancun
America/Caracas
America/Catamarca
America/Cayenne
America/Cayman
America/Chicago
America/Chihuahua
America/Ciudad_Juarez
America/Coral_Harbour
America/Cordoba
America/Costa_Rica
America/Creston
America/Cuiaba
America/Curacao
America/Danmarkshavn
America/Dawson
America/Dawson_Creek
America/Denver
America/Detroit
America/Dominica
America/Edmonton
America/Eirunepe
America/El_Salvador
America/Ensenada
America/Fort_Nelson
America/Fort_Wayne
America/Fortaleza
America/Glace_Bay
America/Godthab
America/Goose_Bay
America/Grand_Turk
America/Grenada
America/Guadeloupe
America/Guatemala
America/Guayaquil
America/Guyana
America/Halifax
America/Havana
America/Hermosillo
America/Indiana/Indianapolis
America/Indiana/Knox
America/Indiana/Marengo
America/Indiana/Petersburg
America/Indiana/Tell_City
America/Indiana/Vevay
America/Indiana/Vincennes
America/Indiana/Winamac
America/Indianapolis
America/Inuvik
America/Iqaluit
America/Jamaica
America/Jujuy
America/Juneau
America/Kentucky/Louisville
America/Kentucky/Monticello
America/Knox_IN
America/Kralendijk
America/La_Paz
America/Lima
America/Los_Angeles
America/Louisville
America/Lower_Princes
America/Maceio
America/Managua
America/Manaus
America/Marigot
America/Martinique
America/Matamoros
America/Mazatlan
America/Mendoza
America/Menominee
America/Merida
America/Metlakatla
America/Mexico_City
America/Miquelon
America/Moncton
America/Monterrey
America/Montevideo
America/Montreal
America/Montserrat
America/Nassau
America/New_York
America/Nipigon
America/Nome
America/Noronha
America/North_Dakota/Beulah
America/North_Dakota/Center
America/North_Dakota/New_Salem
America/Nuuk
America/Ojinaga
America/Panama
America/Pangnirtung
America/Paramaribo
America/Phoenix
America/Port-au-Prince
America/Port_of_Spain
America/Porto_Acre
America/Porto_Velho
America/Puerto_Rico
America/Punta_Arenas
America/Rainy_River
America/Rankin_Inlet
America/Recife
America/Regina
America/Resolute
America/Rio_Branco
America/Rosario
America/Santa_Isabel
America/Santarem
America/Santiago
America/Santo_Domingo
America/Sao_Paulo
America/Scoresbysund
America/Shiprock
America/Sitka
America/St_Barthelemy
America/St_Johns
America/St_Kitts
America/St_Lucia
America/St_Thomas
America/St_Vincent
America/Swift_Current
America/Tegucigalpa
America/Thule
America/Thunder_Bay
America/Tijuana
America/Toronto
America/Tortola
America/Vancouver
America/Virgin
America/Whitehorse
America/Winnipeg
America/Yakutat
America/Yellowknife
Antarctica/Casey
Antarctica/Davis
Antarctica/DumontDUrville
Antarctica/Macquarie
Antarctica/Mawson
Antarctica/McMurdo
Antarctica/Palmer
Antarctica/Rothera
Antarctica/South_Pole
Antarctica/Syowa
Antarctica/Troll
Antarctica/Vostok
Arctic/Longyearbyen
Asia/Aden
Asia/Almaty
Asia/Amman
Asia/Anadyr
Asia/Aqtau
Asia/Aqtobe
Asia/Ashgabat
Asia/Ashkhabad
Asia/Atyrau
Asia/Baghdad
Asia/Bahrain
Asia/Baku
Asia/Bangkok
Asia/Barnaul
Asia/Beirut
Asia/Bishkek
Asia/Brunei
Asia/Calcutta
Asia/Chita
Asia/Choibalsan
Asia/Chongqing
Asia/Chungking
Asia/Colombo
Asia/Dacca
Asia/Damascus
Asia/Dhaka
Asia/Dili
Asia/Dubai
Asia/Dushanbe
Asia/Famagusta
Asia/Gaza
Asia/Harbin
Asia/Hebron
Asia/Ho_Chi_Minh
Asia/Hong_Kong
Asia/Hovd
Asia/Irkutsk
Asia/Istanbul
Asia/Jakarta
Asia/Jayapura
Asia/Jerusalem
Asia/Kabul
Asia/Kamchatka
Asia/Karachi
Asia/Kashgar
Asia/Kathmandu
Asia/Katmandu
Asia/Khandyga
Asia/Kolkata
Asia/Krasnoyarsk
Asia/Kuala_Lumpur
Asia/Kuching
Asia/Kuwait
Asia/Macao
Asia/Macau
Asia/Magadan
Asia/Makassar
Asia/Manila
Asia/Muscat
Asia/Nicosia
Asia/Novokuznetsk
Asia/Novosibirsk
Asia/Omsk
Asia/Oral
Asia/Phnom_Penh
Asia/Pontianak
Asia/Pyongyang
Asia/Qatar
Asia/Qostanay
Asia/Qyzylorda
Asia/Rangoon
Asia/Riyadh
Asia/Saigon
Asia/Sakhalin
Asia/Samarkand
Asia/Seoul
Asia/Shanghai
Asia/Singapore
Asia/Srednekolymsk
Asia/Taipei
Asia/Tashkent
Asia/Tbilisi
Asia/Tehran
Asia/Tel_Aviv
Asia/Thimbu
Asia/Thimphu
Asia/Tokyo
Asia/Tomsk
Asia/Ujung_Pandang
Asia/Ulaanbaatar
Asia/Ulan_Bator
Asia/Urumqi
Asia/Ust-Nera
Asia/Vientiane
Asia/Vladivostok
Asia/Yakutsk
Asia/Yangon
Asia/Yekaterinburg
Asia/Yerevan
Atlantic/Azores
Atlantic/Bermuda
Atlantic/Canary
Atlantic/Cape_Verde
Atlantic/Faeroe
Atlantic/Faroe
Atlantic/Jan_Mayen
Atlantic/Madeira
Atlantic/Reykjavik
Atlantic/South_Georgia
Atlantic/St_Helena
Atlantic/Stanley
Australia/ACT
Australia/Adelaide
Australia/Brisbane
Australia/Broken_Hill
Australia/Canberra
Australia/Currie
Australia/Darwin
Australia/Eucla
Australia/Hobart
Australia/LHI
Australia/Lindeman
Australia/Lord_Howe
Australia/Melbourne
Australia/NSW
Australia/North
Australia/Perth
Australia/Queensland
Australia/South
Australia/Sydney
Australia/Tasmania
Australia/Victoria
Australia/West
Australia/Yancowinna
Brazil/Acre
Brazil/DeNoronha
Brazil/East
Brazil/West
CET
CST6CDT
Canada/Atlantic
Canada/Central
Canada/Eastern
Canada/Mountain
Canada/Newfoundland
Canada/Pacific
Canada/Saskatchewan
Canada/Yukon
Chile/Continental
Chile/EasterIsland
Cuba
EET
EST
EST5EDT
Egypt
Eire
Etc/GMT
Etc/GMT+0
Etc/GMT+1
Etc/GMT+10
Etc/GMT+11
Etc/GMT+12
Etc/GMT+2
Etc/GMT+3
Etc/GMT+4
Etc/GMT+5
Etc/GMT+6
Etc/GMT+7
Etc/GMT+8
Etc/GMT+9
Etc/GMT-0
Etc/GMT-1
Etc/GMT-10
Etc/GMT-11
Etc/GMT-12
Etc/GMT-13
Etc/GMT-14
Etc/GMT-2
Etc/GMT-3
Etc/GMT-4
Etc/GMT-5
Etc/GMT-6
Etc/GMT-7
Etc/GMT-8
Etc/GMT-9
Etc/GMT0
Etc/Greenwich
Etc/UCT
Etc/UTC
Etc/Universal
Etc/Zulu
Europe/Amsterdam
Europe/Andorra
Europe/Astrakhan
Europe/Athens
Europe/Belfast
Europe/Belgrade
Europe/Berlin
Europe/Bratislava
Europe/Brussels
Europe/Bucharest
Europe/Budapest
Europe/Busingen
Europe/Chisinau
Europe/Copenhagen
Europe/Dublin
Europe/Gibraltar
Europe/Guernsey
Europe/Helsinki
Europe/Isle_of_Man
Europe/Istanbul
Europe/Jersey
Europe/Kaliningrad
Europe/Kiev
Europe/Kirov
Europe/Kyiv
Europe/Lisbon
Europe/Ljubljana
Europe/London
Europe/Luxembourg
Europe/Madrid
Europe/Malta
Europe/Mariehamn
Europe/Minsk
Europe/Monaco
Europe/Moscow
Europe/Nicosia
Europe/Oslo
Europe/Paris
Europe/Podgorica
Europe/Prague
Europe/Riga
Europe/Rome
Europe/Samara
Europe/San_Marino
Europe/Sarajevo
Europe/Saratov
Europe/Simferopol
Europe/Skopje
Europe/Sofia
Europe/Stockholm
Europe/Tallinn
Europe/Tirane
Europe/Tiraspol
Europe/Ulyanovsk
Europe/Uzhgorod
Europe/Vaduz
Europe/Vatican
Europe/Vienna
Europe/Vilnius
Europe/Volgograd
Europe/Warsaw
Europe/Zagreb
Europe/Zaporozhye
Europe/Zurich
Factory
GB
GB-Eire
GMT
GMT+0
GMT-0
GMT0
Greenwich
HST
Hongkong
Iceland
Indian/Antananarivo
Indian/Chagos
Indian/Christmas
Indian/Cocos
Indian/Comoro
Indian/Kerguelen
Indian/Mahe
Indian/Maldives
Indian/Mauritius
Indian/Mayotte
Indian/Reunion
Iran
Israel
Jamaica
Japan
Kwajalein
Libya
MET
MST
MST7MDT
Mexico/BajaNorte
Mexico/BajaSur
Mexico/General
NZ
NZ-CHAT
Navajo
PRC
PST8PDT
Pacific/Apia
Pacific/Auckland
Pacific/Bougainville
Pacific/Chatham
Pacific/Chuuk
Pacific/Easter
Pacific/Efate
Pacific/Enderbury
Pacific/Fakaofo
Pacific/Fiji
Pacific/Funafuti
Pacific/Galapagos
Pacific/Gambier
Pacific/Guadalcanal
Pacific/Guam
Pacific/Honolulu
Pacific/Johnston
Pacific/Kanton
Pacific/Kiritimati
Pacific/Kosrae
Pacific/Kwajalein
Pacific/Majuro
Pacific/Marquesas
Pacific/Midway
Pacific/Nauru
Pacific/Niue
Pacific/Norfolk
Pacific/Noumea
Pacific/Pago_Pago
Pacific/Palau
Pacific/Pitcairn
Pacific/Pohnpei
Pacific/Ponape
Pacific/Port_Moresby
Pacific/Rarotonga
Pacific/Saipan
Pacific/Samoa
Pacific/Tahiti
Pacific/Tarawa
Pacific/Tongatapu
Pacific/Truk
Pacific/Wake
Pacific/Wallis
Pacific/Yap
Poland
Portugal
ROC
ROK
Singapore
SystemV/AST4
SystemV/AST4ADT
SystemV/CST6
SystemV/CST6CDT
SystemV/EST5
SystemV/EST5EDT
SystemV/HST10
SystemV/MST7
SystemV/MST7MDT
SystemV/PST8
SystemV/PST8PDT
SystemV/YST9
SystemV/YST9YDT
Turkey
UCT
US/Alaska
US/Aleutian
US/Arizona
US/Central
US/East-Indiana
US/Eastern
US/Hawaii
US/Indiana-Starke
US/Michigan
US/Mountain
US/Pacific
US/Samoa
UTC
Universal
W-SU
WET
Zulu
Commit the docker Changes
Backup & Restore Configs: using this user can take device config backup and can use later to restore the configuration
This option is used to connect to device via SSH
here user can get the console logs of the particular device
using this option user can get the details on the applied config and the intended config of the device
Compare the applied config vs running config on the selected device and highlight the diff changes, if any
Configure Devices
Allows to make the config changes directly in the in-built UI editor
Download YAML
Download the sample YAML file and make the required changes
Upload YAML
Upload the modified YAML file
​​
Device configuration is not yet started
In case of the user has not applied any feature like (VXLAN, MCLAG and so on..)
​​
Device configuration is in progress
​​
The device configuration has failed. Move the cursor to the failed option to see the Error message.
​​
Device configuration is completed successfully
Host Logs shows the exact configuration loaded on the device and the overview of the config loaded as per YAML
​​
is used to configure or modify a configuration when we need to add several other devices with the same file
IPv4Pool:
Loopback: 19.168.10.0/24
LeafSpine: 20.168.10.0/24
LeafTor: 30.168.10.0/24
Host: 49.0.0.0/24root@Leaf-1:/home/admin# docker commit bgp
sha256:c67656393b902cf7bf514094a219eb75f5bf45340023848be51e26632344caa3sudo config save -ysudo cp /etc/sonic/config_db.json /host/backup_config_db.jsonsudo config reload /host/backup_config_db_json -y
sudo config save -ysudo cp /etc/sonic/config_db.json /host/backup_config_db.jsonsudo config reload /host/backup_config_db_json -yInventory:
SSpines: 2 #Define the count of devices in the SuperSpine role
Spines: 2 #Define the count of devices in the Spine role
Leafs: 2 #Define the count of devices in the Leaf role
Tors: 1 #Define the count of devices in the Tor roleConnectivity:
SSpine: [] #A role that does not have any device, presented as []
Spine: #Delcare all details, the device needs to update.
- switchId: 1 #Every device we define for a given Role should have an ID that is unique to that Role.
switchName: EC01 #Use the hostname of the switch
ipAddress: 10.4.4.61 #Management IP address of the device to connect
ASN: 1001 #BGP Local AS number
Credentials: #User needs to enter device credentials
user: admin
password: YourPaSsWoRd
mclag: #used to create multichassis link aggregation
enabled: True #used to activate mclag property
peer: L2 #Neighbor Device ID (Leaf Switch 2), Peer can be Spine or Leaf device
keepalive_vlan: 10 #Vlan to use for Keepalive messages
isoverl3: true #for L2 MCLAG use false, For L3 MCLAG use true
Links: #The links between all the devices we manage
#SS indicates SuperSpine Role
#S indicates Spine Role
#L indicates Leaf Role
#T indicates Tor Role
#H indicates Host port
#The next number is device's unique ID from the same respective Role
#Then interface name and number
- link: S1_Ethernet96 | L1_Ethernet96
#S1_Ethernet96 : Spine Role, Switch ID 1 with Interface Ethernet 96
is connected to
#L1_Ethernet96 : Leaf Role, Switch ID 1 with Interface Ethernet 96
staticLink: True #True indicates the status is up
properties: #This indicates the use of link properties
mode:
#L2-Trunk #Used as Layer-2 Trunk
#vlan: 200 #Vlan used for mclag
#mc_po_group: 200 #Po number for mclag
#vrf: 1 #VRF to be used for mclag, vrf is mendate in symmetric IRB
#L2-Access #Used as Layer-2 Access
#vlan: 200 #Vlan used for mclag
#L3-V4 #Only with Host peer
#mc_po_group: 201 #Po number to be used
#L3-V6 #Only with Host peer
#mc_po_group: 201 #Po number to be used
#MC-LAG #Only when we need MC-LAG between links
#MC-LAG-BGP #BGP Neighbourship between MC-Lag Peers using Peer LinkBGP:
#BGP_U If set to False, this configures regular BGP peering.
#BGP_U If set to True, this configures BGP unnumbered peering
#ND_RA is reserved for future development
BGP_U: False
ND_RA: 30 PhysicalIfCfg:
FEC: On #Possible values are On or Off
MTU: 8000 #MTU value a user wants to change
AdminStatus: Up #Set the status UP ASN:
SSpine: 10000-20000
Spine: 21000-50000
Leaf: 51000-60000
Tor: 61000-70000IPv6Pool:
LeafSpine: #Define IPv6 Pool
LeafTor: #Define IPv6 Pool
Host: #Define IPv6 PoolNTP:
server: 128.138.141.172
timezone: Asia/KolkataSYSLOG:
server: 10.1.1.11
SNMP:
trapserver: 10.1.1.11Parameters:
vlan: 200-205
vni: 20000-20005
anycast_gateway: 100.10.0.0/23
anycast_mac: 00:11:22:33:44:55
hosts_per_vlan: 10
routing_symmetric: True # True / False to indicate its symmetric routing or asymmetric routing
irb_vlan: 300-305 # irb vlan is separate input and should not overlap with vxlan vni
irb_vni: 30000-30005 # irb vni is separate input and should not overlap with vxlan vni
sag: False # True for Anycast Gateway otherwise False root@Leaf-1:/# vi /usr/bin/docker_init.shelif [ "$CONFIG_TYPE" == "split" ]; then
#echo "no service integrated-vtysh-config" > /etc/frr/vtysh.conf
rm -f /etc/frr/frr.confelif [ "$CONFIG_TYPE" == "split" ]; then
#echo "no service integrated-vtysh-config" > /etc/frr/vtysh.conf
echo "service integrated-vtysh-config" > /etc/frr/vtysh.conf
rm -f /etc/frr/frr.confsudo config interface speed Ethernet0 10000elif [ "$CONFIG_TYPE" == "split" ]; then
#echo "no service integrated-vtysh-config" > /etc/frr/vtysh.conf
echo "service integrated-vtysh-config" > /etc/frr/vtysh.conf
#rm -f /etc/frr/frr.confAfrica/Bissau
Africa/Blantyre
Africa/Brazzaville
Africa/Bujumbura
Africa/Cairo
Africa/Casablanca
Africa/Ceuta
Africa/Conakry
Africa/Dakar
Africa/Dar_es_Salaam
Africa/Djibouti
Africa/Douala
Africa/El_Aaiun
Africa/Freetown
Africa/Gaborone
Africa/Harare
Africa/Johannesburg
Africa/Juba
Africa/Kampala
Africa/Khartoum
Africa/Kigali
Africa/Kinshasa
Africa/Lagos
Africa/Libreville
Africa/Lome
Africa/Luanda
Africa/Lubumbashi
Africa/Lusaka
Africa/Malabo
Africa/Maputo
Africa/Maseru
Africa/Mbabane
Africa/Mogadishu
Africa/Monrovia
Africa/Nairobi
Africa/Ndjamena
Africa/Niamey
Africa/Nouakchott
Africa/Ouagadougou
Africa/Porto-Novo
Africa/Sao_Tome
Africa/Timbuktu
Africa/Tripoli
Africa/Tunis
Africa/Windhoek
America/Adak
America/Anchorage
America/Anguilla
America/Antigua
America/Araguaina
America/Argentina/Buenos_Aires
America/Argentina/Catamarca
America/Argentina/ComodRivadavia
America/Argentina/Cordoba
America/Argentina/Jujuy
America/Argentina/La_Rioja
America/Argentina/Mendoza
America/Argentina/Rio_Gallegos
America/Argentina/Salta
America/Argentina/San_Juan
America/Argentina/San_Luis
America/Argentina/Tucuman
America/Argentina/Ushuaia
America/Aruba
America/Asuncion
America/Atikokan
America/Atka
America/Bahia
America/Bahia_Banderas
America/Barbados
America/Belem
America/Belize
America/Blanc-Sablon
America/Boa_Vista
America/Bogota
America/Boise
America/Buenos_Aires
America/Cambridge_Bay
America/Campo_Grande
America/Cancun
America/Caracas
America/Catamarca
America/Cayenne
America/Cayman
America/Chicago
America/Chihuahua
America/Ciudad_Juarez
America/Coral_Harbour
America/Cordoba
America/Costa_Rica
America/Creston
America/Cuiaba
America/Curacao
America/Danmarkshavn
America/Dawson
America/Dawson_Creek
America/Denver
America/Detroit
America/Dominica
America/Edmonton
America/Eirunepe
America/El_Salvador
America/Ensenada
America/Fort_Nelson
America/Fort_Wayne
America/Fortaleza
America/Glace_Bay
America/Godthab
America/Goose_Bay
America/Grand_Turk
America/Grenada
America/Guadeloupe
America/Guatemala
America/Guayaquil
America/Guyana
America/Halifax
America/Havana
America/Hermosillo
America/Indiana/Indianapolis
America/Indiana/Knox
America/Indiana/Marengo
America/Indiana/Petersburg
America/Indiana/Tell_City
America/Indiana/Vevay
America/Indiana/Vincennes
America/Indiana/Winamac
America/Indianapolis
America/Inuvik
America/Iqaluit
America/Jamaica
America/Jujuy
America/Juneau
America/Kentucky/Louisville
America/Kentucky/Monticello
America/Knox_IN
America/Kralendijk
America/La_Paz
America/Lima
America/Los_Angeles
America/Louisville
America/Lower_Princes
America/Maceio
America/Managua
America/Manaus
America/Marigot
America/Martinique
America/Matamoros
America/Mazatlan
America/Mendoza
America/Menominee
America/Merida
America/Metlakatla
America/Mexico_City
America/Miquelon
America/Moncton
America/Monterrey
America/Montevideo
America/Montreal
America/Montserrat
America/Nassau
America/New_York
America/Nipigon
America/Nome
America/Noronha
America/North_Dakota/Beulah
America/North_Dakota/Center
America/North_Dakota/New_Salem
America/Nuuk
America/Ojinaga
America/Panama
America/Pangnirtung
America/Paramaribo
America/Phoenix
America/Port-au-Prince
America/Port_of_Spain
America/Porto_Acre
America/Porto_Velho
America/Puerto_Rico
America/Punta_Arenas
America/Rainy_River
America/Rankin_Inlet
America/Recife
America/Regina
America/Resolute
America/Rio_Branco
America/Rosario
America/Santa_Isabel
America/Santarem
America/Santiago
America/Santo_Domingo
America/Sao_Paulo
America/Scoresbysund
America/Shiprock
America/Sitka
America/St_Barthelemy
America/St_Johns
America/St_Kitts
America/St_Lucia
America/St_Thomas
America/St_Vincent
America/Swift_Current
America/Tegucigalpa
America/Thule
America/Thunder_Bay
America/Tijuana
America/Toronto
America/Tortola
America/Vancouver
America/Virgin
America/Whitehorse
America/Winnipeg
America/Yakutat
America/Yellowknife
Antarctica/Casey
Antarctica/Davis
Antarctica/DumontDUrville
Antarctica/Macquarie
Antarctica/Mawson
Antarctica/McMurdo
Antarctica/Palmer
Antarctica/Rothera
Antarctica/South_Pole
Antarctica/Syowa
Antarctica/Troll
Antarctica/Vostok
Arctic/Longyearbyen
Asia/Aden
Asia/Almaty
Asia/Amman
Asia/Anadyr
Asia/Aqtau
Asia/Aqtobe
Asia/Ashgabat
Asia/Ashkhabad
Asia/Atyrau
Asia/Baghdad
Asia/Bahrain
Asia/Baku
Asia/Bangkok
Asia/Barnaul
Asia/Beirut
Asia/Bishkek
Asia/Brunei
Asia/Calcutta
Asia/Chita
Asia/Choibalsan
Asia/Chongqing
Asia/Chungking
Asia/Colombo
Asia/Dacca
Asia/Damascus
Asia/Dhaka
Asia/Dili
Asia/Dubai
Asia/Dushanbe
Asia/Famagusta
Asia/Gaza
Asia/Harbin
Asia/Hebron
Asia/Ho_Chi_Minh
Asia/Hong_Kong
Asia/Hovd
Asia/Irkutsk
Asia/Istanbul
Asia/Jakarta
Asia/Jayapura
Asia/Jerusalem
Asia/Kabul
Asia/Kamchatka
Asia/Karachi
Asia/Kashgar
Asia/Kathmandu
Asia/Katmandu
Asia/Khandyga
Asia/Kolkata
Asia/Krasnoyarsk
Asia/Kuala_Lumpur
Asia/Kuching
Asia/Kuwait
Asia/Macao
Asia/Macau
Asia/Magadan
Asia/Makassar
Asia/Manila
Asia/Muscat
Asia/Nicosia
Asia/Novokuznetsk
Asia/Novosibirsk
Asia/Omsk
Asia/Oral
Asia/Phnom_Penh
Asia/Pontianak
Asia/Pyongyang
Asia/Qatar
Asia/Qostanay
Asia/Qyzylorda
Asia/Rangoon
Asia/Riyadh
Asia/Saigon
Asia/Sakhalin
Asia/Samarkand
Asia/Seoul
Asia/Shanghai
Asia/Singapore
Asia/Srednekolymsk
Asia/Taipei
Asia/Tashkent
Asia/Tbilisi
Asia/Tehran
Asia/Tel_Aviv
Asia/Thimbu
Asia/Thimphu
Asia/Tokyo
Asia/Tomsk
Asia/Ujung_Pandang
Asia/Ulaanbaatar
Asia/Ulan_Bator
Asia/Urumqi
Asia/Ust-Nera
Asia/Vientiane
Asia/Vladivostok
Asia/Yakutsk
Asia/Yangon
Asia/Yekaterinburg
Asia/Yerevan
Atlantic/Azores
Atlantic/Bermuda
Atlantic/Canary
Atlantic/Cape_Verde
Atlantic/Faeroe
Atlantic/Faroe
Atlantic/Jan_Mayen
Atlantic/Madeira
Atlantic/Reykjavik
Atlantic/South_Georgia
Atlantic/St_Helena
Atlantic/Stanley
Australia/ACT
Australia/Adelaide
Australia/Brisbane
Australia/Broken_Hill
Australia/Canberra
Australia/Currie
Australia/Darwin
Australia/Eucla
Australia/Hobart
Australia/LHI
Australia/Lindeman
Australia/Lord_Howe
Australia/Melbourne
Australia/NSW
Australia/North
Australia/Perth
Australia/Queensland
Australia/South
Australia/Sydney
Australia/Tasmania
Australia/Victoria
Australia/West
Australia/Yancowinna
Brazil/Acre
Brazil/DeNoronha
Brazil/East
Brazil/West
CET
CST6CDT
Canada/Atlantic
Canada/Central
Canada/Eastern
Canada/Mountain
Canada/Newfoundland
Canada/Pacific
Canada/Saskatchewan
Canada/Yukon
Chile/Continental
Chile/EasterIsland
Cuba
EET
EST
EST5EDT
Egypt
Eire
Etc/GMT
Etc/GMT+0
Etc/GMT+1
Etc/GMT+10
Etc/GMT+11
Etc/GMT+12
Etc/GMT+2
Etc/GMT+3
Etc/GMT+4
Etc/GMT+5
Etc/GMT+6
Etc/GMT+7
Etc/GMT+8
Etc/GMT+9
Etc/GMT-0
Etc/GMT-1
Etc/GMT-10
Etc/GMT-11
Etc/GMT-12
Etc/GMT-13
Etc/GMT-14
Etc/GMT-2
Etc/GMT-3
Etc/GMT-4
Etc/GMT-5
Etc/GMT-6
Etc/GMT-7
Etc/GMT-8
Etc/GMT-9
Etc/GMT0
Etc/Greenwich
Etc/UCT
Etc/UTC
Etc/Universal
Etc/Zulu
Europe/Amsterdam
Europe/Andorra
Europe/Astrakhan
Europe/Athens
Europe/Belfast
Europe/Belgrade
Europe/Berlin
Europe/Bratislava
Europe/Brussels
Europe/Bucharest
Europe/Budapest
Europe/Busingen
Europe/Chisinau
Europe/Copenhagen
Europe/Dublin
Europe/Gibraltar
Europe/Guernsey
Europe/Helsinki
Europe/Isle_of_Man
Europe/Istanbul
Europe/Jersey
Europe/Kaliningrad
Europe/Kiev
Europe/Kirov
Europe/Kyiv
Europe/Lisbon
Europe/Ljubljana
Europe/London
Europe/Luxembourg
Europe/Madrid
Europe/Malta
Europe/Mariehamn
Europe/Minsk
Europe/Monaco
Europe/Moscow
Europe/Nicosia
Europe/Oslo
Europe/Paris
Europe/Podgorica
Europe/Prague
Europe/Riga
Europe/Rome
Europe/Samara
Europe/San_Marino
Europe/Sarajevo
Europe/Saratov
Europe/Simferopol
Europe/Skopje
Europe/Sofia
Europe/Stockholm
Europe/Tallinn
Europe/Tirane
Europe/Tiraspol
Europe/Ulyanovsk
Europe/Uzhgorod
Europe/Vaduz
Europe/Vatican
Europe/Vienna
Europe/Vilnius
Europe/Volgograd
Europe/Warsaw
Europe/Zagreb
Europe/Zaporozhye
Europe/Zurich
Factory
GB
GB-Eire
GMT
GMT+0
GMT-0
GMT0
Greenwich
HST
Hongkong
Iceland
Indian/Antananarivo
Indian/Chagos
Indian/Christmas
Indian/Cocos
Indian/Comoro
Indian/Kerguelen
Indian/Mahe
Indian/Maldives
Indian/Mauritius
Indian/Mayotte
Indian/Reunion
Iran
Israel
Jamaica
Japan
Kwajalein
Libya
MET
MST
MST7MDT
Mexico/BajaNorte
Mexico/BajaSur
Mexico/General
NZ
NZ-CHAT
Navajo
PRC
PST8PDT
Pacific/Apia
Pacific/Auckland
Pacific/Bougainville
Pacific/Chatham
Pacific/Chuuk
Pacific/Easter
Pacific/Efate
Pacific/Enderbury
Pacific/Fakaofo
Pacific/Fiji
Pacific/Funafuti
Pacific/Galapagos
Pacific/Gambier
Pacific/Guadalcanal
Pacific/Guam
Pacific/Honolulu
Pacific/Johnston
Pacific/Kanton
Pacific/Kiritimati
Pacific/Kosrae
Pacific/Kwajalein
Pacific/Majuro
Pacific/Marquesas
Pacific/Midway
Pacific/Nauru
Pacific/Niue
Pacific/Norfolk
Pacific/Noumea
Pacific/Pago_Pago
Pacific/Palau
Pacific/Pitcairn
Pacific/Pohnpei
Pacific/Ponape
Pacific/Port_Moresby
Pacific/Rarotonga
Pacific/Saipan
Pacific/Samoa
Pacific/Tahiti
Pacific/Tarawa
Pacific/Tongatapu
Pacific/Truk
Pacific/Wake
Pacific/Wallis
Pacific/Yap
Poland
Portugal
ROC
ROK
Singapore
SystemV/AST4
SystemV/AST4ADT
SystemV/CST6
SystemV/CST6CDT
SystemV/EST5
SystemV/EST5EDT
SystemV/HST10
SystemV/MST7
SystemV/MST7MDT
SystemV/PST8
SystemV/PST8PDT
SystemV/YST9
SystemV/YST9YDT
Turkey
UCT
US/Alaska
US/Aleutian
US/Arizona
US/Central
US/East-Indiana
US/Eastern
US/Hawaii
US/Indiana-Starke
US/Michigan
US/Mountain
US/Pacific
US/Samoa
UTC
Universal
W-SU
WET
Zulu
Africa/Bissau
Africa/Blantyre
Africa/Brazzaville
Africa/Bujumbura
Africa/Cairo
Africa/Casablanca
Africa/Ceuta
Africa/Conakry
Africa/Dakar
Africa/Dar_es_Salaam
Africa/Djibouti
Africa/Douala
Africa/El_Aaiun
Africa/Freetown
Africa/Gaborone
Africa/Harare
Africa/Johannesburg
Africa/Juba
Africa/Kampala
Africa/Khartoum
Africa/Kigali
Africa/Kinshasa
Africa/Lagos
Africa/Libreville
Africa/Lome
Africa/Luanda
Africa/Lubumbashi
Africa/Lusaka
Africa/Malabo
Africa/Maputo
Africa/Maseru
Africa/Mbabane
Africa/Mogadishu
Africa/Monrovia
Africa/Nairobi
Africa/Ndjamena
Africa/Niamey
Africa/Nouakchott
Africa/Ouagadougou
Africa/Porto-Novo
Africa/Sao_Tome
Africa/Timbuktu
Africa/Tripoli
Africa/Tunis
Africa/Windhoek
America/Adak
America/Anchorage
America/Anguilla
America/Antigua
America/Araguaina
America/Argentina/Buenos_Aires
America/Argentina/Catamarca
America/Argentina/ComodRivadavia
America/Argentina/Cordoba
America/Argentina/Jujuy
America/Argentina/La_Rioja
America/Argentina/Mendoza
America/Argentina/Rio_Gallegos
America/Argentina/Salta
America/Argentina/San_Juan
America/Argentina/San_Luis
America/Argentina/Tucuman
America/Argentina/Ushuaia
America/Aruba
America/Asuncion
America/Atikokan
America/Atka
America/Bahia
America/Bahia_Banderas
America/Barbados
America/Belem
America/Belize
America/Blanc-Sablon
America/Boa_Vista
America/Bogota
America/Boise
America/Buenos_Aires
America/Cambridge_Bay
America/Campo_Grande
America/Cancun
America/Caracas
America/Catamarca
America/Cayenne
America/Cayman
America/Chicago
America/Chihuahua
America/Ciudad_Juarez
America/Coral_Harbour
America/Cordoba
America/Costa_Rica
America/Creston
America/Cuiaba
America/Curacao
America/Danmarkshavn
America/Dawson
America/Dawson_Creek
America/Denver
America/Detroit
America/Dominica
America/Edmonton
America/Eirunepe
America/El_Salvador
America/Ensenada
America/Fort_Nelson
America/Fort_Wayne
America/Fortaleza
America/Glace_Bay
America/Godthab
America/Goose_Bay
America/Grand_Turk
America/Grenada
America/Guadeloupe
America/Guatemala
America/Guayaquil
America/Guyana
America/Halifax
America/Havana
America/Hermosillo
America/Indiana/Indianapolis
America/Indiana/Knox
America/Indiana/Marengo
America/Indiana/Petersburg
America/Indiana/Tell_City
America/Indiana/Vevay
America/Indiana/Vincennes
America/Indiana/Winamac
America/Indianapolis
America/Inuvik
America/Iqaluit
America/Jamaica
America/Jujuy
America/Juneau
America/Kentucky/Louisville
America/Kentucky/Monticello
America/Knox_IN
America/Kralendijk
America/La_Paz
America/Lima
America/Los_Angeles
America/Louisville
America/Lower_Princes
America/Maceio
America/Managua
America/Manaus
America/Marigot
America/Martinique
America/Matamoros
America/Mazatlan
America/Mendoza
America/Menominee
America/Merida
America/Metlakatla
America/Mexico_City
America/Miquelon
America/Moncton
America/Monterrey
America/Montevideo
America/Montreal
America/Montserrat
America/Nassau
America/New_York
America/Nipigon
America/Nome
America/Noronha
America/North_Dakota/Beulah
America/North_Dakota/Center
America/North_Dakota/New_Salem
America/Nuuk
America/Ojinaga
America/Panama
America/Pangnirtung
America/Paramaribo
America/Phoenix
America/Port-au-Prince
America/Port_of_Spain
America/Porto_Acre
America/Porto_Velho
America/Puerto_Rico
America/Punta_Arenas
America/Rainy_River
America/Rankin_Inlet
America/Recife
America/Regina
America/Resolute
America/Rio_Branco
America/Rosario
America/Santa_Isabel
America/Santarem
America/Santiago
America/Santo_Domingo
America/Sao_Paulo
America/Scoresbysund
America/Shiprock
America/Sitka
America/St_Barthelemy
America/St_Johns
America/St_Kitts
America/St_Lucia
America/St_Thomas
America/St_Vincent
America/Swift_Current
America/Tegucigalpa
America/Thule
America/Thunder_Bay
America/Tijuana
America/Toronto
America/Tortola
America/Vancouver
America/Virgin
America/Whitehorse
America/Winnipeg
America/Yakutat
America/Yellowknife
Antarctica/Casey
Antarctica/Davis
Antarctica/DumontDUrville
Antarctica/Macquarie
Antarctica/Mawson
Antarctica/McMurdo
Antarctica/Palmer
Antarctica/Rothera
Antarctica/South_Pole
Antarctica/Syowa
Antarctica/Troll
Antarctica/Vostok
Arctic/Longyearbyen
Asia/Aden
Asia/Almaty
Asia/Amman
Asia/Anadyr
Asia/Aqtau
Asia/Aqtobe
Asia/Ashgabat
Asia/Ashkhabad
Asia/Atyrau
Asia/Baghdad
Asia/Bahrain
Asia/Baku
Asia/Bangkok
Asia/Barnaul
Asia/Beirut
Asia/Bishkek
Asia/Brunei
Asia/Calcutta
Asia/Chita
Asia/Choibalsan
Asia/Chongqing
Asia/Chungking
Asia/Colombo
Asia/Dacca
Asia/Damascus
Asia/Dhaka
Asia/Dili
Asia/Dubai
Asia/Dushanbe
Asia/Famagusta
Asia/Gaza
Asia/Harbin
Asia/Hebron
Asia/Ho_Chi_Minh
Asia/Hong_Kong
Asia/Hovd
Asia/Irkutsk
Asia/Istanbul
Asia/Jakarta
Asia/Jayapura
Asia/Jerusalem
Asia/Kabul
Asia/Kamchatka
Asia/Karachi
Asia/Kashgar
Asia/Kathmandu
Asia/Katmandu
Asia/Khandyga
Asia/Kolkata
Asia/Krasnoyarsk
Asia/Kuala_Lumpur
Asia/Kuching
Asia/Kuwait
Asia/Macao
Asia/Macau
Asia/Magadan
Asia/Makassar
Asia/Manila
Asia/Muscat
Asia/Nicosia
Asia/Novokuznetsk
Asia/Novosibirsk
Asia/Omsk
Asia/Oral
Asia/Phnom_Penh
Asia/Pontianak
Asia/Pyongyang
Asia/Qatar
Asia/Qostanay
Asia/Qyzylorda
Asia/Rangoon
Asia/Riyadh
Asia/Saigon
Asia/Sakhalin
Asia/Samarkand
Asia/Seoul
Asia/Shanghai
Asia/Singapore
Asia/Srednekolymsk
Asia/Taipei
Asia/Tashkent
Asia/Tbilisi
Asia/Tehran
Asia/Tel_Aviv
Asia/Thimbu
Asia/Thimphu
Asia/Tokyo
Asia/Tomsk
Asia/Ujung_Pandang
Asia/Ulaanbaatar
Asia/Ulan_Bator
Asia/Urumqi
Asia/Ust-Nera
Asia/Vientiane
Asia/Vladivostok
Asia/Yakutsk
Asia/Yangon
Asia/Yekaterinburg
Asia/Yerevan
Atlantic/Azores
Atlantic/Bermuda
Atlantic/Canary
Atlantic/Cape_Verde
Atlantic/Faeroe
Atlantic/Faroe
Atlantic/Jan_Mayen
Atlantic/Madeira
Atlantic/Reykjavik
Atlantic/South_Georgia
Atlantic/St_Helena
Atlantic/Stanley
Australia/ACT
Australia/Adelaide
Australia/Brisbane
Australia/Broken_Hill
Australia/Canberra
Australia/Currie
Australia/Darwin
Australia/Eucla
Australia/Hobart
Australia/LHI
Australia/Lindeman
Australia/Lord_Howe
Australia/Melbourne
Australia/NSW
Australia/North
Australia/Perth
Australia/Queensland
Australia/South
Australia/Sydney
Australia/Tasmania
Australia/Victoria
Australia/West
Australia/Yancowinna
Brazil/Acre
Brazil/DeNoronha
Brazil/East
Brazil/West
CET
CST6CDT
Canada/Atlantic
Canada/Central
Canada/Eastern
Canada/Mountain
Canada/Newfoundland
Canada/Pacific
Canada/Saskatchewan
Canada/Yukon
Chile/Continental
Chile/EasterIsland
Cuba
EET
EST
EST5EDT
Egypt
Eire
Etc/GMT
Etc/GMT+0
Etc/GMT+1
Etc/GMT+10
Etc/GMT+11
Etc/GMT+12
Etc/GMT+2
Etc/GMT+3
Etc/GMT+4
Etc/GMT+5
Etc/GMT+6
Etc/GMT+7
Etc/GMT+8
Etc/GMT+9
Etc/GMT-0
Etc/GMT-1
Etc/GMT-10
Etc/GMT-11
Etc/GMT-12
Etc/GMT-13
Etc/GMT-14
Etc/GMT-2
Etc/GMT-3
Etc/GMT-4
Etc/GMT-5
Etc/GMT-6
Etc/GMT-7
Etc/GMT-8
Etc/GMT-9
Etc/GMT0
Etc/Greenwich
Etc/UCT
Etc/UTC
Etc/Universal
Etc/Zulu
Europe/Amsterdam
Europe/Andorra
Europe/Astrakhan
Europe/Athens
Europe/Belfast
Europe/Belgrade
Europe/Berlin
Europe/Bratislava
Europe/Brussels
Europe/Bucharest
Europe/Budapest
Europe/Busingen
Europe/Chisinau
Europe/Copenhagen
Europe/Dublin
Europe/Gibraltar
Europe/Guernsey
Europe/Helsinki
Europe/Isle_of_Man
Europe/Istanbul
Europe/Jersey
Europe/Kaliningrad
Europe/Kiev
Europe/Kirov
Europe/Kyiv
Europe/Lisbon
Europe/Ljubljana
Europe/London
Europe/Luxembourg
Europe/Madrid
Europe/Malta
Europe/Mariehamn
Europe/Minsk
Europe/Monaco
Europe/Moscow
Europe/Nicosia
Europe/Oslo
Europe/Paris
Europe/Podgorica
Europe/Prague
Europe/Riga
Europe/Rome
Europe/Samara
Europe/San_Marino
Europe/Sarajevo
Europe/Saratov
Europe/Simferopol
Europe/Skopje
Europe/Sofia
Europe/Stockholm
Europe/Tallinn
Europe/Tirane
Europe/Tiraspol
Europe/Ulyanovsk
Europe/Uzhgorod
Europe/Vaduz
Europe/Vatican
Europe/Vienna
Europe/Vilnius
Europe/Volgograd
Europe/Warsaw
Europe/Zagreb
Europe/Zaporozhye
Europe/Zurich
Factory
GB
GB-Eire
GMT
GMT+0
GMT-0
GMT0
Greenwich
HST
Hongkong
Iceland
Indian/Antananarivo
Indian/Chagos
Indian/Christmas
Indian/Cocos
Indian/Comoro
Indian/Kerguelen
Indian/Mahe
Indian/Maldives
Indian/Mauritius
Indian/Mayotte
Indian/Reunion
Iran
Israel
Jamaica
Japan
Kwajalein
Libya
MET
MST
MST7MDT
Mexico/BajaNorte
Mexico/BajaSur
Mexico/General
NZ
NZ-CHAT
Navajo
PRC
PST8PDT
Pacific/Apia
Pacific/Auckland
Pacific/Bougainville
Pacific/Chatham
Pacific/Chuuk
Pacific/Easter
Pacific/Efate
Pacific/Enderbury
Pacific/Fakaofo
Pacific/Fiji
Pacific/Funafuti
Pacific/Galapagos
Pacific/Gambier
Pacific/Guadalcanal
Pacific/Guam
Pacific/Honolulu
Pacific/Johnston
Pacific/Kanton
Pacific/Kiritimati
Pacific/Kosrae
Pacific/Kwajalein
Pacific/Majuro
Pacific/Marquesas
Pacific/Midway
Pacific/Nauru
Pacific/Niue
Pacific/Norfolk
Pacific/Noumea
Pacific/Pago_Pago
Pacific/Palau
Pacific/Pitcairn
Pacific/Pohnpei
Pacific/Ponape
Pacific/Port_Moresby
Pacific/Rarotonga
Pacific/Saipan
Pacific/Samoa
Pacific/Tahiti
Pacific/Tarawa
Pacific/Tongatapu
Pacific/Truk
Pacific/Wake
Pacific/Wallis
Pacific/Yap
Poland
Portugal
ROC
ROK
Singapore
SystemV/AST4
SystemV/AST4ADT
SystemV/CST6
SystemV/CST6CDT
SystemV/EST5
SystemV/EST5EDT
SystemV/HST10
SystemV/MST7
SystemV/MST7MDT
SystemV/PST8
SystemV/PST8PDT
SystemV/YST9
SystemV/YST9YDT
Turkey
UCT
US/Alaska
US/Aleutian
US/Arizona
US/Central
US/East-Indiana
US/Eastern
US/Hawaii
US/Indiana-Starke
US/Michigan
US/Mountain
US/Pacific
US/Samoa
UTC
Universal
W-SU
WET
Zulu
Africa/Bissau
Africa/Blantyre
Africa/Brazzaville
Africa/Bujumbura
Africa/Cairo
Africa/Casablanca
Africa/Ceuta
Africa/Conakry
Africa/Dakar
Africa/Dar_es_Salaam
Africa/Djibouti
Africa/Douala
Africa/El_Aaiun
Africa/Freetown
Africa/Gaborone
Africa/Harare
Africa/Johannesburg
Africa/Juba
Africa/Kampala
Africa/Khartoum
Africa/Kigali
Africa/Kinshasa
Africa/Lagos
Africa/Libreville
Africa/Lome
Africa/Luanda
Africa/Lubumbashi
Africa/Lusaka
Africa/Malabo
Africa/Maputo
Africa/Maseru
Africa/Mbabane
Africa/Mogadishu
Africa/Monrovia
Africa/Nairobi
Africa/Ndjamena
Africa/Niamey
Africa/Nouakchott
Africa/Ouagadougou
Africa/Porto-Novo
Africa/Sao_Tome
Africa/Timbuktu
Africa/Tripoli
Africa/Tunis
Africa/Windhoek
America/Adak
America/Anchorage
America/Anguilla
America/Antigua
America/Araguaina
America/Argentina/Buenos_Aires
America/Argentina/Catamarca
America/Argentina/ComodRivadavia
America/Argentina/Cordoba
America/Argentina/Jujuy
America/Argentina/La_Rioja
America/Argentina/Mendoza
America/Argentina/Rio_Gallegos
America/Argentina/Salta
America/Argentina/San_Juan
America/Argentina/San_Luis
America/Argentina/Tucuman
America/Argentina/Ushuaia
America/Aruba
America/Asuncion
America/Atikokan
America/Atka
America/Bahia
America/Bahia_Banderas
America/Barbados
America/Belem
America/Belize
America/Blanc-Sablon
America/Boa_Vista
America/Bogota
America/Boise
America/Buenos_Aires
America/Cambridge_Bay
America/Campo_Grande
America/Cancun
America/Caracas
America/Catamarca
America/Cayenne
America/Cayman
America/Chicago
America/Chihuahua
America/Ciudad_Juarez
America/Coral_Harbour
America/Cordoba
America/Costa_Rica
America/Creston
America/Cuiaba
America/Curacao
America/Danmarkshavn
America/Dawson
America/Dawson_Creek
America/Denver
America/Detroit
America/Dominica
America/Edmonton
America/Eirunepe
America/El_Salvador
America/Ensenada
America/Fort_Nelson
America/Fort_Wayne
America/Fortaleza
America/Glace_Bay
America/Godthab
America/Goose_Bay
America/Grand_Turk
America/Grenada
America/Guadeloupe
America/Guatemala
America/Guayaquil
America/Guyana
America/Halifax
America/Havana
America/Hermosillo
America/Indiana/Indianapolis
America/Indiana/Knox
America/Indiana/Marengo
America/Indiana/Petersburg
America/Indiana/Tell_City
America/Indiana/Vevay
America/Indiana/Vincennes
America/Indiana/Winamac
America/Indianapolis
America/Inuvik
America/Iqaluit
America/Jamaica
America/Jujuy
America/Juneau
America/Kentucky/Louisville
America/Kentucky/Monticello
America/Knox_IN
America/Kralendijk
America/La_Paz
America/Lima
America/Los_Angeles
America/Louisville
America/Lower_Princes
America/Maceio
America/Managua
America/Manaus
America/Marigot
America/Martinique
America/Matamoros
America/Mazatlan
America/Mendoza
America/Menominee
America/Merida
America/Metlakatla
America/Mexico_City
America/Miquelon
America/Moncton
America/Monterrey
America/Montevideo
America/Montreal
America/Montserrat
America/Nassau
America/New_York
America/Nipigon
America/Nome
America/Noronha
America/North_Dakota/Beulah
America/North_Dakota/Center
America/North_Dakota/New_Salem
America/Nuuk
America/Ojinaga
America/Panama
America/Pangnirtung
America/Paramaribo
America/Phoenix
America/Port-au-Prince
America/Port_of_Spain
America/Porto_Acre
America/Porto_Velho
America/Puerto_Rico
America/Punta_Arenas
America/Rainy_River
America/Rankin_Inlet
America/Recife
America/Regina
America/Resolute
America/Rio_Branco
America/Rosario
America/Santa_Isabel
America/Santarem
America/Santiago
America/Santo_Domingo
America/Sao_Paulo
America/Scoresbysund
America/Shiprock
America/Sitka
America/St_Barthelemy
America/St_Johns
America/St_Kitts
America/St_Lucia
America/St_Thomas
America/St_Vincent
America/Swift_Current
America/Tegucigalpa
America/Thule
America/Thunder_Bay
America/Tijuana
America/Toronto
America/Tortola
America/Vancouver
America/Virgin
America/Whitehorse
America/Winnipeg
America/Yakutat
America/Yellowknife
Antarctica/Casey
Antarctica/Davis
Antarctica/DumontDUrville
Antarctica/Macquarie
Antarctica/Mawson
Antarctica/McMurdo
Antarctica/Palmer
Antarctica/Rothera
Antarctica/South_Pole
Antarctica/Syowa
Antarctica/Troll
Antarctica/Vostok
Arctic/Longyearbyen
Asia/Aden
Asia/Almaty
Asia/Amman
Asia/Anadyr
Asia/Aqtau
Asia/Aqtobe
Asia/Ashgabat
Asia/Ashkhabad
Asia/Atyrau
Asia/Baghdad
Asia/Bahrain
Asia/Baku
Asia/Bangkok
Asia/Barnaul
Asia/Beirut
Asia/Bishkek
Asia/Brunei
Asia/Calcutta
Asia/Chita
Asia/Choibalsan
Asia/Chongqing
Asia/Chungking
Asia/Colombo
Asia/Dacca
Asia/Damascus
Asia/Dhaka
Asia/Dili
Asia/Dubai
Asia/Dushanbe
Asia/Famagusta
Asia/Gaza
Asia/Harbin
Asia/Hebron
Asia/Ho_Chi_Minh
Asia/Hong_Kong
Asia/Hovd
Asia/Irkutsk
Asia/Istanbul
Asia/Jakarta
Asia/Jayapura
Asia/Jerusalem
Asia/Kabul
Asia/Kamchatka
Asia/Karachi
Asia/Kashgar
Asia/Kathmandu
Asia/Katmandu
Asia/Khandyga
Asia/Kolkata
Asia/Krasnoyarsk
Asia/Kuala_Lumpur
Asia/Kuching
Asia/Kuwait
Asia/Macao
Asia/Macau
Asia/Magadan
Asia/Makassar
Asia/Manila
Asia/Muscat
Asia/Nicosia
Asia/Novokuznetsk
Asia/Novosibirsk
Asia/Omsk
Asia/Oral
Asia/Phnom_Penh
Asia/Pontianak
Asia/Pyongyang
Asia/Qatar
Asia/Qostanay
Asia/Qyzylorda
Asia/Rangoon
Asia/Riyadh
Asia/Saigon
Asia/Sakhalin
Asia/Samarkand
Asia/Seoul
Asia/Shanghai
Asia/Singapore
Asia/Srednekolymsk
Asia/Taipei
Asia/Tashkent
Asia/Tbilisi
Asia/Tehran
Asia/Tel_Aviv
Asia/Thimbu
Asia/Thimphu
Asia/Tokyo
Asia/Tomsk
Asia/Ujung_Pandang
Asia/Ulaanbaatar
Asia/Ulan_Bator
Asia/Urumqi
Asia/Ust-Nera
Asia/Vientiane
Asia/Vladivostok
Asia/Yakutsk
Asia/Yangon
Asia/Yekaterinburg
Asia/Yerevan
Atlantic/Azores
Atlantic/Bermuda
Atlantic/Canary
Atlantic/Cape_Verde
Atlantic/Faeroe
Atlantic/Faroe
Atlantic/Jan_Mayen
Atlantic/Madeira
Atlantic/Reykjavik
Atlantic/South_Georgia
Atlantic/St_Helena
Atlantic/Stanley
Australia/ACT
Australia/Adelaide
Australia/Brisbane
Australia/Broken_Hill
Australia/Canberra
Australia/Currie
Australia/Darwin
Australia/Eucla
Australia/Hobart
Australia/LHI
Australia/Lindeman
Australia/Lord_Howe
Australia/Melbourne
Australia/NSW
Australia/North
Australia/Perth
Australia/Queensland
Australia/South
Australia/Sydney
Australia/Tasmania
Australia/Victoria
Australia/West
Australia/Yancowinna
Brazil/Acre
Brazil/DeNoronha
Brazil/East
Brazil/West
CET
CST6CDT
Canada/Atlantic
Canada/Central
Canada/Eastern
Canada/Mountain
Canada/Newfoundland
Canada/Pacific
Canada/Saskatchewan
Canada/Yukon
Chile/Continental
Chile/EasterIsland
Cuba
EET
EST
EST5EDT
Egypt
Eire
Etc/GMT
Etc/GMT+0
Etc/GMT+1
Etc/GMT+10
Etc/GMT+11
Etc/GMT+12
Etc/GMT+2
Etc/GMT+3
Etc/GMT+4
Etc/GMT+5
Etc/GMT+6
Etc/GMT+7
Etc/GMT+8
Etc/GMT+9
Etc/GMT-0
Etc/GMT-1
Etc/GMT-10
Etc/GMT-11
Etc/GMT-12
Etc/GMT-13
Etc/GMT-14
Etc/GMT-2
Etc/GMT-3
Etc/GMT-4
Etc/GMT-5
Etc/GMT-6
Etc/GMT-7
Etc/GMT-8
Etc/GMT-9
Etc/GMT0
Etc/Greenwich
Etc/UCT
Etc/UTC
Etc/Universal
Etc/Zulu
Europe/Amsterdam
Europe/Andorra
Europe/Astrakhan
Europe/Athens
Europe/Belfast
Europe/Belgrade
Europe/Berlin
Europe/Bratislava
Europe/Brussels
Europe/Bucharest
Europe/Budapest
Europe/Busingen
Europe/Chisinau
Europe/Copenhagen
Europe/Dublin
Europe/Gibraltar
Europe/Guernsey
Europe/Helsinki
Europe/Isle_of_Man
Europe/Istanbul
Europe/Jersey
Europe/Kaliningrad
Europe/Kiev
Europe/Kirov
Europe/Kyiv
Europe/Lisbon
Europe/Ljubljana
Europe/London
Europe/Luxembourg
Europe/Madrid
Europe/Malta
Europe/Mariehamn
Europe/Minsk
Europe/Monaco
Europe/Moscow
Europe/Nicosia
Europe/Oslo
Europe/Paris
Europe/Podgorica
Europe/Prague
Europe/Riga
Europe/Rome
Europe/Samara
Europe/San_Marino
Europe/Sarajevo
Europe/Saratov
Europe/Simferopol
Europe/Skopje
Europe/Sofia
Europe/Stockholm
Europe/Tallinn
Europe/Tirane
Europe/Tiraspol
Europe/Ulyanovsk
Europe/Uzhgorod
Europe/Vaduz
Europe/Vatican
Europe/Vienna
Europe/Vilnius
Europe/Volgograd
Europe/Warsaw
Europe/Zagreb
Europe/Zaporozhye
Europe/Zurich
Factory
GB
GB-Eire
GMT
GMT+0
GMT-0
GMT0
Greenwich
HST
Hongkong
Iceland
Indian/Antananarivo
Indian/Chagos
Indian/Christmas
Indian/Cocos
Indian/Comoro
Indian/Kerguelen
Indian/Mahe
Indian/Maldives
Indian/Mauritius
Indian/Mayotte
Indian/Reunion
Iran
Israel
Jamaica
Japan
Kwajalein
Libya
MET
MST
MST7MDT
Mexico/BajaNorte
Mexico/BajaSur
Mexico/General
NZ
NZ-CHAT
Navajo
PRC
PST8PDT
Pacific/Apia
Pacific/Auckland
Pacific/Bougainville
Pacific/Chatham
Pacific/Chuuk
Pacific/Easter
Pacific/Efate
Pacific/Enderbury
Pacific/Fakaofo
Pacific/Fiji
Pacific/Funafuti
Pacific/Galapagos
Pacific/Gambier
Pacific/Guadalcanal
Pacific/Guam
Pacific/Honolulu
Pacific/Johnston
Pacific/Kanton
Pacific/Kiritimati
Pacific/Kosrae
Pacific/Kwajalein
Pacific/Majuro
Pacific/Marquesas
Pacific/Midway
Pacific/Nauru
Pacific/Niue
Pacific/Norfolk
Pacific/Noumea
Pacific/Pago_Pago
Pacific/Palau
Pacific/Pitcairn
Pacific/Pohnpei
Pacific/Ponape
Pacific/Port_Moresby
Pacific/Rarotonga
Pacific/Saipan
Pacific/Samoa
Pacific/Tahiti
Pacific/Tarawa
Pacific/Tongatapu
Pacific/Truk
Pacific/Wake
Pacific/Wallis
Pacific/Yap
Poland
Portugal
ROC
ROK
Singapore
SystemV/AST4
SystemV/AST4ADT
SystemV/CST6
SystemV/CST6CDT
SystemV/EST5
SystemV/EST5EDT
SystemV/HST10
SystemV/MST7
SystemV/MST7MDT
SystemV/PST8
SystemV/PST8PDT
SystemV/YST9
SystemV/YST9YDT
Turkey
UCT
US/Alaska
US/Aleutian
US/Arizona
US/Central
US/East-Indiana
US/Eastern
US/Hawaii
US/Indiana-Starke
US/Michigan
US/Mountain
US/Pacific
US/Samoa
UTC
Universal
W-SU
WET
Zulu
Africa/Bissau
Africa/Blantyre
Africa/Brazzaville
Africa/Bujumbura
Africa/Cairo
Africa/Casablanca
Africa/Ceuta
Africa/Conakry
Africa/Dakar
Africa/Dar_es_Salaam
Africa/Djibouti
Africa/Douala
Africa/El_Aaiun
Africa/Freetown
Africa/Gaborone
Africa/Harare
Africa/Johannesburg
Africa/Juba
Africa/Kampala
Africa/Khartoum
Africa/Kigali
Africa/Kinshasa
Africa/Lagos
Africa/Libreville
Africa/Lome
Africa/Luanda
Africa/Lubumbashi
Africa/Lusaka
Africa/Malabo
Africa/Maputo
Africa/Maseru
Africa/Mbabane
Africa/Mogadishu
Africa/Monrovia
Africa/Nairobi
Africa/Ndjamena
Africa/Niamey
Africa/Nouakchott
Africa/Ouagadougou
Africa/Porto-Novo
Africa/Sao_Tome
Africa/Timbuktu
Africa/Tripoli
Africa/Tunis
Africa/Windhoek
America/Adak
America/Anchorage
America/Anguilla
America/Antigua
America/Araguaina
America/Argentina/Buenos_Aires
America/Argentina/Catamarca
America/Argentina/ComodRivadavia
America/Argentina/Cordoba
America/Argentina/Jujuy
America/Argentina/La_Rioja
America/Argentina/Mendoza
America/Argentina/Rio_Gallegos
America/Argentina/Salta
America/Argentina/San_Juan
America/Argentina/San_Luis
America/Argentina/Tucuman
America/Argentina/Ushuaia
America/Aruba
America/Asuncion
America/Atikokan
America/Atka
America/Bahia
America/Bahia_Banderas
America/Barbados
America/Belem
America/Belize
America/Blanc-Sablon
America/Boa_Vista
America/Bogota
America/Boise
America/Buenos_Aires
America/Cambridge_Bay
America/Campo_Grande
America/Cancun
America/Caracas
America/Catamarca
America/Cayenne
America/Cayman
America/Chicago
America/Chihuahua
America/Ciudad_Juarez
America/Coral_Harbour
America/Cordoba
America/Costa_Rica
America/Creston
America/Cuiaba
America/Curacao
America/Danmarkshavn
America/Dawson
America/Dawson_Creek
America/Denver
America/Detroit
America/Dominica
America/Edmonton
America/Eirunepe
America/El_Salvador
America/Ensenada
America/Fort_Nelson
America/Fort_Wayne
America/Fortaleza
America/Glace_Bay
America/Godthab
America/Goose_Bay
America/Grand_Turk
America/Grenada
America/Guadeloupe
America/Guatemala
America/Guayaquil
America/Guyana
America/Halifax
America/Havana
America/Hermosillo
America/Indiana/Indianapolis
America/Indiana/Knox
America/Indiana/Marengo
America/Indiana/Petersburg
America/Indiana/Tell_City
America/Indiana/Vevay
America/Indiana/Vincennes
America/Indiana/Winamac
America/Indianapolis
America/Inuvik
America/Iqaluit
America/Jamaica
America/Jujuy
America/Juneau
America/Kentucky/Louisville
America/Kentucky/Monticello
America/Knox_IN
America/Kralendijk
America/La_Paz
America/Lima
America/Los_Angeles
America/Louisville
America/Lower_Princes
America/Maceio
America/Managua
America/Manaus
America/Marigot
America/Martinique
America/Matamoros
America/Mazatlan
America/Mendoza
America/Menominee
America/Merida
America/Metlakatla
America/Mexico_City
America/Miquelon
America/Moncton
America/Monterrey
America/Montevideo
America/Montreal
America/Montserrat
America/Nassau
America/New_York
America/Nipigon
America/Nome
America/Noronha
America/North_Dakota/Beulah
America/North_Dakota/Center
America/North_Dakota/New_Salem
America/Nuuk
America/Ojinaga
America/Panama
America/Pangnirtung
America/Paramaribo
America/Phoenix
America/Port-au-Prince
America/Port_of_Spain
America/Porto_Acre
America/Porto_Velho
America/Puerto_Rico
America/Punta_Arenas
America/Rainy_River
America/Rankin_Inlet
America/Recife
America/Regina
America/Resolute
America/Rio_Branco
America/Rosario
America/Santa_Isabel
America/Santarem
America/Santiago
America/Santo_Domingo
America/Sao_Paulo
America/Scoresbysund
America/Shiprock
America/Sitka
America/St_Barthelemy
America/St_Johns
America/St_Kitts
America/St_Lucia
America/St_Thomas
America/St_Vincent
America/Swift_Current
America/Tegucigalpa
America/Thule
America/Thunder_Bay
America/Tijuana
America/Toronto
America/Tortola
America/Vancouver
America/Virgin
America/Whitehorse
America/Winnipeg
America/Yakutat
America/Yellowknife
Antarctica/Casey
Antarctica/Davis
Antarctica/DumontDUrville
Antarctica/Macquarie
Antarctica/Mawson
Antarctica/McMurdo
Antarctica/Palmer
Antarctica/Rothera
Antarctica/South_Pole
Antarctica/Syowa
Antarctica/Troll
Antarctica/Vostok
Arctic/Longyearbyen
Asia/Aden
Asia/Almaty
Asia/Amman
Asia/Anadyr
Asia/Aqtau
Asia/Aqtobe
Asia/Ashgabat
Asia/Ashkhabad
Asia/Atyrau
Asia/Baghdad
Asia/Bahrain
Asia/Baku
Asia/Bangkok
Asia/Barnaul
Asia/Beirut
Asia/Bishkek
Asia/Brunei
Asia/Calcutta
Asia/Chita
Asia/Choibalsan
Asia/Chongqing
Asia/Chungking
Asia/Colombo
Asia/Dacca
Asia/Damascus
Asia/Dhaka
Asia/Dili
Asia/Dubai
Asia/Dushanbe
Asia/Famagusta
Asia/Gaza
Asia/Harbin
Asia/Hebron
Asia/Ho_Chi_Minh
Asia/Hong_Kong
Asia/Hovd
Asia/Irkutsk
Asia/Istanbul
Asia/Jakarta
Asia/Jayapura
Asia/Jerusalem
Asia/Kabul
Asia/Kamchatka
Asia/Karachi
Asia/Kashgar
Asia/Kathmandu
Asia/Katmandu
Asia/Khandyga
Asia/Kolkata
Asia/Krasnoyarsk
Asia/Kuala_Lumpur
Asia/Kuching
Asia/Kuwait
Asia/Macao
Asia/Macau
Asia/Magadan
Asia/Makassar
Asia/Manila
Asia/Muscat
Asia/Nicosia
Asia/Novokuznetsk
Asia/Novosibirsk
Asia/Omsk
Asia/Oral
Asia/Phnom_Penh
Asia/Pontianak
Asia/Pyongyang
Asia/Qatar
Asia/Qostanay
Asia/Qyzylorda
Asia/Rangoon
Asia/Riyadh
Asia/Saigon
Asia/Sakhalin
Asia/Samarkand
Asia/Seoul
Asia/Shanghai
Asia/Singapore
Asia/Srednekolymsk
Asia/Taipei
Asia/Tashkent
Asia/Tbilisi
Asia/Tehran
Asia/Tel_Aviv
Asia/Thimbu
Asia/Thimphu
Asia/Tokyo
Asia/Tomsk
Asia/Ujung_Pandang
Asia/Ulaanbaatar
Asia/Ulan_Bator
Asia/Urumqi
Asia/Ust-Nera
Asia/Vientiane
Asia/Vladivostok
Asia/Yakutsk
Asia/Yangon
Asia/Yekaterinburg
Asia/Yerevan
Atlantic/Azores
Atlantic/Bermuda
Atlantic/Canary
Atlantic/Cape_Verde
Atlantic/Faeroe
Atlantic/Faroe
Atlantic/Jan_Mayen
Atlantic/Madeira
Atlantic/Reykjavik
Atlantic/South_Georgia
Atlantic/St_Helena
Atlantic/Stanley
Australia/ACT
Australia/Adelaide
Australia/Brisbane
Australia/Broken_Hill
Australia/Canberra
Australia/Currie
Australia/Darwin
Australia/Eucla
Australia/Hobart
Australia/LHI
Australia/Lindeman
Australia/Lord_Howe
Australia/Melbourne
Australia/NSW
Australia/North
Australia/Perth
Australia/Queensland
Australia/South
Australia/Sydney
Australia/Tasmania
Australia/Victoria
Australia/West
Australia/Yancowinna
Brazil/Acre
Brazil/DeNoronha
Brazil/East
Brazil/West
CET
CST6CDT
Canada/Atlantic
Canada/Central
Canada/Eastern
Canada/Mountain
Canada/Newfoundland
Canada/Pacific
Canada/Saskatchewan
Canada/Yukon
Chile/Continental
Chile/EasterIsland
Cuba
EET
EST
EST5EDT
Egypt
Eire
Etc/GMT
Etc/GMT+0
Etc/GMT+1
Etc/GMT+10
Etc/GMT+11
Etc/GMT+12
Etc/GMT+2
Etc/GMT+3
Etc/GMT+4
Etc/GMT+5
Etc/GMT+6
Etc/GMT+7
Etc/GMT+8
Etc/GMT+9
Etc/GMT-0
Etc/GMT-1
Etc/GMT-10
Etc/GMT-11
Etc/GMT-12
Etc/GMT-13
Etc/GMT-14
Etc/GMT-2
Etc/GMT-3
Etc/GMT-4
Etc/GMT-5
Etc/GMT-6
Etc/GMT-7
Etc/GMT-8
Etc/GMT-9
Etc/GMT0
Etc/Greenwich
Etc/UCT
Etc/UTC
Etc/Universal
Etc/Zulu
Europe/Amsterdam
Europe/Andorra
Europe/Astrakhan
Europe/Athens
Europe/Belfast
Europe/Belgrade
Europe/Berlin
Europe/Bratislava
Europe/Brussels
Europe/Bucharest
Europe/Budapest
Europe/Busingen
Europe/Chisinau
Europe/Copenhagen
Europe/Dublin
Europe/Gibraltar
Europe/Guernsey
Europe/Helsinki
Europe/Isle_of_Man
Europe/Istanbul
Europe/Jersey
Europe/Kaliningrad
Europe/Kiev
Europe/Kirov
Europe/Kyiv
Europe/Lisbon
Europe/Ljubljana
Europe/London
Europe/Luxembourg
Europe/Madrid
Europe/Malta
Europe/Mariehamn
Europe/Minsk
Europe/Monaco
Europe/Moscow
Europe/Nicosia
Europe/Oslo
Europe/Paris
Europe/Podgorica
Europe/Prague
Europe/Riga
Europe/Rome
Europe/Samara
Europe/San_Marino
Europe/Sarajevo
Europe/Saratov
Europe/Simferopol
Europe/Skopje
Europe/Sofia
Europe/Stockholm
Europe/Tallinn
Europe/Tirane
Europe/Tiraspol
Europe/Ulyanovsk
Europe/Uzhgorod
Europe/Vaduz
Europe/Vatican
Europe/Vienna
Europe/Vilnius
Europe/Volgograd
Europe/Warsaw
Europe/Zagreb
Europe/Zaporozhye
Europe/Zurich
Factory
GB
GB-Eire
GMT
GMT+0
GMT-0
GMT0
Greenwich
HST
Hongkong
Iceland
Indian/Antananarivo
Indian/Chagos
Indian/Christmas
Indian/Cocos
Indian/Comoro
Indian/Kerguelen
Indian/Mahe
Indian/Maldives
Indian/Mauritius
Indian/Mayotte
Indian/Reunion
Iran
Israel
Jamaica
Japan
Kwajalein
Libya
MET
MST
MST7MDT
Mexico/BajaNorte
Mexico/BajaSur
Mexico/General
NZ
NZ-CHAT
Navajo
PRC
PST8PDT
Pacific/Apia
Pacific/Auckland
Pacific/Bougainville
Pacific/Chatham
Pacific/Chuuk
Pacific/Easter
Pacific/Efate
Pacific/Enderbury
Pacific/Fakaofo
Pacific/Fiji
Pacific/Funafuti
Pacific/Galapagos
Pacific/Gambier
Pacific/Guadalcanal
Pacific/Guam
Pacific/Honolulu
Pacific/Johnston
Pacific/Kanton
Pacific/Kiritimati
Pacific/Kosrae
Pacific/Kwajalein
Pacific/Majuro
Pacific/Marquesas
Pacific/Midway
Pacific/Nauru
Pacific/Niue
Pacific/Norfolk
Pacific/Noumea
Pacific/Pago_Pago
Pacific/Palau
Pacific/Pitcairn
Pacific/Pohnpei
Pacific/Ponape
Pacific/Port_Moresby
Pacific/Rarotonga
Pacific/Saipan
Pacific/Samoa
Pacific/Tahiti
Pacific/Tarawa
Pacific/Tongatapu
Pacific/Truk
Pacific/Wake
Pacific/Wallis
Pacific/Yap
Poland
Portugal
ROC
ROK
Singapore
SystemV/AST4
SystemV/AST4ADT
SystemV/CST6
SystemV/CST6CDT
SystemV/EST5
SystemV/EST5EDT
SystemV/HST10
SystemV/MST7
SystemV/MST7MDT
SystemV/PST8
SystemV/PST8PDT
SystemV/YST9
SystemV/YST9YDT
Turkey
UCT
US/Alaska
US/Aleutian
US/Arizona
US/Central
US/East-Indiana
US/Eastern
US/Hawaii
US/Indiana-Starke
US/Michigan
US/Mountain
US/Pacific
US/Samoa
UTC
Universal
W-SU
WET
Zulu
Africa/Bissau
Africa/Blantyre
Africa/Brazzaville
Africa/Bujumbura
Africa/Cairo
Africa/Casablanca
Africa/Ceuta
Africa/Conakry
Africa/Dakar
Africa/Dar_es_Salaam
Africa/Djibouti
Africa/Douala
Africa/El_Aaiun
Africa/Freetown
Africa/Gaborone
Africa/Harare
Africa/Johannesburg
Africa/Juba
Africa/Kampala
Africa/Khartoum
Africa/Kigali
Africa/Kinshasa
Africa/Lagos
Africa/Libreville
Africa/Lome
Africa/Luanda
Africa/Lubumbashi
Africa/Lusaka
Africa/Malabo
Africa/Maputo
Africa/Maseru
Africa/Mbabane
Africa/Mogadishu
Africa/Monrovia
Africa/Nairobi
Africa/Ndjamena
Africa/Niamey
Africa/Nouakchott
Africa/Ouagadougou
Africa/Porto-Novo
Africa/Sao_Tome
Africa/Timbuktu
Africa/Tripoli
Africa/Tunis
Africa/Windhoek
America/Adak
America/Anchorage
America/Anguilla
America/Antigua
America/Araguaina
America/Argentina/Buenos_Aires
America/Argentina/Catamarca
America/Argentina/ComodRivadavia
America/Argentina/Cordoba
America/Argentina/Jujuy
America/Argentina/La_Rioja
America/Argentina/Mendoza
America/Argentina/Rio_Gallegos
America/Argentina/Salta
America/Argentina/San_Juan
America/Argentina/San_Luis
America/Argentina/Tucuman
America/Argentina/Ushuaia
America/Aruba
America/Asuncion
America/Atikokan
America/Atka
America/Bahia
America/Bahia_Banderas
America/Barbados
America/Belem
America/Belize
America/Blanc-Sablon
America/Boa_Vista
America/Bogota
America/Boise
America/Buenos_Aires
America/Cambridge_Bay
America/Campo_Grande
America/Cancun
America/Caracas
America/Catamarca
America/Cayenne
America/Cayman
America/Chicago
America/Chihuahua
America/Ciudad_Juarez
America/Coral_Harbour
America/Cordoba
America/Costa_Rica
America/Creston
America/Cuiaba
America/Curacao
America/Danmarkshavn
America/Dawson
America/Dawson_Creek
America/Denver
America/Detroit
America/Dominica
America/Edmonton
America/Eirunepe
America/El_Salvador
America/Ensenada
America/Fort_Nelson
America/Fort_Wayne
America/Fortaleza
America/Glace_Bay
America/Godthab
America/Goose_Bay
America/Grand_Turk
America/Grenada
America/Guadeloupe
America/Guatemala
America/Guayaquil
America/Guyana
America/Halifax
America/Havana
America/Hermosillo
America/Indiana/Indianapolis
America/Indiana/Knox
America/Indiana/Marengo
America/Indiana/Petersburg
America/Indiana/Tell_City
America/Indiana/Vevay
America/Indiana/Vincennes
America/Indiana/Winamac
America/Indianapolis
America/Inuvik
America/Iqaluit
America/Jamaica
America/Jujuy
America/Juneau
America/Kentucky/Louisville
America/Kentucky/Monticello
America/Knox_IN
America/Kralendijk
America/La_Paz
America/Lima
America/Los_Angeles
America/Louisville
America/Lower_Princes
America/Maceio
America/Managua
America/Manaus
America/Marigot
America/Martinique
America/Matamoros
America/Mazatlan
America/Mendoza
America/Menominee
America/Merida
America/Metlakatla
America/Mexico_City
America/Miquelon
America/Moncton
America/Monterrey
America/Montevideo
America/Montreal
America/Montserrat
America/Nassau
America/New_York
America/Nipigon
America/Nome
America/Noronha
America/North_Dakota/Beulah
America/North_Dakota/Center
America/North_Dakota/New_Salem
America/Nuuk
America/Ojinaga
America/Panama
America/Pangnirtung
America/Paramaribo
America/Phoenix
America/Port-au-Prince
America/Port_of_Spain
America/Porto_Acre
America/Porto_Velho
America/Puerto_Rico
America/Punta_Arenas
America/Rainy_River
America/Rankin_Inlet
America/Recife
America/Regina
America/Resolute
America/Rio_Branco
America/Rosario
America/Santa_Isabel
America/Santarem
America/Santiago
America/Santo_Domingo
America/Sao_Paulo
America/Scoresbysund
America/Shiprock
America/Sitka
America/St_Barthelemy
America/St_Johns
America/St_Kitts
America/St_Lucia
America/St_Thomas
America/St_Vincent
America/Swift_Current
America/Tegucigalpa
America/Thule
America/Thunder_Bay
America/Tijuana
America/Toronto
America/Tortola
America/Vancouver
America/Virgin
America/Whitehorse
America/Winnipeg
America/Yakutat
America/Yellowknife
Antarctica/Casey
Antarctica/Davis
Antarctica/DumontDUrville
Antarctica/Macquarie
Antarctica/Mawson
Antarctica/McMurdo
Antarctica/Palmer
Antarctica/Rothera
Antarctica/South_Pole
Antarctica/Syowa
Antarctica/Troll
Antarctica/Vostok
Arctic/Longyearbyen
Asia/Aden
Asia/Almaty
Asia/Amman
Asia/Anadyr
Asia/Aqtau
Asia/Aqtobe
Asia/Ashgabat
Asia/Ashkhabad
Asia/Atyrau
Asia/Baghdad
Asia/Bahrain
Asia/Baku
Asia/Bangkok
Asia/Barnaul
Asia/Beirut
Asia/Bishkek
Asia/Brunei
Asia/Calcutta
Asia/Chita
Asia/Choibalsan
Asia/Chongqing
Asia/Chungking
Asia/Colombo
Asia/Dacca
Asia/Damascus
Asia/Dhaka
Asia/Dili
Asia/Dubai
Asia/Dushanbe
Asia/Famagusta
Asia/Gaza
Asia/Harbin
Asia/Hebron
Asia/Ho_Chi_Minh
Asia/Hong_Kong
Asia/Hovd
Asia/Irkutsk
Asia/Istanbul
Asia/Jakarta
Asia/Jayapura
Asia/Jerusalem
Asia/Kabul
Asia/Kamchatka
Asia/Karachi
Asia/Kashgar
Asia/Kathmandu
Asia/Katmandu
Asia/Khandyga
Asia/Kolkata
Asia/Krasnoyarsk
Asia/Kuala_Lumpur
Asia/Kuching
Asia/Kuwait
Asia/Macao
Asia/Macau
Asia/Magadan
Asia/Makassar
Asia/Manila
Asia/Muscat
Asia/Nicosia
Asia/Novokuznetsk
Asia/Novosibirsk
Asia/Omsk
Asia/Oral
Asia/Phnom_Penh
Asia/Pontianak
Asia/Pyongyang
Asia/Qatar
Asia/Qostanay
Asia/Qyzylorda
Asia/Rangoon
Asia/Riyadh
Asia/Saigon
Asia/Sakhalin
Asia/Samarkand
Asia/Seoul
Asia/Shanghai
Asia/Singapore
Asia/Srednekolymsk
Asia/Taipei
Asia/Tashkent
Asia/Tbilisi
Asia/Tehran
Asia/Tel_Aviv
Asia/Thimbu
Asia/Thimphu
Asia/Tokyo
Asia/Tomsk
Asia/Ujung_Pandang
Asia/Ulaanbaatar
Asia/Ulan_Bator
Asia/Urumqi
Asia/Ust-Nera
Asia/Vientiane
Asia/Vladivostok
Asia/Yakutsk
Asia/Yangon
Asia/Yekaterinburg
Asia/Yerevan
Atlantic/Azores
Atlantic/Bermuda
Atlantic/Canary
Atlantic/Cape_Verde
Atlantic/Faeroe
Atlantic/Faroe
Atlantic/Jan_Mayen
Atlantic/Madeira
Atlantic/Reykjavik
Atlantic/South_Georgia
Atlantic/St_Helena
Atlantic/Stanley
Australia/ACT
Australia/Adelaide
Australia/Brisbane
Australia/Broken_Hill
Australia/Canberra
Australia/Currie
Australia/Darwin
Australia/Eucla
Australia/Hobart
Australia/LHI
Australia/Lindeman
Australia/Lord_Howe
Australia/Melbourne
Australia/NSW
Australia/North
Australia/Perth
Australia/Queensland
Australia/South
Australia/Sydney
Australia/Tasmania
Australia/Victoria
Australia/West
Australia/Yancowinna
Brazil/Acre
Brazil/DeNoronha
Brazil/East
Brazil/West
CET
CST6CDT
Canada/Atlantic
Canada/Central
Canada/Eastern
Canada/Mountain
Canada/Newfoundland
Canada/Pacific
Canada/Saskatchewan
Canada/Yukon
Chile/Continental
Chile/EasterIsland
Cuba
EET
EST
EST5EDT
Egypt
Eire
Etc/GMT
Etc/GMT+0
Etc/GMT+1
Etc/GMT+10
Etc/GMT+11
Etc/GMT+12
Etc/GMT+2
Etc/GMT+3
Etc/GMT+4
Etc/GMT+5
Etc/GMT+6
Etc/GMT+7
Etc/GMT+8
Etc/GMT+9
Etc/GMT-0
Etc/GMT-1
Etc/GMT-10
Etc/GMT-11
Etc/GMT-12
Etc/GMT-13
Etc/GMT-14
Etc/GMT-2
Etc/GMT-3
Etc/GMT-4
Etc/GMT-5
Etc/GMT-6
Etc/GMT-7
Etc/GMT-8
Etc/GMT-9
Etc/GMT0
Etc/Greenwich
Etc/UCT
Etc/UTC
Etc/Universal
Etc/Zulu
Europe/Amsterdam
Europe/Andorra
Europe/Astrakhan
Europe/Athens
Europe/Belfast
Europe/Belgrade
Europe/Berlin
Europe/Bratislava
Europe/Brussels
Europe/Bucharest
Europe/Budapest
Europe/Busingen
Europe/Chisinau
Europe/Copenhagen
Europe/Dublin
Europe/Gibraltar
Europe/Guernsey
Europe/Helsinki
Europe/Isle_of_Man
Europe/Istanbul
Europe/Jersey
Europe/Kaliningrad
Europe/Kiev
Europe/Kirov
Europe/Kyiv
Europe/Lisbon
Europe/Ljubljana
Europe/London
Europe/Luxembourg
Europe/Madrid
Europe/Malta
Europe/Mariehamn
Europe/Minsk
Europe/Monaco
Europe/Moscow
Europe/Nicosia
Europe/Oslo
Europe/Paris
Europe/Podgorica
Europe/Prague
Europe/Riga
Europe/Rome
Europe/Samara
Europe/San_Marino
Europe/Sarajevo
Europe/Saratov
Europe/Simferopol
Europe/Skopje
Europe/Sofia
Europe/Stockholm
Europe/Tallinn
Europe/Tirane
Europe/Tiraspol
Europe/Ulyanovsk
Europe/Uzhgorod
Europe/Vaduz
Europe/Vatican
Europe/Vienna
Europe/Vilnius
Europe/Volgograd
Europe/Warsaw
Europe/Zagreb
Europe/Zaporozhye
Europe/Zurich
Factory
GB
GB-Eire
GMT
GMT+0
GMT-0
GMT0
Greenwich
HST
Hongkong
Iceland
Indian/Antananarivo
Indian/Chagos
Indian/Christmas
Indian/Cocos
Indian/Comoro
Indian/Kerguelen
Indian/Mahe
Indian/Maldives
Indian/Mauritius
Indian/Mayotte
Indian/Reunion
Iran
Israel
Jamaica
Japan
Kwajalein
Libya
MET
MST
MST7MDT
Mexico/BajaNorte
Mexico/BajaSur
Mexico/General
NZ
NZ-CHAT
Navajo
PRC
PST8PDT
Pacific/Apia
Pacific/Auckland
Pacific/Bougainville
Pacific/Chatham
Pacific/Chuuk
Pacific/Easter
Pacific/Efate
Pacific/Enderbury
Pacific/Fakaofo
Pacific/Fiji
Pacific/Funafuti
Pacific/Galapagos
Pacific/Gambier
Pacific/Guadalcanal
Pacific/Guam
Pacific/Honolulu
Pacific/Johnston
Pacific/Kanton
Pacific/Kiritimati
Pacific/Kosrae
Pacific/Kwajalein
Pacific/Majuro
Pacific/Marquesas
Pacific/Midway
Pacific/Nauru
Pacific/Niue
Pacific/Norfolk
Pacific/Noumea
Pacific/Pago_Pago
Pacific/Palau
Pacific/Pitcairn
Pacific/Pohnpei
Pacific/Ponape
Pacific/Port_Moresby
Pacific/Rarotonga
Pacific/Saipan
Pacific/Samoa
Pacific/Tahiti
Pacific/Tarawa
Pacific/Tongatapu
Pacific/Truk
Pacific/Wake
Pacific/Wallis
Pacific/Yap
Poland
Portugal
ROC
ROK
Singapore
SystemV/AST4
SystemV/AST4ADT
SystemV/CST6
SystemV/CST6CDT
SystemV/EST5
SystemV/EST5EDT
SystemV/HST10
SystemV/MST7
SystemV/MST7MDT
SystemV/PST8
SystemV/PST8PDT
SystemV/YST9
SystemV/YST9YDT
Turkey
UCT
US/Alaska
US/Aleutian
US/Arizona
US/Central
US/East-Indiana
US/Eastern
US/Hawaii
US/Indiana-Starke
US/Michigan
US/Mountain
US/Pacific
US/Samoa
UTC
Universal
W-SU
WET
Zulu
Africa/Bissau
Africa/Blantyre
Africa/Brazzaville
Africa/Bujumbura
Africa/Cairo
Africa/Casablanca
Africa/Ceuta
Africa/Conakry
Africa/Dakar
Africa/Dar_es_Salaam
Africa/Djibouti
Africa/Douala
Africa/El_Aaiun
Africa/Freetown
Africa/Gaborone
Africa/Harare
Africa/Johannesburg
Africa/Juba
Africa/Kampala
Africa/Khartoum
Africa/Kigali
Africa/Kinshasa
Africa/Lagos
Africa/Libreville
Africa/Lome
Africa/Luanda
Africa/Lubumbashi
Africa/Lusaka
Africa/Malabo
Africa/Maputo
Africa/Maseru
Africa/Mbabane
Africa/Mogadishu
Africa/Monrovia
Africa/Nairobi
Africa/Ndjamena
Africa/Niamey
Africa/Nouakchott
Africa/Ouagadougou
Africa/Porto-Novo
Africa/Sao_Tome
Africa/Timbuktu
Africa/Tripoli
Africa/Tunis
Africa/Windhoek
America/Adak
America/Anchorage
America/Anguilla
America/Antigua
America/Araguaina
America/Argentina/Buenos_Aires
America/Argentina/Catamarca
America/Argentina/ComodRivadavia
America/Argentina/Cordoba
America/Argentina/Jujuy
America/Argentina/La_Rioja
America/Argentina/Mendoza
America/Argentina/Rio_Gallegos
America/Argentina/Salta
America/Argentina/San_Juan
America/Argentina/San_Luis
America/Argentina/Tucuman
America/Argentina/Ushuaia
America/Aruba
America/Asuncion
America/Atikokan
America/Atka
America/Bahia
America/Bahia_Banderas
America/Barbados
America/Belem
America/Belize
America/Blanc-Sablon
America/Boa_Vista
America/Bogota
America/Boise
America/Buenos_Aires
America/Cambridge_Bay
America/Campo_Grande
America/Cancun
America/Caracas
America/Catamarca
America/Cayenne
America/Cayman
America/Chicago
America/Chihuahua
America/Ciudad_Juarez
America/Coral_Harbour
America/Cordoba
America/Costa_Rica
America/Creston
America/Cuiaba
America/Curacao
America/Danmarkshavn
America/Dawson
America/Dawson_Creek
America/Denver
America/Detroit
America/Dominica
America/Edmonton
America/Eirunepe
America/El_Salvador
America/Ensenada
America/Fort_Nelson
America/Fort_Wayne
America/Fortaleza
America/Glace_Bay
America/Godthab
America/Goose_Bay
America/Grand_Turk
America/Grenada
America/Guadeloupe
America/Guatemala
America/Guayaquil
America/Guyana
America/Halifax
America/Havana
America/Hermosillo
America/Indiana/Indianapolis
America/Indiana/Knox
America/Indiana/Marengo
America/Indiana/Petersburg
America/Indiana/Tell_City
America/Indiana/Vevay
America/Indiana/Vincennes
America/Indiana/Winamac
America/Indianapolis
America/Inuvik
America/Iqaluit
America/Jamaica
America/Jujuy
America/Juneau
America/Kentucky/Louisville
America/Kentucky/Monticello
America/Knox_IN
America/Kralendijk
America/La_Paz
America/Lima
America/Los_Angeles
America/Louisville
America/Lower_Princes
America/Maceio
America/Managua
America/Manaus
America/Marigot
America/Martinique
America/Matamoros
America/Mazatlan
America/Mendoza
America/Menominee
America/Merida
America/Metlakatla
America/Mexico_City
America/Miquelon
America/Moncton
America/Monterrey
America/Montevideo
America/Montreal
America/Montserrat
America/Nassau
America/New_York
America/Nipigon
America/Nome
America/Noronha
America/North_Dakota/Beulah
America/North_Dakota/Center
America/North_Dakota/New_Salem
America/Nuuk
America/Ojinaga
America/Panama
America/Pangnirtung
America/Paramaribo
America/Phoenix
America/Port-au-Prince
America/Port_of_Spain
America/Porto_Acre
America/Porto_Velho
America/Puerto_Rico
America/Punta_Arenas
America/Rainy_River
America/Rankin_Inlet
America/Recife
America/Regina
America/Resolute
America/Rio_Branco
America/Rosario
America/Santa_Isabel
America/Santarem
America/Santiago
America/Santo_Domingo
America/Sao_Paulo
America/Scoresbysund
America/Shiprock
America/Sitka
America/St_Barthelemy
America/St_Johns
America/St_Kitts
America/St_Lucia
America/St_Thomas
America/St_Vincent
America/Swift_Current
America/Tegucigalpa
America/Thule
America/Thunder_Bay
America/Tijuana
America/Toronto
America/Tortola
America/Vancouver
America/Virgin
America/Whitehorse
America/Winnipeg
America/Yakutat
America/Yellowknife
Antarctica/Casey
Antarctica/Davis
Antarctica/DumontDUrville
Antarctica/Macquarie
Antarctica/Mawson
Antarctica/McMurdo
Antarctica/Palmer
Antarctica/Rothera
Antarctica/South_Pole
Antarctica/Syowa
Antarctica/Troll
Antarctica/Vostok
Arctic/Longyearbyen
Asia/Aden
Asia/Almaty
Asia/Amman
Asia/Anadyr
Asia/Aqtau
Asia/Aqtobe
Asia/Ashgabat
Asia/Ashkhabad
Asia/Atyrau
Asia/Baghdad
Asia/Bahrain
Asia/Baku
Asia/Bangkok
Asia/Barnaul
Asia/Beirut
Asia/Bishkek
Asia/Brunei
Asia/Calcutta
Asia/Chita
Asia/Choibalsan
Asia/Chongqing
Asia/Chungking
Asia/Colombo
Asia/Dacca
Asia/Damascus
Asia/Dhaka
Asia/Dili
Asia/Dubai
Asia/Dushanbe
Asia/Famagusta
Asia/Gaza
Asia/Harbin
Asia/Hebron
Asia/Ho_Chi_Minh
Asia/Hong_Kong
Asia/Hovd
Asia/Irkutsk
Asia/Istanbul
Asia/Jakarta
Asia/Jayapura
Asia/Jerusalem
Asia/Kabul
Asia/Kamchatka
Asia/Karachi
Asia/Kashgar
Asia/Kathmandu
Asia/Katmandu
Asia/Khandyga
Asia/Kolkata
Asia/Krasnoyarsk
Asia/Kuala_Lumpur
Asia/Kuching
Asia/Kuwait
Asia/Macao
Asia/Macau
Asia/Magadan
Asia/Makassar
Asia/Manila
Asia/Muscat
Asia/Nicosia
Asia/Novokuznetsk
Asia/Novosibirsk
Asia/Omsk
Asia/Oral
Asia/Phnom_Penh
Asia/Pontianak
Asia/Pyongyang
Asia/Qatar
Asia/Qostanay
Asia/Qyzylorda
Asia/Rangoon
Asia/Riyadh
Asia/Saigon
Asia/Sakhalin
Asia/Samarkand
Asia/Seoul
Asia/Shanghai
Asia/Singapore
Asia/Srednekolymsk
Asia/Taipei
Asia/Tashkent
Asia/Tbilisi
Asia/Tehran
Asia/Tel_Aviv
Asia/Thimbu
Asia/Thimphu
Asia/Tokyo
Asia/Tomsk
Asia/Ujung_Pandang
Asia/Ulaanbaatar
Asia/Ulan_Bator
Asia/Urumqi
Asia/Ust-Nera
Asia/Vientiane
Asia/Vladivostok
Asia/Yakutsk
Asia/Yangon
Asia/Yekaterinburg
Asia/Yerevan
Atlantic/Azores
Atlantic/Bermuda
Atlantic/Canary
Atlantic/Cape_Verde
Atlantic/Faeroe
Atlantic/Faroe
Atlantic/Jan_Mayen
Atlantic/Madeira
Atlantic/Reykjavik
Atlantic/South_Georgia
Atlantic/St_Helena
Atlantic/Stanley
Australia/ACT
Australia/Adelaide
Australia/Brisbane
Australia/Broken_Hill
Australia/Canberra
Australia/Currie
Australia/Darwin
Australia/Eucla
Australia/Hobart
Australia/LHI
Australia/Lindeman
Australia/Lord_Howe
Australia/Melbourne
Australia/NSW
Australia/North
Australia/Perth
Australia/Queensland
Australia/South
Australia/Sydney
Australia/Tasmania
Australia/Victoria
Australia/West
Australia/Yancowinna
Brazil/Acre
Brazil/DeNoronha
Brazil/East
Brazil/West
CET
CST6CDT
Canada/Atlantic
Canada/Central
Canada/Eastern
Canada/Mountain
Canada/Newfoundland
Canada/Pacific
Canada/Saskatchewan
Canada/Yukon
Chile/Continental
Chile/EasterIsland
Cuba
EET
EST
EST5EDT
Egypt
Eire
Etc/GMT
Etc/GMT+0
Etc/GMT+1
Etc/GMT+10
Etc/GMT+11
Etc/GMT+12
Etc/GMT+2
Etc/GMT+3
Etc/GMT+4
Etc/GMT+5
Etc/GMT+6
Etc/GMT+7
Etc/GMT+8
Etc/GMT+9
Etc/GMT-0
Etc/GMT-1
Etc/GMT-10
Etc/GMT-11
Etc/GMT-12
Etc/GMT-13
Etc/GMT-14
Etc/GMT-2
Etc/GMT-3
Etc/GMT-4
Etc/GMT-5
Etc/GMT-6
Etc/GMT-7
Etc/GMT-8
Etc/GMT-9
Etc/GMT0
Etc/Greenwich
Etc/UCT
Etc/UTC
Etc/Universal
Etc/Zulu
Europe/Amsterdam
Europe/Andorra
Europe/Astrakhan
Europe/Athens
Europe/Belfast
Europe/Belgrade
Europe/Berlin
Europe/Bratislava
Europe/Brussels
Europe/Bucharest
Europe/Budapest
Europe/Busingen
Europe/Chisinau
Europe/Copenhagen
Europe/Dublin
Europe/Gibraltar
Europe/Guernsey
Europe/Helsinki
Europe/Isle_of_Man
Europe/Istanbul
Europe/Jersey
Europe/Kaliningrad
Europe/Kiev
Europe/Kirov
Europe/Kyiv
Europe/Lisbon
Europe/Ljubljana
Europe/London
Europe/Luxembourg
Europe/Madrid
Europe/Malta
Europe/Mariehamn
Europe/Minsk
Europe/Monaco
Europe/Moscow
Europe/Nicosia
Europe/Oslo
Europe/Paris
Europe/Podgorica
Europe/Prague
Europe/Riga
Europe/Rome
Europe/Samara
Europe/San_Marino
Europe/Sarajevo
Europe/Saratov
Europe/Simferopol
Europe/Skopje
Europe/Sofia
Europe/Stockholm
Europe/Tallinn
Europe/Tirane
Europe/Tiraspol
Europe/Ulyanovsk
Europe/Uzhgorod
Europe/Vaduz
Europe/Vatican
Europe/Vienna
Europe/Vilnius
Europe/Volgograd
Europe/Warsaw
Europe/Zagreb
Europe/Zaporozhye
Europe/Zurich
Factory
GB
GB-Eire
GMT
GMT+0
GMT-0
GMT0
Greenwich
HST
Hongkong
Iceland
Indian/Antananarivo
Indian/Chagos
Indian/Christmas
Indian/Cocos
Indian/Comoro
Indian/Kerguelen
Indian/Mahe
Indian/Maldives
Indian/Mauritius
Indian/Mayotte
Indian/Reunion
Iran
Israel
Jamaica
Japan
Kwajalein
Libya
MET
MST
MST7MDT
Mexico/BajaNorte
Mexico/BajaSur
Mexico/General
NZ
NZ-CHAT
Navajo
PRC
PST8PDT
Pacific/Apia
Pacific/Auckland
Pacific/Bougainville
Pacific/Chatham
Pacific/Chuuk
Pacific/Easter
Pacific/Efate
Pacific/Enderbury
Pacific/Fakaofo
Pacific/Fiji
Pacific/Funafuti
Pacific/Galapagos
Pacific/Gambier
Pacific/Guadalcanal
Pacific/Guam
Pacific/Honolulu
Pacific/Johnston
Pacific/Kanton
Pacific/Kiritimati
Pacific/Kosrae
Pacific/Kwajalein
Pacific/Majuro
Pacific/Marquesas
Pacific/Midway
Pacific/Nauru
Pacific/Niue
Pacific/Norfolk
Pacific/Noumea
Pacific/Pago_Pago
Pacific/Palau
Pacific/Pitcairn
Pacific/Pohnpei
Pacific/Ponape
Pacific/Port_Moresby
Pacific/Rarotonga
Pacific/Saipan
Pacific/Samoa
Pacific/Tahiti
Pacific/Tarawa
Pacific/Tongatapu
Pacific/Truk
Pacific/Wake
Pacific/Wallis
Pacific/Yap
Poland
Portugal
ROC
ROK
Singapore
SystemV/AST4
SystemV/AST4ADT
SystemV/CST6
SystemV/CST6CDT
SystemV/EST5
SystemV/EST5EDT
SystemV/HST10
SystemV/MST7
SystemV/MST7MDT
SystemV/PST8
SystemV/PST8PDT
SystemV/YST9
SystemV/YST9YDT
Turkey
UCT
US/Alaska
US/Aleutian
US/Arizona
US/Central
US/East-Indiana
US/Eastern
US/Hawaii
US/Indiana-Starke
US/Michigan
US/Mountain
US/Pacific
US/Samoa
UTC
Universal
W-SU
WET
Zulu
Devices used
2- Spine Devices
4- Leaf Devices
4- End Host
Devices used
2- Spine Devices
4- Leaf Devices
4- End Host
Devices used
2- Spine Devices
4- Leaf Devices
4- End Host
Inventory:
SSpines: 0
Spines: 2
Leafs: 4
Tors: 0
Connectivity:
SSpine: []
Spine:
- switchId: 1
switchName: "Spine-1"
ipAddress: "100.100.10.11"
ASN: 1001
Credentials:
user: "admin"
password: "admin"
mclag:
Links:
- link: "S1_Ethernet0 | L1_Ethernet48"
staticLink: true
properties:
- link: "S1_Ethernet4 | L2_Ethernet48"
staticLink: true
properties:
- link: "S1_Ethernet8 | L3_Ethernet48"
staticLink: true
properties:
- link: "S1_Ethernet12 | L4_Ethernet48"
staticLink: true
properties:
- switchId: 2
switchName: "Spine-2"
ipAddress: "100.100.10.12"
ASN: 1001
Credentials:
user: "admin"
password: "admin"
mclag:
Links:
- link: "S2_Ethernet0 | L1_Ethernet52"
staticLink: true
properties:
- link: "S2_Ethernet4 | L2_Ethernet52"
staticLink: true
properties:
- link: "S2_Ethernet8 | L3_Ethernet52"
staticLink: true
properties:
- link: "S2_Ethernet12 | L4_Ethernet52"
staticLink: true
properties:
Leaf:
- switchId: 1
switchName: "Leaf-1"
ipAddress: "100.100.10.13"
ASN: 1001
Credentials:
user: "admin"
password: "admin"
mclag:
Links:
- link: "L1_Ethernet48 | S1_Ethernet0"
staticLink: true
properties:
- link: "L1_Ethernet52 | S2_Ethernet0"
staticLink: true
properties:
- link: "L1_Ethernet0 | H1_Ethernet0"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 201
mc_po_group: 201
- switchId: 2
switchName: "Leaf-2"
ipAddress: "100.100.10.14"
ASN: 1001
Credentials:
user: "admin"
password: "admin"
mclag:
Links:
- link: "L2_Ethernet48 | S1_Ethernet4"
staticLink: true
properties:
- link: "L2_Ethernet52 | S2_Ethernet4"
staticLink: true
properties:
- link: "L2_Ethernet4 | H2_Ethernet1"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 202
mc_po_group: 202
- switchId: 3
switchName: "Leaf-3"
ipAddress: "100.100.10.15"
ASN: 1001
Credentials:
user: "admin"
password: "admin"
mclag:
Links:
- link: "L3_Ethernet48 | S1_Ethernet8"
staticLink: true
properties:
- link: "L3_Ethernet52 | S2_Ethernet8"
staticLink: true
properties:
- link: "L3_Ethernet0 | H3_Ethernet0"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 203
mc_po_group: 203
- switchId: 4
switchName: "Leaf-4"
ipAddress: "100.100.10.16"
ASN: 1001
Credentials:
user: "admin"
password: "admin"
mclag:
Links:
- link: "L4_Ethernet48 | S1_Ethernet12"
staticLink: true
properties:
- link: "L4_Ethernet52 | S2_Ethernet12"
staticLink: true
properties:
- link: "L4_Ethernet4 | H4_Ethernet1"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 204
mc_po_group: 204
Tor: []
BGP:
BGP_U: true
ND_RA: 30
PhysicalIfCfg:
FEC: "Off"
MTU: 9000
AdminStatus: "Up"
ASN:
SSpine: "10000-20000"
Spine: "21000-50000"
Leaf: "51000-60000"
Tor: "61000-70000"
IPv4Pool:
Loopback: "10.10.10.0/24"
LeafSpine: "40.0.0.0/24"
LeafTor: "39.0.0.0/24"
Host: "49.0.0.0/24"
IPv6Pool:
LeafSpine:
LeafTor:
Host:
NTP:
server: "100.100.10.10"
timezone: "Asia/Kolkata"
SYSLOG:
server: "100.100.10.10"
SNMP:
trapserver: "100.100.10.10"
Parameters:
vlan: "200-205"
vni: "20000-20005"
anycast_gateway: "100.10.0.0/23"
anycast_mac: "00:11:22:33:44:55"
hosts_per_vlan: 10
routing_symmetric: false
sag: trueInventory:
SSpines: 0
Spines: 2
Leafs: 4
Tors: 0
Connectivity:
SSpine: []
Spine:
- switchId: 1
switchName: "Spine-1"
ipAddress: "100.100.10.11"
ASN: 2001
Credentials:
user: "admin"
password: "admin"
mclag:
Links:
- link: "S1_Ethernet0 | L1_Ethernet48"
staticLink: true
properties:
- link: "S1_Ethernet4 | L2_Ethernet48"
staticLink: true
properties:
- link: "S1_Ethernet8 | L3_Ethernet48"
staticLink: true
properties:
- link: "S1_Ethernet12 | L4_Ethernet48"
staticLink: true
properties:
- switchId: 2
switchName: "Spine-2"
ipAddress: "100.100.10.12"
ASN: 2002
Credentials:
user: "admin"
password: "admin"
mclag:
Links:
- link: "S2_Ethernet0 | L1_Ethernet52"
staticLink: true
properties:
- link: "S2_Ethernet4 | L2_Ethernet52"
staticLink: true
properties:
- link: "S2_Ethernet8 | L3_Ethernet52"
staticLink: true
properties:
- link: "S2_Ethernet12 | L4_Ethernet52"
staticLink: true
properties:
Leaf:
- switchId: 1
switchName: "Leaf-1"
ipAddress: "100.100.10.13"
ASN: 1001
Credentials:
user: "admin"
password: "admin"
mclag:
Links:
- link: "L1_Ethernet48 | S1_Ethernet0"
staticLink: true
properties:
- link: "L1_Ethernet52 | S2_Ethernet0"
staticLink: true
properties:
- link: "L1_Ethernet0 | H1_Ethernet0"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 201
- switchId: 2
switchName: "Leaf-2"
ipAddress: "100.100.10.14"
ASN: 1002
Credentials:
user: "admin"
password: "admin"
mclag:
Links:
- link: "L2_Ethernet48 | S1_Ethernet4"
staticLink: true
properties:
- link: "L2_Ethernet52 | S2_Ethernet4"
staticLink: true
properties:
- link: "L2_Ethernet4 | H2_Ethernet1"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 202
- switchId: 3
switchName: "Leaf-3"
ipAddress: "100.100.10.15"
ASN: 1003
Credentials:
user: "admin"
password: "admin"
mclag:
Links:
- link: "L3_Ethernet48 | S1_Ethernet8"
staticLink: true
properties:
- link: "L3_Ethernet52 | S2_Ethernet8"
staticLink: true
properties:
- link: "L3_Ethernet0 | H3_Ethernet0"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 203
- switchId: 4
switchName: "Leaf-4"
ipAddress: "100.100.10.16"
ASN: 1004
Credentials:
user: "admin"
password: "admin"
mclag:
Links:
- link: "L4_Ethernet48 | S1_Ethernet12"
staticLink: true
properties:
- link: "L4_Ethernet52 | S2_Ethernet12"
staticLink: true
properties:
- link: "L4_Ethernet4 | H4_Ethernet1"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 204
Tor: []
BGP:
BGP_U: false
ND_RA: 30
PhysicalIfCfg:
FEC: "Off"
MTU: 9000
AdminStatus: "Up"
ASN:
SSpine: "10000-20000"
Spine: "21000-50000"
Leaf: "51000-60000"
Tor: "61000-70000"
IPv4Pool:
Loopback: "10.10.10.0/24"
LeafSpine: "49.0.0.0/24"
LeafTor: "40.0.0.0/24"
Host: "39.0.0.0/24"
IPv6Pool:
LeafSpine:
LeafTor:
Host:
NTP:
server: "100.100.10.10"
timezone: "Asia/Kolkata"
SYSLOG:
server: "100.100.10.10"
SNMP:
trapserver: "100.100.10.10"
Parameters:
vlan: "200-205"
vni: "20000-20005"
anycast_gateway: "106.10.0.0/23"
anycast_mac: "00:11:22:33:55:44"
hosts_per_vlan: 10
routing_symmetric: false
sag: False
Inventory:
SSpines: 0
Spines: 2
Leafs: 4
Tors: 0
Connectivity:
SSpine: []
Spine:
- switchId: 1
switchName: "Spine-1"
ipAddress: "100.100.10.11"
ASN: 2001
Credentials:
user: "admin"
password: "admin"
mclag:
Links:
- link: "S1_Ethernet0 | L1_Ethernet48"
staticLink: true
properties:
- link: "S1_Ethernet4 | L2_Ethernet48"
staticLink: true
properties:
- link: "S1_Ethernet8 | L3_Ethernet48"
staticLink: true
properties:
- link: "S1_Ethernet12 | L4_Ethernet48"
staticLink: true
properties:
- switchId: 2
switchName: "Spine-2"
ipAddress: "100.100.10.12"
ASN: 2002
Credentials:
user: "admin"
password: "admin"
mclag:
Links:
- link: "S2_Ethernet0 | L1_Ethernet52"
staticLink: true
properties:
- link: "S2_Ethernet4 | L2_Ethernet52"
staticLink: true
properties:
- link: "S2_Ethernet8 | L3_Ethernet52"
staticLink: true
properties:
- link: "S2_Ethernet12 | L4_Ethernet52"
staticLink: true
properties:
Leaf:
- switchId: 1
switchName: "Leaf-1"
ipAddress: "100.100.10.13"
ASN: 1001
Credentials:
user: "admin"
password: "admin"
mclag:
Links:
- link: "L1_Ethernet48 | S1_Ethernet0"
staticLink: true
properties:
- link: "L1_Ethernet52 | S2_Ethernet0"
staticLink: true
properties:
- link: "L1_Ethernet0 | H1_Ethernet0"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 201
- switchId: 2
switchName: "Leaf-2"
ipAddress: "100.100.10.14"
ASN: 1002
Credentials:
user: "admin"
password: "admin"
mclag:
Links:
- link: "L2_Ethernet48 | S1_Ethernet4"
staticLink: true
properties:
- link: "L2_Ethernet52 | S2_Ethernet4"
staticLink: true
properties:
- link: "L2_Ethernet4 | H2_Ethernet1"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 202
- switchId: 3
switchName: "Leaf-3"
ipAddress: "100.100.10.15"
ASN: 1003
Credentials:
user: "admin"
password: "admin"
mclag:
Links:
- link: "L3_Ethernet48 | S1_Ethernet8"
staticLink: true
properties:
- link: "L3_Ethernet52 | S2_Ethernet8"
staticLink: true
properties:
- link: "L3_Ethernet0 | H3_Ethernet0"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 203
- switchId: 4
switchName: "Leaf-4"
ipAddress: "100.100.10.16"
ASN: 1004
Credentials:
user: "admin"
password: "admin"
mclag:
Links:
- link: "L4_Ethernet48 | S1_Ethernet12"
staticLink: true
properties:
- link: "L4_Ethernet52 | S2_Ethernet12"
staticLink: true
properties:
- link: "L4_Ethernet4 | H4_Ethernet1"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 204
Tor: []
BGP:
BGP_U: true
ND_RA: 30
PhysicalIfCfg:
FEC: "Off"
MTU: 9000
AdminStatus: "Up"
ASN:
SSpine: "10000-20000"
Spine: "21000-50000"
Leaf: "51000-60000"
Tor: "61000-70000"
IPv4Pool:
Loopback: "10.10.10.0/24"
LeafSpine: "40.0.0.0/24"
LeafTor: "39.0.0.0/24"
Host: "49.0.0.0/24"
IPv6Pool:
LeafSpine:
LeafTor:
Host:
NTP:
server: "100.100.10.10"
timezone: "Asia/Kolkata"
SYSLOG:
server: "100.100.10.10"
SNMP:
trapserver: "100.100.10.10"
Parameters:
vlan: "200-205"
vni: "20000-20005"
anycast_gateway: "100.10.0.0/23"
anycast_mac: "00:11:22:33:44:55"
hosts_per_vlan: 10
routing_symmetric: false
sag: false
Inventory:
SSpines: 0
Spines: 2
Leafs: 4
Tors: 0
Connectivity:
SSpine: []
Spine:
- switchId: 1
switchName: "Spine-1"
ipAddress: "100.100.10.11"
ASN: 2001
Credentials:
user: "admin"
password: "admin"
mclag:
Links:
- link: "S1_Ethernet0 | L1_Ethernet48"
staticLink: true
properties:
- link: "S1_Ethernet4 | L2_Ethernet48"
staticLink: true
properties:
- link: "S1_Ethernet8 | L3_Ethernet48"
staticLink: true
properties:
- link: "S1_Ethernet12 | L4_Ethernet48"
staticLink: true
properties:
- switchId: 2
switchName: "Spine-2"
ipAddress: "100.100.10.12"
ASN: 2002
Credentials:
user: "admin"
password: "admin"
mclag:
Links:
- link: "S2_Ethernet0 | L1_Ethernet52"
staticLink: true
properties:
- link: "S2_Ethernet4 | L2_Ethernet52"
staticLink: true
properties:
- link: "S2_Ethernet8 | L3_Ethernet52"
staticLink: true
properties:
- link: "S2_Ethernet12 | L4_Ethernet52"
staticLink: true
properties:
Leaf:
- switchId: 1
switchName: "Leaf-1"
ipAddress: "100.100.10.13"
ASN: 1001
Credentials:
user: "admin"
password: "admin"
mclag:
Links:
- link: "L1_Ethernet48 | S1_Ethernet0"
staticLink: true
properties:
- link: "L1_Ethernet52 | S2_Ethernet0"
staticLink: true
properties:
- link: "L1_Ethernet0 | H1_Ethernet0"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 201
vrf: 1
- switchId: 2
switchName: "Leaf-2"
ipAddress: "100.100.10.14"
ASN: 1002
Credentials:
user: "admin"
password: "admin"
mclag:
Links:
- link: "L2_Ethernet48 | S1_Ethernet4"
staticLink: true
properties:
- link: "L2_Ethernet52 | S2_Ethernet4"
staticLink: true
properties:
- link: "L2_Ethernet4 | H2_Ethernet1"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 202
vrf: 2
- switchId: 3
switchName: "Leaf-3"
ipAddress: "100.100.10.15"
ASN: 1003
Credentials:
user: "admin"
password: "admin"
mclag:
Links:
- link: "L3_Ethernet48 | S1_Ethernet8"
staticLink: true
properties:
- link: "L3_Ethernet52 | S2_Ethernet8"
staticLink: true
properties:
- link: "L3_Ethernet0 | H3_Ethernet0"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 203
vrf: 1
- switchId: 4
switchName: "Leaf-4"
ipAddress: "100.100.10.16"
ASN: 1004
Credentials:
user: "admin"
password: "admin"
mclag:
Links:
- link: "L4_Ethernet48 | S1_Ethernet12"
staticLink: true
properties:
- link: "L4_Ethernet52 | S2_Ethernet12"
staticLink: true
properties:
- link: "L4_Ethernet4 | H4_Ethernet1"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 204
vrf: 2
Tor: []
BGP:
BGP_U: false
ND_RA: 30
PhysicalIfCfg:
FEC: "Off"
MTU: 9000
AdminStatus: "Up"
ASN:
SSpine: "10000-20000"
Spine: "21000-50000"
Leaf: "51000-60000"
Tor: "61000-70000"
IPv4Pool:
Loopback: "10.10.10.0/24"
LeafSpine: "40.0.0.0/24"
LeafTor: "39.0.0.0/24"
Host: "49.0.0.0/24"
IPv6Pool:
LeafSpine:
LeafTor:
Host:
NTP:
server: "100.100.10.10"
timezone: "Asia/Kolkata"
SYSLOG:
server: "100.100.10.10"
SNMP:
trapserver: "100.100.10.10"
Parameters:
vlan: "200-205"
vni: "20000-20005"
anycast_gateway: "100.10.0.0/23"
anycast_mac: "00:11:22:33:44:55"
hosts_per_vlan: 10
routing_symmetric: true
irb_vlan: "300-305"
irb_vni: "30000-30005"
sag: trueInventory:
SSpines: 0
Spines: 2
Leafs: 4
Tors: 0
Connectivity:
SSpine: []
Spine:
- switchId: 1
switchName: "Spine-1"
ipAddress: "100.100.10.11"
ASN: 1001
Credentials:
user: "admin"
password: "admin"
mclag:
Links:
- link: "S1_Ethernet0 | L1_Ethernet48"
staticLink: true
properties:
- link: "S1_Ethernet4 | L2_Ethernet48"
staticLink: true
properties:
- link: "S1_Ethernet8 | L3_Ethernet48"
staticLink: true
properties:
- link: "S1_Ethernet12 | L4_Ethernet48"
staticLink: true
properties:
- switchId: 2
switchName: "Spine-2"
ipAddress: "100.100.10.12"
ASN: 1001
Credentials:
user: "admin"
password: "admin"
mclag:
Links:
- link: "S2_Ethernet0 | L1_Ethernet52"
staticLink: true
properties:
- link: "S2_Ethernet4 | L2_Ethernet52"
staticLink: true
properties:
- link: "S2_Ethernet8 | L3_Ethernet52"
staticLink: true
properties:
- link: "S2_Ethernet12 | L4_Ethernet52"
staticLink: true
properties:
Leaf:
- switchId: 1
switchName: "Leaf-1"
ipAddress: "100.100.10.13"
ASN: 1001
Credentials:
user: "admin"
password: "admin"
mclag:
Links:
- link: "L1_Ethernet48 | S1_Ethernet0"
staticLink: true
properties:
- link: "L1_Ethernet52 | S2_Ethernet0"
staticLink: true
properties:
- link: "L1_Ethernet0 | H1_Ethernet0"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 901
- switchId: 2
switchName: "Leaf-2"
ipAddress: "100.100.10.14"
ASN: 1001
Credentials:
user: "admin"
password: "admin"
mclag:
Links:
- link: "L2_Ethernet48 | S1_Ethernet4"
staticLink: true
properties:
- link: "L2_Ethernet52 | S2_Ethernet4"
staticLink: true
properties:
- link: "L2_Ethernet4 | H2_Ethernet1"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 902
- switchId: 3
switchName: "Leaf-3"
ipAddress: "100.100.10.15"
ASN: 1001
Credentials:
user: "admin"
password: "admin"
mclag:
Links:
- link: "L3_Ethernet48 | S1_Ethernet8"
staticLink: true
properties:
- link: "L3_Ethernet52 | S2_Ethernet8"
staticLink: true
properties:
- link: "L3_Ethernet0 | H3_Ethernet0"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 903
- switchId: 4
switchName: "Leaf-4"
ipAddress: "100.100.10.16"
ASN: 1001
Credentials:
user: "admin"
password: "admin"
mclag:
Links:
- link: "L4_Ethernet48 | S1_Ethernet12"
staticLink: true
properties:
- link: "L4_Ethernet52 | S2_Ethernet12"
staticLink: true
properties:
- link: "L4_Ethernet4 | H4_Ethernet1"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 904
Tor: []
BGP:
BGP_U: true
ND_RA: 30
PhysicalIfCfg:
FEC: "Off"
MTU: 9000
AdminStatus: "Up"
ASN:
SSpine: "10000-20000"
Spine: "21000-50000"
Leaf: "51000-60000"
Tor: "61000-70000"
IPv4Pool:
Loopback: "10.10.10.0/24"
LeafSpine: "40.0.0.0/24"
LeafTor: "39.0.0.0/24"
Host: "49.0.0.0/24"
IPv6Pool:
LeafSpine:
LeafTor:
Host:
NTP:
server: "100.100.10.10"
timezone: "Asia/Kolkata"
SYSLOG:
server: "100.100.10.10"
SNMP:
trapserver: "100.100.10.10"
Parameters:
vlan: "900-905"
vni: "20000-20005"
anycast_gateway: "100.10.0.0/23"
anycast_mac: "00:11:22:33:44:55"
hosts_per_vlan: 10
routing_symmetric: false
sag: true
Inventory:
SSpines: 0
Spines: 2
Leafs: 4
Tors: 0
Connectivity:
SSpine: []
Spine:
- switchId: 1
switchName: "Spine-1"
ipAddress: "100.100.10.11"
ASN: 2001
Credentials:
user: "admin"
password: "admin"
mclag:
Links:
- link: "S1_Ethernet0 | L1_Ethernet48"
staticLink: true
properties:
- link: "S1_Ethernet4 | L2_Ethernet48"
staticLink: true
properties:
- link: "S1_Ethernet8 | L3_Ethernet48"
staticLink: true
properties:
- link: "S1_Ethernet12 | L4_Ethernet48"
staticLink: true
properties:
- switchId: 2
switchName: "Spine-2"
ipAddress: "100.100.10.12"
ASN: 2002
Credentials:
user: "admin"
password: "admin"
mclag:
Links:
- link: "S2_Ethernet0 | L1_Ethernet52"
staticLink: true
properties:
- link: "S2_Ethernet4 | L2_Ethernet52"
staticLink: true
properties:
- link: "S2_Ethernet8 | L3_Ethernet52"
staticLink: true
properties:
- link: "S2_Ethernet12 | L4_Ethernet52"
staticLink: true
properties:
Leaf:
- switchId: 1
switchName: "Leaf-1"
ipAddress: "100.100.10.13"
ASN: 1001
Credentials:
user: "admin"
password: "admin"
mclag:
Links:
- link: "L1_Ethernet48 | S1_Ethernet0"
staticLink: true
properties:
- link: "L1_Ethernet52 | S2_Ethernet0"
staticLink: true
properties:
- link: "L1_Ethernet0 | H1_Ethernet0"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 201
vrf: 1
- switchId: 2
switchName: "Leaf-2"
ipAddress: "100.100.10.14"
ASN: 1002
Credentials:
user: "admin"
password: "admin"
mclag:
Links:
- link: "L2_Ethernet48 | S1_Ethernet4"
staticLink: true
properties:
- link: "L2_Ethernet52 | S2_Ethernet4"
staticLink: true
properties:
- link: "L2_Ethernet4 | H2_Ethernet1"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 202
vrf: 2
- switchId: 3
switchName: "Leaf-3"
ipAddress: "100.100.10.15"
ASN: 1003
Credentials:
user: "admin"
password: "admin"
mclag:
Links:
- link: "L3_Ethernet48 | S1_Ethernet8"
staticLink: true
properties:
- link: "L3_Ethernet52 | S2_Ethernet8"
staticLink: true
properties:
- link: "L3_Ethernet0 | H3_Ethernet0"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 203
vrf: 1
- switchId: 4
switchName: "Leaf-4"
ipAddress: "100.100.10.16"
ASN: 1004
Credentials:
user: "admin"
password: "admin"
mclag:
Links:
- link: "L4_Ethernet48 | S1_Ethernet12"
staticLink: true
properties:
- link: "L4_Ethernet52 | S2_Ethernet12"
staticLink: true
properties:
- link: "L4_Ethernet4 | H4_Ethernet1"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 204
vrf: 2
Tor: []
BGP:
BGP_U: false
ND_RA: 30
PhysicalIfCfg:
FEC: "Off"
MTU: 9000
AdminStatus: "Up"
ASN:
SSpine: "10000-20000"
Spine: "21000-50000"
Leaf: "51000-60000"
Tor: "61000-70000"
IPv4Pool:
Loopback: "10.10.10.0/24"
LeafSpine: "40.0.0.0/24"
LeafTor: "39.0.0.0/24"
Host: "49.0.0.0/24"
IPv6Pool:
LeafSpine:
LeafTor:
Host:
NTP:
server: "100.100.10.10"
timezone: "Asia/Kolkata"
SYSLOG:
server: "100.100.10.10"
SNMP:
trapserver: "100.100.10.10"
Parameters:
vlan: "200-205"
vni: "20000-20005"
anycast_gateway: "100.10.0.0/23"
anycast_mac: "00:11:22:33:44:55"
hosts_per_vlan: 10
routing_symmetric: true
irb_vlan: "300-305"
irb_vni: "30000-30005"
sag: False
Inventory:
SSpines: 0
Spines: 2
Leafs: 4
Tors: 0
Connectivity:
SSpine: []
Spine:
- switchId: 1
switchName: "Spine-1"
ipAddress: "100.100.10.11"
ASN: 2001
Credentials:
user: "admin"
password: "admin"
mclag:
Links:
- link: "S1_Ethernet0 | L1_Ethernet48"
staticLink: true
properties:
- link: "S1_Ethernet4 | L2_Ethernet48"
staticLink: true
properties:
- link: "S1_Ethernet8 | L3_Ethernet48"
staticLink: true
properties:
- link: "S1_Ethernet12 | L4_Ethernet48"
staticLink: true
properties:
- switchId: 2
switchName: "Spine-2"
ipAddress: "100.100.10.12"
ASN: 2001
Credentials:
user: "admin"
password: "admin"
mclag:
Links:
- link: "S2_Ethernet0 | L1_Ethernet52"
staticLink: true
properties:
- link: "S2_Ethernet4 | L2_Ethernet52"
staticLink: true
properties:
- link: "S2_Ethernet8 | L3_Ethernet52"
staticLink: true
properties:
- link: "S2_Ethernet12 | L4_Ethernet52"
staticLink: true
properties:
Leaf:
- switchId: 1
switchName: "Leaf-1"
ipAddress: "100.100.10.13"
ASN: 2001
Credentials:
user: "admin"
password: "admin"
mclag:
enabled: true
peer: "L2"
keepalive_vlan: 10
Links:
- link: "L1_Ethernet48 | S1_Ethernet0"
staticLink: true
properties:
- link: "L1_Ethernet52 | S2_Ethernet0"
staticLink: true
properties:
- link: "L1_Ethernet56 | L2_Ethernet56"
staticLink: true
properties:
mode: "MC-LAG"
- link: "L1_Ethernet0 | H1_Ethernet0"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 201
mc_po_group: 201
- link: "L1_Ethernet4 | H2_Ethernet0"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 202
mc_po_group: 202
- switchId: 2
switchName: "Leaf-2"
ipAddress: "100.100.10.14"
ASN: 2001
Credentials:
user: "admin"
password: "admin"
mclag:
enabled: true
peer: "L1"
keepalive_vlan: 10
Links:
- link: "L2_Ethernet48 | S1_Ethernet4"
staticLink: true
properties:
- link: "L2_Ethernet52 | S2_Ethernet4"
staticLink: true
properties:
- link: "L2_Ethernet56 | L1_Ethernet56"
staticLink: true
properties:
mode: "MC-LAG"
- link: "L2_Ethernet0 | H1_Ethernet1"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 201
mc_po_group: 201
- link: "L2_Ethernet4 | H2_Ethernet1"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 202
mc_po_group: 202
- switchId: 3
switchName: "Leaf-3"
ipAddress: "100.100.10.15"
ASN: 2001
Credentials:
user: "admin"
password: "admin"
mclag:
enabled: true
peer: "L4"
keepalive_vlan: 10
Links:
- link: "L3_Ethernet48 | S1_Ethernet8"
staticLink: true
properties:
- link: "L3_Ethernet52 | S2_Ethernet8"
staticLink: true
properties:
- link: "L3_Ethernet56 | L4_Ethernet56"
staticLink: true
properties:
mode: "MC-LAG"
- link: "L3_Ethernet0 | H3_Ethernet0"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 203
mc_po_group: 203
- link: "L3_Ethernet4 | H4_Ethernet0"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 204
mc_po_group: 204
- switchId: 4
switchName: "Leaf-4"
ipAddress: "100.100.10.16"
ASN: 2001
Credentials:
user: "admin"
password: "admin"
mclag:
enabled: true
peer: "L3"
keepalive_vlan: 10
Links:
- link: "L4_Ethernet48 | S1_Ethernet12"
staticLink: true
properties:
- link: "L4_Ethernet52 | S2_Ethernet12"
staticLink: true
properties:
- link: "L4_Ethernet56 | L3_Ethernet56"
staticLink: true
properties:
mode: "MC-LAG"
- link: "L4_Ethernet0 | H3_Ethernet1"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 203
mc_po_group: 203
- link: "L4_Ethernet4 | H4_Ethernet1"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 204
mc_po_group: 204
Tor: []
BGP:
BGP_U: false
ND_RA: 30
PhysicalIfCfg:
FEC: "Off"
MTU: 9000
AdminStatus: "Up"
ASN:
SSpine: "10000-20000"
Spine: "21000-50000"
Leaf: "51000-60000"
Tor: "61000-70000"
IPv4Pool:
Loopback: "10.10.10.0/24"
LeafSpine:
LeafTor:
Host:
IPv6Pool:
LeafSpine: 1000::0/64
LeafTor: 2000::0/64
Host:
NTP:
server: "100.100.10.10"
timezone: "Asia/Kolkata"
SYSLOG:
server: "100.100.10.10"
SNMP:
trapserver: "100.100.10.10"
Parameters:
vlan: "200-205"
vni: "20000-20005"
anycast_gateway: "4000::0/64"
anycast_mac: "00:11:22:33:44:55"
hosts_per_vlan: 10
routing_symmetric: false
sag: trueInventory:
SSpines: 0
Spines: 2
Leafs: 4
Tors: 0
Connectivity:
SSpine: []
Spine:
- switchId: 1
switchName: "Spine-1"
ipAddress: "100.100.10.11"
ASN: 2001
Credentials:
user: "admin"
password: "admin"
mclag:
Links:
- link: "S1_Ethernet0 | L1_Ethernet48"
staticLink: true
properties:
- link: "S1_Ethernet4 | L2_Ethernet48"
staticLink: true
properties:
- link: "S1_Ethernet8 | L3_Ethernet48"
staticLink: true
properties:
- link: "S1_Ethernet12 | L4_Ethernet48"
staticLink: true
properties:
- switchId: 2
switchName: "Spine-2"
ipAddress: "100.100.10.12"
ASN: 2001
Credentials:
user: "admin"
password: "admin"
mclag:
Links:
- link: "S2_Ethernet0 | L1_Ethernet52"
staticLink: true
properties:
- link: "S2_Ethernet4 | L2_Ethernet52"
staticLink: true
properties:
- link: "S2_Ethernet8 | L3_Ethernet52"
staticLink: true
properties:
- link: "S2_Ethernet12 | L4_Ethernet52"
staticLink: true
properties:
Leaf:
- switchId: 1
switchName: "Leaf-1"
ipAddress: "100.100.10.13"
ASN: 2001
Credentials:
user: "admin"
password: "admin"
mclag:
enabled: true
peer: "L2"
keepalive_vlan: 10
isoverl3: false
Links:
- link: "L1_Ethernet48 | S1_Ethernet0"
staticLink: true
properties:
- link: "L1_Ethernet52 | S2_Ethernet0"
staticLink: true
properties:
- link: "L1_Ethernet64 | L2_Ethernet64"
staticLink: true
properties:
mode: "MC-LAG-BGP"
- link: "L1_Ethernet56 | L2_Ethernet56"
staticLink: true
properties:
mode: "MC-LAG-BGP"
- link: "L1_Ethernet0 | H1_Ethernet0"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 201
mc_po_group: 201
- link: "L1_Ethernet4 | H2_Ethernet0"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 202
mc_po_group: 202
- switchId: 2
switchName: "Leaf-2"
ipAddress: "100.100.10.14"
ASN: 2001
Credentials:
user: "admin"
password: "admin"
mclag:
enabled: true
peer: "L1"
keepalive_vlan: 10
isoverl3: false
Links:
- link: "L2_Ethernet48 | S1_Ethernet4"
staticLink: true
properties:
- link: "L2_Ethernet52 | S2_Ethernet4"
staticLink: true
properties:
- link: "L2_Ethernet56 | L1_Ethernet56"
staticLink: true
properties:
mode: "MC-LAG-BGP"
- link: "L2_Ethernet64 | L1_Ethernet64"
staticLink: true
properties:
mode: "MC-LAG-BGP"
- link: "L2_Ethernet0 | H1_Ethernet1"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 201
mc_po_group: 201
- link: "L2_Ethernet4 | H2_Ethernet1"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 202
mc_po_group: 202
- switchId: 3
switchName: "Leaf-3"
ipAddress: "100.100.10.15"
ASN: 2001
Credentials:
user: "admin"
password: "admin"
mclag:
enabled: true
peer: "L4"
keepalive_vlan: 10
isoverl3: false
Links:
- link: "L3_Ethernet48 | S1_Ethernet8"
staticLink: true
properties:
- link: "L3_Ethernet52 | S2_Ethernet8"
staticLink: true
properties:
- link: "L3_Ethernet56 | L4_Ethernet56"
staticLink: true
properties:
mode: "MC-LAG-BGP"
- link: "L3_Ethernet60 | L4_Ethernet60"
staticLink: true
properties:
mode: "MC-LAG-BGP"
- link: "L3_Ethernet0 | H3_Ethernet0"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 203
mc_po_group: 203
- link: "L3_Ethernet4 | H4_Ethernet0"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 204
mc_po_group: 204
- switchId: 4
switchName: "Leaf-4"
ipAddress: "100.100.10.16"
ASN: 2001
Credentials:
user: "admin"
password: "admin"
mclag:
enabled: true
peer: "L3"
keepalive_vlan: 10
isoverl3: false
Links:
- link: "L4_Ethernet48 | S1_Ethernet12"
staticLink: true
properties:
- link: "L4_Ethernet52 | S2_Ethernet12"
staticLink: true
properties:
- link: "L4_Ethernet56 | L3_Ethernet56"
staticLink: true
properties:
mode: "MC-LAG-BGP"
- link: "L4_Ethernet60 | L3_Ethernet60"
staticLink: true
properties:
mode: "MC-LAG-BGP"
- link: "L4_Ethernet0 | H3_Ethernet1"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 203
mc_po_group: 203
- link: "L4_Ethernet4 | H4_Ethernet1"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 204
mc_po_group: 204
Tor: []
BGP:
BGP_U: false
ND_RA: 30
PhysicalIfCfg:
FEC: "Off"
MTU: 9000
AdminStatus: "Up"
ASN:
SSpine: "10000-20000"
Spine: "21000-50000"
Leaf: "51000-60000"
Tor: "61000-70000"
IPv4Pool:
Loopback: "10.10.10.0/24"
LeafSpine: "40.0.0.0/24"
LeafTor: "39.0.0.0/24"
Host: "49.0.0.0/24"
IPv6Pool:
LeafSpine:
LeafTor:
Host:
NTP:
server: "100.100.10.10"
timezone: "Asia/Kolkata"
SYSLOG:
server: "100.100.10.10"
SNMP:
trapserver: "100.100.10.10"
Parameters:
vlan: "200-205"
vni: "20000-20005"
anycast_gateway: "100.10.0.0/23"
anycast_mac: "00:11:22:33:44:55"
hosts_per_vlan: 10
routing_symmetric: false
sag: true Inventory:
SSpines: 0
Spines: 2
Leafs: 4
Tors: 0
Connectivity:
SSpine: []
Spine:
- switchId: 1
switchName: "Spine-1"
ipAddress: "100.100.10.11"
ASN: 2001
Credentials:
user: "admin"
password: "admin"
mclag:
Links:
- link: "S1_Ethernet0 | L1_Ethernet48"
staticLink: true
properties:
- link: "S1_Ethernet4 | L2_Ethernet48"
staticLink: true
properties:
- link: "S1_Ethernet8 | L3_Ethernet48"
staticLink: true
properties:
- link: "S1_Ethernet12 | L4_Ethernet48"
staticLink: true
properties:
- switchId: 2
switchName: "Spine-2"
ipAddress: "100.100.10.12"
ASN: 2002
Credentials:
user: "admin"
password: "admin"
mclag:
Links:
- link: "S2_Ethernet0 | L1_Ethernet52"
staticLink: true
properties:
- link: "S2_Ethernet4 | L2_Ethernet52"
staticLink: true
properties:
- link: "S2_Ethernet8 | L3_Ethernet52"
staticLink: true
properties:
- link: "S2_Ethernet12 | L4_Ethernet52"
staticLink: true
properties:
Leaf:
- switchId: 1
switchName: "Leaf-1"
ipAddress: "100.100.10.13"
ASN: 1001
Credentials:
user: "admin"
password: "admin"
mclag:
enabled: true
peer: "L2"
keepalive_vlan: 10
Links:
- link: "L1_Ethernet48 | S1_Ethernet0"
staticLink: true
properties:
- link: "L1_Ethernet52 | S2_Ethernet0"
staticLink: true
properties:
- link: "L1_Ethernet56 | L2_Ethernet56"
staticLink: true
properties:
mode: "MC-LAG"
- link: "L1_Ethernet0 | H1_Ethernet0"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 201
mc_po_group: 201
- link: "L1_Ethernet4 | H2_Ethernet0"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 202
mc_po_group: 202
- switchId: 2
switchName: "Leaf-2"
ipAddress: "100.100.10.14"
ASN: 1002
Credentials:
user: "admin"
password: "admin"
mclag:
enabled: true
peer: "L1"
keepalive_vlan: 10
Links:
- link: "L2_Ethernet48 | S1_Ethernet4"
staticLink: true
properties:
- link: "L2_Ethernet52 | S2_Ethernet4"
staticLink: true
properties:
- link: "L2_Ethernet56 | L1_Ethernet56"
staticLink: true
properties:
mode: "MC-LAG"
- link: "L2_Ethernet0 | H1_Ethernet1"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 201
mc_po_group: 201
- link: "L2_Ethernet4 | H2_Ethernet1"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 202
mc_po_group: 202
- switchId: 3
switchName: "Leaf-3"
ipAddress: "100.100.10.15"
ASN: 1003
Credentials:
user: "admin"
password: "admin"
mclag:
enabled: true
peer: "L4"
keepalive_vlan: 10
Links:
- link: "L3_Ethernet48 | S1_Ethernet8"
staticLink: true
properties:
- link: "L3_Ethernet52 | S2_Ethernet8"
staticLink: true
properties:
- link: "L3_Ethernet56 | L4_Ethernet56"
staticLink: true
properties:
mode: "MC-LAG"
- link: "L3_Ethernet0 | H3_Ethernet0"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 203
mc_po_group: 203
- link: "L3_Ethernet4 | H4_Ethernet0"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 204
mc_po_group: 204
- switchId: 4
switchName: "Leaf-4"
ipAddress: "100.100.10.16"
ASN: 1004
Credentials:
user: "admin"
password: "admin"
mclag:
enabled: true
peer: "L3"
keepalive_vlan: 10
Links:
- link: "L4_Ethernet48 | S1_Ethernet12"
staticLink: true
properties:
- link: "L4_Ethernet52 | S2_Ethernet12"
staticLink: true
properties:
- link: "L4_Ethernet56 | L3_Ethernet56"
staticLink: true
properties:
mode: "MC-LAG"
- link: "L4_Ethernet0 | H3_Ethernet1"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 203
mc_po_group: 203
- link: "L4_Ethernet4 | H4_Ethernet1"
staticLink: true
properties:
mode: "L2-Trunk"
vlan: 204
mc_po_group: 204
Tor: []
BGP:
BGP_U: true
ND_RA: 30
PhysicalIfCfg:
FEC: "Off"
MTU: 9000
AdminStatus: "Up"
ASN:
SSpine: "10000-20000"
Spine: "21000-50000"
Leaf: "51000-60000"
Tor: "61000-70000"
IPv4Pool:
Loopback: "10.10.10.0/24"
LeafSpine:
LeafTor:
Host:
IPv6Pool:
LeafSpine: 1000::0/64
LeafTor: 2000::0/64
Host:
NTP:
server: "100.100.10.10"
timezone: "Asia/Kolkata"
SYSLOG:
server: "100.100.10.10"
SNMP:
trapserver: "100.100.10.10"
Parameters:
vlan: "200-205"
vni: "20000-20005"
anycast_gateway: "4000::0/64"
anycast_mac: "00:11:22:33:44:55"
hosts_per_vlan: 10
routing_symmetric: false
sag: tru4
