VXLAN EVPN Asymmetric IRB

Template Details: VXLAN EVPN Asymmetric IRB Config with given topology

Device used
- 2- Spine Devices
- 3- Leaf Devices
- 3- End Host

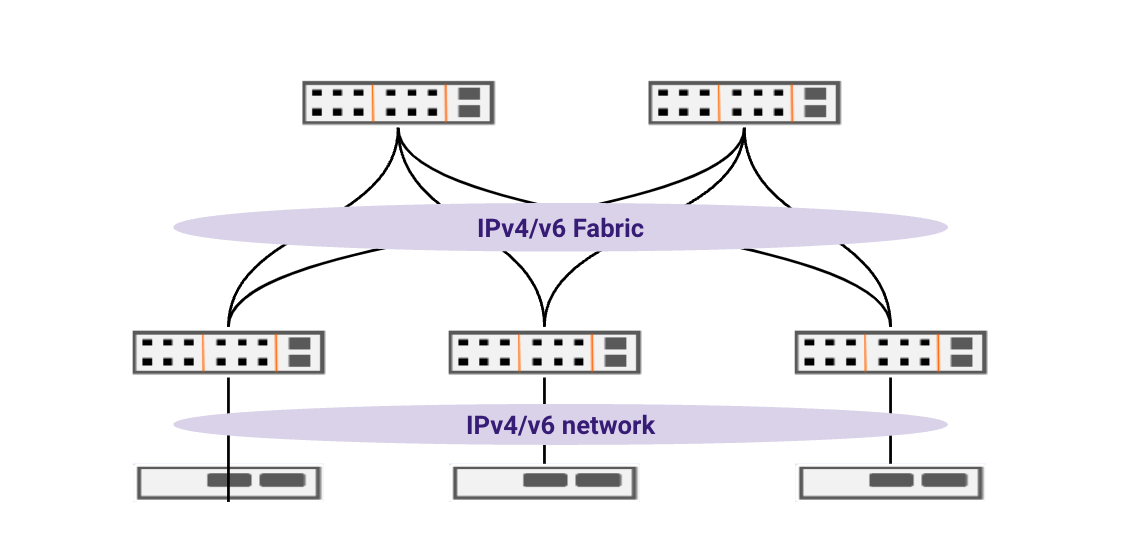

Topology

BGP-IP-CLOS VXLAN EVPN Asymmetric IRB Standard Template

Supported Time Zone

Africa/Abidjan

Africa/Accra

Africa/Addis_Ababa

Africa/Algiers

Africa/Asmara

ONES Orchestration

This section explains how large data centers can be designed seamlessly using ONES.

Configuring Devices

Most fabric orchestration solutions available today are complex and often difficult to understand. ONES provides simple and effective tools, such as predefined templates (YAML file), to configure data centers at scale. ONES allows a customized way of configuring devices that includes enhancements to the standard configuration.

Configuration Commands:

Save Config:
Copy to File:
Restore Config: //If needed only

Speed config for the Host Facing port should be updated before Orchestration if there is any change in the default speed config.

Ex: Interface speed is 25G, but you can use it with 10G Transceiver. In such cases, user needs to update speed.

Configuration Commands:

Save Config:
Copy to File:
Restore Config: //If needed only

You need to provide the following inputs to configure the devices:

Device Details

Username - Device User-Name

Management IP - Device IP for management

Device Credentials - Login admin user-name & password with write permission

BGP ASN (Autonomous System Number)

Local AS number - Local BGP AS number a user wants to use

Subnet Details

IPv4 Subnet - IPv4 address range a user wants to use in the domain

IPv4 Loopback - IPv4 address range to use on the devices only for the loopback address

IPv6 Subnet - IPv6 address range a user wants to use in the domain

Connectivity

Link connectivity between (SuperSpine, Spine, Leaf & TOR)

Link Type (Access Trunk)

Layer-2 / Layer3 - interface type

MCLAG Details

VLAN - VLAN to b used for interfaces

PO Group - PortChannel number to be used to bundle the interface

Keepalive VLAN - VLAN a user wants to use to send keepalive messages

VRF number - VRF number to be used for MC-LAG

Host Interface

L2 Access & VLAN - Host facing interface with Access port & VLAN allocation

L2 Trunk & VLAN - Host facing interface with trunk port & VLAN allocation

L3 - Host facing interface with Layer 3 properties

Network Service Address

NTP server - NTP server a user wants to add

Syslog - Syslog server IP address

SNMP - SNMP Server address a user wants to add

VXLAN

VLAN Range - VLAN range a user wants to use for VXLAN Ex. 200-205

VNI Range - VNI range a user wants to use for VXLAN Ex.20000-20005

Any-Cast Gateway - Any-cast Gateway Subnet

Host Per Vlan - Allocation of Host per VLAN

IRB VLAN Range - IRB VLAN is a separate input and should not overlap with VXLAN VNI

ONES requires a minimal set of information from the users to configure the devices. The tool is simple to use and allows to configure a large number of devices simultaneously.

Configuration Overview

This section explains the device configuration procedures, that gets applied seamlessly across the entire fabric

Navigate to Configurations >> Devices

Click on the Configure Devices button in the top right corner. This opens a new screen with a sample device configuration. You can edit the configurations directly in the UI to make the desired changes. You can also download the sample YAML file by clicking on Download YAML button, provided at the bottom of the above screen, make new changes and upload the YAML file using Upload YAML button.

A detailed explanation of all the intend fields

Inventory: Specify how many devices you want to add in any particular role - Super Spine, Spine, Leaf, and ToR.

Connectivity: Specify the parameters required to establish link connectivity such as:

Device switch ID: unique ID for every device, required to correctly render the topology
Switch name: hostname of the device
IP address: management address of the device

BGP: Specify if you want to enable regular BGP peering or BGP unnumbered peering.

PhysicalIfCfg: Enable or disable FEC and change the MTU settings on all the links being configured.

ASN: Assign a BGP ASN (Autonomous System Number) from the specified pool. Dynamic assigning ASN will be implemented in ONES release 2.0. For release 1.0, you need to specify the ASN under the device configuration, as shown in the sample YAML file.

IPv4Pool: Assign IP pools to different subnets. ONES automatically divides the subnets according to the number of available links.

ONES application uses IPv4 subnets for:

Interfaces
Loopbacks
Host interfaces

IPv6Pool: Assign IPv6 subnet.

ONES application uses:

IPv6 subnet for interfaces
Subnets to configure BGP neighborship
Automatically advertise these subnets in BGP

Note* IPv6 loopback is not supported

NTP: Provide the NTP server address, to enable NTP. You can choose your desired timezone.

Supported Time Zone

Africa/Abidjan

Africa/Accra

Africa/Addis_Ababa

Africa/Algiers

Africa/Asmara

SYSLOG: Provide the SYSLOG server address, to enable SYSLOG.

SNMP: Provide the SNMP server address, to enable SNMP.

VXLAN: this eables the feature of VXLAN

Creating Configuration

Navigate to Configurations >> Devices >> Configure Devices

Applying Configuration

Click on Apply Configs button in the bottom right corner of the above screen, to push the configs across the entire fabric.

ONES provides real-time updates when the devices are being configured and validates the configurations automatically to ensure the network is ready to use.

You will see the below screen, after the configurations are successfully verified:

Various fields shown in the top right corner of the above slide are explained below:

Compare Configuration

This section describes the compare configuration feature of ONES using which you can compare the applied and running configurations.

Navigate >> Configurations >> Devices >> Compare Configs

Compare Config

This page allows the user to compare applied configurations to the running configuration of a selected device.

The user should select only one device from the list and perform 'Compare Config' on this page, it may take several minutes to fetch the running configuration from the device

YAML Editor will appear with two windows comparing applied and running configurations as depicted in the below picture

The difference in configuration is highlighted with color coding in the respective window of the configuration

The merge feature/version control is in our roadmap, as of now the user needs to manually update the changes as per the diff in the compare config.

Inventory:
 SSpines: 0
 Spines: 2
 Leafs: 3
 Tors: 0
Connectivity:
 SSpine: []
 Spine:
   - switchId: 1
     switchName: Spine-1
     ipAddress: 190.10.10.11
     ASN: 2001
     Credentials:
      user: admin
      password: YourPaSsWoRd
     mclag:
     Links:
       - link: S1_Ethernet0 | L1_Ethernet48
         staticLink: True
         properties:
       - link: S1_Ethernet4 | L2_Ethernet48
         staticLink: True
         properties:
       - link: S1_Ethernet8 | L3_Ethernet48
         staticLink: True
         properties:
   - switchId: 2
     switchName: Spine-2
     ipAddress: 190.10.10.12
     ASN: 2002
     Credentials:
      user: admin
      password: YourPaSsWoRd
     mclag:
     Links:
       - link: S2_Ethernet0 | L1_Ethernet52
         staticLink: True
         properties:
       - link: S2_Ethernet4 | L2_Ethernet52
         staticLink: True
         properties:
       - link: S2_Ethernet8 | L3_Ethernet52
         staticLink: True
         properties:
 Leaf:
   - switchId: 1
     switchName: Leaf1
     ipAddress: 190.10.10.13
     ASN: 1001
     Credentials:
      user: admin
      password: YourPaSsWoRd
     mclag:
     Links:
       - link: L1_Ethernet48 | S1_Ethernet0
         staticLink: True
         properties:
       - link: L1_Ethernet52 | S2_Ethernet0
         staticLink: True
         properties:
       - link: L1_Ethernet0 |  H1_Ethernet0
         staticLink: True
         properties:
          mode: L2-Trunk
          vlan: 200
   - switchId: 2
     switchName: Leaf-2
     ipAddress: 190.10.10.14
     ASN: 1002
     Credentials:
      user: admin
      password: YourPaSsWoRd
     mclag:
     Links:
       - link: L2_Ethernet48 | S1_Ethernet4
         staticLink: True
         properties:
       - link: L2_Ethernet52 | S2_Ethernet4
         staticLink: True
         properties:
       - link: L2_Ethernet0 |  H2_Ethernet0
         staticLink: True
         properties:
          mode: L2-Trunk
          vlan: 201
   - switchId: 3
     switchName: Leaf-3
     ipAddress: 190.10.10.15
     ASN: 1003
     Credentials:
      user: admin
      password: YourPaSsWoRd
     mclag:
     Links:
       - link: L3_Ethernet48 | S1_Ethernet8
         staticLink: True
         properties:
       - link: L3_Ethernet52 | S2_Ethernet8
         staticLink: True
         properties:
       - link: L3_Ethernet0 |  H3_Ethernet0
         staticLink: True
         properties:
          mode: L2-Trunk
          vlan: 202
 Tor: []
BGP:
 BGP_U: False
 ND_RA: 30
PhysicalIfCfg:
 FEC: Off
 MTU: 9000
 AdminStatus: Up
ASN:
 SSpine: 10000-20000
 Spine: 21000-50000
 Leaf: 51000-60000
 Tor: 61000-70000
IPv4Pool:
 Loopback: 10.10.10.0/24
 LeafSpine: 40.0.0.0/24
 LeafTor: 39.0.0.0/24
 Host: 49.0.0.0/24
IPv6Pool:
 LeafSpine:
 LeafTor:
 Host:
NTP:
 server: 128.138.141.172
 timezone: Asia/Kolkata
SYSLOG:
 server: 128.138.141.172
SNMP:
 trapserver: 128.138.141.172
VXLAN:
  vlan: 200-205
  vni: 20000-20005
  anycast_gateway: 100.10.0.0/23
  anycast_mac: 00:11:22:33:44:55
  hosts_per_vlan: 10
  routing_symmetric: False

The device should not have any IP, VLAN, Portchannel, BGP, SAG, or MCLAG config on any of the Interfaces to avoid overlapping during the orchestration and run into cleanup issues.
Post that, the user needs to save the config to a file, in case of any orchestration failure, or misconfiguration user can rollback to the saved config.
