# Management

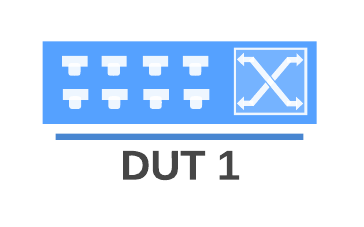

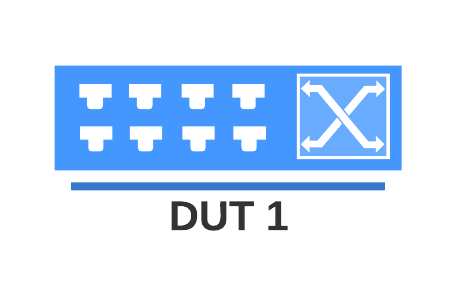

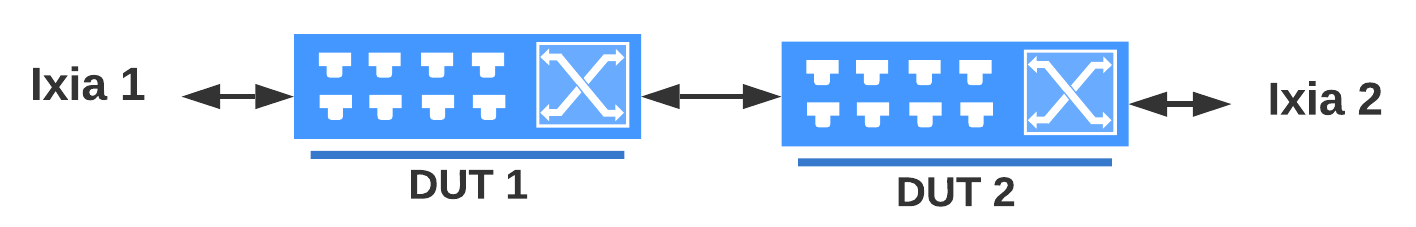

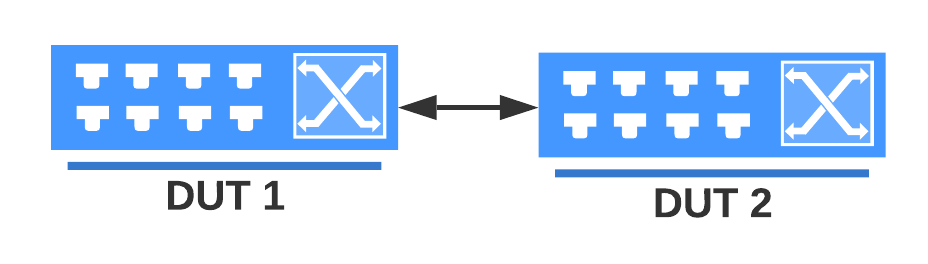

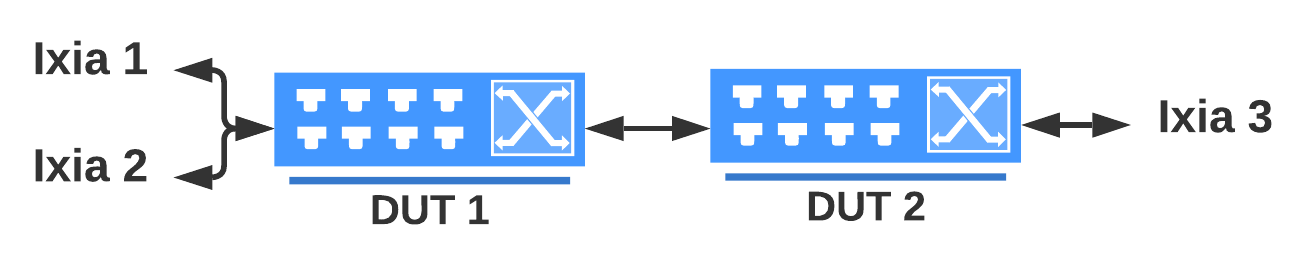

<table><thead><tr><th width="231">Description</th><th width="183">Test Case ID</th><th width="62.02734375">PD</th><th width="332">Topology</th></tr></thead><tbody><tr><td>Verify SPAN with source ports (and LAG) to the destination port in ingress/egress/both directions.</td><td>test_port_span_001</td><td>Yes</td><td><img src="https://content.gitbook.com/content/j0peobkAwfFGbMvp1ZWo/blobs/GOV7V74aId5J8znrK46H/2%20DUT%202+1.png" alt=""></td></tr><tr><td>Verify ERSPAN by configuring a mirror with the list of source ports/LAG to destination IP in ingress/egress/both directions</td><td>test_port_span_002</td><td>Yes</td><td><img src="https://content.gitbook.com/content/j0peobkAwfFGbMvp1ZWo/blobs/eGIIKx2eXJlobI7Gmq8V/2%20DUT%202+1.png" alt=""></td></tr><tr><td>Verify ERSPAN by configuring a mirror from ACL match to destination IP in ingress directions</td><td>test_port_span_003</td><td>Yes</td><td><img src="https://content.gitbook.com/content/j0peobkAwfFGbMvp1ZWo/blobs/vYIw6fRIUVZDwwr66GeD/2%20DUT%201+1.png" alt=""></td></tr><tr><td>Verify whether SNMP configurations</td><td>test_snmp_config</td><td>No</td><td><img src="https://content.gitbook.com/content/j0peobkAwfFGbMvp1ZWo/blobs/sTSGLGYiB3mn8GCQl9Uw/1%20DUT%200.png" alt=""></td></tr><tr><td>Verify SNMP Get/GetNext/Walk requests MIBS: ENTITY, IF-MIB, IP-MIB,</td><td>test_snmp_commands</td><td>No</td><td><img src="https://content.gitbook.com/content/j0peobkAwfFGbMvp1ZWo/blobs/sTSGLGYiB3mn8GCQl9Uw/1%20DUT%200.png" alt=""></td></tr><tr><td>Verify Config load for incremental configuration</td><td>test_config_load</td><td>No</td><td><img src="https://content.gitbook.com/content/j0peobkAwfFGbMvp1ZWo/blobs/sTSGLGYiB3mn8GCQl9Uw/1%20DUT%200.png" alt=""></td></tr><tr><td>Verify IPv6 address configuration on Front Panel (Data) ports</td><td>test_front_panel_ports_ipv6</td><td>No</td><td><img src="https://content.gitbook.com/content/j0peobkAwfFGbMvp1ZWo/blobs/vVJbMBHNEpVJvT7L0CSv/2%20DUT%200.png" alt=""></td></tr><tr><td>Verify config reload to restore configuration</td><td>test_cfg_backup_restore</td><td>No</td><td><img src="https://content.gitbook.com/content/j0peobkAwfFGbMvp1ZWo/blobs/OVtiCPzN4kvZbTFtcjc7/1%20DUT.png" alt=""></td></tr><tr><td>Verify syslogs are generated properly on link down/up</td><td>test_syslog_002</td><td>No</td><td><img src="https://content.gitbook.com/content/j0peobkAwfFGbMvp1ZWo/blobs/vVJbMBHNEpVJvT7L0CSv/2%20DUT%200.png" alt=""></td></tr><tr><td>Verify syslogs are generated properly on LACP UP/Down</td><td>test_syslog_004</td><td>No</td><td><img src="https://content.gitbook.com/content/j0peobkAwfFGbMvp1ZWo/blobs/vVJbMBHNEpVJvT7L0CSv/2%20DUT%200.png" alt=""></td></tr><tr><td>Verify SSH from host to SONIC on management interface</td><td>test_ssh_001</td><td>No</td><td><img src="https://content.gitbook.com/content/j0peobkAwfFGbMvp1ZWo/blobs/vVJbMBHNEpVJvT7L0CSv/2%20DUT%200.png" alt=""></td></tr><tr><td>Verify SSH from host to SVI interface and routed port</td><td>test_ssh_002</td><td>No</td><td><img src="https://content.gitbook.com/content/j0peobkAwfFGbMvp1ZWo/blobs/vVJbMBHNEpVJvT7L0CSv/2%20DUT%200.png" alt=""></td></tr><tr><td>Verify whether the session is successfully closed right after SSH disconnect from the client.</td><td>test_ssh_003</td><td>No</td><td><img src="https://content.gitbook.com/content/j0peobkAwfFGbMvp1ZWo/blobs/vVJbMBHNEpVJvT7L0CSv/2%20DUT%200.png" alt=""></td></tr><tr><td>Verify Tacacs+ with AAA authentication</td><td>test_tacacs_001</td><td>No</td><td><img src="https://content.gitbook.com/content/j0peobkAwfFGbMvp1ZWo/blobs/fV3VycQGmexBbuhyUxqY/1%20DUT%200.png" alt=""></td></tr><tr><td>Verify NTP server works as clock source correctly</td><td>test_ntp_007</td><td>No</td><td><img src="https://content.gitbook.com/content/j0peobkAwfFGbMvp1ZWo/blobs/fV3VycQGmexBbuhyUxqY/1%20DUT%200.png" alt=""></td></tr><tr><td>Verify timezone can be manually configured.</td><td>test_timezone_001</td><td>No</td><td><img src="https://content.gitbook.com/content/j0peobkAwfFGbMvp1ZWo/blobs/fV3VycQGmexBbuhyUxqY/1%20DUT%200.png" alt=""></td></tr><tr><td>Verify ping from SONIC SVI interface and routed port</td><td>test_ping_001</td><td>No</td><td><img src="https://content.gitbook.com/content/j0peobkAwfFGbMvp1ZWo/blobs/wjcJtWdouyTJOOVjXlLT/2%20DUT%200.png" alt=""></td></tr><tr><td>Verify that ping works properly with multiple parameter combination</td><td>test_ping_009</td><td>No</td><td><img src="https://content.gitbook.com/content/j0peobkAwfFGbMvp1ZWo/blobs/H5YXqdwZoCQwphmOy2xg/2%20DUT%200.png" alt=""></td></tr><tr><td>Verify that SONiC Version and serial information can be retrieved via SNMP_WALK command</td><td>test_snmp_walk_version_serial</td><td>No</td><td><img src="https://content.gitbook.com/content/j0peobkAwfFGbMvp1ZWo/blobs/fV3VycQGmexBbuhyUxqY/1%20DUT%200.png" alt=""></td></tr><tr><td>Verify that SONiC interface index information can be retrieved via SNMP_WALK command</td><td>test_snmp_walk_inf_index</td><td>No</td><td><img src="https://content.gitbook.com/content/j0peobkAwfFGbMvp1ZWo/blobs/fV3VycQGmexBbuhyUxqY/1%20DUT%200.png" alt=""></td></tr><tr><td>Verify that SONiC interface name information can be retrieved via SNMP_WALK command</td><td>test_snmp_walk_inf_name</td><td>No</td><td><img src="https://content.gitbook.com/content/j0peobkAwfFGbMvp1ZWo/blobs/fV3VycQGmexBbuhyUxqY/1%20DUT%200.png" alt=""></td></tr><tr><td>Verify that SONiC interface admin and oper status info can be retrieved via SNMP_WALK command</td><td>test_snmp_walk_inf_admin_oper</td><td>No</td><td><img src="https://content.gitbook.com/content/j0peobkAwfFGbMvp1ZWo/blobs/vVJbMBHNEpVJvT7L0CSv/2%20DUT%200.png" alt=""></td></tr><tr><td>Verify that SONiC interface type info can be retrieved via SNMP_WALK command</td><td>test_snmp_walk_inf_type</td><td>No</td><td><img src="https://content.gitbook.com/content/j0peobkAwfFGbMvp1ZWo/blobs/z6ANR0m5YxCBCT3Rn0cy/1%20DUT.png" alt=""></td></tr><tr><td>Verify that tagged ports vlan id can be retrieved using the SNMP_WALK command</td><td>test_snmp_walk_vlan_tagged_ports</td><td>No</td><td><img src="https://content.gitbook.com/content/j0peobkAwfFGbMvp1ZWo/blobs/vVJbMBHNEpVJvT7L0CSv/2%20DUT%200.png" alt=""></td></tr><tr><td>Verify that untagged ports vlan id can be retrieved using the SNMP_WALK command</td><td>test_snmp_walk_vlan_untagged_ports</td><td>No</td><td><img src="https://content.gitbook.com/content/j0peobkAwfFGbMvp1ZWo/blobs/vVJbMBHNEpVJvT7L0CSv/2%20DUT%200.png" alt=""></td></tr><tr><td>Verify that LLDP neighbor info. can be retrieved via SNMP_WALK command</td><td>test_snmp_walk_lldp</td><td>No</td><td><img src="https://content.gitbook.com/content/j0peobkAwfFGbMvp1ZWo/blobs/vVJbMBHNEpVJvT7L0CSv/2%20DUT%200.png" alt=""></td></tr><tr><td>Verify that routing information can be retrieved via SNMP_WALK command</td><td>test_snmp_walk_ip_routing_info</td><td>No</td><td><img src="https://content.gitbook.com/content/j0peobkAwfFGbMvp1ZWo/blobs/vVJbMBHNEpVJvT7L0CSv/2%20DUT%200.png" alt=""></td></tr><tr><td>Verify that SONiC IP interface index and netmask info can be retrieved via SNMP_WALK command</td><td>test_snmp_walk_ip_inf_index_and_netmask</td><td>No</td><td><img src="https://content.gitbook.com/content/j0peobkAwfFGbMvp1ZWo/blobs/vVJbMBHNEpVJvT7L0CSv/2%20DUT%200.png" alt=""></td></tr><tr><td>SNMP walk to loopback interface to retrieve the interface index and netmask</td><td>test_snmp_walk_to_loopback_to_get_intfindex_netmask</td><td>No</td><td><img src="https://content.gitbook.com/content/j0peobkAwfFGbMvp1ZWo/blobs/vVJbMBHNEpVJvT7L0CSv/2%20DUT%200.png" alt=""></td></tr><tr><td>SNMP walk to loopback interface to retrieve the mac address</td><td>test_snmp_walk_to_loopback_to_get_macaddress</td><td>No</td><td><img src="https://content.gitbook.com/content/j0peobkAwfFGbMvp1ZWo/blobs/vVJbMBHNEpVJvT7L0CSv/2%20DUT%200.png" alt=""></td></tr><tr><td>SSH over SVI interface</td><td>test_ssh_004</td><td>No</td><td><img src="https://content.gitbook.com/content/j0peobkAwfFGbMvp1ZWo/blobs/vVJbMBHNEpVJvT7L0CSv/2%20DUT%200.png" alt=""></td></tr><tr><td>Verify syslog capture in TCP dumps on link down/up events</td><td>test_syslog_tcp_dump</td><td>No</td><td><img src="https://content.gitbook.com/content/j0peobkAwfFGbMvp1ZWo/blobs/vVJbMBHNEpVJvT7L0CSv/2%20DUT%200.png" alt=""></td></tr><tr><td>TACACS passkey is encrypted in the configuration</td><td>test_tacacs_passkey_encryption</td><td>No</td><td><img src="https://content.gitbook.com/content/j0peobkAwfFGbMvp1ZWo/blobs/z6ANR0m5YxCBCT3Rn0cy/1%20DUT.png" alt=""></td></tr><tr><td>Verify that a configured time zone is synchronized with the system time</td><td>test_frr_timezone_sync</td><td>No</td><td><img src="https://content.gitbook.com/content/j0peobkAwfFGbMvp1ZWo/blobs/z6ANR0m5YxCBCT3Rn0cy/1%20DUT.png" alt=""></td></tr></tbody></table>

{% hint style="info" %}
PD(Platform dependent) means that FTAS is designed to work with specific hardware and software configurations and may not be compatible with other platforms.
{% endhint %}
