# FV VirtualBox Installation

## Pre-Requisit&#x65;**:**

* A Windows machine/VM with the below minimum requirement:
  * 2 vCores (available for FlowVision VM)
  * 8 GB RAM
  * 40 GB HDD
* Download Oracle VM virtual box from the below link
  * [![](https://www.virtualbox.org/favicon.ico)Downloads – Oracle VM VirtualBox](https://www.virtualbox.org/wiki/Downloads)
* Install Oracle VM Virtual box
  * [![](https://www.virtualbox.org/favicon.ico)](https://www.virtualbox.org/wiki/Downloads)[VirtualBox Installation Guide](https://www.virtualbox.org/manual/UserManual.html#installation)



## Importing OVA: <a href="#ova-booting-steps" id="ova-booting-steps"></a>

* Import the OVA file in Oracle VM virtual box

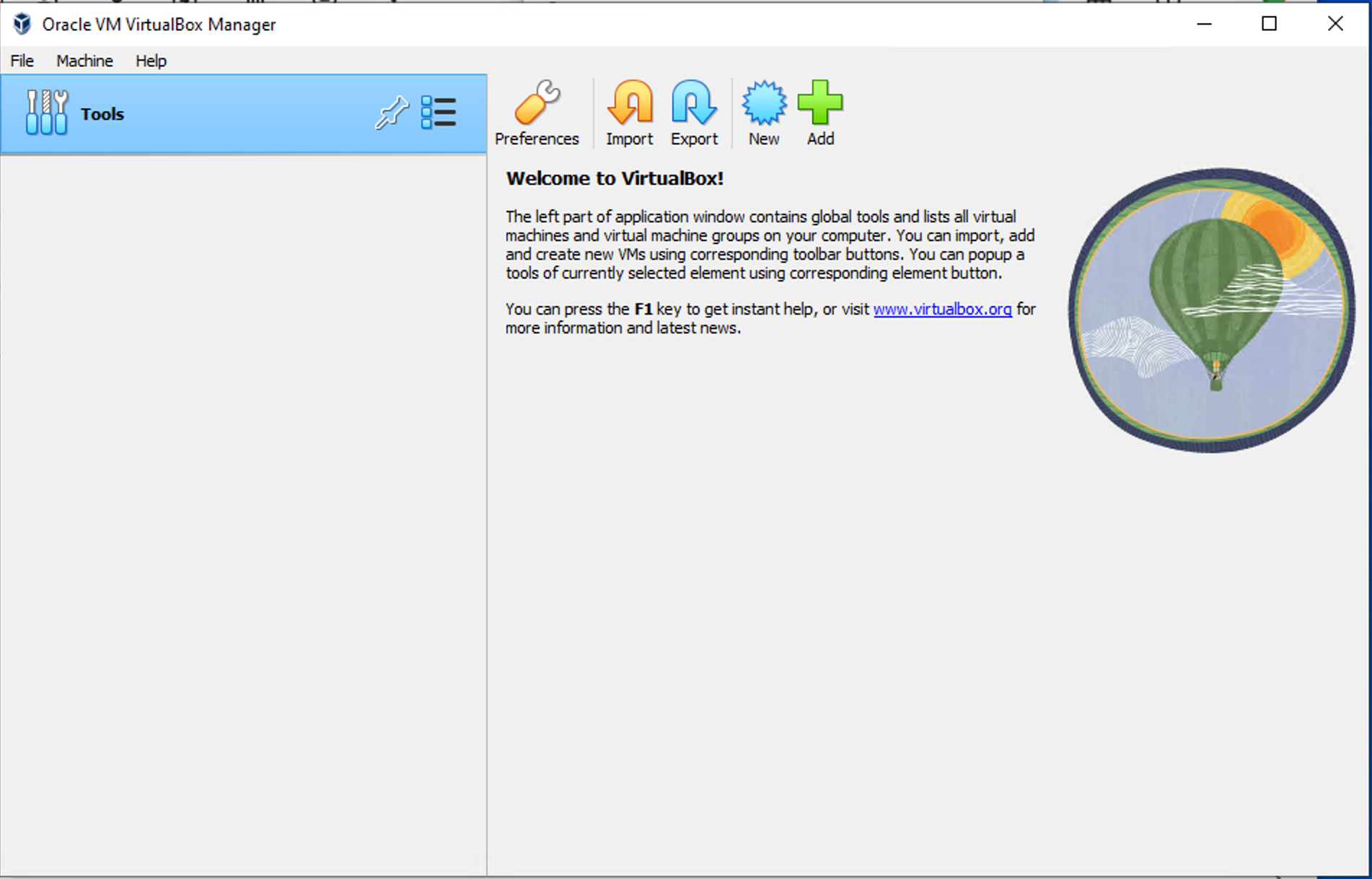

<figure><img src="https://content.gitbook.com/content/YfL8XRgjJPMQgyU7TZUv/blobs/02cNvcTpTF1VKMlMkTtz/9b34e94a-3549-406a-8bd5-4a50e084b333.png" alt=""><figcaption><p>VirtualBox Main Windows for Importing OVA</p></figcaption></figure>

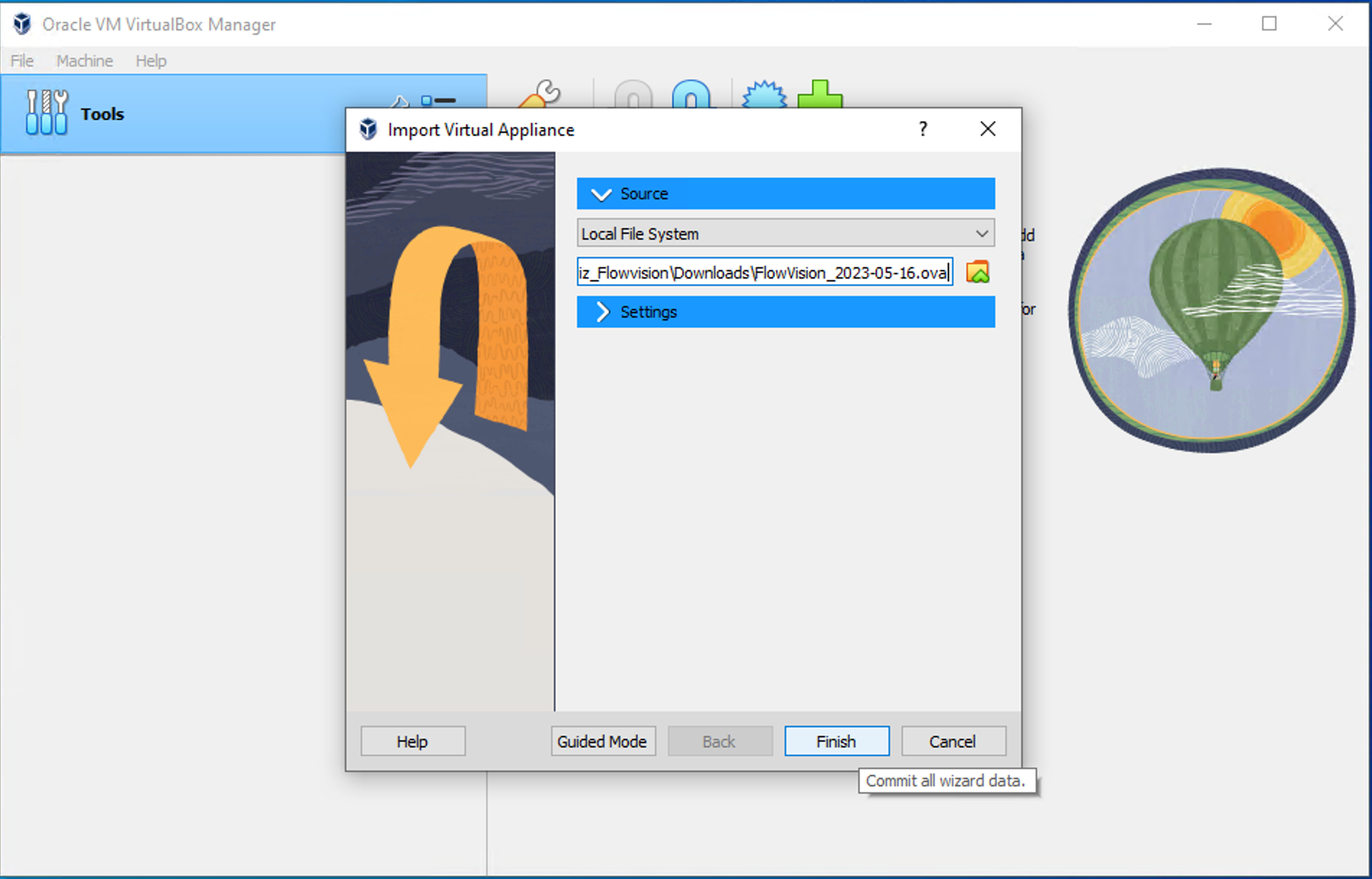

<figure><img src="https://content.gitbook.com/content/YfL8XRgjJPMQgyU7TZUv/blobs/ErSA8eBOtjjaxXAaW3az/20b05150-2379-4542-b6db-7ec35e3ca7d4.png" alt=""><figcaption><p>Select the FlowVision OVA</p></figcaption></figure>

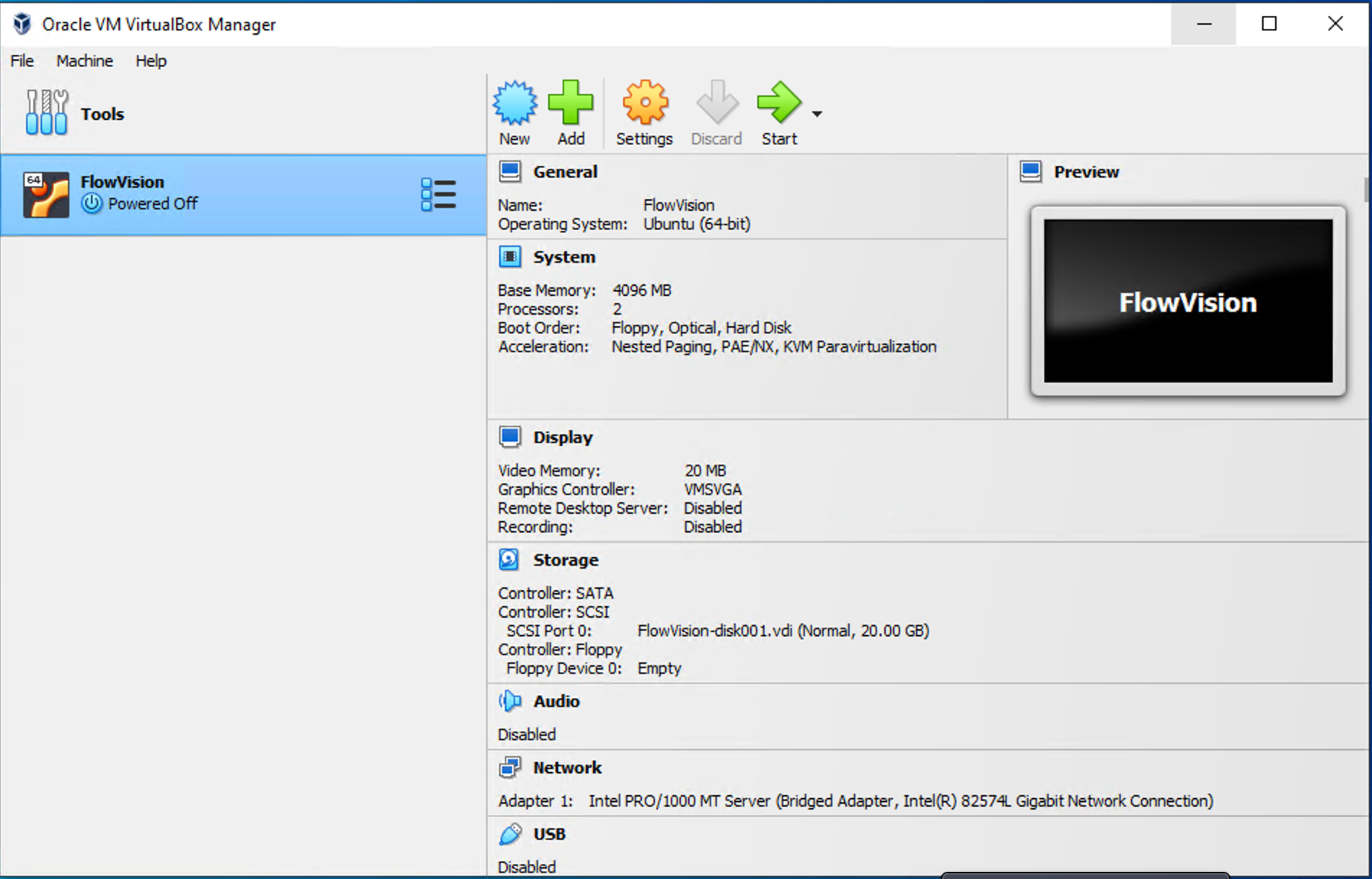

<figure><img src="https://content.gitbook.com/content/YfL8XRgjJPMQgyU7TZUv/blobs/6D5eNSy3MuPzjdQcfRez/4d0fec03-884c-4fe1-b293-7fbc3f668d9c.png" alt=""><figcaption><p>FlowVision VM</p></figcaption></figure>

* Click the start button to power-on the virtual machine

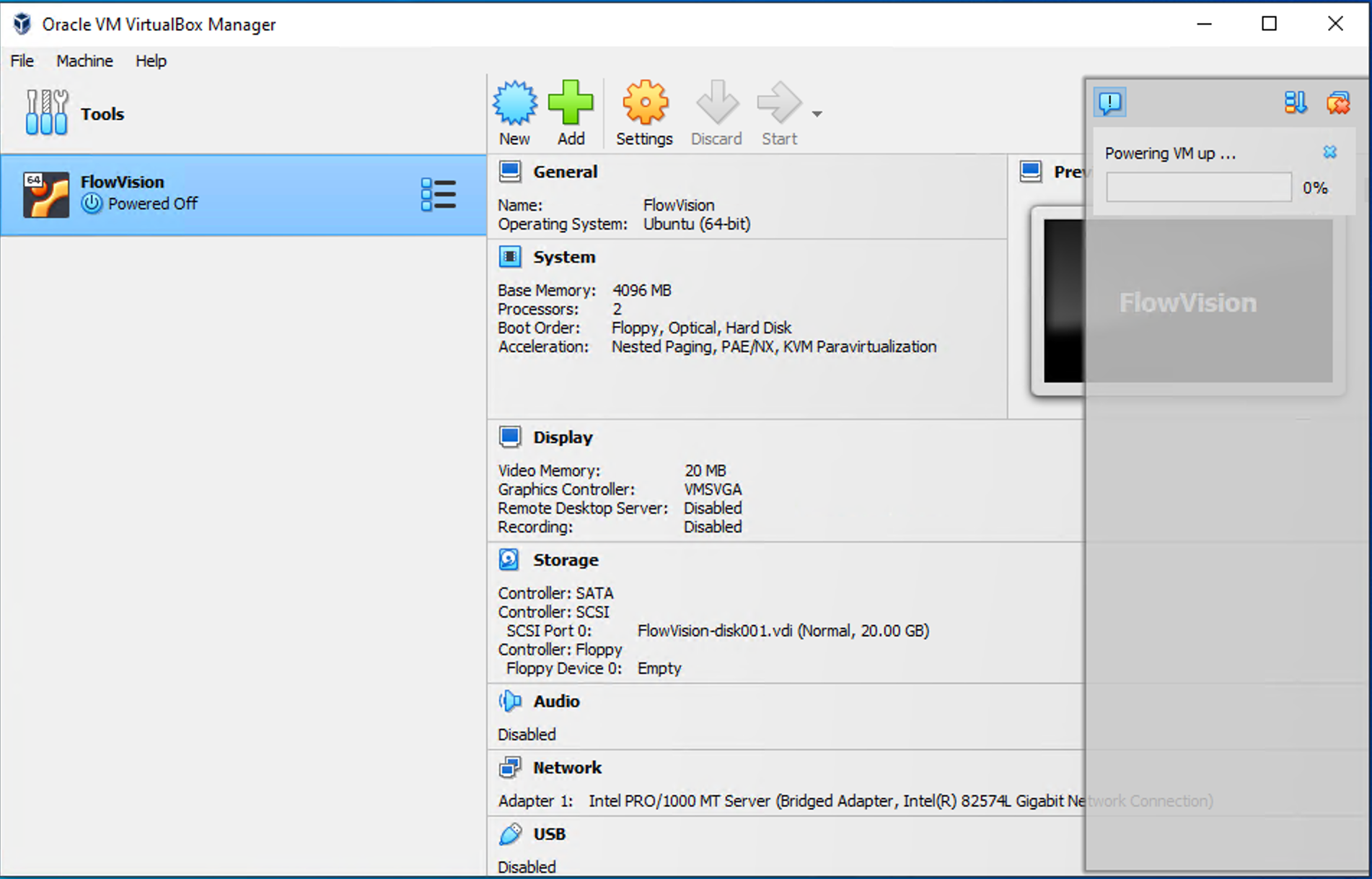

<figure><img src="https://content.gitbook.com/content/YfL8XRgjJPMQgyU7TZUv/blobs/akF6ptG6u67VXr3XThFk/280d82ed-310b-4811-b232-1c6a88d87177.png" alt=""><figcaption><p>Starting the FlowVision VM</p></figcaption></figure>

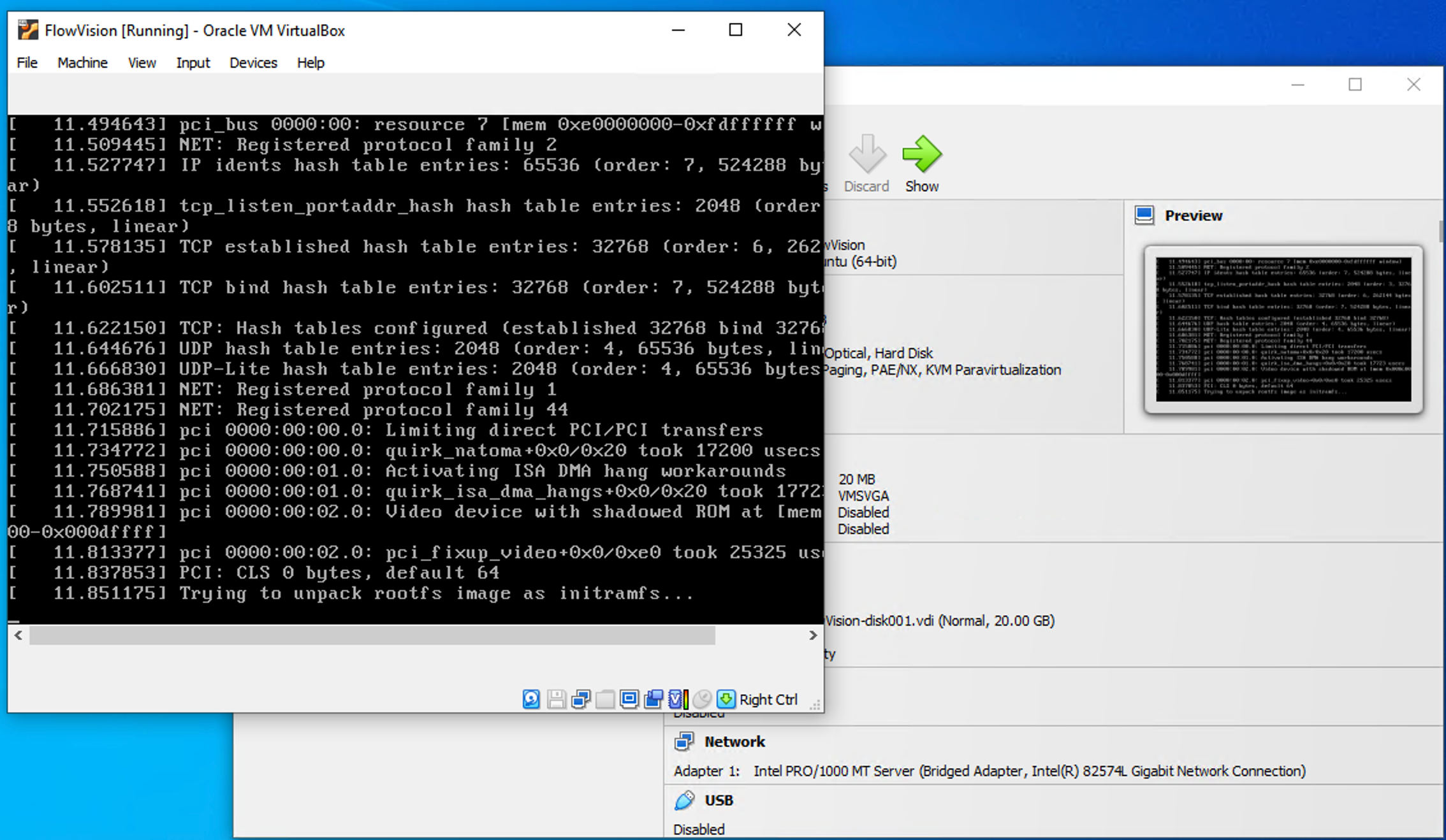

<figure><img src="https://content.gitbook.com/content/YfL8XRgjJPMQgyU7TZUv/blobs/YCSzzBryMFaYvUfF7S4v/668476ee-591c-427a-b12f-72b8a37df4aa.png" alt=""><figcaption><p>FlowVision boot logs</p></figcaption></figure>

* Log in to the FlowVision VM with default credentials
  * <mark style="color:purple;">Username</mark>: aviz
  * <mark style="color:purple;">Password</mark>: Aviz@123

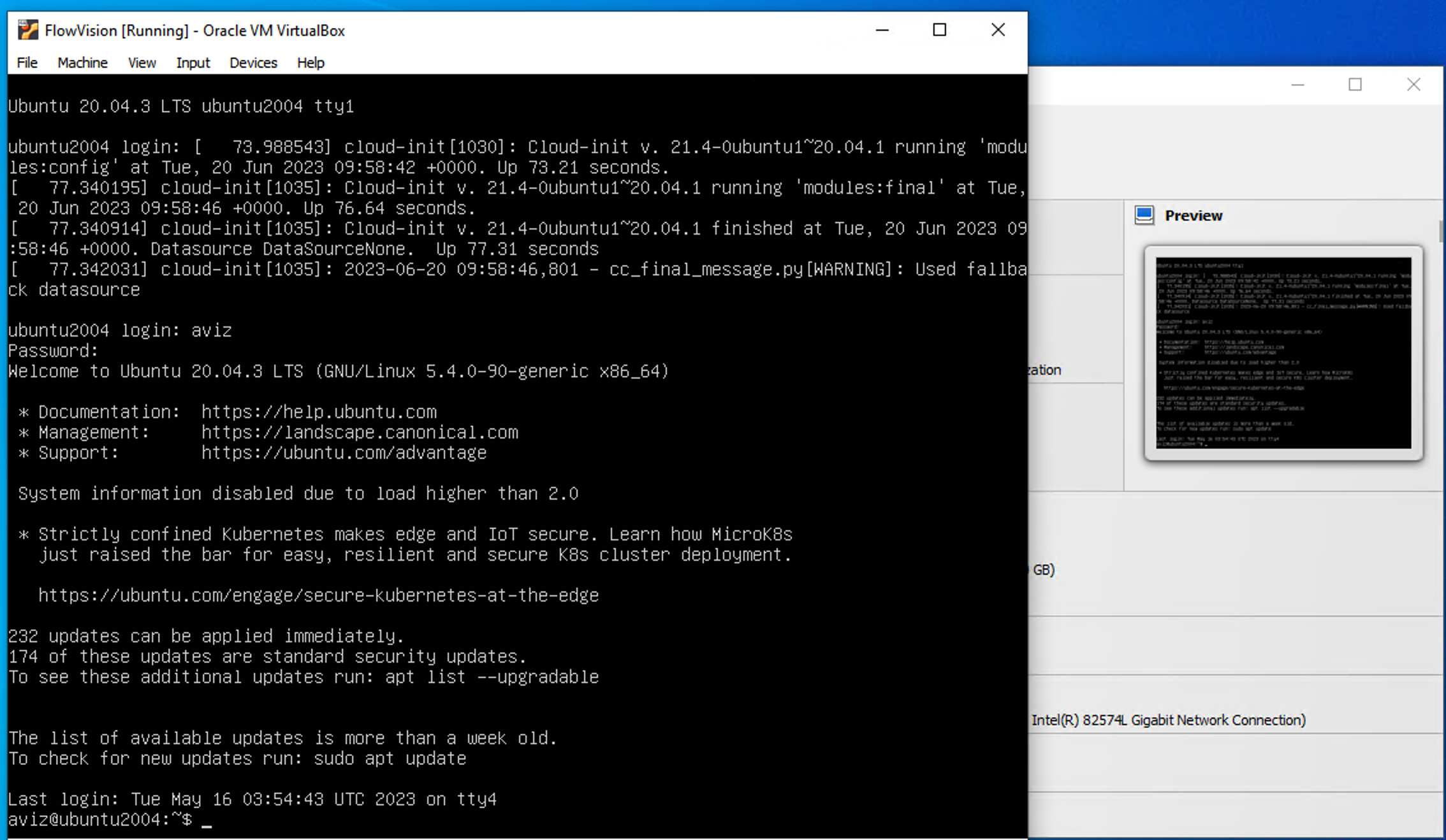

<figure><img src="https://content.gitbook.com/content/YfL8XRgjJPMQgyU7TZUv/blobs/Alx8tilypMcXeLDflefT/f5166a19-f015-41b2-beb8-16877a458b57.png" alt=""><figcaption><p>FLowVision CLI</p></figcaption></figure>

* Get the IP address of the VM through `ip address show`

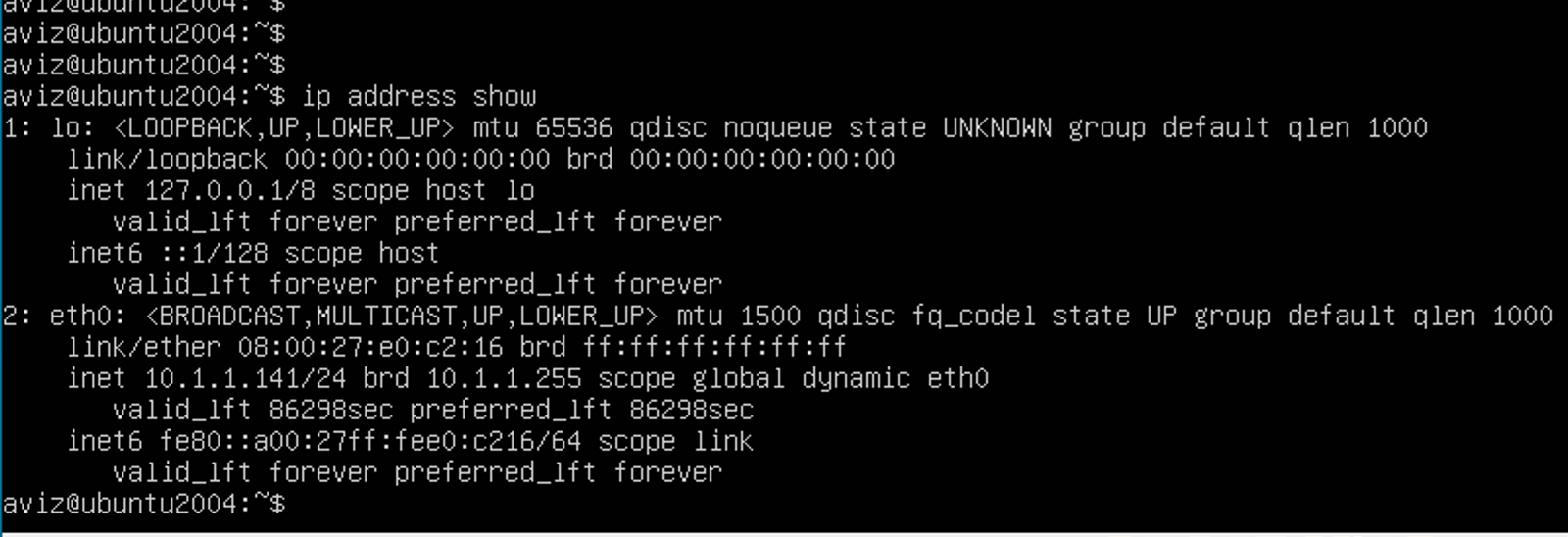

<figure><img src="https://content.gitbook.com/content/YfL8XRgjJPMQgyU7TZUv/blobs/uffcgJCWU1UERrTsNO8h/f6295bfd-628b-4e5e-b99f-735b6689012b.png" alt=""><figcaption><p>Check IP address</p></figcaption></figure>

*   Access the GUI through the above IP using your favourite browser with http port: <mark style="color:orange;">8093</mark>

    * <mark style="color:blue;">https://\<VM\_IP>:8093/</mark>

    <figure><img src="https://lh7-us.googleusercontent.com/docsz/AD_4nXevMHb_swt_gVchfd4ykEsksSrZgyLPDQwbO6zxlm9k1HRTwHs3AiwQz0utPrr1w67Wb4Ny_FoZaD_53E32tq15DfU89dA2j7voB9FzOMTtFMHYQeOYRNd9KFwiJ-q62Adhmh_aIZYLMl6se5qBeBf4qdY?key=vZDEG1piPEnVZxQnq_Pfzg" alt=""><figcaption><p>Login Screen</p></figcaption></figure>
* Login to the GUI with the default credentials&#x20;
  * Username: <mark style="color:blue;">admin</mark>
  * Password: <mark style="color:blue;">admin</mark>

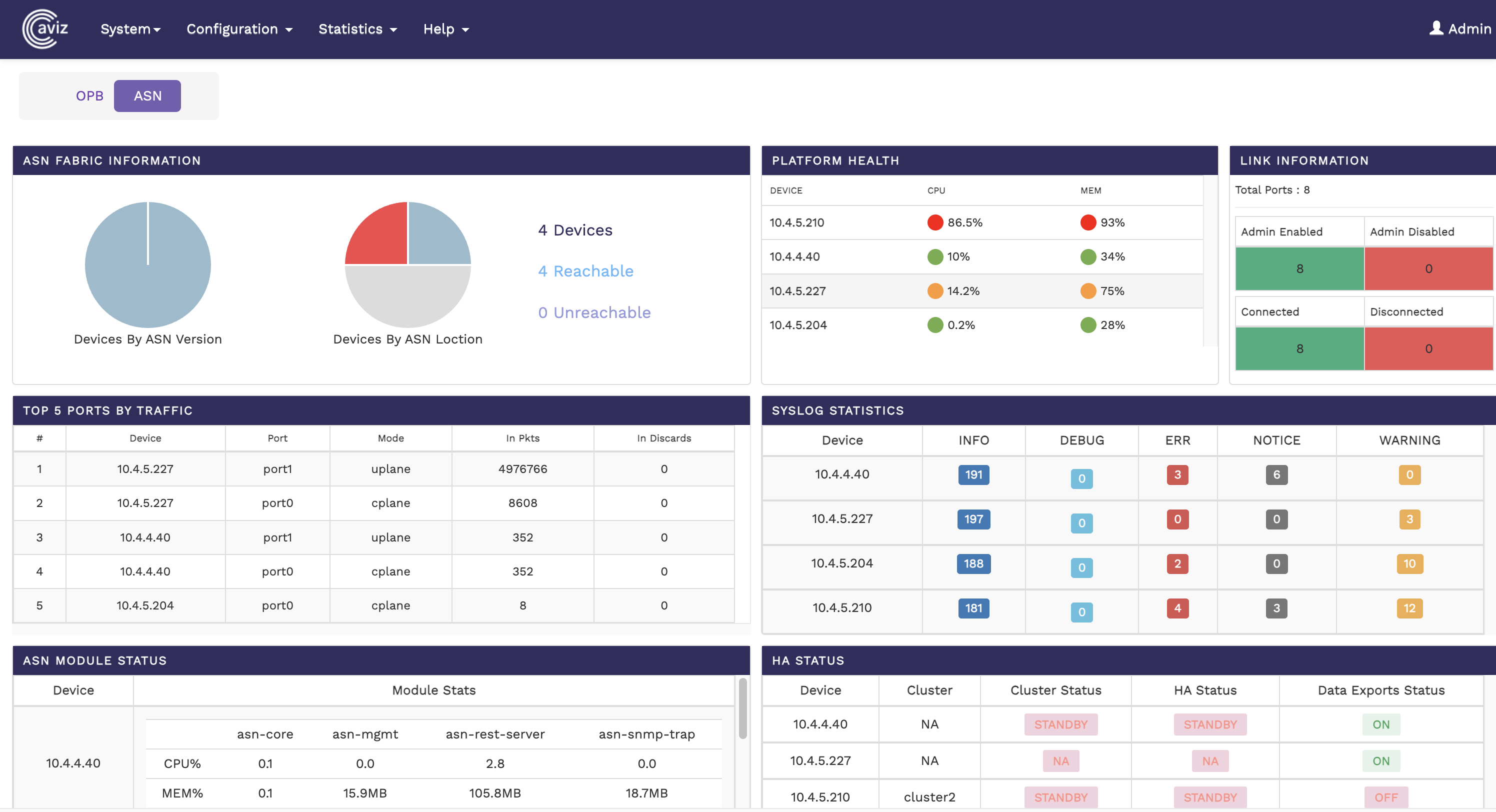

<figure><img src="https://content.gitbook.com/content/YfL8XRgjJPMQgyU7TZUv/blobs/xIJ2BX81AQ1acoKhKEms/Screenshot%202024-06-05%20at%202.40.59%E2%80%AFPM.png" alt=""><figcaption><p>FlowVision ASN-GUI</p></figcaption></figure>
