# 5G-SA

<figure><img src="https://2744790162-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F9U8JFHRWuIRsGm4AQFHc%2Fuploads%2FjOJsRA3nV7rTnDhF3sHZ%2FScreenshot%202024-06-05%20at%203.20.54%E2%80%AFPM.png?alt=media&#x26;token=178acae8-117f-496e-840e-4c28e4f6baf8" alt=""><figcaption></figcaption></figure>

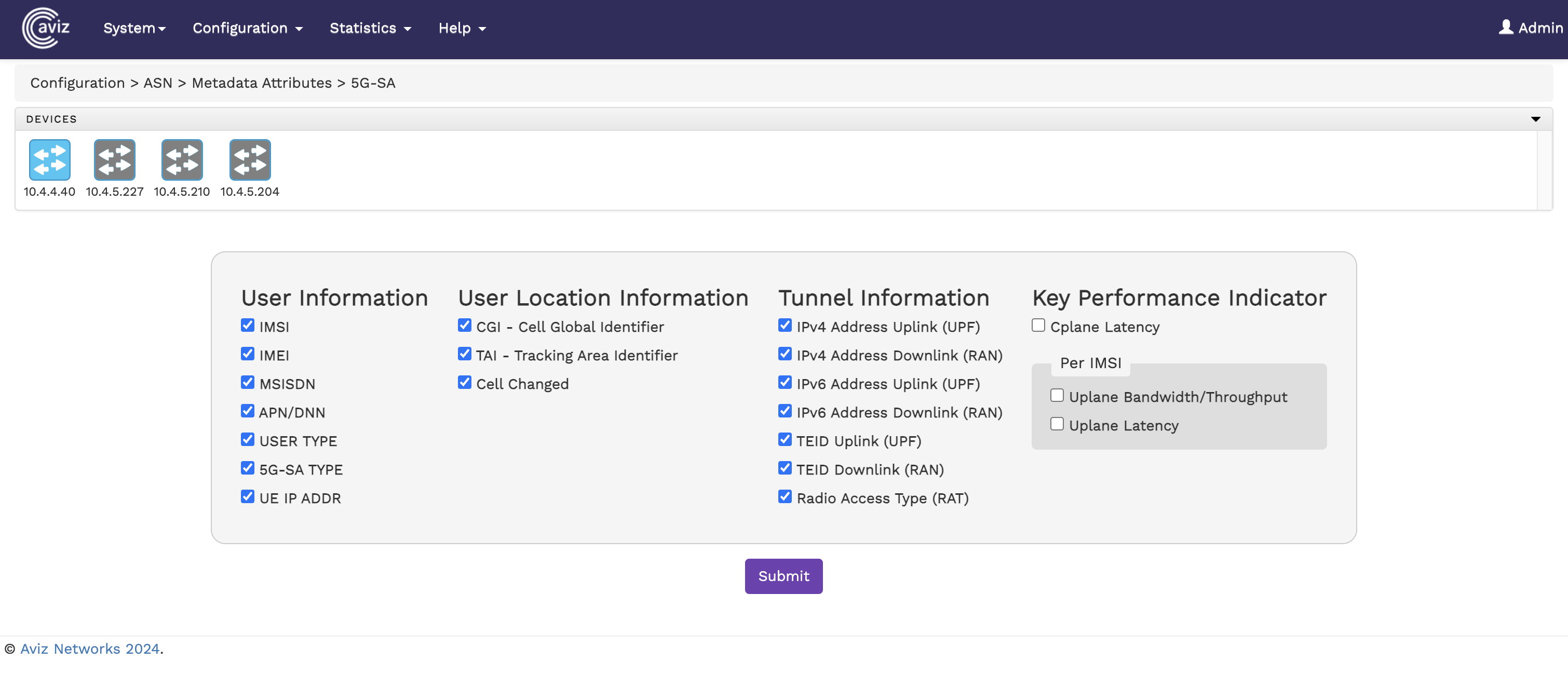

**Configurable Metadata Extraction in ASN**

From this page, you can **enable or disable** the following **metadata extraction options** on the **Aviz Service Node (ASN) for 5G-SA:**

## User Information

1. **IMSI (International Mobile Subscriber Identity):** A unique identifier for a mobile subscriber.
2. **IMEI (International Mobile Equipment Identity):** A unique identifier for a mobile device.
3. **MSISDN (Mobile Station International Subscriber Directory Number):** The phone number associated with the subscriber.
4. **APN/DNN (Access Point Name / Data Network Name):** Defines the network path for data connections.
5. **USER TYPE**: Classification of the user, typically indicating subscriber type or service level.
6. **5G-SA TYPE**: Type of 5G network architecture, such as standalone (SA) or non-standalone (NSA).
7. **UE IP ADDR(User Equipment IP Address)**:The IP address assigned to the user's device.

## User Location Information

1. **CGI** **(Cell Global Identifier):** Unique identifier for a cell in a mobile network.
2. **TAI (Tracking Area Identifier)**: Identifier for tracking areas in a 5G network.
3. **Cell Changed**: Indicates whether the user's device has changed cells within the network.

## Tunnel Information

1. **IPV4 Address Uplink** **(UPF)**: IPv4 address for the uplink from the User Plane Function (UPF).
2. **IPv4 Address Downlink (RAN)**: IPv4 address for the downlink to the Radio Access Network (RAN).
3. **IPv6 Address Uplink** **(UPF)**: IPv6 address for the uplink from the User Plane Function (UPF).
4. **IPv6 Address Downlink (RAN)**: IPv6 address for the downlink to the Radio Access Network (RAN).
5. **TEID Uplink** **(UPF)**: Tunnel Endpoint Identifier for the uplink from the User Plane Function (UPF).
6. **TEID Downlink** **(RAN)**: Tunnel Endpoint Identifier for the downlink to the Radio Access Network (RAN).
7. **RAT** **(Radio Access Type)**: The type of radio access technology used, such as 5G NR.

## Key Performance Indicator(KPIs)

1. **Cplane Latency**: The latency in the control plane, measuring the delay in signaling and control messages.
2. **Per IMSI Metrics**:
   * **Uplane Bandwidth/Throughput**: Bandwidth or throughput in the user plane for each IMSI.
   * ﻿﻿**Uplane Latency**: Latency in the user plane, measuring data transmission delay for each IMSI.
